Description:The 2094-BM01-S is a 50 mm-wide Axis Module (AM) that snaps onto the Kinetix 6000 shared-DC bus..
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 2094-BM01-S |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

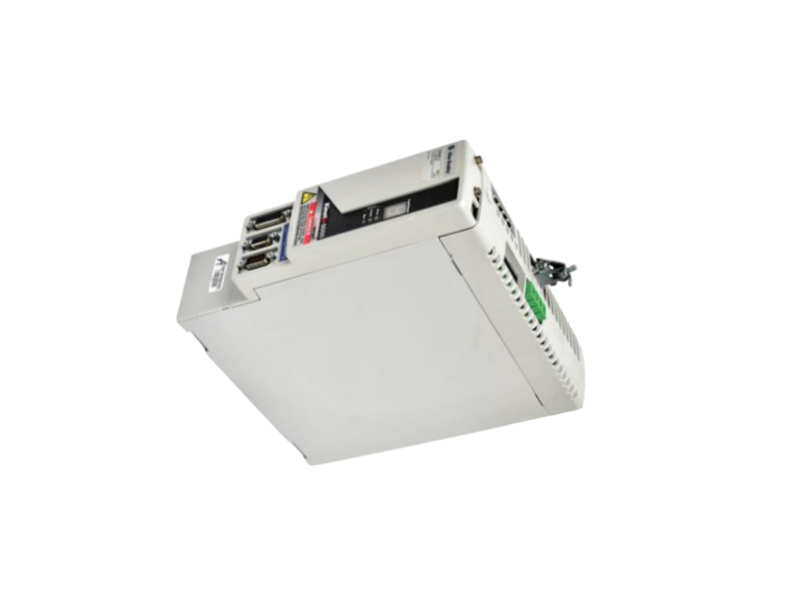

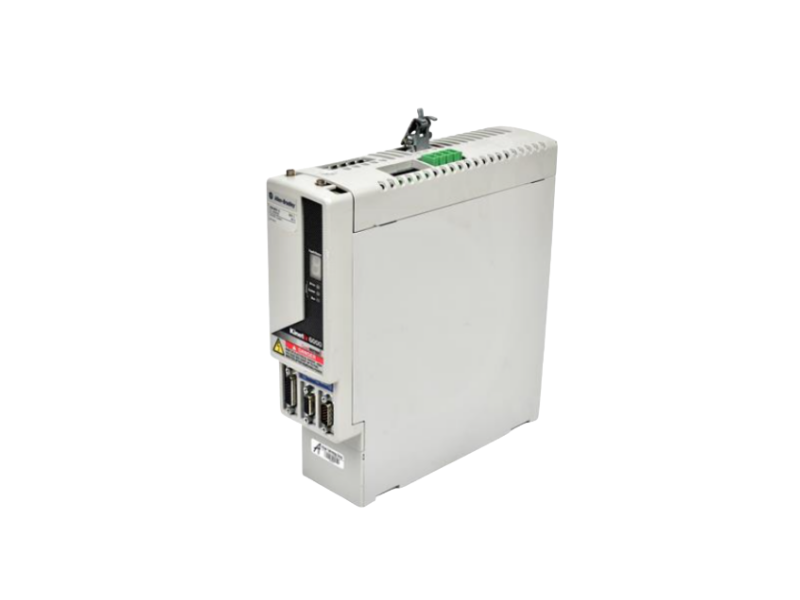

Allen-Bradley 2094-BM01-S Kinetix 6000 Multi-Axis Servo Drive
9 A Axis Module – Plug-in expansion for ultra-compact SERCOS systems
Sales Manager May | 20 years of Allen-Bradley motion stock & support
E-mail: ab@mooreplc.com | WhatsApp: +86-18106909650 | WeChat: dcsfcs
The 2094-BM01-S is a 50 mm-wide Axis Module (AM) that snaps onto the Kinetix 6000 shared-DC bus.
It provides one servo axis of 4.5 A continuous / 9 A peak (2 s) at 460 V, turning the DC-link from any IAM into precise motion without additional mains hardware.
|
Spec |
Value |
Comment |
|
Bus voltage |
650 – 750 V dc |
Supplied by IAM |
|
Cont. current |
4.5 A rms |
@ 45 °C |
|
Peak current |
9 A (2 s) |
200 % with Peak-Enhance |
|
PWM frequency |
8 kHz std. |
4 kHz optional |
|
Width |
50 mm |
Matches IAM book size |
|
Depth |
275 mm |
IP20, vertical mount |
|
Control I/O |
STO (Safe-Torque-Off) SIL3 / PLe |
Wired inside rail |
|
Motor feedback |
Absolute Hiperface, incremental, resolver |
Auto-identify |
1 × 2094-BC01-M01-S IAM (9 kW)
1–3 × 2094-BM01-S AM (this unit)
2094-PR1 / PR2 rail
5069-M8SE or 1756-M08SE SERCOS card
Total width 100 mm – 200 mm for a complete 2–4 axis machine.
Same slice, same spares – 50 mm footprint from 4 A to 9 A; one backup module covers every small axis.
Energy recycling – regenerative power is absorbed by sister axes, keeping resistors optional.
Firmware identical – servo loops, anti-vibration filters and safety STO are reused unchanged when you upgrade to higher AMs.
Tool-less install – slide, latch, connect two cables; motion is live in under five minutes.
Stocked in Xiamen; 12-month warranty.
For quotations or ESD packaging details contact May:
ab@mooreplc.com | +86-18106909650 | WeChat: dcsfcs
20 years of Kinetix experience — packed into a 50 mm slice.
