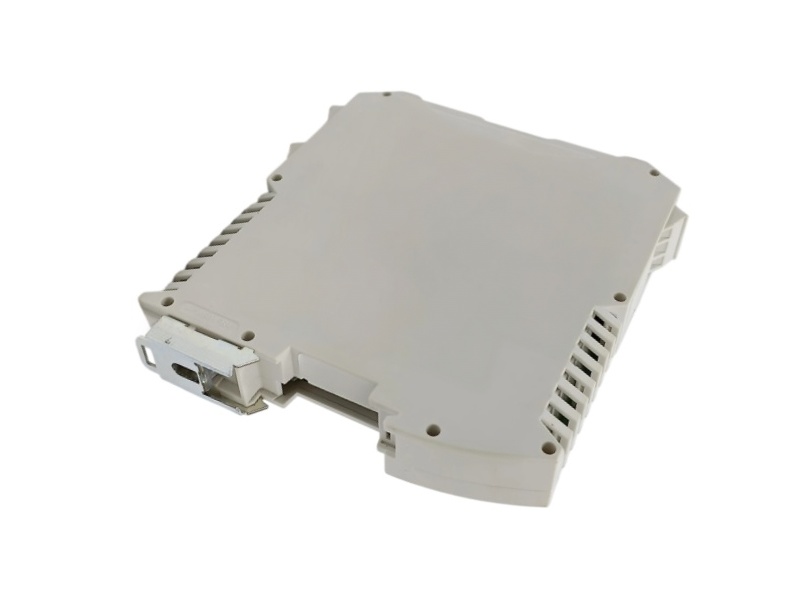

ABB TTR200 industrial automation product

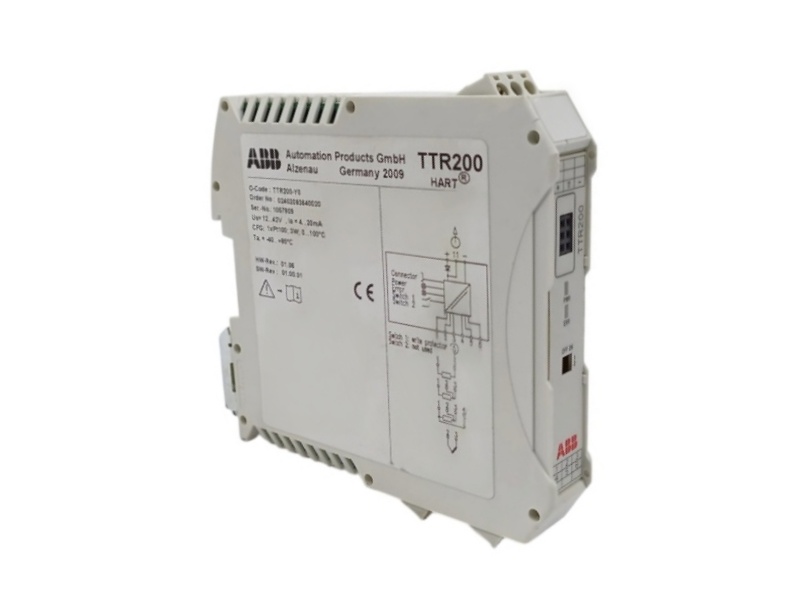

ABB TTR200 nameplate and hardware view
ABB TTR200 product detail view

ABB TTR200 Rail-Mount HART Temperature Transmitter

ABB / Measurement & Analytics / Temperature

TTR200 HART Temperature Transmitter

The ABB TTR200 is a 17.5 mm rail-mount universal temperature transmitter for RTD, thermocouple, resistance and millivolt inputs with a 4-20 mA HART output.

For selection, confirm the sensor type and wiring, measuring range, HART mode, installation environment, safety requirement and any explosion-protection approval needed for the application.

ModelTTR200
Mounting35 mm DIN Rail
InputRTD / TC / Ohm / mV
Output4-20 mA HART
ProtectionIP20
Lead Time2-3 DAYS
Order check: provide the sensor type, connection method, measuring range, hazardous-area requirement, quantity and destination.
✓ Top Quality
⚡ Fast Delivery
◎ 24/7 Service
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB Automation Products GmbH
Item number TTR200
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support One-year warranty, please contact May
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Universal HART Temperature Transmitter

The ABB TTR200 is a universal rail-mount temperature transmitter in a 17.5 mm housing. ABB specifies universal sensor support, a 4-20 mA signal with HART communication, diagnostics and functional-safety capability for industrial temperature measurement.

ManufacturerABB
ModelTTR200
Product TypeRail-Mount Transmitter
Sensor InputsRTD / TC / Ohm / mV
Output Signal4-20 mA + HART
Mounting35 mm DIN Rail
ProtectionIP20
Lead Time2-3 DAYS
Measurement performanceABB lists 0.1% accuracy and 0.05% per year stability, together with NE89 wire-break/corrosion monitoring and NE107 diagnostic support.
Installation contextThe standard ambient range is -40 to 85 degrees C. The IP20 device is intended for installation in a suitable cabinet or enclosure, with approvals checked for the actual location.
02

Sensor, HART & Installation Check

The correct TTR200 setup depends on the connected sensor, wiring, range, HART operating mode and installation classification.

1. Match the sensorSpecify the RTD, thermocouple, resistance or millivolt sensor and its exact connection arrangement.
2. Define the measuring rangeProvide the lower and upper range values, engineering unit and required fault-current behavior.
3. Verify loop powerCheck the available loop supply and load against the ABB wiring and HART communication requirements.
4. Select the HART modeAddress 0 uses point-to-point 4-20 mA operation; addresses 1-15 use multidrop with a fixed 3.6 mA output.
5. Confirm safety needsIdentify whether the application requires SIL 2, redundant SIL 3 or explosion-protection approvals.
6. Plan the enclosureMount the 17.5 mm module on a 35 mm rail inside an enclosure suitable for the required environmental rating.
03

Buyer Questions for ABB TTR200

Which sensor types can ABB TTR200 accept?ABB TTR200 supports resistance thermometers, thermocouples, resistance measurement and millivolt input. The exact sensor and wiring must be configured before commissioning.
How does ABB TTR200 behave in HART multidrop mode?With HART addresses 1 through 15, ABB TTR200 fixes the analog output at 3.6 mA and communicates process data digitally over HART.
Can ABB TTR200 be used in a SIL 3 application?ABB states SIL 2 capability for a single transmitter and SIL 3 capability in a redundant arrangement; the complete safety function still requires engineering validation.
Does ABB TTR200 require an enclosure?Yes. ABB specifies IP20 for the rail-mount device, so the installation enclosure must provide the protection required by the site.
Has ABB announced that TTR200 is discontinued?The reviewed ABB product page and current technical literature do not state that TTR200 is discontinued. Confirm current supply status and lead time by quotation.
What details are needed to quote ABB TTR200 with manuals?Provide the sensor type, connection, measuring range, HART requirement, hazardous-area approval, quantity, destination and request for the applicable ABB data sheet or instructions.
