MC-PAOX03 51309152-175 | Analog Output Processor Module

Sales Manager: May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs

Industrial Power Supply Module | Global 3-day DHL | 12-month warranty

What it is

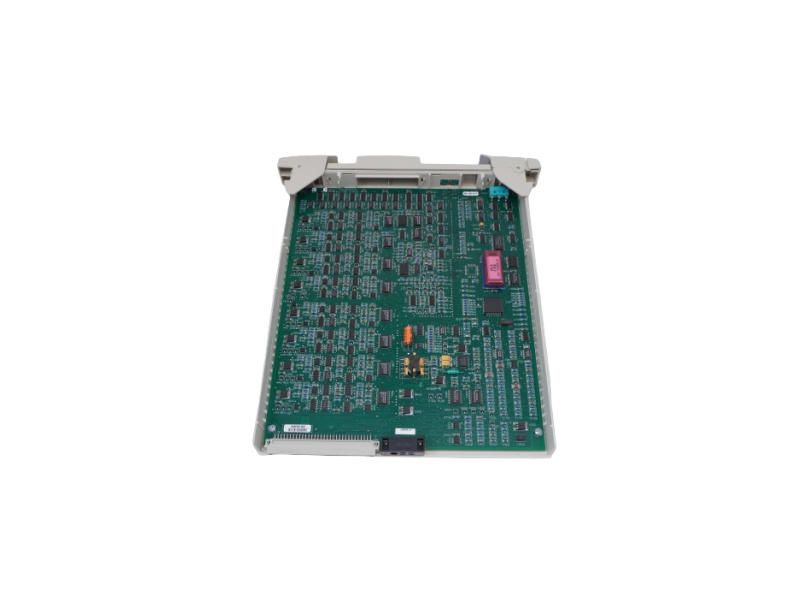

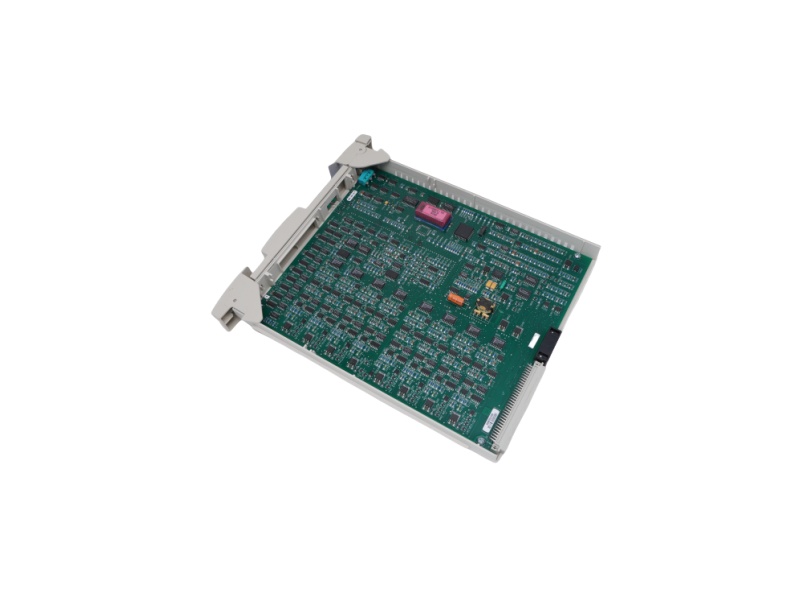

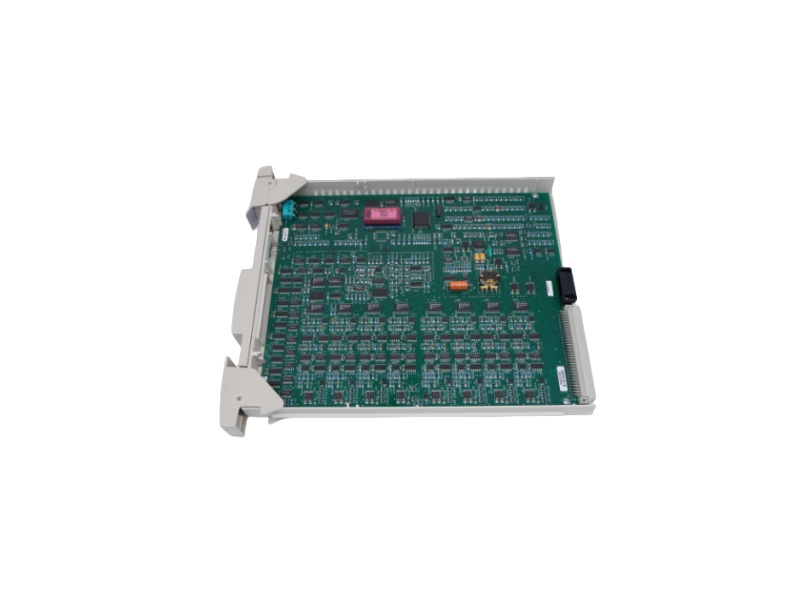

MC-PAOX0351309152-175 — Analog Output Processor Module (8 channels) for high-precision 4-20mA output signal

generation in Honeywell systems. This module belongs to Honeywell's "Analog Output Processor (AOIOP)" series and is

used to convert output commands from a control system into analog current signals (such as 4-20mA) to drive field actuators.

Technical Specifications

Model: MC-PAOX03

Order Number: 51309152-175

Number of Output Channels: 8 channels — 4-20mA Analog Output

Output Type: 4-20mA Analog Current Output to Proportional Loads (e.g., Valves)

Calibration Accuracy: ±0.35% @ 25°C (including linearity)

Resolution: ±0.05%

Output Drive Capability: Maximum load approx. 750Ω @ 22mA

Redundancy Support: Supports redundant output configurations

Surface Treatment/Certification: CE compliant, conformal coating version

Product Advantages

Based on our 20 years of field service experience, this module offers the following advantages:

Ø High-precision analog output: 8-channel design, 4-20mA output, ±0.35% accuracy, ±0.05% resolution, suitable for applications requiring high proportional control.

Ø Saves system space: A single module with 8 channels can meet the needs of most systems, reducing the number of modules and wiring complexity.

Ø Excellent load adaptability: Supports loads up to approximately 750Ω and proportional load connections, adaptable to various field actuators.

Ø Redundancy support: Redundant outputs can be implemented for critical control scenarios (such as safety systems or important process stages), improving system reliability.

Ø Compatible with the Honeywell system ecosystem: As one of the common AO modules for Honeywell systems (such as TPS/PM/APM), selection compatibility risks are low and replacement is convenient.

Ø Strong field adaptability: CE compliant, conformal coating version enhances resistance to moisture, dust, and corrosion, suitable for industrial field use.
