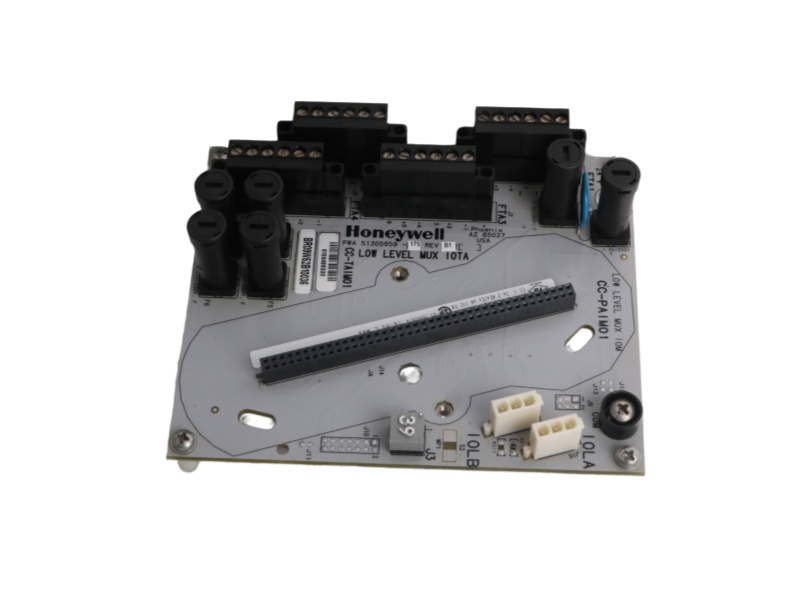

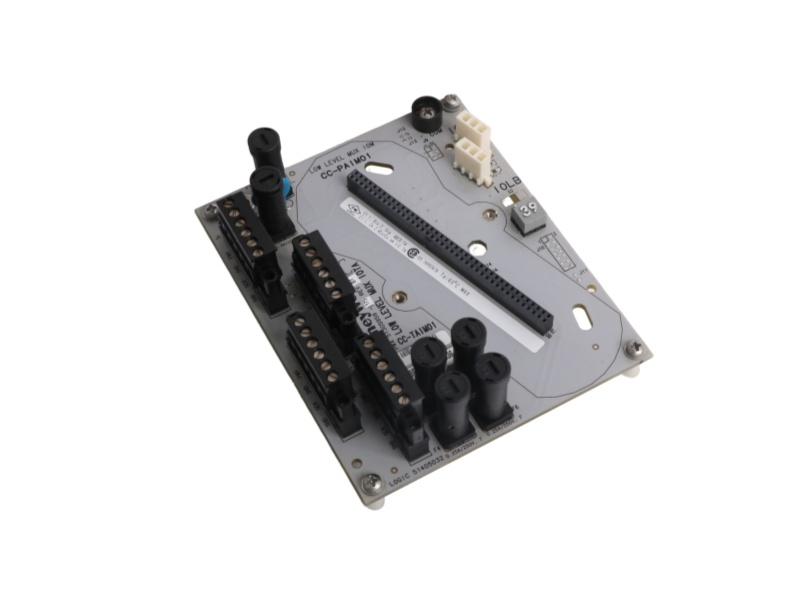

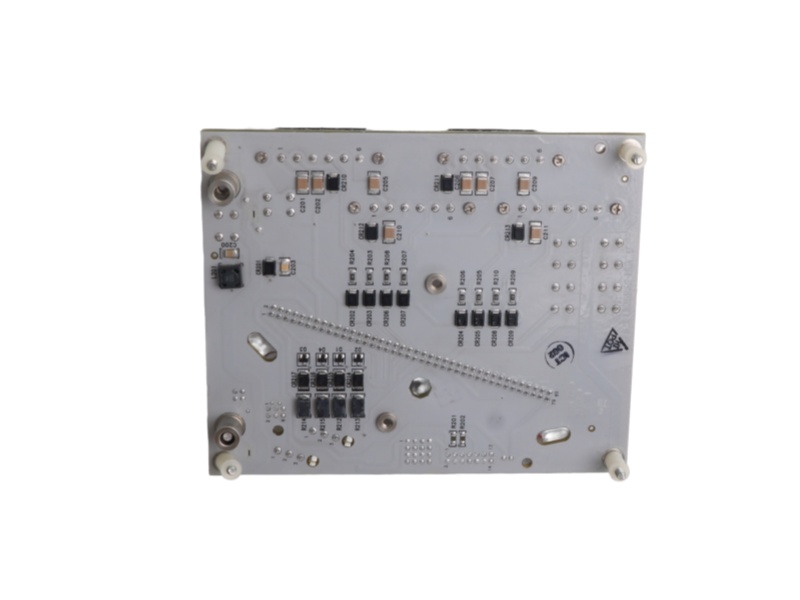

Honeywell CC-TAIM01 Low-Level Multiplexer IOTA Image 1
Honeywell CC-TAIM01 Low-Level Multiplexer IOTA Image 2
Honeywell CC-TAIM01 Low-Level Multiplexer IOTA Image 3

Honeywell CC-TAIM01 Low-Level Multiplexer IOTA

HONEYWELL · SERIES C I/O · LLMUX

Honeywell CC-TAIM01 is the non-redundant low-level multiplexer IOTA used with CC-PAIM01 for thermocouple and RTD inputs through supported remote FTAs. Confirm FTA models, channel count, sensor wiring and cold-junction compensation before replacement.

CATALOG NUMBERCC-TAIM01
IOTA FUNCTIONLLMUX
MATCHED IOMCC-PAIM01
INPUT SCALEUp to 64 inputs
Order check: match CC-TAIM01 with CC-PAIM01; verify every FTA, thermocouple or RTD type, channel count and remote CJC path.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Honeywell International Inc.
Item number CC-TAIM01
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · LOW-LEVEL MULTIPLEXER IOTA IDENTITY

Reference-level checks for Honeywell CC-TAIM01.

A model-specific view of the non-redundant LLMUX IOTA, its CC-PAIM01 pairing and the thermocouple and RTD expansion details that govern integration.

CATALOG NUMBERCC-TAIM01
IOTA FUNCTIONLLMUX
HARDWARE ROLELow-level multiplexer IOTA
LIFECYCLE SIGNALConfirm by quotation
PUBLISHED LLMUX CONFIGURATION

Sensor multiplexing checkpoints

Match IOM, FTAs and sensor wiring
SUPPORTED IOMCC-PAIM01
REDUNDANCYNon-redundant
INPUT DEVICESThermocouple / RTD
MAXIMUM INPUTSUp to 64
EXPANSION STEP16-channel increments
SCAN PERIODOne second
CJC METHODRemote CJC
SUPPORTED FTASMx-TAMT04 / Mx-TAMR04 / Mx-TAMT14
Identification boundary

Honeywell identifies CC-TAIM01 as the non-redundant low-level multiplexer IOTA used with the CC-PAIM01 module for multiplexed temperature inputs.

Integration boundary

Confirm every connected FTA, thermocouple or RTD type, remote cold-junction compensation arrangement, channel count and cabinet wiring before replacement.

02 · SENSOR MULTIPLEXING & FTA DECISIONS

Map every thermocouple and RTD path before replacing CC-TAIM01.

A compatible IOTA decision depends on the CC-PAIM01 IOM, installed FTAs, sensor families, remote CJC, channel expansion and field wiring.

IOM RELATIONSHIP

CC-PAIM01 pairing

Honeywell associates CC-TAIM01 with the CC-PAIM01 low-level analog input multiplexer module in a non-redundant arrangement.

REMOTE TERMINATION

16-channel FTA increments

Honeywell documents up to 64 temperature inputs in 16-channel increments with supported thermocouple and RTD FTAs and remote cold-junction compensation.

LLMUX REPLACEMENT CHECK
01 / IDENTIFYInventory the installed path

Record CC-TAIM01, CC-PAIM01, every FTA model, channel count, sensor types and cable connections.

→
02 / VERIFYVerify temperature references

Confirm thermocouple extension wiring, RTD arrangement, remote CJC hardware and the one-second scan requirement.

→
03 / SELECTSelect the same LLMUX function

Use a Honeywell-approved IOTA and FTA combination whose channel and sensor configuration matches the installed system.

Changing FTA type, sensor family, CJC method or channel expansion requires an engineering and configuration review.

Replacement rule: A redundant high-level analog IOTA is not an automatic substitute for Honeywell CC-TAIM01 low-level multiplexed temperature input service.

03 · FAQ

Procurement answers for Honeywell CC-TAIM01.

sensor types · channel expansion · FTA fit · supply
01

Which IOM is officially paired with Honeywell CC-TAIM01?

Honeywell pairs the CC-TAIM01 low-level multiplexer IOTA with the CC-PAIM01 module. The published arrangement is non-redundant.

02

How many temperature inputs can Honeywell CC-TAIM01 support?

Honeywell documents up to 64 multiplexed inputs in 16-channel increments. Confirm the actual FTA count and configured channel allocation before replacement.

03

Which temperature sensors are used with Honeywell CC-TAIM01?

The LLMUX arrangement supports thermocouple and RTD inputs through the applicable remote FTAs. Verify sensor type, extension wiring and range for every channel.

04

How does cold-junction compensation affect Honeywell CC-TAIM01 installation?

Thermocouple channels use remote cold-junction compensation in the documented LLMUX architecture. Match the FTA and CJC arrangement before commissioning.

05

How should availability and replacement condition be quoted for Honeywell CC-TAIM01?

Official specifications do not guarantee current stock. Request quantity, condition, revision, warranty and the fixed 2-3 DAYS lead time in writing.

06

Which FTA models and project details should accompany a Honeywell CC-TAIM01 inquiry?

Send CC-PAIM01 details and photos of CC-TAIM01 plus Mx-TAMT04, Mx-TAMR04 or Mx-TAMT14 FTAs, sensor types, channel count, destination and required date.

04 · Transaction Cases

Sincere Cooperation, Long-Term Trust

01Russia

A Russian customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.

02India

An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.

03Venezuela

A Venezuelan customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.


05 · After-Sales Support

Support designed around continuity.

Priority lane
Fast Response

We understand the importance of minimizing equipment downtime. Our team responds promptly to inquiries and provides professional assistance with product information, quotations, order status, shipping, and after-sales questions.

Warranty Support

Most products are covered by a warranty of up to 12 months, subject to the applicable terms and conditions. If any product-related issue occurs during the warranty period, our team will assist you and provide an appropriate solution.

Technical Documentation

Relevant datasheets and technical literature can be provided with the goods, offering useful information for product identification, installation, operation, and maintenance.

Global Customer Service

We serve customers worldwide and provide reliable assistance from inquiry to delivery and after-sales service, ensuring clear and timely communication throughout the process.

Long-term Spare Parts Supply

We continue to source discontinued, obsolete, and hard-to-find automation parts from various brands, helping customers maintain existing equipment and reduce downtime caused by spare parts shortages.

06 · Mixed model reference

Mixed specialty automation models.

Document-selected model references arranged as a deliberately mixed field.

01QLITE QL SW 820
02SP-0108-H2
03CB5G0024
04DSC 301 HD 60-1253-01
05C305131124-0000
06DIN-03-04 4X3A
076AR1324-0BA00-0AA0 PMC-CTR357
08PVM610
09TRF8156-1.28 3400106IN
10BWU1345
11VB-8202
12EVD0000E41
13926 315-AV
14C15TR0TD0200
15SMART-BUS SB-DN-R0810 HDL-MR0810.232
16560PSU41 TI056
171SAP221500R0001
181785ME32
19MK170B
20AR-B9012 RS-422/485
21170PNT11020 170AEC92000
22DJH-20AC-R
23RA92-00644A
24928NFNTEK000TE RKLB40
25ANB10D-410
261SAJ655000R0100 VI155-FBP.0
27KS1-20B
28AV3135 00-1A-07-06-C2-FB
29E175096
30BK5200 KL4004 KL3064 KL9010
31YTA320-EA2DB/KU2-S3
326ES7326-1BK02-0AB0
330J-0P4506AA
34AC18
35NTB-750-MS
36XF830A
37DP0100-AZ
38PAIH03 51304754-150
39UN-RS2 LF90010 UNRS2
Request a quote

Ask about Honeywell CC-TAIM01.

Send the CC-TAIM01 and CC-PAIM01 labels, FTA models, sensor list, quantity, destination and required date for a clear reply.

Related Products

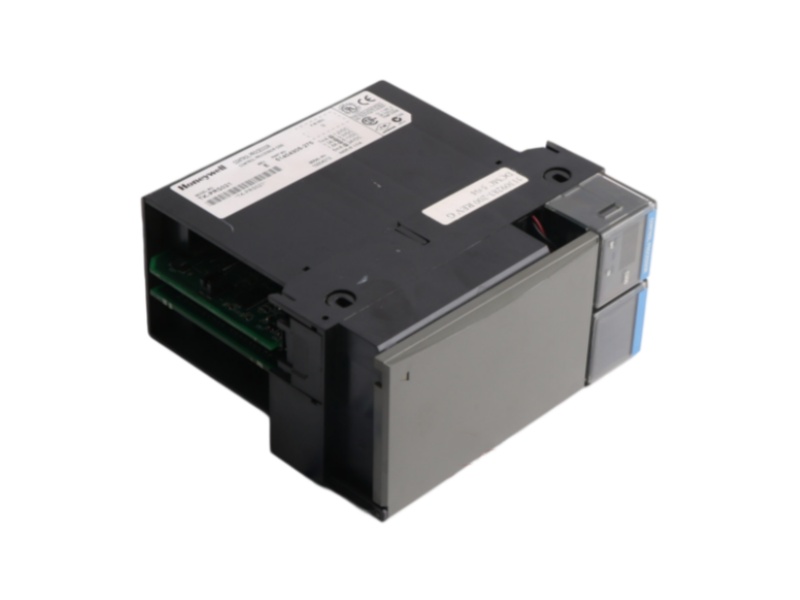

Honeywell 51404305-225 Experion PKS C200 control processor front view
Honeywell 51404305-225 Experion PKS C200 Control Processor

HONEYWELL · EXPERION PKS · C200 Honeywell 51404305-225 is a C200 control processor reference for deterministic Control Execution Environment (CEE) operation in installed Experion process-control systems. Match the complete article number, nameplate model and installed system configuration before replacement. PLATFORMC200 / Series A CONTROL COREDeterministic CEE I/O CAPACITYUp to 64 modules LIFECYCLEC200 phased out Order check: Honeywell lists TC-PRS021 as the C200 control processor and TK-PRS021 as the coated version. Verify the exact label carried by 51404305-225 before purchase.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Details

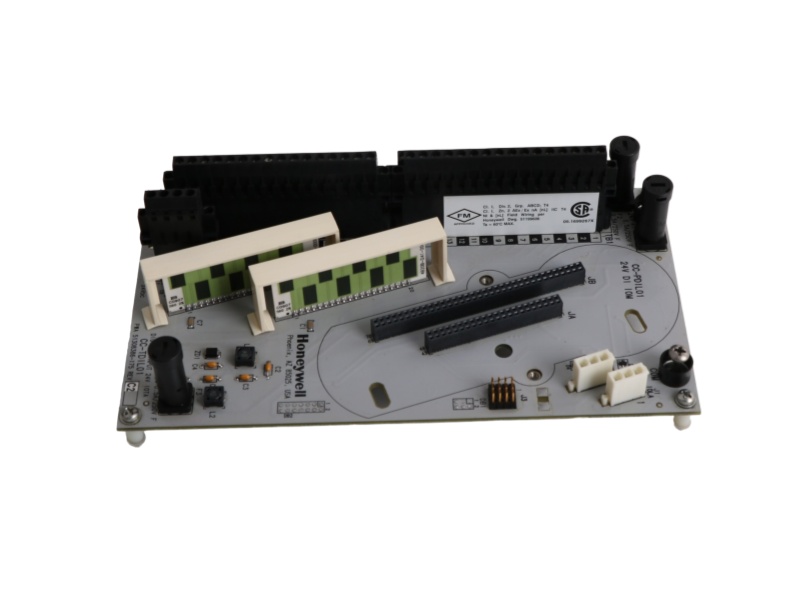

Honeywell 51308386-176 DC-TDOB11 Redundant Digital Output IOTA Image 1
Honeywell 51308386-176 DC-TDOB11 Redundant 24 VDC Digital Output IOTA

HONEYWELL · SERIES C I/O · DIGITAL OUTPUT Honeywell 51308386-176 is identified on the assembly as model DC-TDOB11, a redundant bussed 24 VDC digital output IOTA used with the Series C CC-PDOB01 output module. Confirm the complete PWA number, IOTA model, paired IOM and field-power arrangement before replacement. IOTA MODELDC-TDOB11 OUTPUT FAMILY24 VDC bussed MATCHED IOMCC-PDOB01 REDUNDANCYRedundant IOTA Order check: match 51308386-176 and DC-TDOB11 together; also verify the CC-PDOB01 module, redundant pair and installed field wiring.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Details

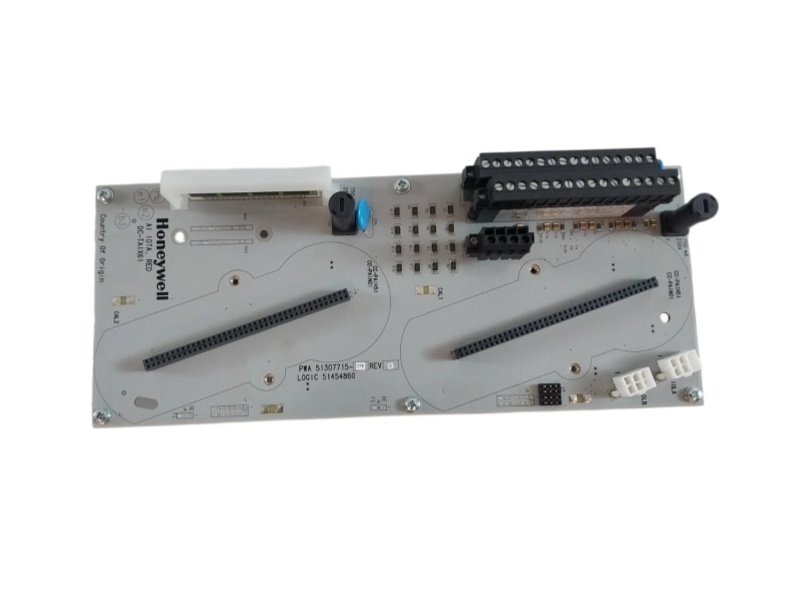

Honeywell 51307715-176 DC-TAIX61 Redundant Analog Input IOTA Image 1
Honeywell 51307715-176 DC-TAIX61 Redundant Analog Input IOTA

HONEYWELL · SERIES C I/O · ANALOG INPUT Honeywell 51307715-176 is identified as DC-TAIX61, a 12-inch redundant analog input IOTA used with CC-PAIH51 for 4 to 20 mA and HART loops. Confirm the PWA, IOTA length, IOM pairing, redundancy and field wiring before replacement. IOTA MODELDC-TAIX61 INPUT FAMILY4 to 20 mA / HART MATCHED IOMCC-PAIH51 REDUNDANCYRedundant IOTA Order check: match 51307715-176 and DC-TAIX61 together; verify CC-PAIH51, redundant positions, field loops and grounding.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Details

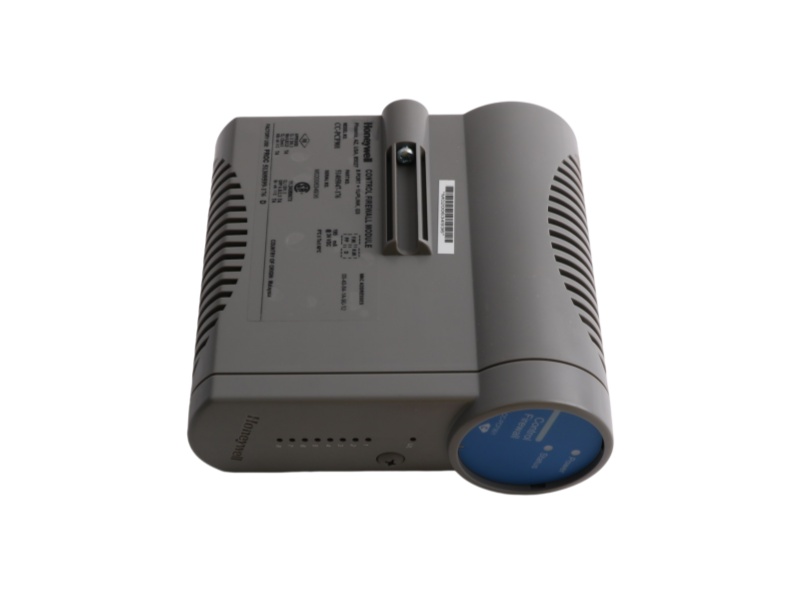

Honeywell CC-PCF901 CF9 9-Port Control Firewall Image 1
Honeywell CC-PCF901 CF9 9-Port Control Firewall

HONEYWELL · EXPERION PKS · CONTROL FIREWALL Honeywell CC-PCF901 is the CF9 nine-port Control Firewall used in defined Experion controller-network protection and segregation designs. Confirm hardware revision, firmware, controller generation, system release and uplink topology before replacement. CATALOG NUMBERCC-PCF901 FIREWALL MODELCF9 PORT COUNT9 ports SYSTEM BASISExperion release-specific Order check: match CC-PCF901 and CF9 together; verify hardware revision, firmware, controller generation and network topology.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Details
Honeywell CC-TAIM01 Low-Level Multiplexer IOTA Image 1
Honeywell CC-TAIM01 Low-Level Multiplexer IOTA

HONEYWELL · SERIES C I/O · LLMUX Honeywell CC-TAIM01 is the non-redundant low-level multiplexer IOTA used with CC-PAIM01 for thermocouple and RTD inputs through supported remote FTAs. Confirm FTA models, channel count, sensor wiring and cold-junction compensation before replacement. CATALOG NUMBERCC-TAIM01 IOTA FUNCTIONLLMUX MATCHED IOMCC-PAIM01 INPUT SCALEUp to 64 inputs Order check: match CC-TAIM01 with CC-PAIM01; verify every FTA, thermocouple or RTD type, channel count and remote CJC path.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Details

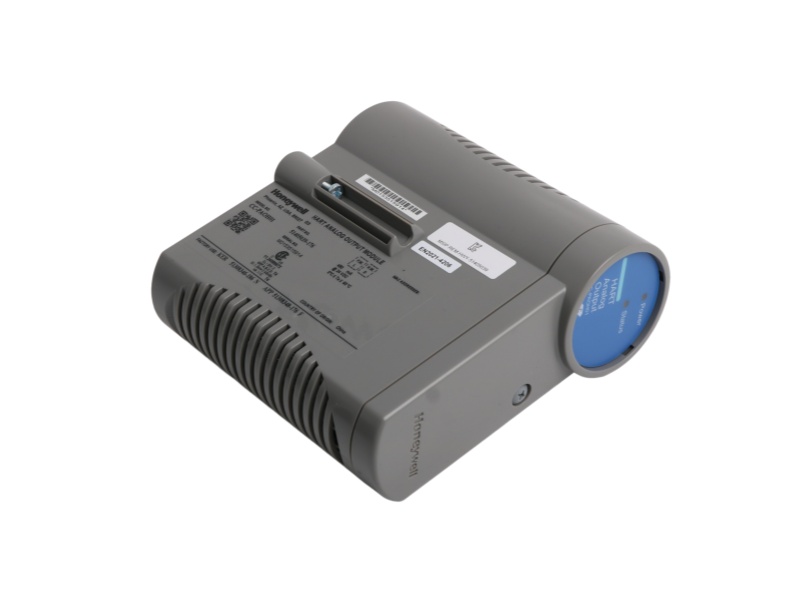

Honeywell CC-PAOH01 16-Channel HART Analog Output Module Image 1
Honeywell CC-PAOH01 16-Channel HART Analog Output Module

HONEYWELL · SERIES C I/O · HART OUTPUT Honeywell CC-PAOH01 is a 16-channel 4 to 20 mA analog output module with HART support. Confirm the Series C IOTA, 22 to 28 VDC loop supply, field loads, diagnostics and channel configuration before replacement. CATALOG NUMBERCC-PAOH01 CHANNEL COUNT16 channels OUTPUT SIGNAL4 to 20 mA / HART LOAD BASIS800 ohms Order check: match CC-PAOH01 with the installed analog-output IOTA; verify supply, loads, HART devices, revision and fail-safe behavior.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Details

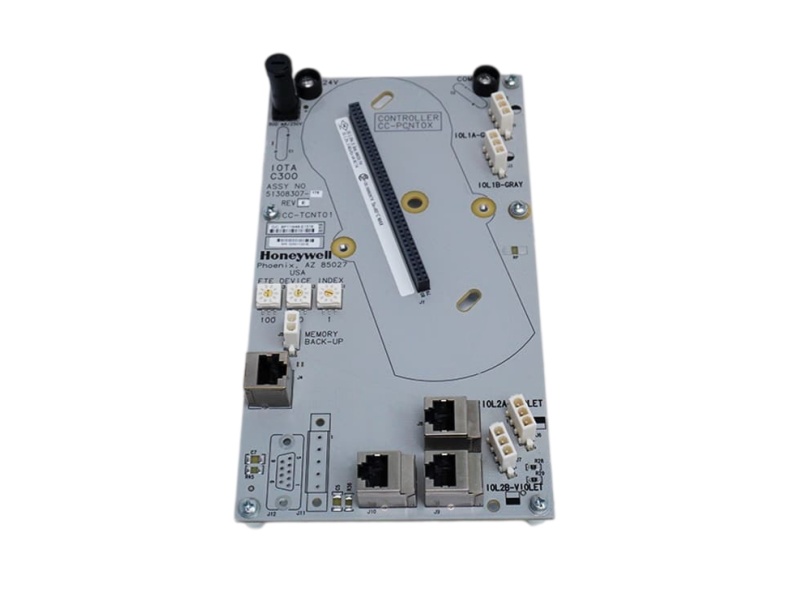

Honeywell CC-TCNT01 C300 Controller IOTA front view
Honeywell CC-TCNT01 Experion PKS C300 Controller IOTA

Honeywell / Experion PKS / Series C CC-TCNT01 C300 Controller IOTA The Honeywell CC-TCNT01 is the Input Output Termination Assembly used as the mounting and termination base in a Series C C300 controller installation. For a replacement order, match the controller model, Experion release, redundancy arrangement, IOLINK/network cabling and memory-backup hardware before shipment. Part NumberCC-TCNT01 ComponentController IOTA PlatformExperion PKS Form FactorSeries C Supply StatusConfirm by RFQ Lead Time2-3 DAYS Order check: send clear photos of both the IOTA and controller labels, plus the required quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Worldwide Shipping

Details

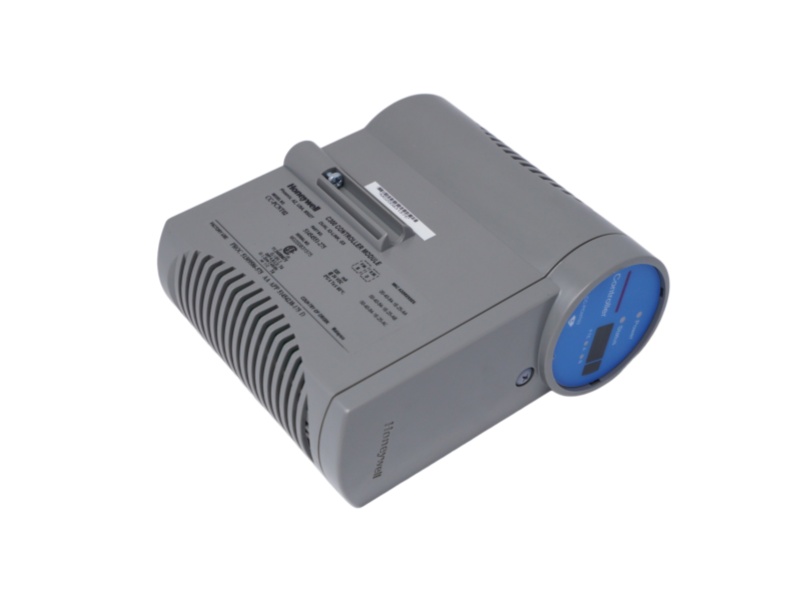

Honeywell CC-PCNT02 Experion PKS C300 controller
