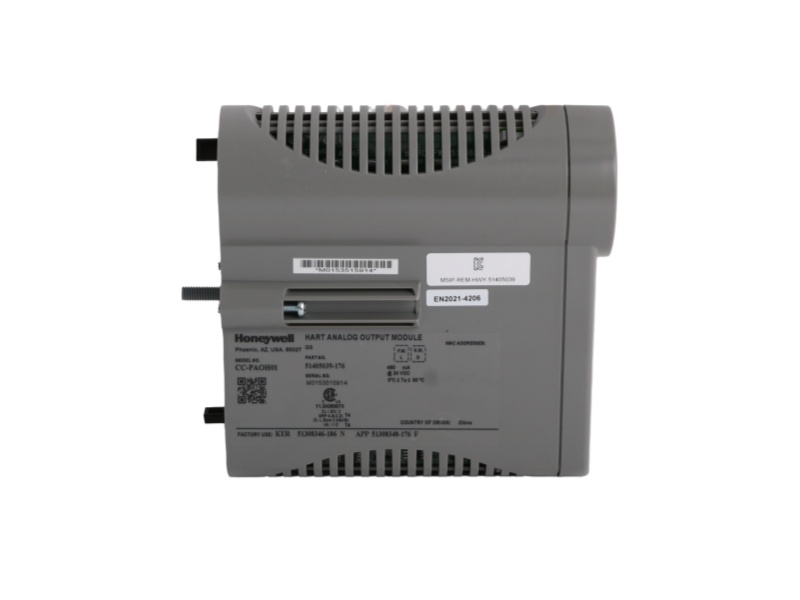

Honeywell CC-PAOH01 16-Channel HART Analog Output Module Image 1

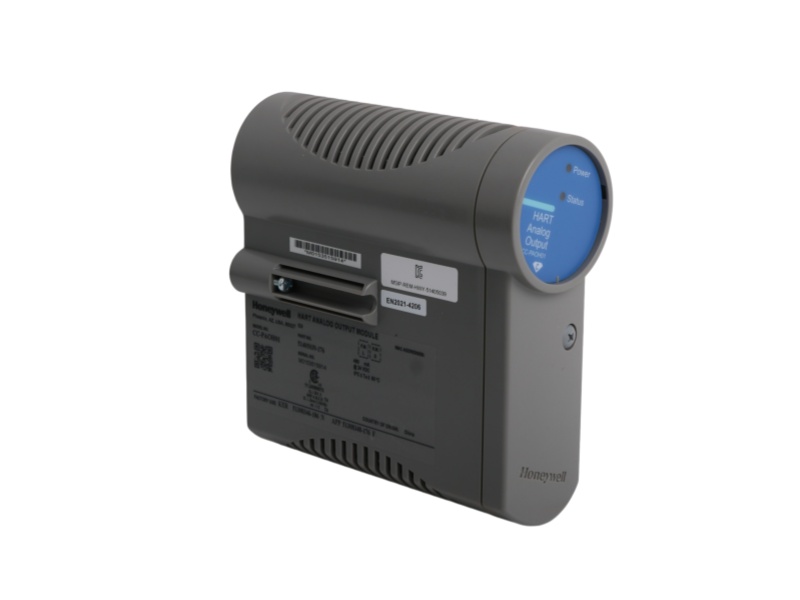

Honeywell CC-PAOH01 16-Channel HART Analog Output Module Image 2
Honeywell CC-PAOH01 16-Channel HART Analog Output Module Image 3

Honeywell CC-PAOH01 16-Channel HART Analog Output Module

HONEYWELL · SERIES C I/O · HART OUTPUT

Honeywell CC-PAOH01 is a 16-channel 4 to 20 mA analog output module with HART support. Confirm the Series C IOTA, 22 to 28 VDC loop supply, field loads, diagnostics and channel configuration before replacement.

CATALOG NUMBERCC-PAOH01
CHANNEL COUNT16 channels
OUTPUT SIGNAL4 to 20 mA / HART
LOAD BASIS800 ohms
Order check: match CC-PAOH01 with the installed analog-output IOTA; verify supply, loads, HART devices, revision and fail-safe behavior.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Honeywell International Inc.
Item number CC-PAOH01
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · HART ANALOG OUTPUT MODULE IDENTITY

Reference-level checks for Honeywell CC-PAOH01.

A model-specific view of the Series C HART analog output module, its 16 output channels and the loop and IOTA details that determine replacement fit.

CATALOG NUMBERCC-PAOH01
MODULE FUNCTIONHART analog output
HARDWARE ROLE16-channel output module
LIFECYCLE SIGNALConfirm by quotation
PUBLISHED ANALOG OUTPUT DATA

Current-loop and HART checkpoints

Verify IOTA, loop power and field loads
OUTPUT CHANNELS16
OUTPUT SIGNAL4 to 20 mA
HART SUPPORTSupported
LOAD CAPABILITY800 ohms
SUPPLY BASIS22 to 28 VDC
IOTA FAMILYSeries C analog output
DIAGNOSTICSModule diagnostics
ORDER REFERENCECC-PAOH01
Identification boundary

Honeywell identifies CC-PAOH01 as a 16-channel Series C analog output module supporting 4 to 20 mA signals with HART communication.

Loop boundary

Confirm the installed analog-output IOTA, field loop power, load resistance, HART devices, fail-safe behavior, channel allocation and Experion configuration.

02 · OUTPUT LOOP & IOTA DECISIONS

Validate all 16 current loops before exchanging CC-PAOH01.

Module compatibility depends on the exact IOTA, 22 to 28 VDC loop supply, field load, HART use, channel configuration and failure-response requirements.

ELECTRICAL OUTPUT

4 to 20 mA with HART

Honeywell publishes 16 analog output channels with HART support for CC-PAOH01. The field loop and connected final elements must match the configured signal path.

FIELD LOAD

800 ohms at 22 to 28 VDC

Honeywell publishes load capability up to 800 ohms within the stated 22 to 28 VDC supply basis; verify the complete installed loop before replacement.

ANALOG OUTPUT REPLACEMENT CHECK
01 / IDENTIFYIdentify module and IOTA

Record CC-PAOH01, hardware revision, installed IOTA model, channel use and terminal allocation.

→
02 / VERIFYMeasure loop conditions

Confirm supply voltage, loop resistance, HART devices, grounding, final elements and fail-safe requirements.

→
03 / SELECTRestore and validate outputs

Install the approved module-IOTA combination, restore configuration and function-test each channel and diagnostic.

Do not assume a non-HART or differently powered output module can preserve the installed loop behavior without engineering review.

Replacement rule: A Series C analog input module or a different output-IOTA combination is not an automatic substitute for Honeywell CC-PAOH01.

03 · FAQ

Procurement answers for Honeywell CC-PAOH01.

channels · HART output · load · diagnostics · supply
01

What output configuration is published for Honeywell CC-PAOH01?

Honeywell publishes CC-PAOH01 as a 16-channel 4 to 20 mA analog output module with HART communication capability.

02

What field-load condition must be checked for Honeywell CC-PAOH01?

Honeywell publishes an 800-ohm load capability with a 22 to 28 VDC supply basis. Verify actual supply voltage, loop resistance and connected final elements.

03

Which IOTA compatibility details matter when installing Honeywell CC-PAOH01?

Confirm the exact Series C analog-output IOTA, hardware revision, terminal allocation, HART use, field wiring and Experion release before installation.

04

How are Honeywell CC-PAOH01 diagnostics used during commissioning?

Review channel and module diagnostics, validate fail-safe behavior and function-test every 4 to 20 mA output and HART device before returning the loop to service.

05

What should a supply-status request for Honeywell CC-PAOH01 include?

Ask for written confirmation of quantity, hardware revision, condition, warranty and the fixed 2-3 DAYS lead time because technical documents do not guarantee stock.

06

Which manuals and loop data are needed to quote Honeywell CC-PAOH01?

Use the Honeywell Series C I/O documentation and send CC-PAOH01 label photos, IOTA model, loop loads, HART device list, quantity, destination and required date.
