Description:FC‑TPSU‑2430 — isolated DC/DC converter module delivering 30 V DC at 1 A from a 24 V DC input, designed for field termination assemblies in safety-instrumented systems
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | FS-TPSU-2430 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | Spare Parts Supply for 20 Years
FS-TPSU-2430 | control module
Sales Manager: May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Industrial Power Supply Module | Global 3-day DHL | 12-month warranty

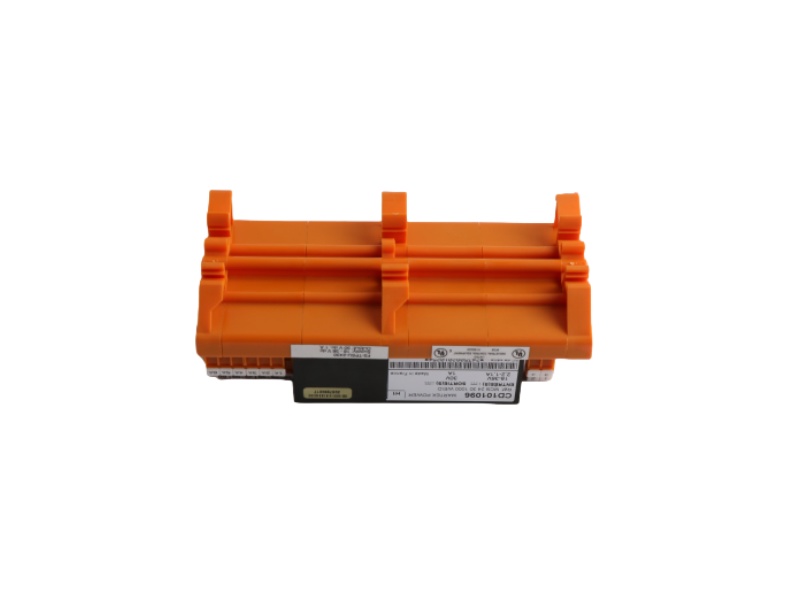

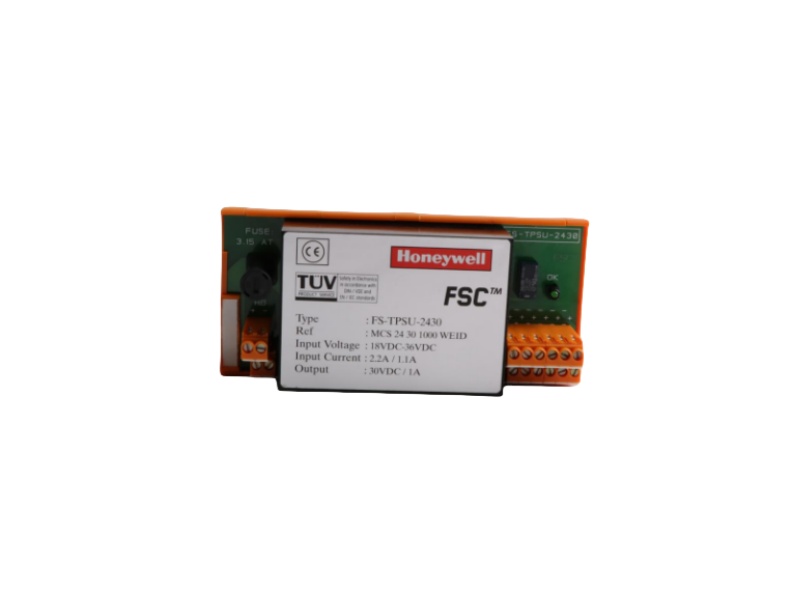

HONEYWELL FS-TPSU-2430
The FS-TPSU-2430 is a 24V→30V DC/DC module in Honeywell's Safety Manager series, designed to provide regulated and isolated power for Safety Instrumented Systems (SIS) and critical control loops. Leveraging 20 years of automation distribution experience, PLC Autocontroller recommends it as a "compact yet highly redundant" standard power supply for oil and gas, chemical, and power customers—capable of full-load operation in harsh environments ranging from -40°C to +70°C, with a mean time between failures (MTBF) >200,000 hours.
Minute Swap / Upgrade
ü LOTO: isolate the loop; no hot-swap.
ü Label wires: photo or tag the 24 V bus and 30 V load terminals.
ü Pull old unit: release the DIN clip; check 2 A fast-blow fuse.
ü Insert FS-TPSU-2430: slide in until “click”; PCB version needs 10 mm stand-off for airflow.
ü Power-up: green LED steady = OK; red blink = under-voltage (<18 V) or overload.
Technical Specifications
|
Item |
Typical Value |
Notes |
|
Input |
18-36 VDC |
24 VDC nominal |
|
Output |
30 VDC ±0.25 V / 1 A |
Fold-back <3.3 A |
|
Efficiency |
80 % |
Low heat, no heat-sink |
|
Isolation |
500 VAC |
Reinforced, in-out |
|
Temp. range |
–40 +70 °C |
Linear derate >70 °C |
|
Mounting |
PCB or 35 mm DIN |
38 × 38 × 13 mm, 630 g |
|
Approvals |
UL508, CE, SIL-capable |
Drop-in for FSC/HC900 |
Compatible Modules and Accessories
This module can be used as an auxiliary power supply module in certain safety management systems, such as the Honeywell Safety Manager series.
For accessories, it is recommended to use the corresponding PCB mounting bracket, power interface terminals, an input voltage adapter, and an output to 24V control devices.
PLC Autocontroller:
l 1 Year Warranty
l 100% original package
l UPS/ DHL/ FEDEX / TNT
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation
