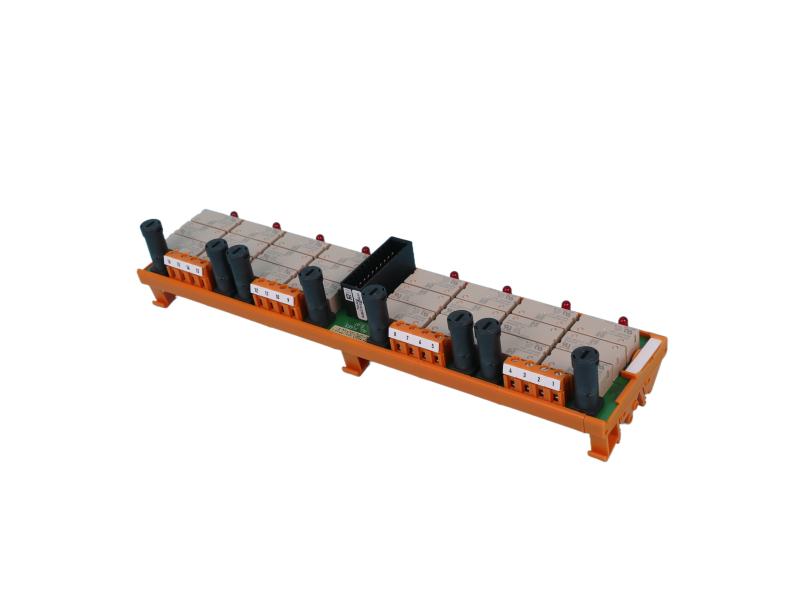

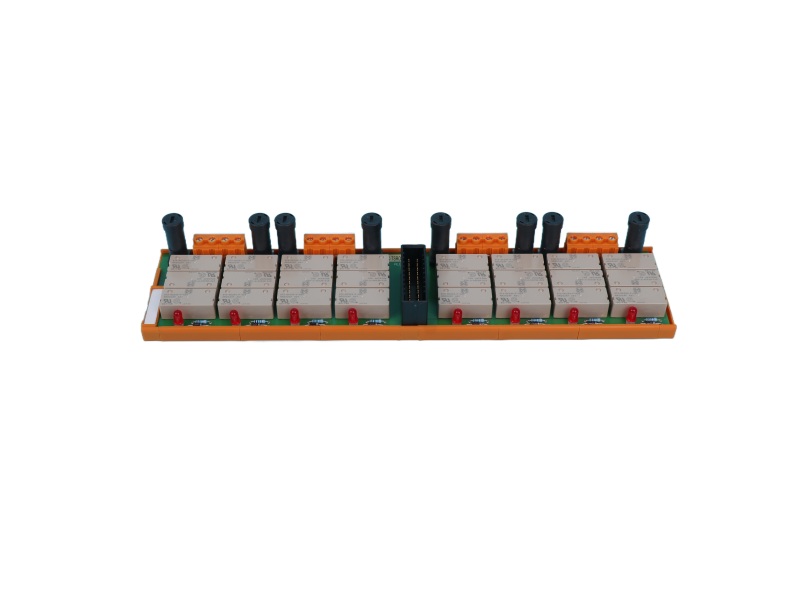

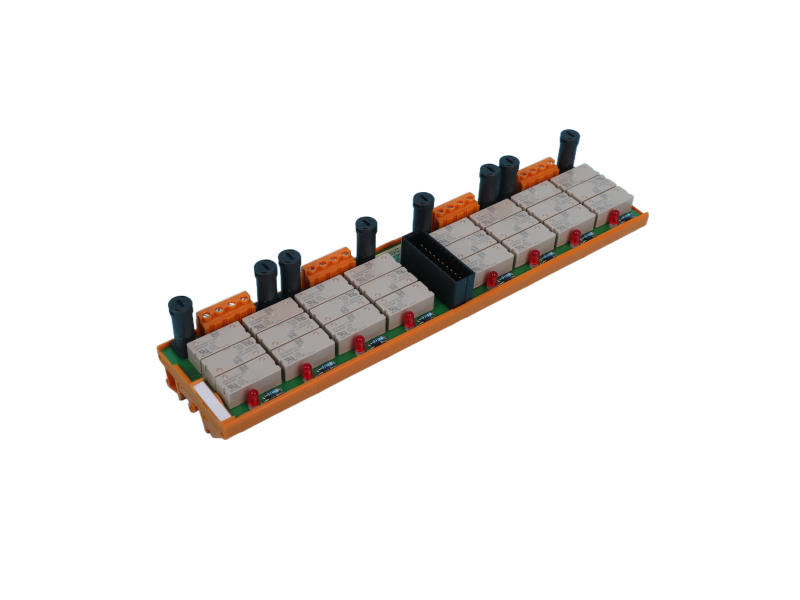

Description:Honeywell FC-TSRO-0824 V1.1 is a DIN rail mounted digital output terminal module
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | FC-TSRO-0824 V1.1 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of SIL-3 Safety Expertise
Data Sheet: Honeywell FC-TSRO-0824 V1.1
8-Channel Relay Output Field Termination Assembly (FTA)
Product Overview
Honeywell Safety Manager FC-TSRO-0824 V1.1 8-Channel Relay Output Module
The Honeywell FC-TSRO-0824 V1.1 is an 8-channel Relay Output Field Termination Assembly (FTA) designed for use with the Safety Manager PLC system. Its primary function is to interface between the controller's solid-state safety logic and field devices by providing eight Form C (changeover) relay outputs.
This module accepts 24V DC signals from the safety controller and provides isolated, potential-free dry contacts to safely control demanding industrial loads such as solenoids, motor contactors, pilot lights, and alarm horns directly, eliminating the need for additional interposing relays.
Technical Specifications
|
Model Number |
FC-TSRO-0824 V1.1 |
|
Product Type |
Relay Output Field Termination Assembly (FTA) |
|
Number of Channels |
8 |
|
Output Type |
Electromechanical Relay, Form C (SPDT) |
Typical Installations
• Offshore ESD valve matrix – eight 24 V solenoid coils in a single cabinet
• Steel-mill ladle cranes – dual-redundant brake release circuits
• Pharma isolators – fire-damper actuation with loop monitoring
Ready-to-Ship Kit
|
Part Number |
Description |
|
FC-TSRO-0824 |
Main relay FTA (this unit) |
|
FC-TSRO-0824-CC |
Conformal-coated version for marine/offshore |
|
FC-TSDO-0824 |
Solid-state 24 V DC FTA (8 ch, 2 A) |
|
FC-TPSU-2430 |
24 V DC → 30 V DC / 1 A converter |
|
30754661-022 |
Spare 3 A slow-blow fuse (5 × 20 mm) |
FAQ – Quick Answers
Q1: Can I wire 120 V AC loads directly?
A1: Yes, the 250 VAC rating covers 120 V AC inductive loads up to 150 W .
Q2: How do I reset a blown fuse?
A2: Front-panel fuse holder – pop out, replace 5 × 20 mm fuse, no tools.
Q3: Is loop monitoring supported?
A3: Optional FC-TSDOL-0824 provides 0–5 kΩ loop resistance monitoring per channel.
Q4: Compatible safety CPUs?
A4: Any Honeywell FSC, SM-RIO, or HIMatrix CPU certified to SIL 3.
