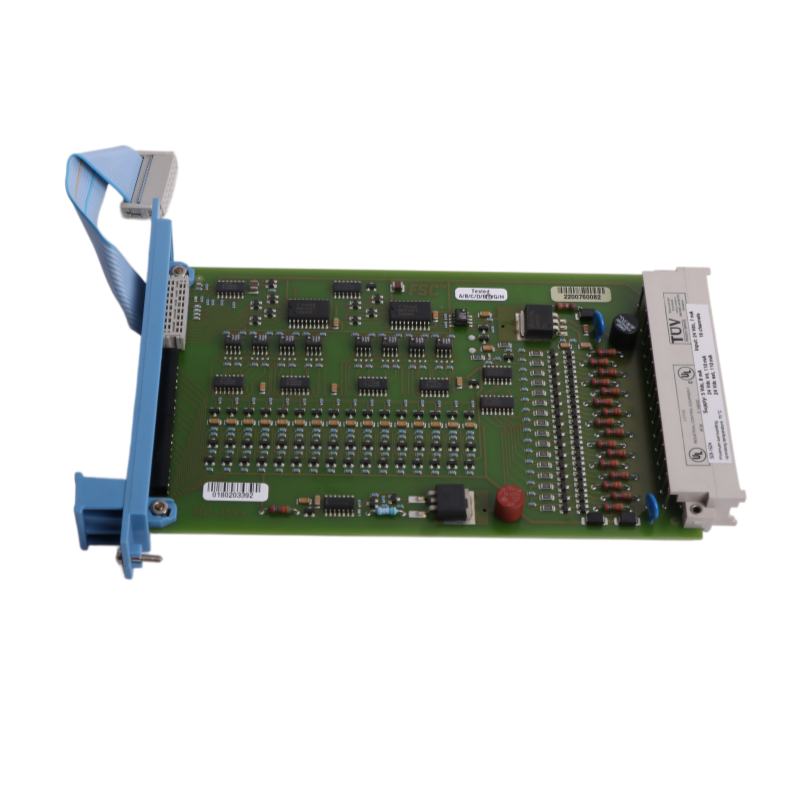

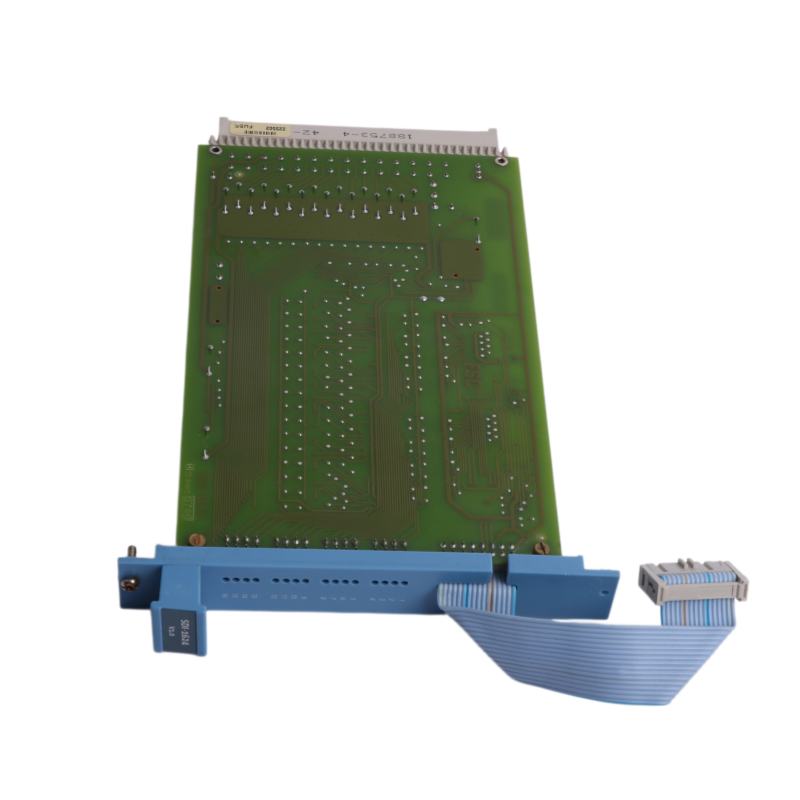

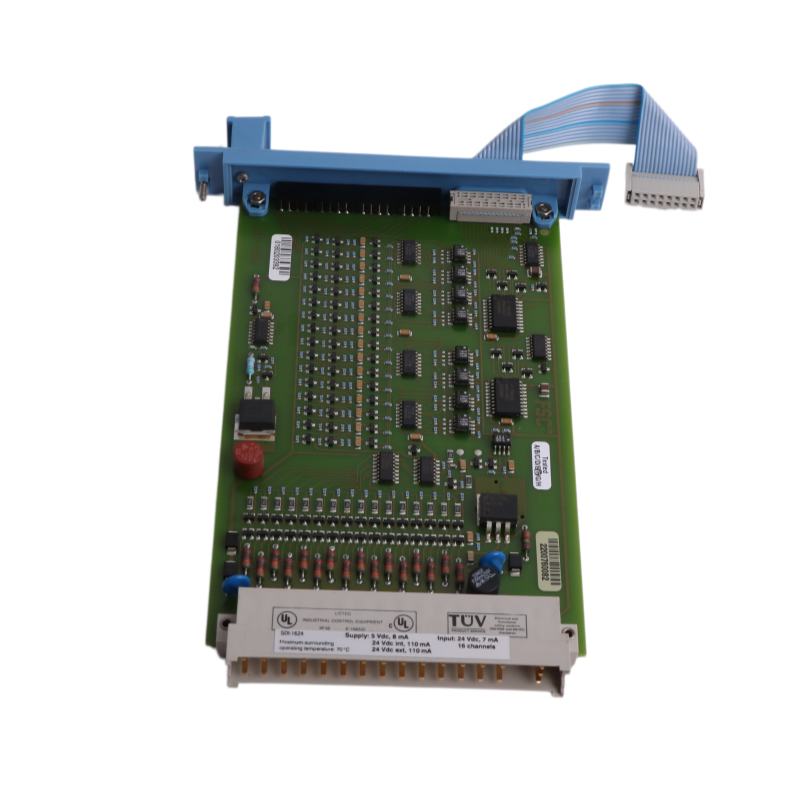

Honeywell FC-SDI-1624 Safety Manager 16-Channel Safe Digital Input Module

HONEYWELL · EXPERION PKS · C200 Honeywell 51404305-225 is a C200 control processor reference for deterministic Control Execution Environment (CEE) operation in installed Experion process-control systems. Match the complete article number, nameplate model and installed system configuration before replacement. PLATFORMC200 / Series A CONTROL COREDeterministic CEE I/O CAPACITYUp to 64 modules LIFECYCLEC200 phased out Order check: Honeywell lists TC-PRS021 as the C200 control processor and TK-PRS021 as the coated version. Verify the exact label carried by 51404305-225 before purchase.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

HONEYWELL · SERIES C I/O · DIGITAL OUTPUT Honeywell 51308386-176 is identified on the assembly as model DC-TDOB11, a redundant bussed 24 VDC digital output IOTA used with the Series C CC-PDOB01 output module. Confirm the complete PWA number, IOTA model, paired IOM and field-power arrangement before replacement. IOTA MODELDC-TDOB11 OUTPUT FAMILY24 VDC bussed MATCHED IOMCC-PDOB01 REDUNDANCYRedundant IOTA Order check: match 51308386-176 and DC-TDOB11 together; also verify the CC-PDOB01 module, redundant pair and installed field wiring.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

HONEYWELL · SERIES C I/O · ANALOG INPUT Honeywell 51307715-176 is identified as DC-TAIX61, a 12-inch redundant analog input IOTA used with CC-PAIH51 for 4 to 20 mA and HART loops. Confirm the PWA, IOTA length, IOM pairing, redundancy and field wiring before replacement. IOTA MODELDC-TAIX61 INPUT FAMILY4 to 20 mA / HART MATCHED IOMCC-PAIH51 REDUNDANCYRedundant IOTA Order check: match 51307715-176 and DC-TAIX61 together; verify CC-PAIH51, redundant positions, field loops and grounding.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

HONEYWELL · EXPERION PKS · CONTROL FIREWALL Honeywell CC-PCF901 is the CF9 nine-port Control Firewall used in defined Experion controller-network protection and segregation designs. Confirm hardware revision, firmware, controller generation, system release and uplink topology before replacement. CATALOG NUMBERCC-PCF901 FIREWALL MODELCF9 PORT COUNT9 ports SYSTEM BASISExperion release-specific Order check: match CC-PCF901 and CF9 together; verify hardware revision, firmware, controller generation and network topology.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

HONEYWELL · SERIES C I/O · LLMUX Honeywell CC-TAIM01 is the non-redundant low-level multiplexer IOTA used with CC-PAIM01 for thermocouple and RTD inputs through supported remote FTAs. Confirm FTA models, channel count, sensor wiring and cold-junction compensation before replacement. CATALOG NUMBERCC-TAIM01 IOTA FUNCTIONLLMUX MATCHED IOMCC-PAIM01 INPUT SCALEUp to 64 inputs Order check: match CC-TAIM01 with CC-PAIM01; verify every FTA, thermocouple or RTD type, channel count and remote CJC path.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

HONEYWELL · SERIES C I/O · HART OUTPUT Honeywell CC-PAOH01 is a 16-channel 4 to 20 mA analog output module with HART support. Confirm the Series C IOTA, 22 to 28 VDC loop supply, field loads, diagnostics and channel configuration before replacement. CATALOG NUMBERCC-PAOH01 CHANNEL COUNT16 channels OUTPUT SIGNAL4 to 20 mA / HART LOAD BASIS800 ohms Order check: match CC-PAOH01 with the installed analog-output IOTA; verify supply, loads, HART devices, revision and fail-safe behavior.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

Honeywell / Experion PKS / Series C CC-TCNT01 C300 Controller IOTA The Honeywell CC-TCNT01 is the Input Output Termination Assembly used as the mounting and termination base in a Series C C300 controller installation. For a replacement order, match the controller model, Experion release, redundancy arrangement, IOLINK/network cabling and memory-backup hardware before shipment. Part NumberCC-TCNT01 ComponentController IOTA PlatformExperion PKS Form FactorSeries C Supply StatusConfirm by RFQ Lead Time2-3 DAYS Order check: send clear photos of both the IOTA and controller labels, plus the required quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Worldwide Shipping

Honeywell / Experion PKS / C300 CC-PCNT02 C300 Controller The Honeywell CC-PCNT02 is an Experion PKS C300 controller used to execute control strategies in Honeywell's deterministic Control Execution Environment. CC-PCNT02 enters Legacy Support by 2026 Q2. Confirm the Experion release, IOTA, redundancy arrangement and migration method before ordering a spare or planning a CC-PCNT05 upgrade. Part NumberCC-PCNT02 ComponentC300 Controller PlatformExperion PKS LifecycleLegacy Support Migration PathCC-PCNT05 Lead Time2-3 DAYS Order check: send the controller and IOTA label photos, Experion release, redundancy details, quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Worldwide Shipping
