Description:DC‑TCF901 51307593‑176 — 9‑port IOTA control‑firewall termination assembly for secure Fault‑Tolerant‑Ethernet connectivity and cabinet‑internal I/O integration.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | DC-TCF901 51307593-176 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 years of excellence in industrial automation parts supply
DC-TCF901 51307593-176|9-Port Control Firewall IOTA
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Product Identification
Model: DC-TCF901 51307593-176
Manufacturer:Honeywell
Type/Function: 9-Port Control Firewall IOTA

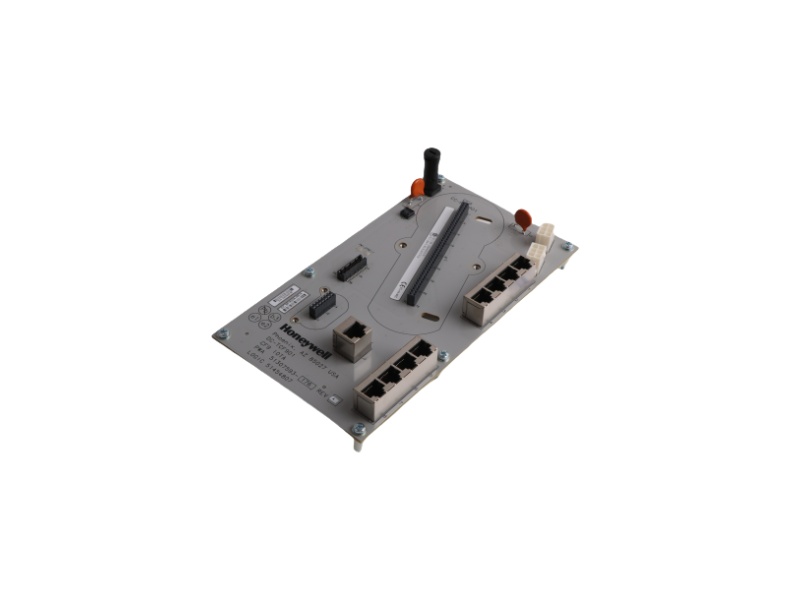

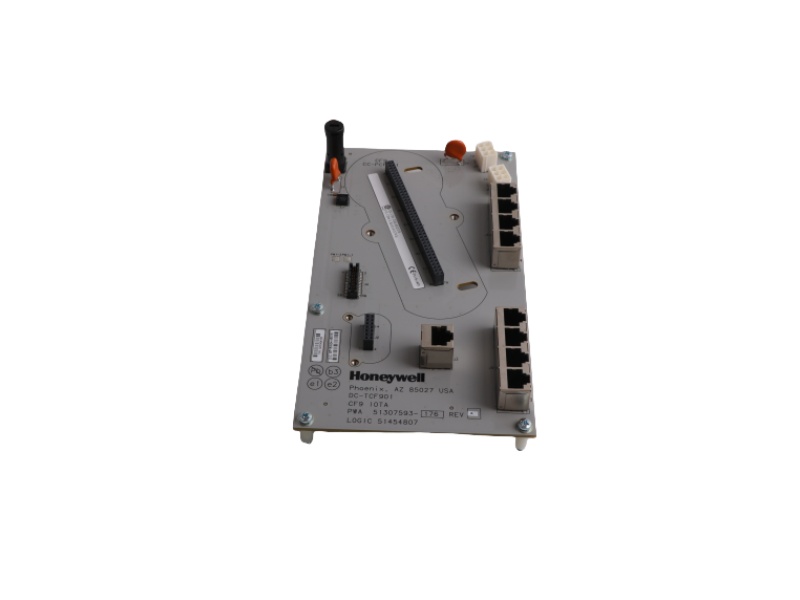

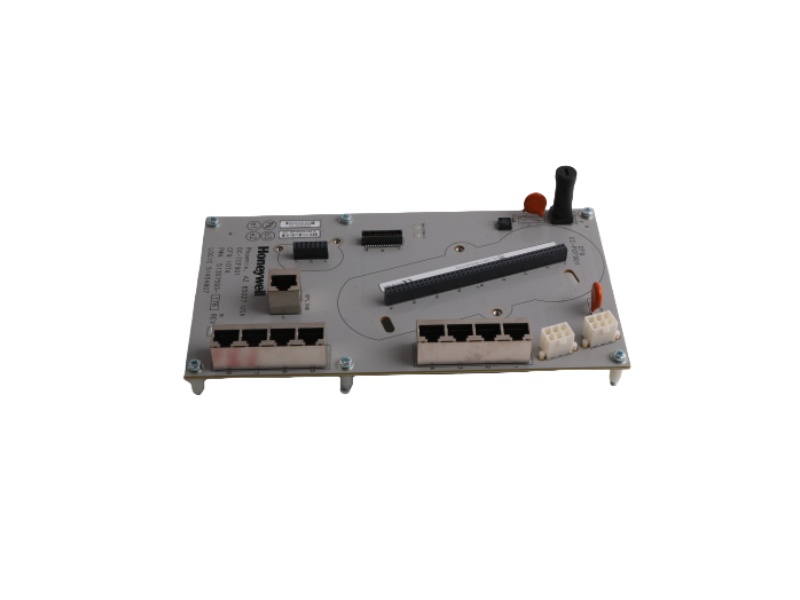

DC-TCF901 51307593-176 9-Port Control Firewall IOTA (CF9)
The DC-TCF901 (order number 51307593-176) is a Honeywell series "9-Port Control Firewall IOTA (CF9)" terminal component.
It is primarily used for network communication interfaces within industrial control cabinets: providing eight ports to the cabinet
controller or Fieldbus Interface Module (FIM), and one uplink port for the main network. Furthermore, it offers 24 Vdc power
distribution to ensure stable power supply and communication for the control system's internal network interfaces.
Key Technical Specifications
Model: DC-TCF901
Order Number: 51307593-176
Network Ports: 9 ports: 8 for cabinet controllers/FIM, 1 for main network uplink
Communication Interfaces: Ethernet (RJ-45) and optional fiber optic modules (LC/MT-RJ)
Power Supply: 24 V DC power distribution function
Installation Structure: I/O Terminal Assembly (IOTA) installed in Series C control cabinet
Operating Temperature/Storage Temperature: -40 °C to +85 °C (typical fiber optic module), depending on system environment
Product Advantages
Centralized Network Communication Management: As the network communication center within the control cabinet, the DC-TCF901 provides eight downstream ports and one upstream port, effectively organizing the FTE (Fault Tolerant Ethernet) network structure.
High-Reliability Power Distribution: The module includes a built-in 24V DC power distribution function, providing stable power to connected devices and simplifying system cabling.
Multiple Communication Interface Support: Supports RJ-45 Ethernet interfaces and optional fiber optic modules, catering to both standard and long-distance, interference-resistant scenarios.
Adaptable to Industrial Environments: Designed for Series C control cabinet installation, it possesses a harsh operating temperature range and electromagnetic interference resistance.
Long-Term Service Support: Leveraging over 20 years of experience in automation equipment from PLC Autocontroller, we provide a one-stop service from selection, spare parts matching, on-site support to after-sales maintenance.
More options
Power Module: TSXPSY2600 / TSXPSY5500: Provides 5V DC power
Input Module: TSXDEZ32D2K / TSXAEY1600: Digital and analog input
Output Module: TSXDSY16T2K / TSXASY4100: Digital and analog output
Communication Module: TSXETY4103 / TSXCPP110: Ethernet and communication expansion
Memory Card: TSXMRPC001M: Program and data storage expansion
Contact Hotline
Sales Manager May
E-mail: ab@mooreplc.com
Phone: +86-18106909650 (whatsapp)
Wechat id: dcsfcs
What happens next?
HONEYWELL / 5701 GAS CHANNEL SIGNAL DRIVE 4-20 mA INPUT 5701 SENSOR INTERFACE / CURRENT LOOP 05701-A-0283 Honeywell 05701-A-0283 is the System 57 5701 plug-in drive that powers and conditions a 4-20 mA gas-detector channel. MATCH BEFORE ORDERING Confirm the 5701 host card, current-sink or current-source wiring, transmitter power arrangement, field interface and channel configuration before replacement. SIGNAL TYPE 4-20 mA sensor input LOOP SUPPLY 20 V regulated HOST ASSEMBLY 5701 single channel Brand New Original One Year Warranty Rapid response INQUIRE NOW
Details
HONEYWELL / 5701 CATALYTIC BRIDGE CONDITIONING CONSTANT-CURRENT DRIVE 5701 SENSOR INTERFACE / CATALYTIC INPUT 05701-A-0284 Honeywell 05701-A-0284 is the System 57 5701 plug-in drive that excites a catalytic sensor bridge and conditions its gas signal. MATCH BEFORE ORDERING Confirm the 5701 host card, detector bridge-current range, cable resistance, sensor sensitivity, field interface and saved channel calibration before replacement. DRIVE METHOD Constant current FULL-SCALE SIGNAL 15 to 600 mV DRIVE LIMIT 10 V maximum Brand New Original One Year Warranty Rapid response INQUIRE NOW
Details
HONEYWELL · SERIES C I/O · ANALOG INPUT Honeywell 51307715-176 is identified as DC-TAIX61, a 12-inch redundant analog input IOTA used with CC-PAIH51 for 4 to 20 mA and HART loops. Confirm the PWA, IOTA length, IOM pairing, redundancy and field wiring before replacement. IOTA MODELDC-TAIX61 INPUT FAMILY4 to 20 mA / HART MATCHED IOMCC-PAIH51 REDUNDANCYRedundant IOTA Order check: match 51307715-176 and DC-TAIX61 together; verify CC-PAIH51, redundant positions, field loops and grounding.◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping
Details
HONEYWELL · EXPERION PKS · CONTROL FIREWALL Honeywell CC-PCF901 is the CF9 nine-port Control Firewall used in defined Experion controller-network protection and segregation designs. Confirm hardware revision, firmware, controller generation, system release and uplink topology before replacement. CATALOG NUMBERCC-PCF901 FIREWALL MODELCF9 PORT COUNT9 ports SYSTEM BASISExperion release-specific Order check: match CC-PCF901 and CF9 together; verify hardware revision, firmware, controller generation and network topology.◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping
Details
HONEYWELL · SERIES C I/O · LLMUX Honeywell CC-TAIM01 is the non-redundant low-level multiplexer IOTA used with CC-PAIM01 for thermocouple and RTD inputs through supported remote FTAs. Confirm FTA models, channel count, sensor wiring and cold-junction compensation before replacement. CATALOG NUMBERCC-TAIM01 IOTA FUNCTIONLLMUX MATCHED IOMCC-PAIM01 INPUT SCALEUp to 64 inputs Order check: match CC-TAIM01 with CC-PAIM01; verify every FTA, thermocouple or RTD type, channel count and remote CJC path.◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping
Details
HONEYWELL · SERIES C I/O · HART OUTPUT Honeywell CC-PAOH01 is a 16-channel 4 to 20 mA analog output module with HART support. Confirm the Series C IOTA, 22 to 28 VDC loop supply, field loads, diagnostics and channel configuration before replacement. CATALOG NUMBERCC-PAOH01 CHANNEL COUNT16 channels OUTPUT SIGNAL4 to 20 mA / HART LOAD BASIS800 ohms Order check: match CC-PAOH01 with the installed analog-output IOTA; verify supply, loads, HART devices, revision and fail-safe behavior.◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping
Details
Honeywell / Experion PKS / Series C CC-TCNT01 C300 Controller IOTA The Honeywell CC-TCNT01 is the Input Output Termination Assembly used as the mounting and termination base in a Series C C300 controller installation. For a replacement order, match the controller model, Experion release, redundancy arrangement, IOLINK/network cabling and memory-backup hardware before shipment. Part NumberCC-TCNT01 ComponentController IOTA PlatformExperion PKS Form FactorSeries C Supply StatusConfirm by RFQ Lead Time2-3 DAYS Order check: send clear photos of both the IOTA and controller labels, plus the required quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Worldwide Shipping
Details
Honeywell / Experion PKS / C300 CC-PCNT02 C300 Controller The Honeywell CC-PCNT02 is an Experion PKS C300 controller used to execute control strategies in Honeywell's deterministic Control Execution Environment. CC-PCNT02 enters Legacy Support by 2026 Q2. Confirm the Experion release, IOTA, redundancy arrangement and migration method before ordering a spare or planning a CC-PCNT05 upgrade. Part NumberCC-PCNT02 ComponentC300 Controller PlatformExperion PKS LifecycleLegacy Support Migration PathCC-PCNT05 Lead Time2-3 DAYS Order check: send the controller and IOTA label photos, Experion release, redundancy details, quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Worldwide Shipping
Details
