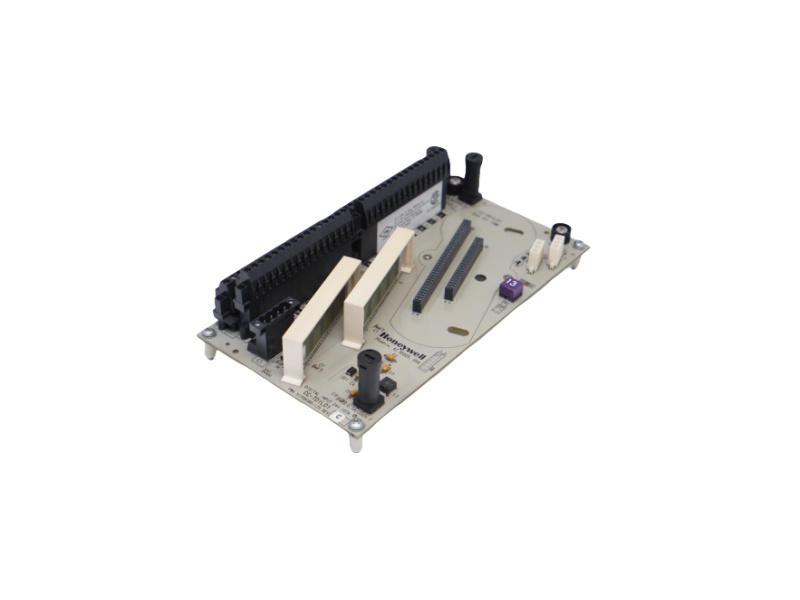

Honeywell CC-TDIL01 51308386-175 24 VDC Digital Input IOTA side view

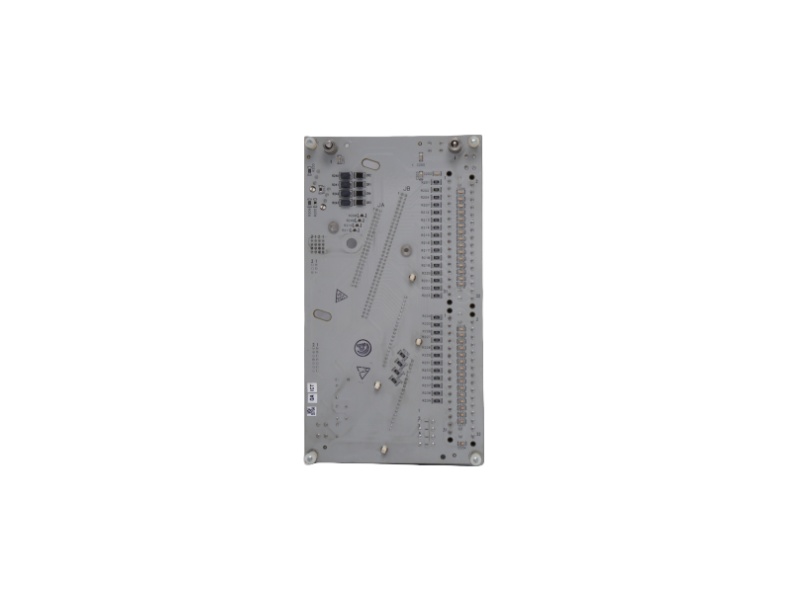

Honeywell CC-TDIL01 51308386-175 24 VDC Digital Input IOTA front view
Honeywell CC-TDIL01 51308386-175 24 VDC Digital Input IOTA detail view

Honeywell CC-TDIL01 51308386-175 24 VDC Digital Input IOTA

Application: Non-redundant 24 VDC digital-input IOTA for the matching Series C I/O module.

Product familyExperion Series C I/O
Minimum order1 Piece
Applicable ratingsNon-redundant; 9-inch IOTA
LifecycleConfirm with manufacturer
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Honeywell International Inc.
Item number CC-TDIL01 51308386-175
Country of Origin United States
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
CC-TDIL01 51308386-175
DIGITAL INPUT IOTA

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

CC-TDIL01 51308386-175 Technical Data

Exact item scope
Hardware type24 VDC Digital Input IOTA
IOTA referenceCC-TDIL01 / 51308386-175
RedundancyNon-redundant configuration
Assembly width9-inch nominal form factor (228 mm)
Supported module functionsCC-PDIL01 and CC-PDIS01 digital-input functions
Carrier power architectureIOTA receives power from the 24 VDC bussed carrier
Field connector capacityUp to 12 AWG / 2.5 mm² stranded wire
System platformExperion Series C I/O
Model-specific application profile

Digital-input termination architecture

CC-TDIL01 is the field-termination base for an applicable Series C digital input module. The IOTA and the plug-in I/O module have separate order numbers.

Termination roleProvides the non-redundant field interface for 24 VDC digital inputs
Module pairingSelect the matching Series C DI module according to the required input function
Layout checkConfirm nine-inch cabinet space, terminal plan and system cabling before replacement

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

Is CC-TDIL01 the digital input electronics module?

No. It is the IOTA; the associated plug-in I/O module is ordered separately.

02

Does this reference provide redundant I/O termination?

No. CC-TDIL01 is the non-redundant nine-inch version.

03

Which module functions are documented for this IOTA?

Honeywell identifies compatibility with CC-PDIL01 and CC-PDIS01 functions.

04

Are field terminals part of the IOTA assembly?

The IOTA is the termination assembly, but external wiring accessories are included only when listed.

05

Can a twelve-inch redundant IOTA use the same order number?

No. The redundant arrangement has a different IOTA reference.

06

What data should accompany a quotation request?

Provide the IOTA label, installed DI module number, redundancy requirement and quantity.
