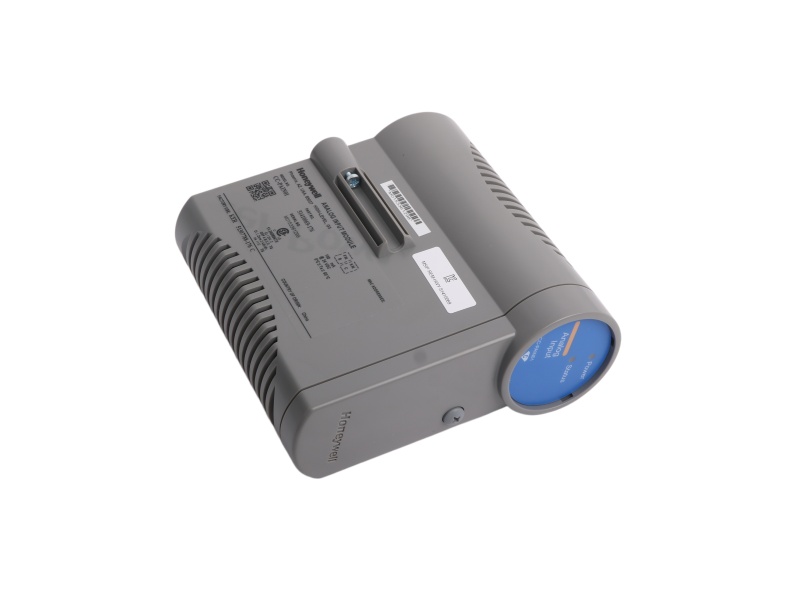

Honeywell CC-PAIN01 51410069-176 Analog Input Module front view

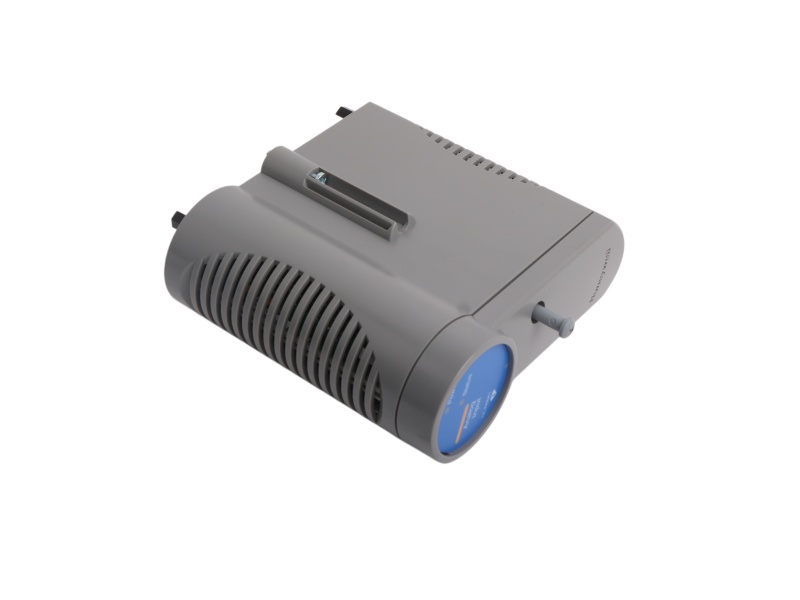

Honeywell CC-PAIN01 51410069-176 Analog Input Module side view
Honeywell CC-PAIN01 51410069-176 Analog Input Module detail view

Honeywell CC-PAIN01 51410069-176 Analog Input Module

Application: Series C high-level current-input module without HART communication.

Product familyExperion Series C I/O
Minimum order1 Piece
Applicable ratings16 channels; 4-20 mA
LifecycleLifecycle not stated in the cited Honeywell documentation
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Honeywell International Inc.
Item number CC-PAIN01 51410069-176
Country of Origin United States
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
CC-PAIN01 51410069-176
HIGH-LEVEL ANALOG INPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

CC-PAIN01 51410069-176 Technical Data

Exact item scope
Input capacity16 single-ended current-input channels
Signal range4-20 mA through 200 Ω
Converter resolution16-bit A/D conversion
Input scan rate50 ms
Normal-mode filterSingle-pole RC response, -3 dB at 6.0 Hz
Maximum normal-mode input±30 V
Channel crosstalk-60 dB from DC to 60 Hz
Hardware accuracy±0.075% of full scale at 23.5 ±2 °C; ±0.15% from 0 to 60 °C
Model-specific application profile

Series C process-current acquisition

CC-PAIN01 acquires high-level process current for Experion Series C I/O. Its self-diagnostics, protected field-power circuits and optional redundant termination support cabinet designs that require dependable analog monitoring.

Measurement roleConnects field sensing devices to the Series C analog-input processing path
Power architectureProvides protected non-incendive loop power without external marshalling
Redundancy choiceSelect the appropriate non-redundant or redundant IOTA for the installed cabinet

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

Which IOTAs are documented for CC-PAIN01?

Honeywell lists CC-TAIN01 as the six-inch non-redundant IOTA and CC-TAIN11 as the twelve-inch redundant IOTA.

02

Does this module provide HART communication?

No. The Series C function matrix identifies CC-PAIN01 as the high-level analog input without HART.

03

Which transmitter arrangements can be connected?

The specification supports two-wire and self-powered current transmitters.

04

Is separate point fusing required for the non-incendive power circuits?

Honeywell states that the individually protected current-limiting circuits require no external fusing for the documented Class I, Division 2 interface.
