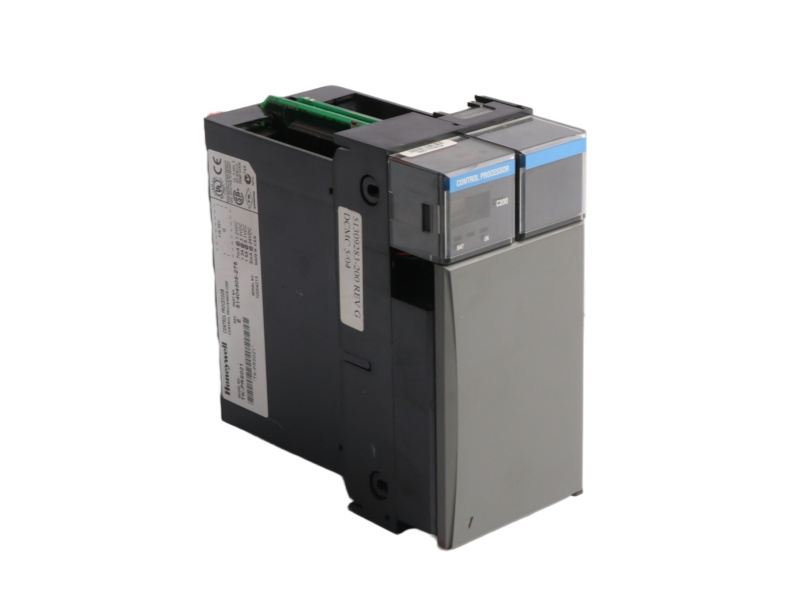

Honeywell 51404305-225 Experion PKS C200 control processor front view

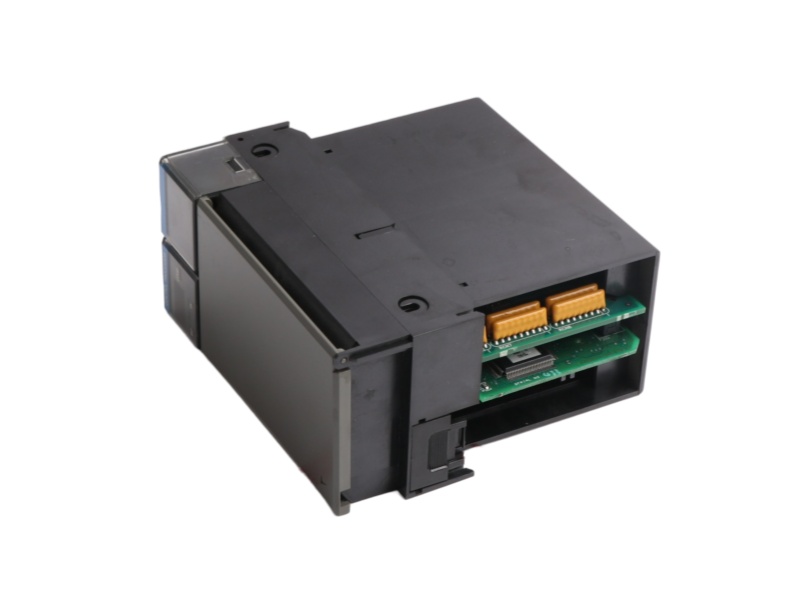

Honeywell 51404305-225 C200 control processor alternate view
Honeywell 51404305-225 C200 control processor detail view

Honeywell 51404305-225 Experion PKS C200 Control Processor

HONEYWELL · EXPERION PKS · C200

Honeywell 51404305-225 is a C200 control processor reference for deterministic Control Execution Environment (CEE) operation in installed Experion process-control systems. Match the complete article number, nameplate model and installed system configuration before replacement.

PLATFORMC200 / Series A
CONTROL COREDeterministic CEE
I/O CAPACITYUp to 64 modules
LIFECYCLEC200 phased out
Order check: Honeywell lists TC-PRS021 as the C200 control processor and TK-PRS021 as the coated version. Verify the exact label carried by 51404305-225 before purchase.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Honeywell International Inc.
Item number 51404305-225
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Product identity & operating envelope

Exact-reference intelligence for Honeywell 51404305-225.

A compact view of the C200 control role, published operating limits and the identifiers that must be matched before an installed processor is exchanged.

Article number51404305-225
Hardware roleC200 control processor
Software coreCEE
Lifecycle signalPhased out 31 Dec 2020
Published C200 platform data

Operating and capacity checkpoints

Confirm the installed hardware revision
Execution period50 to 2000 ms, adjustable
I/O modules64 supported
C200 tagged objects1023
C200 memory units4000
Power requirements+3.3 VDC at 1 A; +5 VDC at 1.5 A
Operating temperature0 to 60°C
Storage temperature-40 to 85°C
Humidity5 to 95% RH, non-condensing
Identification boundary

Honeywell's official table identifies TC-PRS021 as the C200 control processor and TK-PRS021 as the coated C200 control processor. Verify the full nameplate carried by 51404305-225.

Configuration boundary

C200 controllers can be implemented in single or fully redundant configurations. The processor, redundancy hardware, chassis and firmware must be checked as one installed system.

02 · System fit & modernization decisions

Map the installed C200 architecture before selecting a path.

Compatibility is determined by the I/O family, field network, redundancy design, Experion release and any custom control libraries; physical appearance alone does not establish compatibility.

Integration scope

I/O and field-network families

Honeywell lists Series A I/O, Rail A I/O, Rail H I/O and Process Manager I/O. Published field connectivity includes FOUNDATION Fieldbus, Profibus, DeviceNet and HART.

Control behavior

Predictable CEE execution

CEE executes control strategies on a constant and predictable schedule and supplies automatic-control, data-acquisition and calculation function blocks.

Modernization route map
01 / IDENTIFYExact spare boundary

Record 51404305-225, the TC/TK reference, hardware revision, firmware, chassis and redundancy design.

→
02 / SORTArchitecture decision gate

Separate Series A, PMIO, Fieldbus and Profibus combinations, then check ControlNet/FTE and the Experion release.

→
03 / SELECTHoneywell-defined destination

C300 or UOC is the stated C200/C200E upgrade path. Honeywell also documents C300 kits and UOC/vUOC routes for defined PMIO or Series A systems.

January 2025 guidance adds CC-ZHER01 for Series A I/O and CC-ZHR042 for PMIO-to-PCNT05 migration, subject to listed restrictions.

Replacement rule: C300, UOC, vUOC and PCNT05 are migration paths, not universal drop-in substitutes for Honeywell 51404305-225.

03 · FAQ

Buyer questions for Honeywell 51404305-225.

Specifications · fit · supply · migration
01

Which operating and memory specifications should a buyer verify for Honeywell 51404305-225?

For the C200 platform, Honeywell publishes a 50-2000 ms adjustable execution period, 1023 tagged objects, 4000 memory units, 0-60°C operation and power requirements of +3.3 VDC at 1 A plus +5 VDC at 1.5 A. Confirm the exact 51404305-225 hardware revision and label before ordering.

02

Which I/O families and field protocols can Honeywell 51404305-225 be evaluated against in an installed C200 system?

Honeywell documents C200 support for Series A I/O, Rail A I/O, Rail H I/O and Process Manager I/O, as well as FOUNDATION Fieldbus, Profibus, DeviceNet and HART. A quotation should identify the actual I/O and network combination connected to Honeywell 51404305-225.

03

What process-control applications use Honeywell 51404305-225 in the C200 architecture?

Honeywell C200 systems use deterministic CEE execution for automatic control, data acquisition and calculation strategies. Honeywell also describes batch-control use within the C200/C200E platform; project-specific batch capability and Experion release must be checked for Honeywell 51404305-225.

04

Has Honeywell phased out the C200 platform used with 51404305-225, and how should supply be quoted?

Yes. Honeywell states that the C200/C200E lifecycle has been phased out since 31 December 2020. Current 51404305-225 availability, condition, revision, warranty and delivery must therefore be confirmed in a written quotation for the requested quantity.

05

Is C300, UOC or PCNT05 a drop-in replacement for Honeywell 51404305-225?

No universal drop-in replacement is stated. Honeywell presents C300 and UOC as upgrade paths and also documents PCNT05 kits for defined Series A or PMIO architectures. Selecting a path for Honeywell 51404305-225 requires review of I/O, ControlNet/FTE design, Experion release, redundancy, memory backup and custom CCL requirements.

06

Which manuals and project details are needed to quote Honeywell 51404305-225?

Use Honeywell's C200/C200E product page, C200 Migration Program and current System HINTS guidance. For a 51404305-225 quotation, send clear nameplate photos, quantity, destination, required date, TC/TK reference, hardware and firmware revision, chassis, redundancy design, I/O families and Experion release.
