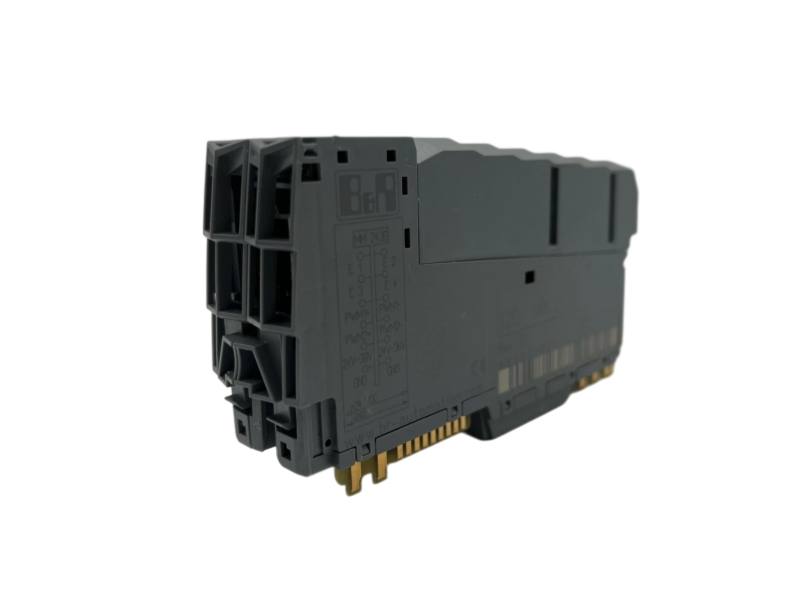

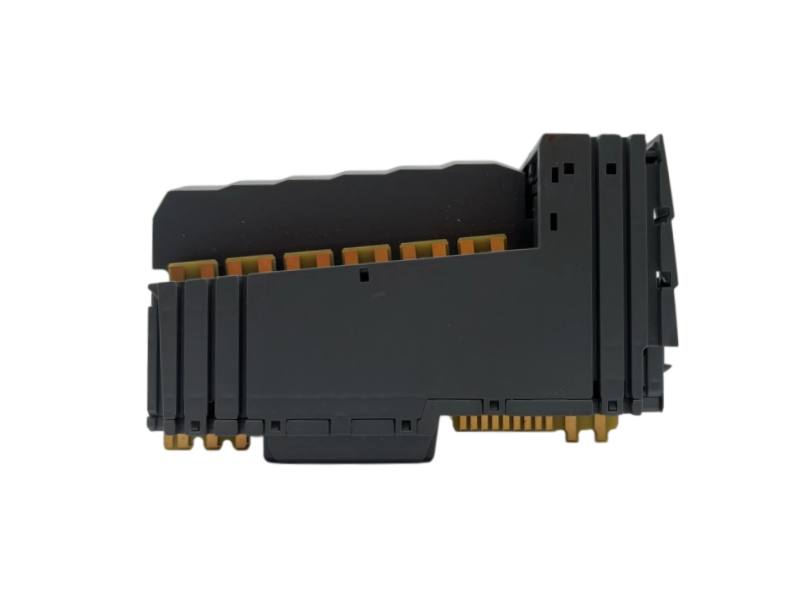

Name: B&R X20MM2436 X20 2-Channel PWM Motor Bridge Module
Availability: InStock

B&R X20MM2436 X20 2-Channel PWM Motor Bridge Module

COMPACT MOTOR CONTROL2 H-BRIDGES

B&R X20MM2436 is a two-channel PWM H-bridge module for bidirectional DC motor control. Paired incremental-encoder inputs support compact closed-loop or monitored motion functions in an X20 station.

MATCH BEFORE ORDERINGMatch motor voltage, stall current, inductance, encoder signal type, base module, terminal block and horizontal cabinet mounting.

MOTOR CHANNELS2 independent

NOMINAL CURRENT3 A per channel

PWM RANGE15 Hz to 50 kHz

Brand New Original One Year Warranty

INQUIRE NOW

OFFICIAL MOTION-I/O DATA

X20MM2436 bridge and encoder parameters

Motor-stage limits are separated from feedback inputs, supply loading and installation requirements.

MOTOR BRIDGE OUTPUTS

Motor channels2

Motor topologyBidirectional H-bridge

Motor voltage range24 to 39 VDC ±25%

Nominal output current3 A

Maximum output current3.5 A

PWM frequency15 Hz to 50 kHz

PWM resolution15 bit plus sign

Minimum pulse10 ns

Configurable ditherSupported

Period resolution16 bit; minimum 20 µs

ENCODERS & INSTALLATION

Digital inputs4, arranged as 2 × AB

Counter configuration2 incremental encoder pairs

Hardware filter<5 µs

Low switching threshold<5 V

High switching threshold>15 V

Nominal input voltage24 VDC

Input currentApproximately 1.3 mA

Input typeSink

Connection method1-wire

Input resistance18 kΩ

BIDIRECTIONAL DRIVE PATH

How X20MM2436 controls two DC motor axes

Setpoints, PWM synthesis, H-bridge polarity and encoder feedback combine into two compact motor-control channels.

01Receive axis command

02Generate signed PWM

03Drive H-bridge output

04Evaluate AB feedback

FUNCTION 01

Control motor direction

Each H-bridge reverses output polarity so a compatible DC motor can run in either direction.

FUNCTION 02

Modulate delivered energy

Configurable PWM timing adjusts average motor voltage while retaining a switched power stage.

FUNCTION 03

Accept incremental feedback

Two AB input pairs can read compatible encoders for speed, position or direction evaluation.

FUNCTION 04

Regulate inductive current

Current-controller operation supports suitable inductive loads where controlled current is more useful than open voltage duty.

FUNCTION 05

Shape low-speed behavior

Configurable dither can help manage friction or response in applications that benefit from a small superimposed excitation.

FUNCTION 06

Coordinate both channels

Two motor paths in one module reduce station space while retaining separate command and feedback handling.

LOAD & FEEDBACK CHECKMeasure motor stall behavior and confirm encoder wiring before setting current limits, PWM frequency and control mode.

BUYER GUIDANCE

B&R X20MM2436 buyer FAQ

Model-specific guidance covers load suitability, feedback wiring, mounting, companion hardware and quotation preparation.

What type of motors can B&R X20MM2436 control?

Use compatible bidirectional DC motors whose voltage, continuous current, peak behavior and inductance fit the official bridge limits.

How are encoders connected to B&R X20MM2436?

The module provides four digital inputs arranged as two AB incremental-encoder pairs using the published sink, 1-wire input design.

Can B&R X20MM2436 be mounted vertically?

No. The official product record specifies horizontal mounting only; design the cabinet around the published horizontal temperature range.

Which separate parts are required for B&R X20MM2436?

B&R lists X20TB12 and X20BM31 as separately ordered companion parts. Confirm whether both are included in the requested assembly.

What must be checked before B&R X20MM2436 replaces another motor module?

Compare motor voltage, stall current, inductance, encoder electrical format, wiring, control mode and application timing; do not substitute by channel count alone.

Which details should be sent for a B&R X20MM2436 quotation?

Provide motor nameplates, encoder specifications, wiring diagram, present module label, requested quantity and delivery destination, and ask for the official datasheet.
