Name: B&R 5LS182.6-2 POWERLINK Logic Scanner PCI Module
Availability: InStock

B&R 5LS182.6-2 POWERLINK Logic Scanner PCI Module

REAL-TIME ETHERNET CONTROLLERMANAGING / CONTROLLED

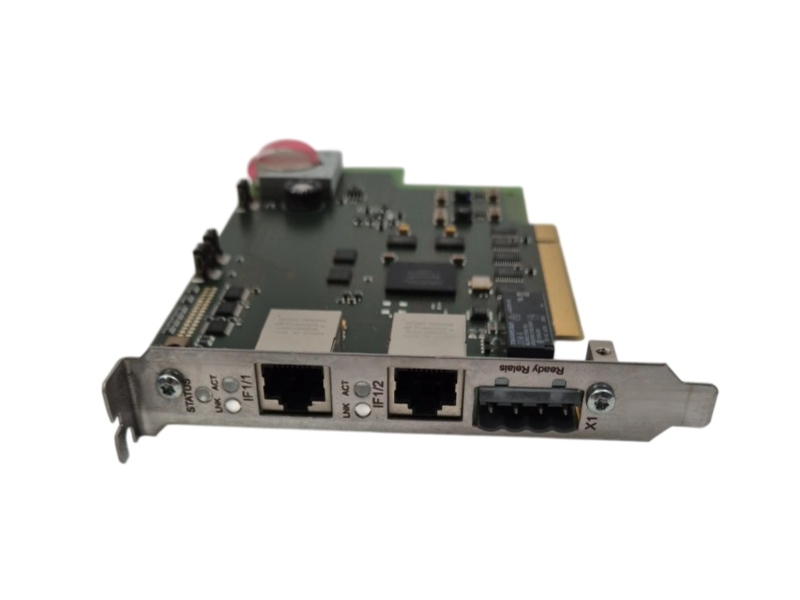

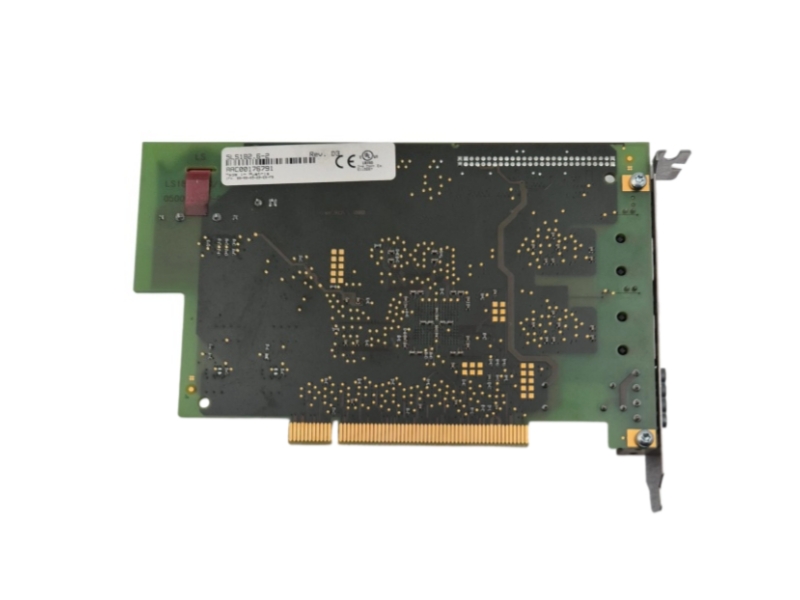

B&R 5LS182.6-2 is a standard PCI half-size POWERLINK communication module that can operate as a managing or controlled node. Its integrated hub supports deterministic machine networking from compatible PC platforms.

MATCH BEFORE ORDERINGConfirm the host PCI slot, required node role, Automation Studio hardware configuration, separate TB704 terminal and planned network topology.

INTERFACEPOWERLINK V1/V2

NETWORK PORTS2 shielded RJ45

REMANENT MEMORY1 MB SRAM

Brand New Original One Year Warranty

INQUIRE NOW

OFFICIAL NETWORK CONTROLLER DATA

5LS182.6-2 interface and controller parameters

The official communication interface, controller resources and operating envelope are arranged for a complete hardware match.

POWERLINK & ETHERNET INTERFACE

Fieldbus rolePOWERLINK V1/V2 managing or controlled node

Physical layerANSI/IEEE 802.3

POWERLINK duplex modeHalf-duplex

Ethernet duplex modeFull-duplex

AutonegotiationYes

Auto-MDI / MDIXAutomatic

Interface variantType 4

Network ports2 shielded RJ45 with integrated hub

Segment lengthMaximum 100 m between stations

Transfer rate100 Mbit/s

CONTROLLER & OPERATING ENVELOPE

Hub delay0.96 to 1 µs

PC-to-interface isolationElectrically isolated

Remanent memory1 MB battery-backed SRAM

Power consumption2 W

Ready relayNO and NC; maximum 30 VDC / 10 A

B&R ID code0xAAC0

Degree of protectionIP20 when installed

Operating temperature0 to 55°C

Slot formatStandard PCI half-size, Plug & Play

Included batteryLithium battery supplied

DETERMINISTIC NETWORK CONTROL

How 5LS182.6-2 coordinates a POWERLINK machine network

The host application, configurable node role, integrated hub and real-time scheduling create a controlled communication path.

01Run PC application

02Execute node role

03Distribute real-time frames

04Synchronize field stations

FUNCTION 01

Establish the network role

The module can be configured for central network management or controlled-node operation according to the machine architecture.

FUNCTION 02

Connect a compact topology

Its integrated two-port hub supports straightforward daisy-chain, tree or redundant-ring cabling without an external hub at the controller.

FUNCTION 03

Recover a cable interruption

Configurable ring redundancy provides an alternate communication path when a supported ring is planned and commissioned correctly.

FUNCTION 04

Shorten response cycles

Poll response chaining helps demanding central-control applications exchange process data with reduced cycle latency.

FUNCTION 05

Preserve selected runtime data

Battery-backed controller memory can retain remanent process variables and data objects for the compatible runtime environment.

FUNCTION 06

Expose diagnostic state

LED and software diagnostics report station status, network activity, link condition and bus function during commissioning and service.

TOPOLOGY & PROJECT REVIEWSet the intended node role in the correct Automation Studio hardware configuration and verify both network paths before production operation.

BUYER GUIDANCE

B&R 5LS182.6-2 buyer FAQ

The questions address PC installation, node configuration, mandatory accessories, network behavior, replacement evidence and technical documentation.

Can B&R 5LS182.6-2 operate as both a POWERLINK managing node and a controlled node?

Yes. B&R specifies POWERLINK V1/V2 managing-node or controlled-node operation; the required role must be selected in the matching Automation Studio hardware configuration.

Which host computers can accommodate B&R 5LS182.6-2?

B&R lists installation in compatible Automation PC, Panel PC and desktop PC systems with a suitable standard PCI half-size slot. Confirm the exact host and available slot before ordering.

Why must a terminal block be ordered for B&R 5LS182.6-2?

The module requires one TB704 terminal block for the ready-relay connection. B&R lists 0TB704.91 push-in and 0TB704.9 screw-clamp versions as mandatory accessories.

How do ring redundancy and poll response chaining change a B&R 5LS182.6-2 application?

Ring redundancy can provide an alternate network path, while poll response chaining is intended to reduce response and cycle time in supported central-control designs.

What should be compared before replacing B&R 5LS182.6-2?

Verify the PC slot, node role, POWERLINK topology, project hardware definition, Automation Studio hardware upgrade, terminal wiring and retained application data before exchanging the module.

Which records are useful when requesting B&R 5LS182.6-2 documentation and a quotation?

Send the complete module and host labels, Automation Studio version, required node role, terminal preference, quantity and destination, and request the model-specific official datasheet with the quote.
