Name: B&R 5ACCIF01.FPSC-001 POWERLINK CAN X2X Interface Option
Availability: InStock

B&R 5ACCIF01.FPSC-001 POWERLINK CAN X2X Interface Option

PRODUCT ENQUIRY

Four-interface industrial PC expansion

Inquire Nowab@mooreplc.com →

B&RPOWERLINK + CAN + X2X

5ACCIF01.FPSC-001

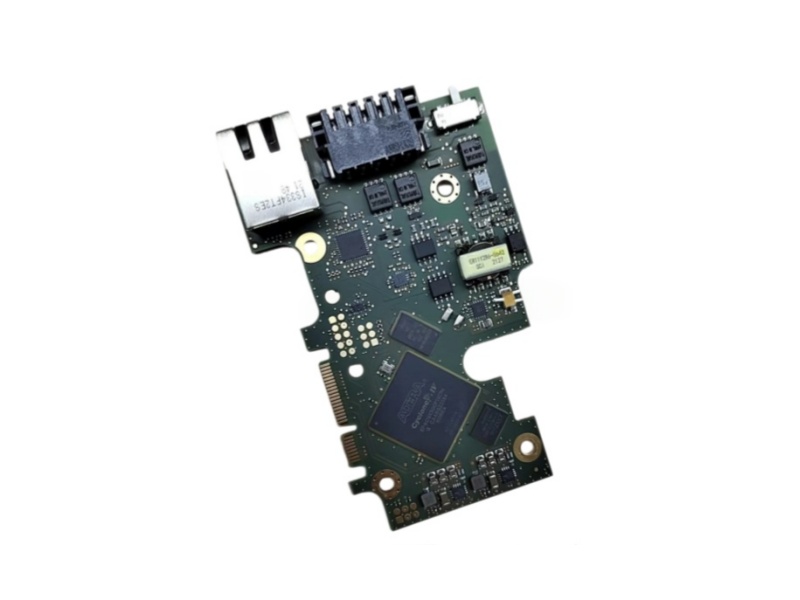

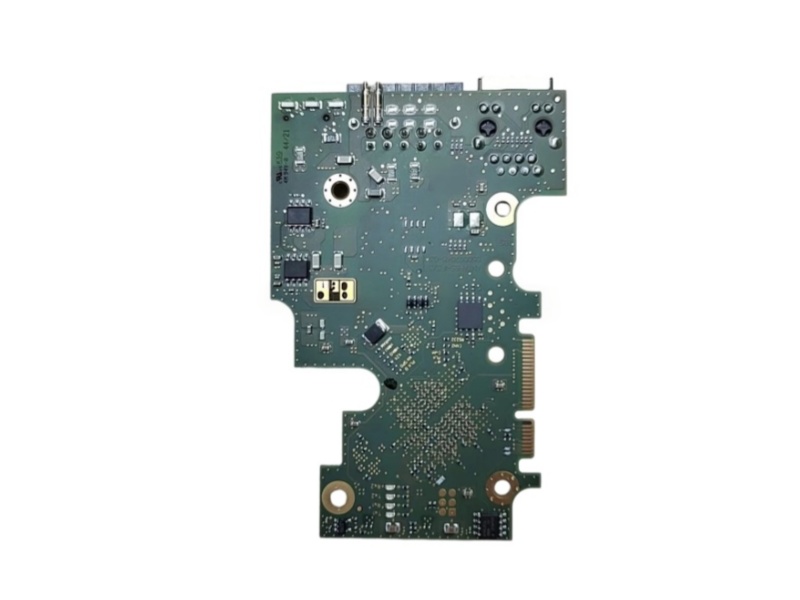

B&R 5ACCIF01.FPSC-001 is a communication interface module providing POWERLINK, CAN, X2X Link and RS232 connectivity for compatible B&R automation systems.

● One Year Warranty● Fast Delivery● Worldwide Shipping

OFFICIAL ENGINEERING DATA

Network, memory and operating specifications

The exact interface mix and remanent memory distinguish this FPSC-001 option.

B&R ID code0xE9BCStatus LEDsL1, L2 and L3

nvSRAM capacity512 kBData retention20 years

Read/write enduranceMinimum 1,000,000 cyclesPower-failure variables256 kB remanent capacity

RS232 channel1 non-isolated 10-pin male connectionRS232 UART16550-compatible with 16-byte FIFO

Maximum RS232 rate115 kbit/sPOWERLINK role1 managing or controlled node

POWERLINK physical layer100BASE-TX on shielded RJ45POWERLINK rate100 Mbit/s

POWERLINK segmentMaximum 100 m between stationsCAN interface1 galvanically isolated CAN master

CAN terminationSlide-switch selectable; default offMaximum CAN rate1 Mbit/s

X2X Link1 galvanically isolated X2X masterPower consumption2 W

Operating temperature-20 to 55°CStorage / transport-20 to 60°C

Operating humidity5 to 90%, non-condensingApproximate weight25 g

Pollution degreeDegree 2 per EN 61131-2Host compatibilityAPC2x00 and PPC2x00

FROM INPUT TO CONTROL

How 5ACCIF01.FPSC-001 links industrial networks

One option card coordinates deterministic Ethernet, fieldbus, I/O expansion and service serial data.

Synchronize

POWERLINK operates as a managing or controlled node over the shielded RJ45 connection.

Exchange

The isolated CAN master connects field devices at the selected network rate.

Extend

The isolated X2X Link master carries B&R I/O expansion traffic from the industrial PC.

Retain

nvSRAM preserves designated remanent variables across a power failure.

ENGINEERING FIT

FIT 01

APC2x00 network hub

Combine machine network and X2X I/O connectivity inside a compatible Automation PC.

FIT 02

PPC2x00 control node

Add deterministic network interfaces and retained data to a compatible Panel PC.

FIT 03

Mixed protocol retrofit

Match terminal blocks, host generation and installed firmware before exchange.

BUYER QUESTIONS

FAQ for B&R 5ACCIF01.FPSC-001

Model-specific answers support engineering and purchasing decisions.

Can B&R 5ACCIF01.FPSC-001 act as either a POWERLINK managing node or controlled node?

Yes. B&R specifies one Type 4 POWERLINK interface that can operate as a managing or controlled node.

How is CAN termination handled on B&R 5ACCIF01.FPSC-001?

The CAN terminating resistor can be switched on or off with a slide switch, and the documented default setting is off.

What data can B&R 5ACCIF01.FPSC-001 retain during a power failure?

The card has 512 kB nvSRAM and provides 256 kB for remanent variables used by functions such as Automation Runtime.

Which APC and PPC hosts accept B&R 5ACCIF01.FPSC-001?

B&R lists compatibility with APC2x00 and PPC2x00 systems and notes that this interface option is only available with a new device.

Can B&R 5ACCIF01.FPSC-001 be replaced by FPSC-000 without checking memory behavior?

No. The FPSC-001 version uses 512 kB nvSRAM and includes X2X Link, while other variants can differ in memory and interface composition.

What configuration should be included in a B&R 5ACCIF01.FPSC-001 enquiry?

Provide the host APC or PPC model, Automation Runtime version, required node roles, CAN and X2X wiring, terminal block, quantity and destination.
