Bently Nevada 330101-00-49-90-12-05 3300 XL 8 mm Proximity Probe

ProvibTech / PVTVM / Transmitter Monitor TM202 Transmitter Monitor The ProvibTech TM202-A00-B00-C00-D00-E00-G00 is a transmitter monitor identified by its complete seven-block option code. Match every option block, terminal arrangement and installed sensing loop before ordering. The suffix meanings are not inferred from incomplete online listings. ModelTM202-A00-B00-C00-D00-E00-G00 DeviceTransmitter Monitor BrandProvibTech / PVTVM ConfigurationSeven-Block Option Code Supply StatusRFQ Confirmation Lead Time2-3 DAYS Order check: send the complete front and side labels, terminal photos, connected sensor details, quantity and destination. ✓ Integrity Supply ⚡ Fast Delivery ◎ Worldwide Shipping

ProvibTech / PVTVM / Proximity Driver TM0182 Proximity Transducer Driver The ProvibTech TM0182-A50-B00-C00 is a TM0182 driver labeled for a 2.0 mm full-scale range, 8 mV/µm sensitivity and -24 V power. Confirm the matching probe, extension cable, total system length, target material and monitor input before replacing any component in the proximity transducer chain. ModelTM0182-A50-B00-C00 DeviceTM0182 Driver Full Scale2.0 mm Sensitivity8 mV/µm Power-24 V Lead Time2-3 DAYS Order check: send driver, probe and extension-cable labels, total system length, target material, quantity and destination. ✓ One Year Warranty ⚡ Fast Delivery ◎ Top Quality

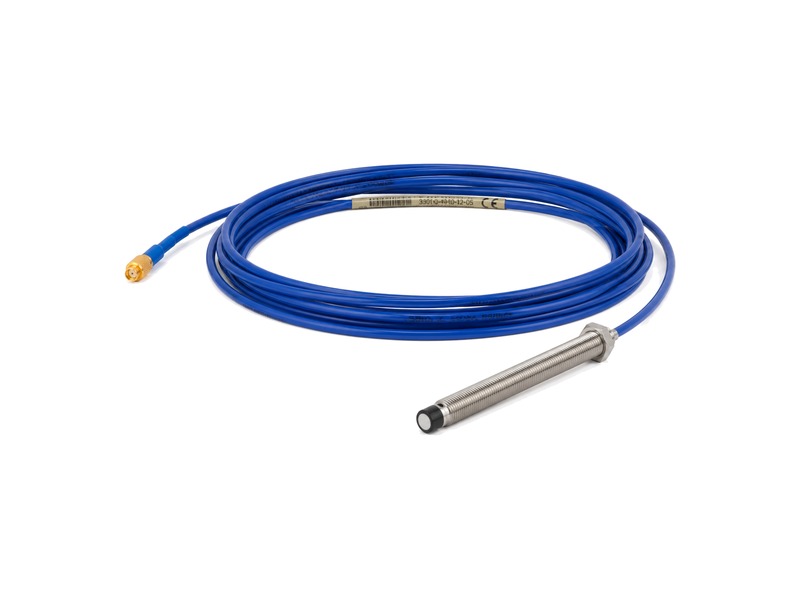

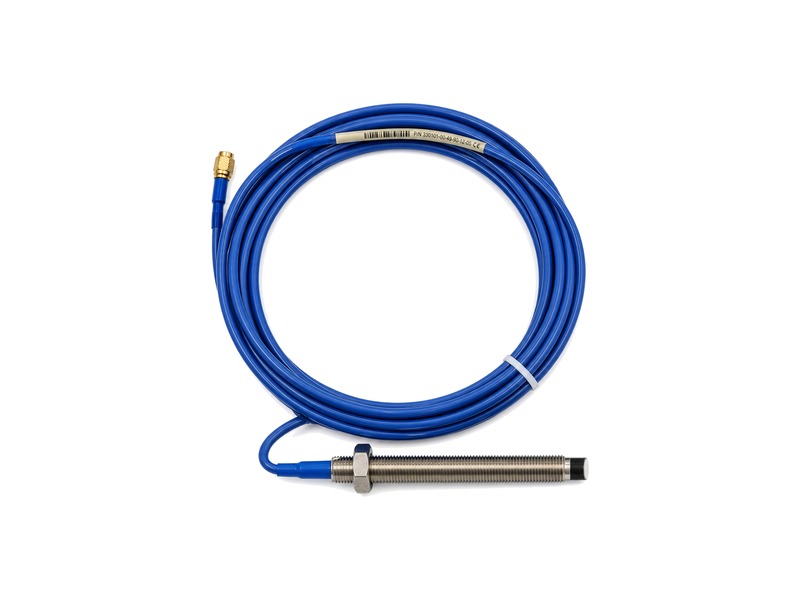

330101-02-70-10-11-05 is the Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, no armor, 0.2 in unthreaded length, 7.0 in case length, 1.0 m total length, FluidLoc cable with connector protector and CSA, ATEX and IECEx approvals. Probe type 8 mm · no armor Case thread 3/8-24 UNF Unthreaded / case 0.2 / 7.0 in Total length 1.0 m Cable / connector FluidLoc · protector Approvals CSA · ATEX · IECEx Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

330901-05-11-05-01-05 is the Bently Nevada 3300 NSv proximity probe with 1/4-28 UNF thread and no armor, 0.5 in unthreaded length, 1.1 in case length, 0.5 m total length, standard cable with connector protector and multiple approvals. Probe family 3300 NSv Case thread 1/4-28 UNF Unthreaded / case 0.5 / 1.1 in Total length 0.5 m Cable / connector Standard · protector Approvals Multiple approvals Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

21000-28-05-00-056-04-02 is the Bently Nevada 21000 proximity probe housing assembly with a selectable-approval 3300 XL 8 mm probe, 0.5 m probe cable, no standoff adapter, 5.6 in probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread. Probe option 3300 XL 8 mm Probe cable 0.5 m Standoff None Penetration 5.6 in Fitting One 3/4-14 NPT plug Mounting thread 3/4-14 NPT Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

21000-28-10-00-244-04-02 is the Bently Nevada 21000 proximity probe housing assembly with a selectable-approval 3300 XL 8 mm probe, 1.0 m probe cable, no standoff adapter, 24.4 in probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread. Probe option 3300 XL 8 mm Probe cable 1.0 m Standoff None Penetration 24.4 in Fitting One 3/4-14 NPT plug Mounting thread 3/4-14 NPT Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

  Bently Nevada · Proximity Sensing · Exact Code Review RS900805-00-20-01-00 RS900805-00-20-01-00 is presented as a Bently Nevada proximity probe assembly for machinery condition monitoring; the exact suffix and system length must be verified from the supplied nameplate and matching official order documentation. SYSTEM ELEMENT Probe assembly APPLICATION Vibration / position MATCHING Exact suffix SENSOR ROLE SHAFTPROXIMITYSENSING Verify probe · cable · driver ◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping

  Metrix · ST5484E · Seismic Transmitter ST5484E-121-0532-00 ST5484E-121-0532-00 is a self-contained, loop-powered Metrix seismic velocity transmitter that converts machinery vibration into a 4–20 mA signal for PLC, DCS or SCADA monitoring. OUTPUT 4–20 mA SENSOR Piezo-electric MOUNTING Machine case MONITORING ROLE SEISMICVELOCITYOUTPUT Loop powered · direct mount ◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping
