Bently Nevada 21000-28-05-00-056-04-02 Proximity Probe Housing Assembly

330851-02-00-080-10-00-00 is the Bently Nevada 3300 XL 25 mm proximity probe with M30×2 threaded case, nominal zero unthreaded-length selection, 80 mm case length, 1.0 m total length, no armor and no approvals. The supplied unthreaded-length segment uses two digits while Rev. M shows three; verify the exact legacy code. Probe type 25 mm proximity Case thread M30×2 Unthreaded 0 mm · verify format Case length 80 mm Total length 1.0 m Armor / approvals None / none Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

330130-060-00-05 is the Bently Nevada 3300 XL standard extension cable for the 8 mm proximity transducer system, with 6.0 m cable length, standard cable construction and CSA, ATEX and IECEx approvals. Product type Extension cable Cable length 6.0 m Cable option Standard cable Approvals CSA · ATEX · IECEx Connector family ClickLoc System family 3300 XL 8 mm Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

330101-00-20-90-12-05 is the Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, no armor, 0.0 in unthreaded length, 2.0 in case length, 9.0 m total length, FluidLoc cable without connector protector and CSA, ATEX and IECEx approvals. Probe type 8 mm · no armor Case thread 3/8-24 UNF Unthreaded / case 0.0 / 2.0 in Total length 9.0 m Cable / connector FluidLoc · no protector Approvals CSA · ATEX · IECEx Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

330101-00-49-90-12-05 is the Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, no armor, 0.0 in unthreaded length, 4.9 in case length, 9.0 m total length, FluidLoc cable without connector protector and CSA, ATEX and IECEx approvals. Probe type 8 mm · no armor Case thread 3/8-24 UNF Unthreaded / case 0.0 / 4.9 in Total length 9.0 m Cable / connector FluidLoc · no protector Approvals CSA · ATEX · IECEx Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

330101-02-70-10-11-05 is the Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, no armor, 0.2 in unthreaded length, 7.0 in case length, 1.0 m total length, FluidLoc cable with connector protector and CSA, ATEX and IECEx approvals. Probe type 8 mm · no armor Case thread 3/8-24 UNF Unthreaded / case 0.2 / 7.0 in Total length 1.0 m Cable / connector FluidLoc · protector Approvals CSA · ATEX · IECEx Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

330901-05-11-05-01-05 is the Bently Nevada 3300 NSv proximity probe with 1/4-28 UNF thread and no armor, 0.5 in unthreaded length, 1.1 in case length, 0.5 m total length, standard cable with connector protector and multiple approvals. Probe family 3300 NSv Case thread 1/4-28 UNF Unthreaded / case 0.5 / 1.1 in Total length 0.5 m Cable / connector Standard · protector Approvals Multiple approvals Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

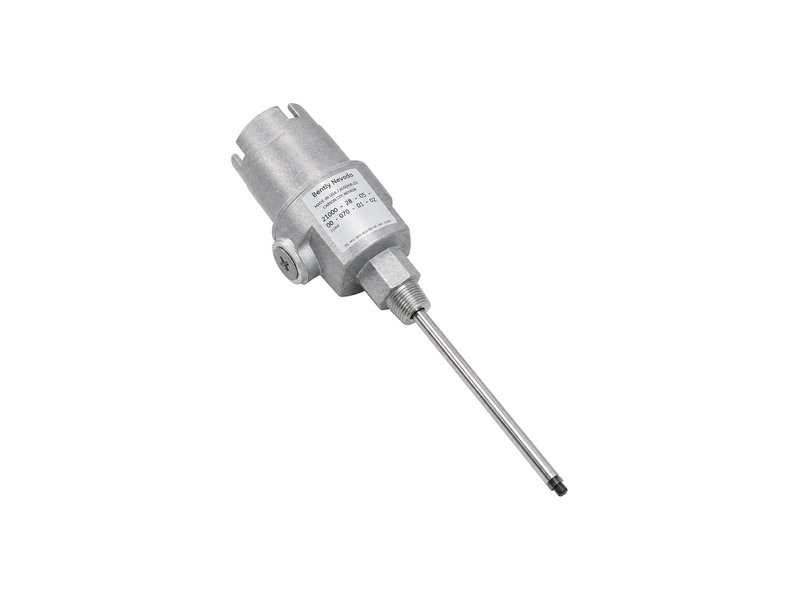

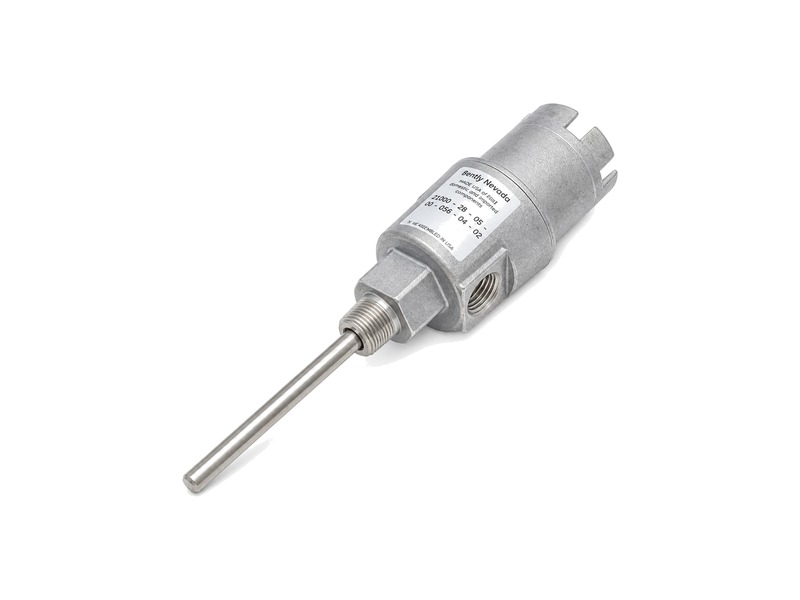

21000-28-05-00-056-04-02 is the Bently Nevada 21000 proximity probe housing assembly with a selectable-approval 3300 XL 8 mm probe, 0.5 m probe cable, no standoff adapter, 5.6 in probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread. Probe option 3300 XL 8 mm Probe cable 0.5 m Standoff None Penetration 5.6 in Fitting One 3/4-14 NPT plug Mounting thread 3/4-14 NPT Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

21000-28-10-00-244-04-02 is the Bently Nevada 21000 proximity probe housing assembly with a selectable-approval 3300 XL 8 mm probe, 1.0 m probe cable, no standoff adapter, 24.4 in probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread. Probe option 3300 XL 8 mm Probe cable 1.0 m Standoff None Penetration 24.4 in Fitting One 3/4-14 NPT plug Mounting thread 3/4-14 NPT Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.
