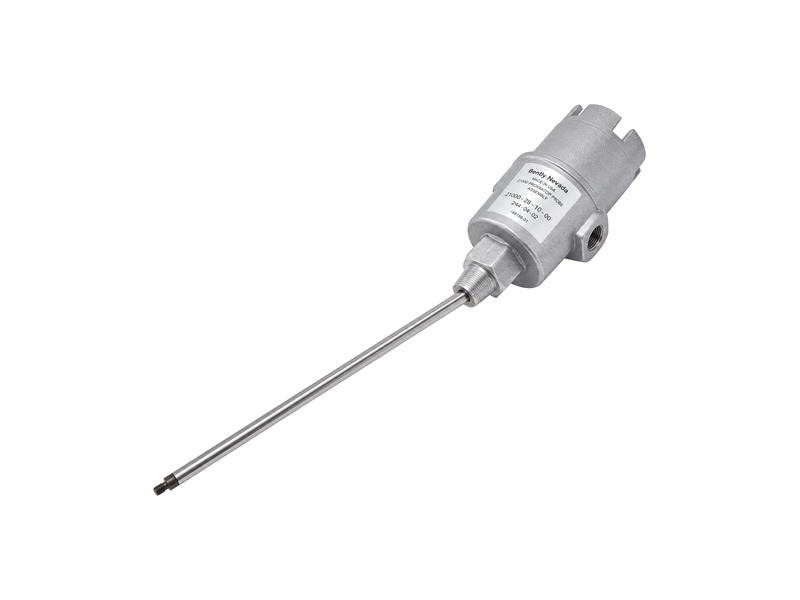

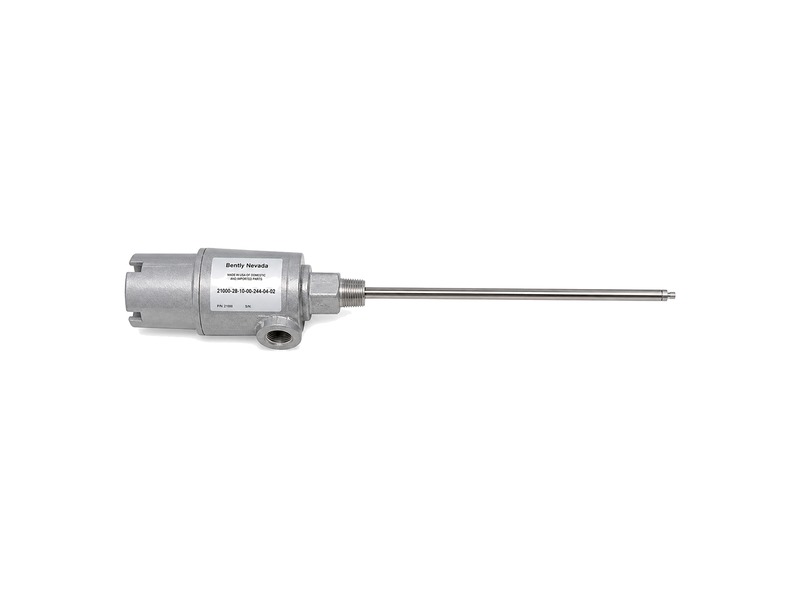

Bently Nevada 21000-28-10-00-244-04-02 Proximity Probe Housing Assembly

21000-28-10-00-244-04-02 is the Bently Nevada 21000 proximity probe housing assembly with a selectable-approval 3300 XL 8 mm probe, 1.0 m probe cable, no standoff adapter, 24.4 in probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread.

Probe option
3300 XL 8 mm
Probe cable
1.0 m
Standoff
None
Penetration
24.4 in
Fitting
One 3/4-14 NPT plug
Mounting thread
3/4-14 NPT

Send the exact part number, installed component, cable, connector and approval requirements for a compatibility check.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Bently Nevada, a Baker Hughes Company
Item number 21000-28-10-00-244-04-02
Country of Origin Not stated in official product literature
Lead Time Not stated in official product literature
After-Sales Support Refer to Baker Hughes / Bently Nevada product support
HS Code / Commodity code Not stated in official product literature
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
BENTLY NEVADA · 21000 PROBE HOUSING
21000-28-10-00-244-04-02
3300 XL 8 mm probe · 1.0 m cable · 24.4 in penetration
Lifecycle not stated by manufacturerStandoff · NonePenetration · 24.4 in
CONTROL SNAPSHOT
Probe option
3300 XL 8 mm
Probe cable
1.0 m
Standoff
None
Penetration
24.4 in
Fitting
One 3/4-14 NPT plug
Mounting thread
3/4-14 NPT
PRODUCT POSITIONING

Long-penetration 8 mm probe housing requiring sleeve support

Official product identity

Bently Nevada 21000 proximity probe housing assembly with a selectable-approval 3300 XL 8 mm probe, 1.0 m probe cable, no standoff adapter, 24.4 in probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread.

Order-code checkpoint

Confirm the 24.4 in penetration and add sleeve support near the probe as required by the Baker Hughes instruction for C plus D dimensions greater than 12 in; also confirm approvals, plug and mounting thread.

SIGNAL MAP

From identification to installation verification

01 · IDENTIFY
Exact part number
Use 21000-28-10-00-244-04-02 as the order-code checkpoint.
02 · VERIFY
System context
Check the installed component, cable, connector, mounting and approval requirements.
03 · MATCH
Documented configuration
Use only dimensions, cable details and options confirmed by the official datasheet and installed markings.
04 · VALIDATE
Commissioning
Verify mounting, connections and monitoring-system response before returning the machine to service.
SYSTEM REFERENCE

Official order-code and component data

Probe option
3300 XL 8 mm
Probe cable
1.0 m
Standoff
None
Penetration
24.4 in
Fitting
One 3/4-14 NPT plug
Mounting thread
3/4-14 NPT
Compatibility matters. Confirm the 24.4 in penetration and add sleeve support near the probe as required by the Baker Hughes instruction for C plus D dimensions greater than 12 in; also confirm approvals, plug and mounting thread.
COMMISSIONING HANDOVER

What to capture before replacement

Record the housing and probe markings, actual penetration, sleeve-support location, probe gap, cable routing, fittings and hazardous-area documentation.

Order-time checklist

• Exact part number and quantity
• Installed component and cable configuration
• Thread, case and penetration dimensions
• Connector, armor and cable requirements
• Approval requirements stated in official documentation
• Destination and required date
FAQ
21000-28-10-00-244-04-02 selection questions
Which probe and cable are selected?

Option 28 selects a 3300 XL 8 mm probe with selectable approvals; option 10 specifies a 1.0 m cable.

What penetration is encoded?

Option 244 specifies 24.4 in probe penetration.

Is extra mechanical support required?

Yes. Baker Hughes instructs users to add sleeve support near the probe when the C plus D length exceeds 12 in.
