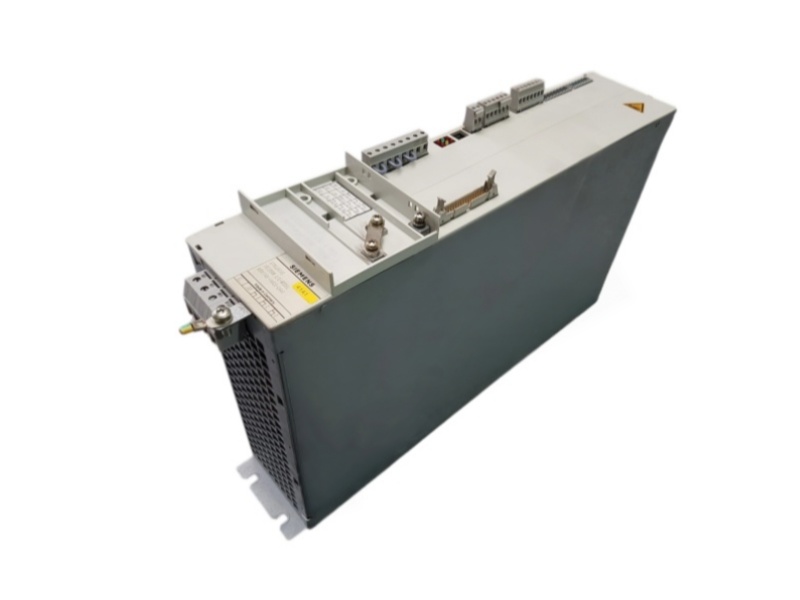

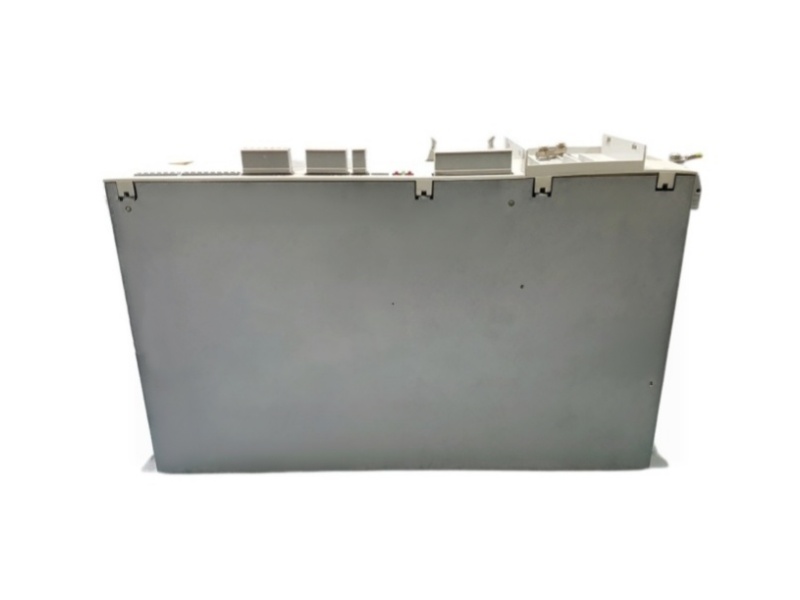

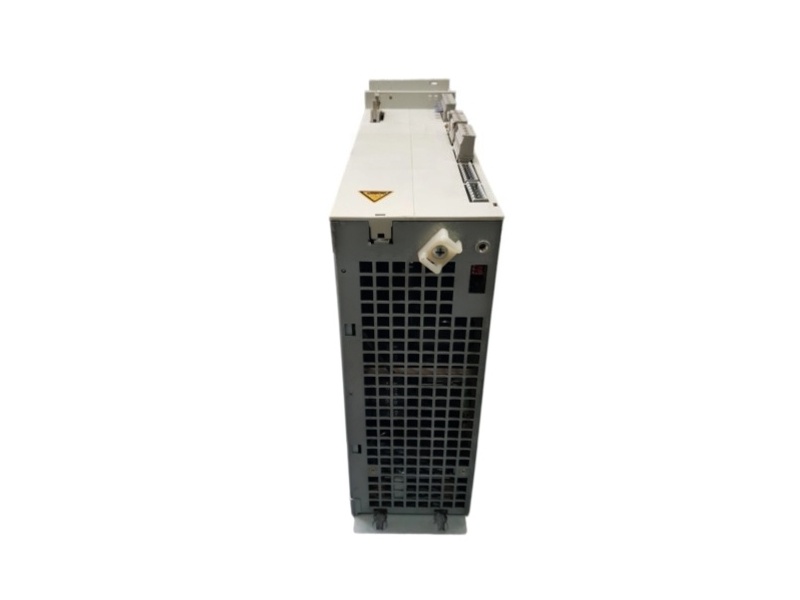

Siemens 6SN1145-1AA00-0AA0 SIMODRIVE 611-A/611-D 10/25 kW unregulated infeed module
Siemens 6SN1145-1AA00-0AA0 SIMODRIVE 611-A/611-D 10/25 kW Unregulated Infeed Module
Siemens 6SN1145-1AA00-0AA0 SIMODRIVE 611-A/611-D 10/25 kW Unregulated Infeed Module

Siemens 6SN1145-1AA00-0AA0 SIMODRIVE 611-A/611-D 10/25 kW Unregulated Infeed Module

Siemens / SIMODRIVE 611
6SN1145-1AA00-0AA0
10/25 kW
Non-stabilized infeed
Core overview
Siemens 6SN1145-1AA00-0AA0 is a 10/25 kW non-stabilized SIMODRIVE 611-A/611-D infeed module for the common DC link of a configured drive group.
Migration check
Successor 6SN1145-1AA01-0AA2
Function
Unregulated infeed
Power
10 / 25 kW
Family
611-A / 611-D
Lifecycle
Prod. Discont.
Weight
10.00 kg
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1145-1AA00-0AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044083
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Electrical interface
Supply, DC-link and enable data for the unregulated infeed.
Use the verified voltage references and enable limits when checking the installed drive group.
01
Line-side function
Unregulated supply
Rated line input
3-phase 400 V AC
DC-link positive rail
+300 V
DC-link negative rail
-300 V
Pulse-enable input
+13...30 V
Drive-enable input
+13...30 V
Enable response
Approx. 1 ms
Enable-supply load
500 mA max.
Cooling design
Internal cooling
Net weight
10.00 kg
Line-side fuse
25 A
Official lifecycle
Prod. Discont.Successor 6SN1145-1AA01-0AA2
02
Supply and enable sequence
Line entry, DC-link charging and fast enable response.
Preserve the documented terminal logic and timing when recommissioning the drive group.
01
Supply positionLine side
Install the infeed before the connected drive modules in the documented group sequence.
02
Start commandTerminal 48
Applying the start input initiates DC-link precharging and the line-contactor sequence.
03
Precharge stepApprox. 500 ms
After the DC link is charged, the precharge contactor opens and the main contactor closes.
04
Internal enablesApprox. 1 s
The module releases its internal enables after the documented start delay.
05
Pulse enableTerminal 63
Removing pulse enable acts in about 1 ms and lets the connected drives coast down.
06
Drive enableTerminal 64
Removing drive enable acts in about 1 ms and commands zero speed setpoint.
Terminal 19: enable reference
Terminal 15: keep isolated from terminal 19
X131: permitted reference connection
Official Siemens source: SIMODRIVE 611 Configuration Manual, infeed-module interface description.
03
Customer questions
Buyer Questions for Siemens 6SN1145-1AA00-0AA0.
Clear, model-specific information for a confident purchasing decision.
Q01
Can Siemens 6SN1145-1AA00-0AA0 return braking energy to the AC supply?
No. This unregulated infeed does not provide the regenerative-feedback function of an I/R module. Braking-energy handling must follow the documented pulsed-resistor or storage arrangement of the installed drive group.
Which line-side components should be checked with Siemens 6SN1145-1AA00-0AA0?
Verify the installed fuse, line filter, any required reactor and protective-conductor arrangement against the Siemens system documentation. Do not select these components from the infeed-module name alone.
Q02
Q03
Can terminal 19 be connected to terminal 15 when wiring Siemens 6SN1145-1AA00-0AA0?
No. Siemens identifies terminal 19 as the reference potential for the floating enable voltage and explicitly states that it must not be connected to terminal 15; use the documented PE-rail or X131 arrangement.
What commissioning sequence is appropriate after installing Siemens 6SN1145-1AA00-0AA0?
With the machine load safely controlled, verify line-contactor switching, ready and fault behavior, enable release and DC-link charging before returning the connected axes to production.
Q04
Q05
Which official documents should be used for Siemens 6SN1145-1AA00-0AA0?
Use the exact Siemens SiePortal article record together with the applicable SIMODRIVE 611 Configuration Manual. The machine documentation remains necessary for cabinet-specific wiring and settings.
What should a buyer send when requesting a quotation for Siemens 6SN1145-1AA00-0AA0?
Send clear nameplate and terminal photographs, the installed module sequence, required condition, quantity, destination and required date so the offer can be checked against the actual machine.
Q06
