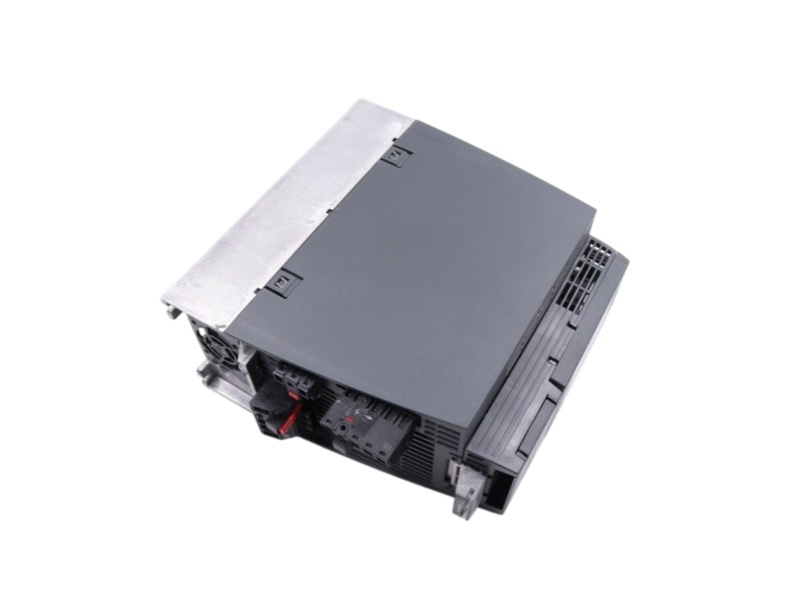

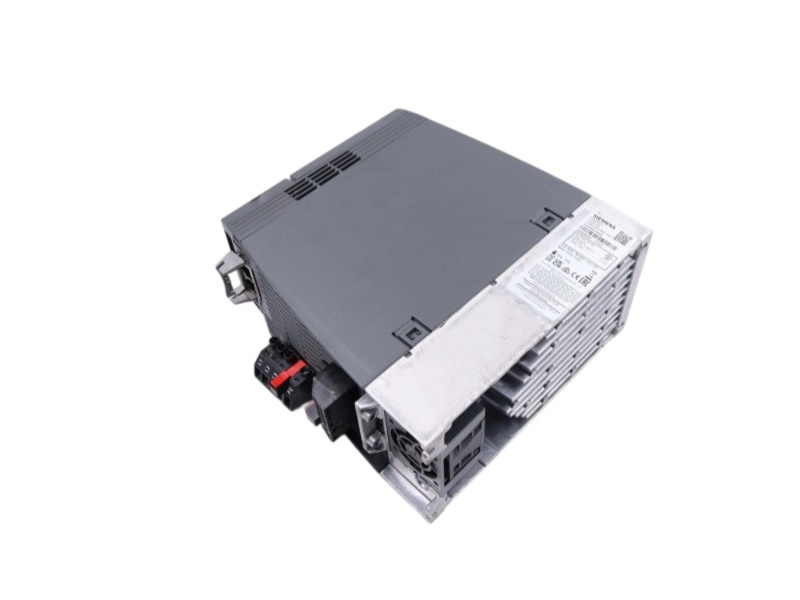

OFFICIAL G120C PN DATA
Power, I/O & mechanical specification
Siemens rated data arranged for mains sizing, motor output, overload duty, control interfaces, protection and installation space.
Input phases3 ACV/f-control frequency0 to 550 Hz
Line-voltage range380 to 480 V +10% / -20%Integrated EMC filterClass A
Line frequency47 to 63 HzFieldbusPROFINET PN
Input current, low overload16.50 AStandard digital inputs6 channels
Input current, high overload12.80 ADigital outputs1 relay and 1 transistor
Output phasesThree-phase motor outputAnalog/digital input1 differential channel, 10-bit
Rated output voltage400 V IEC / 480 V NECAnalog output1 non-isolated channel
Rated power, low overload5.50 kW / 7.50 hpMotor-temperature inputPTC, KTY or Thermo-Click
Rated power, high overload4.00 kW / 5.00 hpSafety functionSafe Torque Off integrated
Output current, low overload12.50 AControl supplyExternal 24 VDC
Output current, high overload8.80 AProtectionIP20 / UL open type
Rated output current IN13.00 AFrame sizeFSB
Maximum output current17.60 ACoolingIntegrated-fan air cooling, 0.009 m³/s
Pulse frequency4 kHzConverter dimensions196 x 100 x 203 mm (H x W x D)
Vector-control frequency0 to 240 HzTechnical net weight2.30 kg
