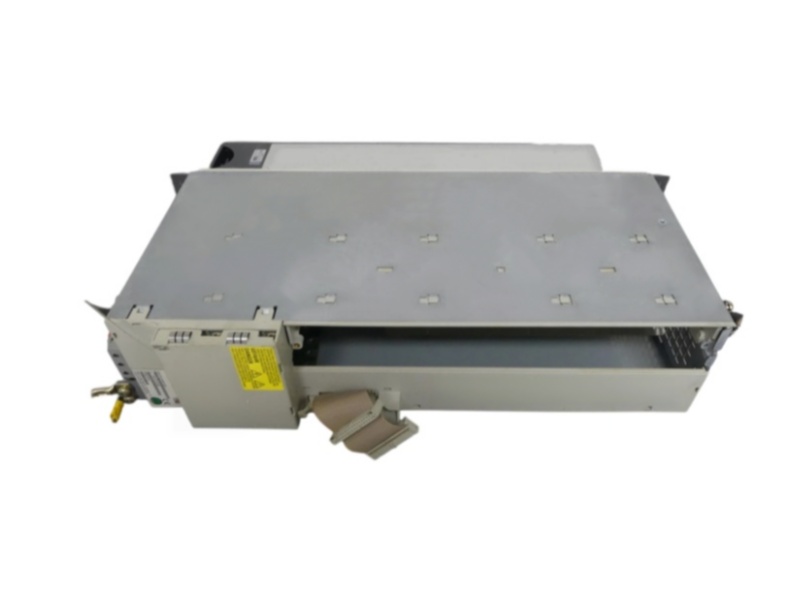

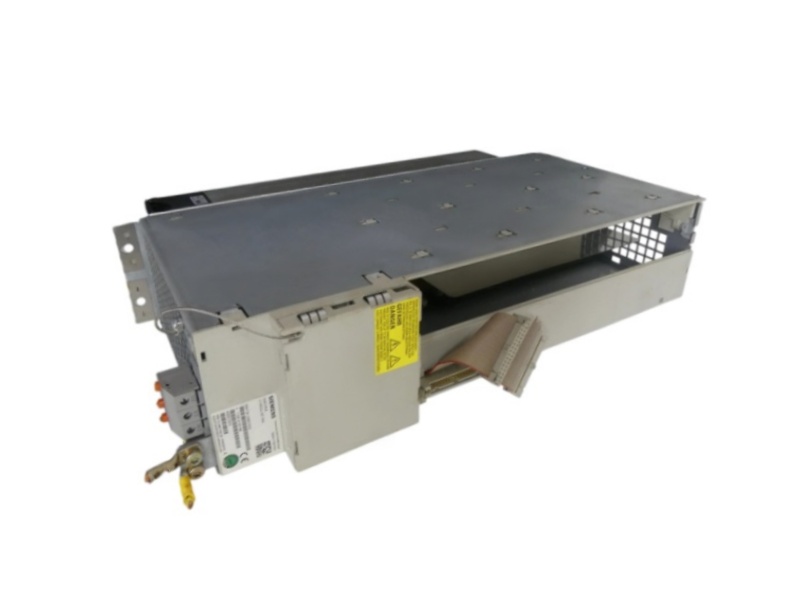

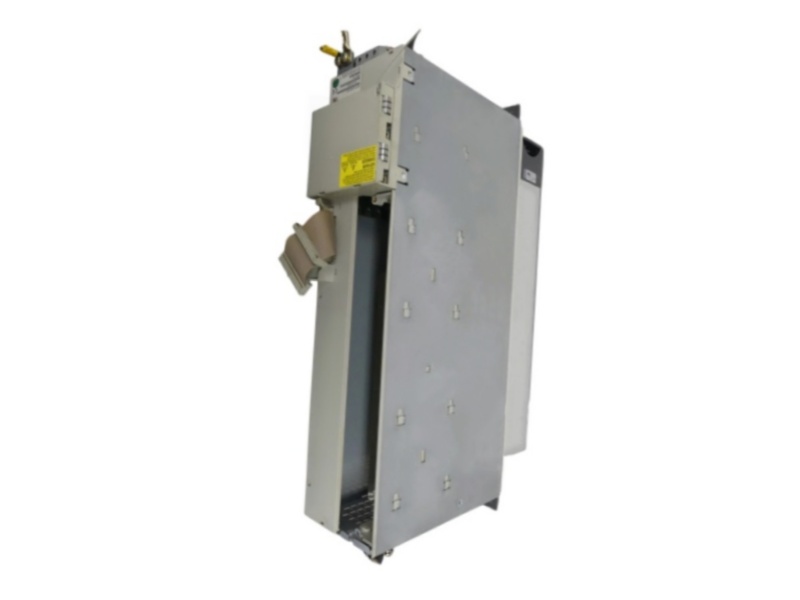

Siemens 6SN1124-1AA00-0DA2 SIMODRIVE 611 80 A External-Cooling Power Module
Siemens 6SN1124-1AA00-0DA2 SIMODRIVE 611 80 A External-Cooling Power Module
Siemens 6SN1124-1AA00-0DA2 SIMODRIVE 611 80 A External-Cooling Power Module

Siemens 6SN1124-1AA00-0DA2 SIMODRIVE 611 80 A External-Cooling Power Module

SIEMENS / SIMODRIVE 611
6SN1124-1AA00-0DA2
One-axis 80 A SIMODRIVE 611 power module with external cooling, rated for 28 A feed or 30 A main-spindle duty. Verify the external airflow path and 0DA2 installation before exchange.
SIMODRIVE 611
80 A
Module class

1 axis · external cooling
Feed motor current
28 A
Main-spindle current
30 A
Cooling boundary
External cooling
Lifecycle
Prod. Cancellation
Order number
6SN1124-1AA00-0DA2
Net weight
9 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1124-1AA00-0DA2
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
External-cooling 80 A operating envelope
A 28/30 A motor-duty pair whose thermal boundary sits outside the cabinet section.
Siemens 6SN1124-1AA00-0DA2 differs from the internal-cooling 6SN1123 family through its external-cooling construction and installation interface.
Lifecycle signal
Prod. Cancellation
Confirm the exact installed suffix.
Published configuration
80 A
1 axis · external cooling

Feed motor: 28 A
Main-spindle motor: 30 A
Cooling: external
Order number
6SN1124-1AA00-0DA2
Product type
611 power module
Axis count
1 axis
Motor-cable table entry
10 mm²
Protective conductor
M5
Terminal torque
1.5–1.8 Nm
Net weight
9 kg
Country of origin
Germany
Commodity code
Confirm by destination
01
Family prefix
Confirm 6SN1124
02
Exact suffix
Retain 0DA2
03
Motor duty
28 A feed / 30 A spindle
04
Thermal path
External cooling
05
Connection
10 mm² · M5
06
Recommission
Check airflow and load
System boundary: evaluate the 6SN1124 external-cooling construction, one-axis control board, motor duty, mounting interface, airflow path, motor connection and parameter set.

02 · External-cooling installation and airflow path
Six checks for an 80 A module whose thermal interface is part of the machine build.
The route gives the external heat-removal path equal priority with electrical compatibility and motor-duty selection.
Route logic
Identify → Commission
01
Differentiate
Confirm the 6SN1124 prefix and complete 0DA2 suffix.
02
Inspect
Check the external-cooling mounting surface, duct or heat-removal path.
03
Terminate
Verify the 10 mm² entry, M5 PE point and 1.5–1.8 Nm torque.
06
Load-test
Restore parameters and test current, airflow, direction and alarms.
05
Select
Apply 28 A for feed duty or 30 A for main-spindle duty.
04
Integrate
Match the one-axis control board, motor, DC link and mechanical interface.
External cooling defines the installation
The replacement must reproduce the heat-removal interface, not only the electrical connections.
The motor ratings are close but distinct
Use 28 A for feed duty and 30 A for main-spindle duty.
6SN1124 is part of the identity
Do not substitute an internally cooled 6SN1123 module from appearance or current class alone.
Installation note: For 6SN1124-1AA00-0DA2, confirm the external-cooling interface, 6SN1124 family, 28/30 A duty, one-axis control board, 10 mm² connection and saved parameters.
03 · FAQ
Buyer questions for Siemens 6SN1124-1AA00-0DA2
Six answers cover the external-cooling construction, motor-current pair, family compatibility, termination, cancellation status and inquiry data.
03
01
How does external cooling affect the installation of Siemens 6SN1124-1AA00-0DA2?
The module relies on an external heat-removal arrangement, so the mounting interface, airflow path and surrounding mechanical construction must match the installed system.
02
Which published motor currents belong to Siemens 6SN1124-1AA00-0DA2?
Siemens lists 28 A for feed-motor duty and 30 A for main-spindle duty within the one-axis 80 A power-module class.
03
Can an internally cooled 6SN1123 module replace Siemens 6SN1124-1AA00-0DA2 by current rating alone?
No. The 6SN1124 prefix identifies an external-cooling construction, so thermal interface, mounting, control board, connectors, motor duty and parameters must all be compared.
04
Which connection data should be checked on Siemens 6SN1124-1AA00-0DA2?
The Siemens 80 A row shows a 10 mm² IP20 connection entry, an M5 protective-conductor point and a tightening torque of 1.5–1.8 Nm.
05
What supply warning applies to Siemens 6SN1124-1AA00-0DA2?
Siemens SiePortal shows “Prod. Cancellation” and does not name a direct successor on the reviewed page. Exact-model availability and condition should be confirmed before ordering.
06
Which measurements and photos help verify Siemens 6SN1124-1AA00-0DA2 before quotation?
Provide the module and control-board labels, external-cooling interface photos, mounting details, motor nameplate, cable and PE information, parameter backup, quantity and destination.
