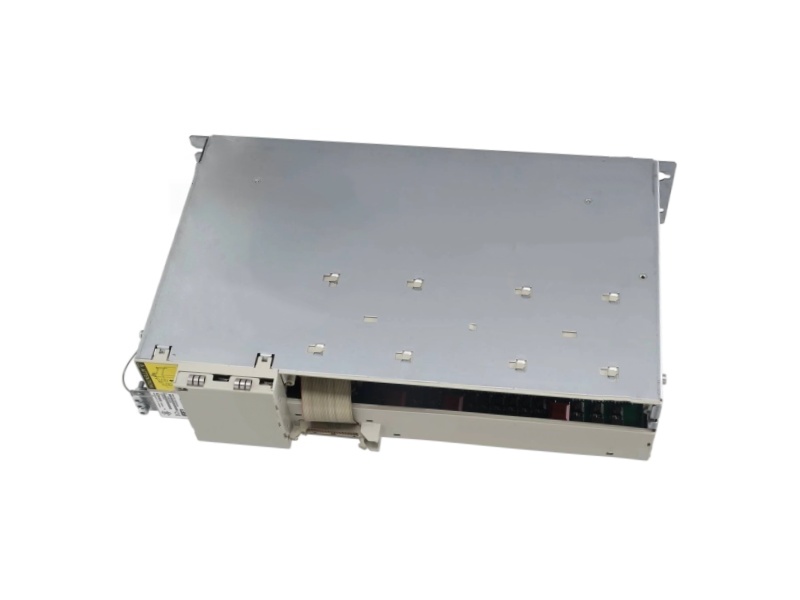

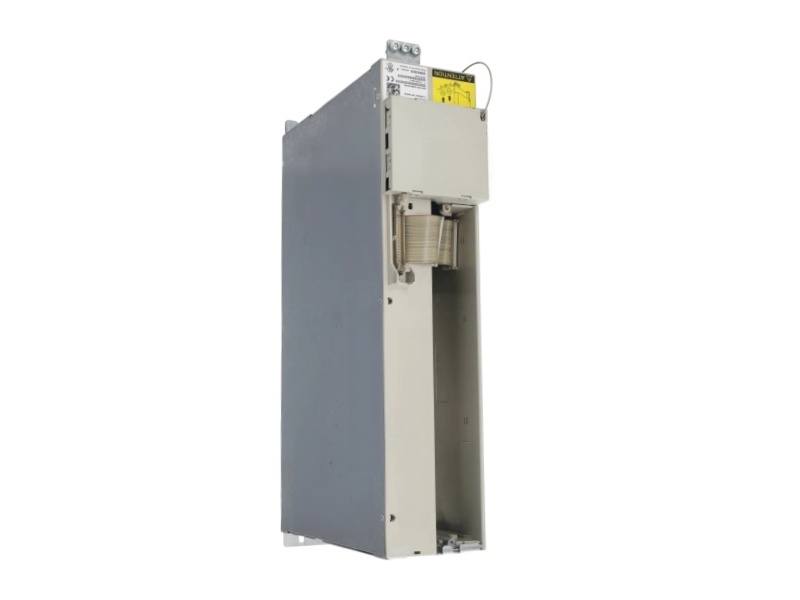

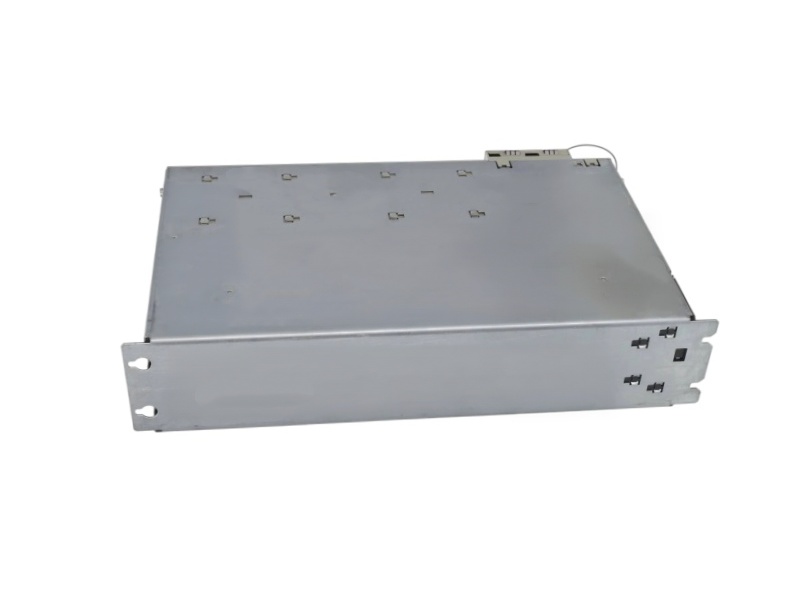

Siemens 6SN1123-1AB00-0CA3 SIMODRIVE 611 2 x 50 A Two-Axis Power Module
Siemens 6SN1123-1AB00-0CA3 SIMODRIVE 611 2 x 50 A Two-Axis Power Module
Siemens 6SN1123-1AB00-0CA3 SIMODRIVE 611 2 x 50 A Two-Axis Power Module

Siemens 6SN1123-1AB00-0CA3 SIMODRIVE 611 2 x 50 A Two-Axis Power Module

SIEMENS / SIMODRIVE 611
6SN1123-1AB00-0CA3
Two-axis 2 x 50 A SIMODRIVE 611 power module with internal heat dissipation, rated for 18 A feed or 24 A main-spindle duty. Preserve its special A1/A2 terminal arrangement and channel data.
SIMODRIVE 611
2 × 50 A
Module class

2 axes · internal cooling
Feed motor current
18 A
Main-spindle current
24 A
Cooling boundary
Internal cooling
Lifecycle
Prod. Cancellation
Order number
6SN1123-1AB00-0CA3
Net weight
9.1 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AB00-0CA3
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Revised dual-axis terminal and duty profile
An 18/24 A feed-spindle map within the later CA3 two-axis configuration.
Siemens 6SN1123-1AB00-0CA3 uses the same specially documented A1/A2 terminal family as CA2 but publishes its motor currents by machine duty.
Lifecycle signal
Prod. Cancellation
Confirm the exact installed suffix.
Published configuration
2 × 50 A
2 axes · internal cooling

Feed duty: 18 A
Main-spindle duty: 24 A
Terminal map: A1/A2
Order number
6SN1123-1AB00-0CA3
Product type
611 power module
Axis count
2 axes
Motor-cable table entry
1.5 / 2.5 / 4 / 6 mm²
Protective conductor
M5
Terminal torque
0.7–0.8 Nm
Net weight
9.1 kg
Country of origin
Germany
Commodity code
Confirm by destination
01
Exact version
Retain 0CA3
02
Axis roles
Feed and spindle
03
Duty currents
18 A / 24 A
04
Terminal evidence
Map A1 and A2
05
Control hardware
Record both channels
06
Recommission
Restore per-axis data
System boundary: keep the CA3 suffix, A1/A2 terminal map, feed/spindle channel roles, two-axis control board, internal cooling and parameter archive together.

02 · Revised two-axis terminal and duty verification
A six-step path for preserving CA3 channel roles and terminal positions.
The route treats terminal mapping and feed/spindle assignment as independent checks so a correct cable does not end on the wrong commissioned axis.
Route logic
Identify → Commission
01
Identify
Confirm the full CA3 article and both control channels.
02
Map
Photograph A1/A2 connections and label each outgoing motor cable.
03
Assign
Apply 18 A to feed duty and 24 A to main-spindle duty.
06
Verify
Recommission each axis and test response, direction and alarms.
05
Thermal
Inspect internal-cooling airflow and heat-dissipation conditions.
04
Connect
Use an allowed conductor size with M5 PE and 0.7–0.8 Nm torque.
Duty replaces motor-family wording
The CA3 description publishes 18 A feed and 24 A main-spindle motor current.
A1/A2 positions remain special
Use the CA2/CA3 terminal diagram, not the general two-axis arrangement.
No direct successor is named
Any proposed alternative needs a terminal, motor-duty, control-board and parameter comparison.
Installation note: Before commissioning 6SN1123-1AB00-0CA3, verify the CA3 suffix, A1/A2 map, feed/spindle channel assignment, internal cooling, conductor size and both parameter sets.
03 · FAQ
Buyer questions for Siemens 6SN1123-1AB00-0CA3
Six answers explain the CA3 duty map, A1/A2 terminals, dual-axis compatibility, conductor range, lifecycle and quotation evidence.
03
01
Which axis duties correspond to the Siemens 6SN1123-1AB00-0CA3 current values?
Siemens publishes 18 A for feed duty and 24 A for main-spindle duty. Record which physical channel performs each function before exchange.
02
Which terminal drawing should be followed for Siemens 6SN1123-1AB00-0CA3?
Use the Siemens CA2/CA3 A1/A2 terminal arrangement. The manual distinguishes these versions from the general two-axis power-module terminal layout.
03
What defines system compatibility for Siemens 6SN1123-1AB00-0CA3?
Compatibility depends on the exact CA3 suffix, two-axis control board, A1/A2 wiring, motor types, feed/spindle assignment, internal cooling and channel-specific parameters.
04
What power-cable range is shown for Siemens 6SN1123-1AB00-0CA3?
The 2 x 50 A table row marks 1.5, 2.5, 4 and 6 mm² as connectable, with M5 PE hardware and a 0.7–0.8 Nm tightening torque.
05
Is an OEM replacement named after Siemens 6SN1123-1AB00-0CA3?
The current Siemens page shows “Prod. Cancellation” and does not name a direct successor. A replacement therefore requires a model-by-model engineering check.
06
What should a buyer include when requesting Siemens 6SN1123-1AB00-0CA3 and its technical literature?
Send the complete module and control-board labels, A1/A2 photos, motor labels, channel functions, parameter backup, quantity, destination and required delivery date.
