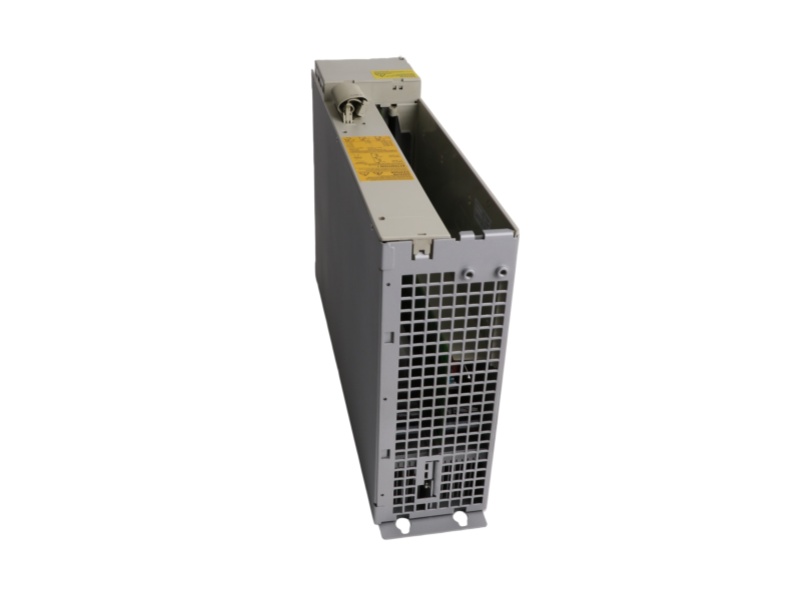

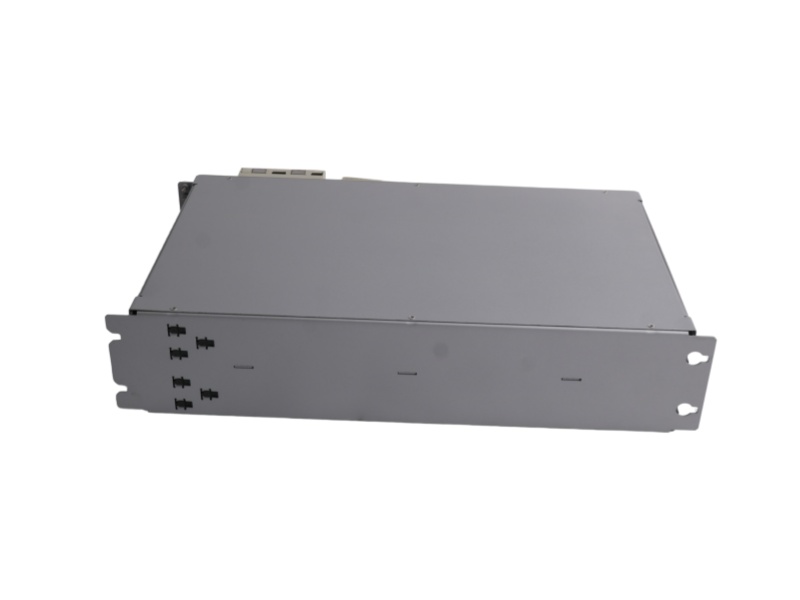

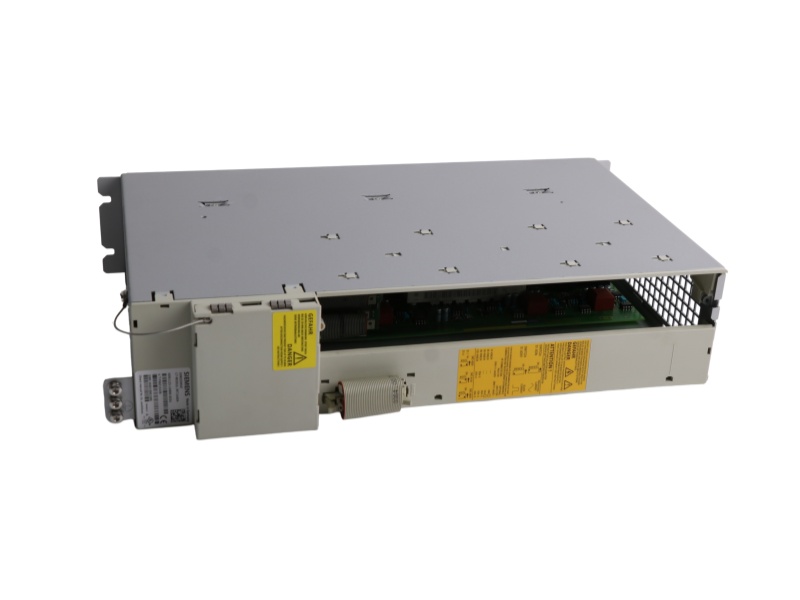

Siemens 6SN1123-1AB00-0CA2 SIMODRIVE 611 2 x 50 A Two-Axis Power Module
Siemens 6SN1123-1AB00-0CA2 SIMODRIVE 611 2 x 50 A Two-Axis Power Module
Siemens 6SN1123-1AB00-0CA2 SIMODRIVE 611 2 x 50 A Two-Axis Power Module

Siemens 6SN1123-1AB00-0CA2 SIMODRIVE 611 2 x 50 A Two-Axis Power Module

SIEMENS / SIMODRIVE 611
6SN1123-1AB00-0CA2
Two-axis 2 x 50 A SIMODRIVE 611 power module with internal heat dissipation, rated for 25 A with 1FT5 motors or 18 A with 1FT6 motors. Its A1/A2 terminal map requires exact documentation.
SIMODRIVE 611
2 × 50 A
Module class

2 axes · internal cooling
1FT5 motor current
25 A
1FT6 motor current
18 A
Cooling boundary
Internal cooling
Lifecycle
Prod. Discont.
Order number
6SN1123-1AB00-0CA2
Net weight
9.5 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AB00-0CA2
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Dual-axis 50 A terminal-map identity
A 1FT5/1FT6 current profile with a documented A1/A2 terminal exception.
Siemens 6SN1123-1AB00-0CA2 combines two 50 A channels, motor-family current limits and a terminal arrangement that the manual distinguishes from other two-axis modules.
Lifecycle signal
Prod. Discont.
OEM-listed successor: 6SN1123-1AB00-0CA3
Published configuration
2 × 50 A
2 axes · internal cooling

1FT5 motor: 25 A
1FT6 motor: 18 A
Successor: 0CA3
Order number
6SN1123-1AB00-0CA2
Product type
611 power module
Axis count
2 axes
Motor-cable table entry
1.5 / 2.5 / 4 / 6 mm²
Protective conductor
M5
Terminal torque
0.7–0.8 Nm
Net weight
9.5 kg
Country of origin
Germany
Commodity code
Confirm by destination
01
Exact suffix
Confirm 0CA2
02
Motor family
1FT5 or 1FT6
03
Rated currents
25 A / 18 A
04
Terminal map
Record A1 and A2
05
Successor
0CA3 is OEM-listed
06
Axis data
Archive separately
System boundary: verify the CA2 article, both motor families, A1/A2 terminal positions, two-axis control board, internal cooling and separate axis parameters before exchange.

02 · A1/A2 terminal-map and successor verification
Six checks centered on the CA2 two-axis terminal exception.
The sequence begins with physical terminal mapping because the Siemens manual identifies CA2/CA3 as different from other two-axis power modules.
Route logic
Identify → Commission
01
Photograph
Capture A1, A2, module and control-board labels before disconnection.
02
Pair
Associate each terminal group with its motor and machine axis.
03
Classify
Use 25 A for 1FT5 or 18 A for 1FT6 motor duty.
06
Commission
Test each axis after restoring channel-specific parameter data.
05
Evaluate
Compare the OEM-listed CA3 successor with the existing terminal map.
04
Fasten
Check permitted cable sizes, M5 PE hardware and 0.7–0.8 Nm torque.
The A1/A2 map is not generic
Siemens documents CA2 and CA3 terminal positions separately from other two-axis modules.
Motor family sets the published current
Use 25 A for 1FT5 and 18 A for 1FT6 with this CA2 configuration.
CA3 is the listed successor
Retain terminal and parameter evidence before deciding whether the exchange is suitable.
Installation note: For 6SN1123-1AB00-0CA2, record the A1/A2 terminals, both motors, control-board channels, cable sizes and parameter sets before assessing 6SN1123-1AB00-0CA3.
03 · FAQ
Buyer questions for Siemens 6SN1123-1AB00-0CA2
Six answers focus on CA2 motor families, the special A1/A2 map, successor relationship, terminations and commissioning evidence.
03
01
Which motor ratings are published for Siemens 6SN1123-1AB00-0CA2?
Siemens publishes 25 A for 1FT5 motors and 18 A for 1FT6 motors within the two-axis 2 x 50 A power-module configuration.
02
What is unusual about the A1 and A2 terminals on Siemens 6SN1123-1AB00-0CA2?
The Siemens manual shows a terminal arrangement for 6SN1123-1AB00-0CA2 and 0CA3 that differs from the general two-axis layout, so both groups must be photographed and mapped before removal.
03
Which official successor status is shown for Siemens 6SN1123-1AB00-0CA2?
Siemens identifies the later 0CA3 configuration as successor to 6SN1123-1AB00-0CA2. The A1/A2 wiring, motors, control board and parameters still require comparison.
04
What conductor and tightening data apply to Siemens 6SN1123-1AB00-0CA2?
The Siemens 2 x 50 A table entry permits 1.5, 2.5, 4 and 6 mm² cables, with an M5 protective-conductor point and 0.7–0.8 Nm torque.
05
What does the Siemens lifecycle record say about Siemens 6SN1123-1AB00-0CA2?
The current SiePortal record shows “Prod. Discont.” and points to 0CA3 as successor. Exact-article availability must be confirmed during sourcing.
06
Which commissioning evidence should accompany a Siemens 6SN1123-1AB00-0CA2 inquiry?
Provide A1/A2 terminal photos, both motor nameplates, channel assignments, control-board label, parameter backups, fault history, quantity, destination and required date.
