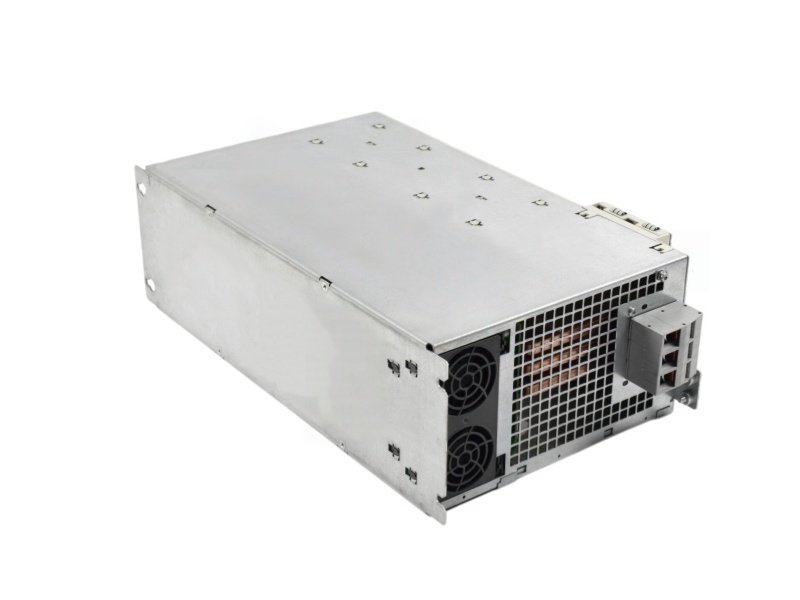

Siemens 6SN1123-1AA00-0LA3 SIMODRIVE 611 108 A power module view 1

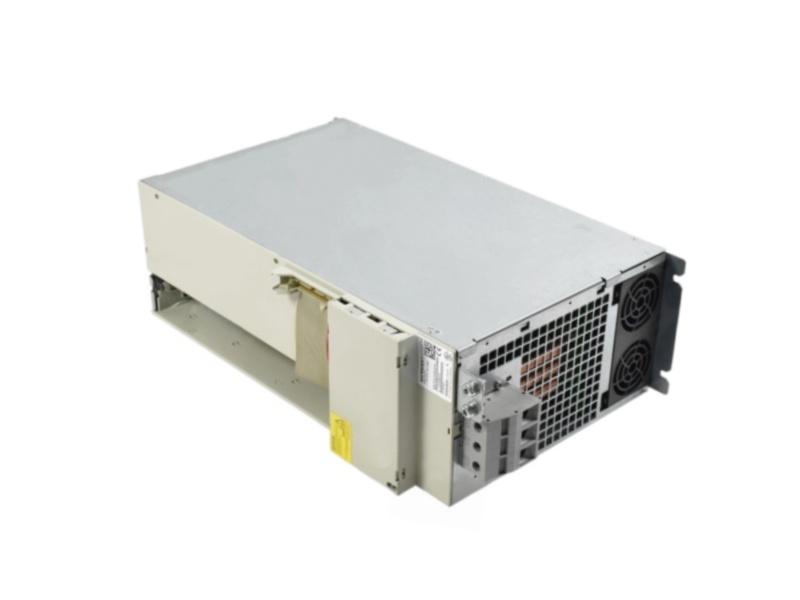

Siemens 6SN1123-1AA00-0LA3 SIMODRIVE 611 108 A power module view 2

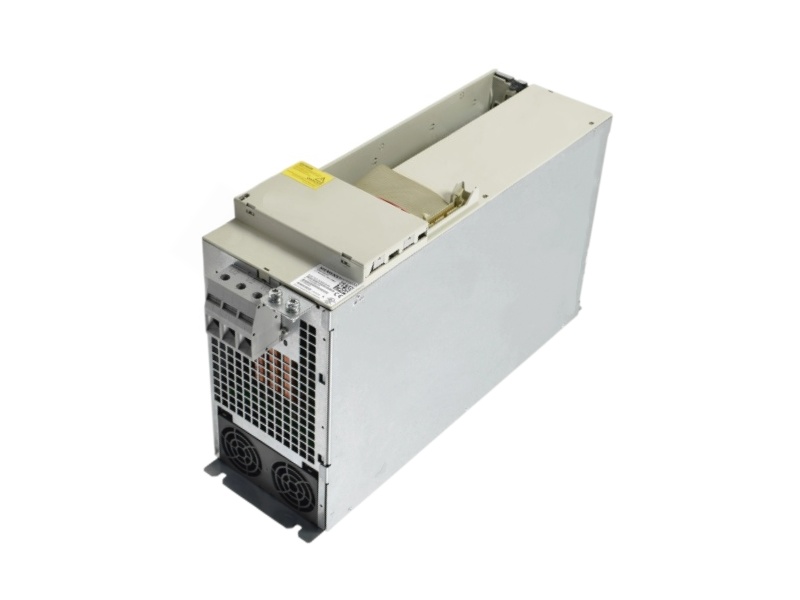

Siemens 6SN1123-1AA00-0LA3 SIMODRIVE 611 108 A power module view 3

Siemens 6SN1123-1AA00-0LA3 SIMODRIVE 611 108 A One-Axis Power Module

SIEMENS / SIMODRIVE 611
6SN1123-1AA00-0LA3
One-axis 108 A SIMODRIVE 611 power module with internal cooling, rated for 42 A feed or 45 A main-spindle duty. Match the later 0LA3 suffix and saved drive configuration.
SIMODRIVE 611
108 A
Module class

1 axis · internal cooling
Feed motor current
42 A
Main-spindle current
45 A
Cooling boundary
Internal cooling
Lifecycle
Prod. Cancellation
Order number
6SN1123-1AA00-0LA3
Net weight
10.5 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0LA3
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Revised 108 A motor-current profile
A later 0LA3 identity with separate 42 A feed and 45 A spindle limits.
Siemens 6SN1123-1AA00-0LA3 keeps the 108 A one-axis module class while changing the published motor-duty profile from the earlier 0LA1 data.
Lifecycle signal
Prod. Cancellation
Confirm the exact installed suffix.
Published configuration
108 A
1 axis · internal cooling

Feed motor: 42 A
Main-spindle motor: 45 A
Cooling: internal
Order number
6SN1123-1AA00-0LA3
Product type
611 power module
Axis count
1 axis
Motor-cable table entry
50 mm²
Protective conductor
M6
Terminal torque
6–8 Nm
Net weight
10.5 kg
Country of origin
Germany
Commodity code
Confirm by destination
01
Exact revision
Retain 0LA3
02
Axis hardware
One-axis control board
03
Feed duty
42 A published
04
Spindle duty
45 A published
05
Connection
50 mm² · M6
06
Drive data
Archive and restore
System boundary: match the 0LA3 article, one-axis control board, 42/45 A duty selection, internal cooling, 50 mm² connection and commissioning data.

02 · 42/45 A duty and commissioning path
Six checkpoints for the later 108 A one-axis configuration.
The exchange sequence keeps feed and spindle current limits distinct and prevents the earlier 0LA1 profile from being copied into 0LA3.
Route logic
Identify → Commission
01
Confirm
Read the full 0LA3 article and control-board reference.
02
Assign
Determine whether the axis serves feed or main-spindle duty.
03
Wire
Verify the 50 mm² entry, M6 PE connection and 6–8 Nm torque.
06
Test
Restore data and validate direction, current response, cooling and alarms.
05
Limit
Use 42 A for feed duty and 45 A for main-spindle duty.
04
Retain
Back up parameters and record connectors before removing the module.
0LA3 has two duty ratings
Apply 42 A to feed duty and 45 A to main-spindle duty.
Do not import 0LA1 data blindly
The later suffix has its own published motor-current profile and must be identified exactly.
Internal cooling remains a selection point
Confirm the cabinet airflow and installed thermal arrangement during exchange.
Installation note: Commission 6SN1123-1AA00-0LA3 only after the exact suffix, one-axis board, 42/45 A duty, internal cooling, 50 mm² connection and saved data are verified.
03 · FAQ
Buyer questions for Siemens 6SN1123-1AA00-0LA3
Six answers distinguish the later 0LA3 profile, feed/spindle duty, thermal arrangement, lifecycle and inquiry data.
03
01
How does Siemens 6SN1123-1AA00-0LA3 divide its published motor rated currents?
Siemens assigns 42 A to feed-motor duty and 45 A to main-spindle duty for the 108 A one-axis power-module configuration.
02
What differentiates Siemens 6SN1123-1AA00-0LA3 from the earlier 0LA1 version?
The complete suffix and published duty profile differ. The reviewed Siemens data for 0LA3 states 42 A feed and 45 A main spindle, so earlier configuration data must not be copied without review.
03
How should the internal-cooling requirement for Siemens 6SN1123-1AA00-0LA3 be checked?
Confirm the installed cabinet airflow, cooling path and mounting arrangement against the existing 0LA3 installation before the replacement is energized.
04
What connection values should an installer record for Siemens 6SN1123-1AA00-0LA3?
Siemens lists a 50 mm² motor-connection entry, M6 protective-conductor hardware and 6–8 Nm terminal torque for the 108 A class.
05
Does Siemens publish a direct replacement after 6SN1123-1AA00-0LA3?
The current Siemens page shows “Prod. Cancellation” and does not name a direct successor. Any alternative requires a full hardware, motor-duty and parameter comparison.
06
Which identification details improve a Siemens 6SN1123-1AA00-0LA3 availability inquiry?
Include the module and control-board labels, feed or spindle application, motor model, connector and cooling photos, parameter backup, quantity, destination and needed date.
