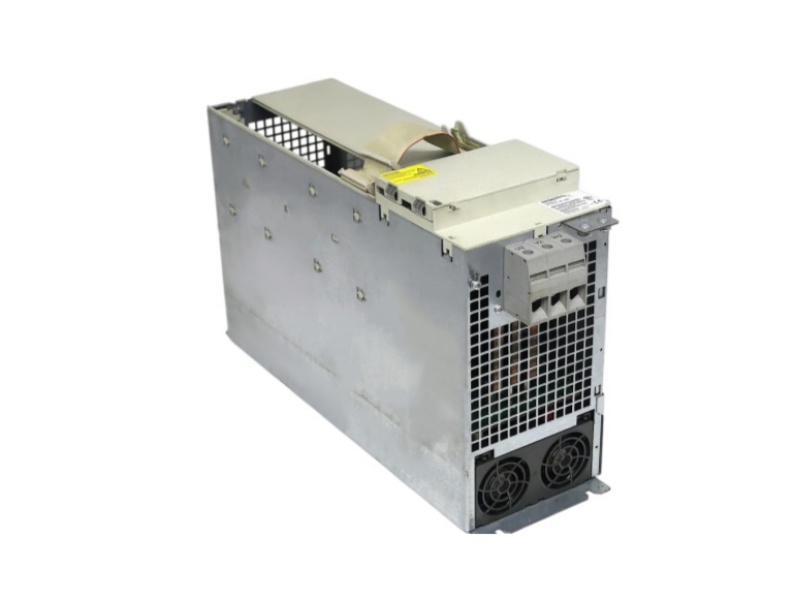

Siemens 6SN1123-1AA00-0LA1 SIMODRIVE 611 108 A power module view 1

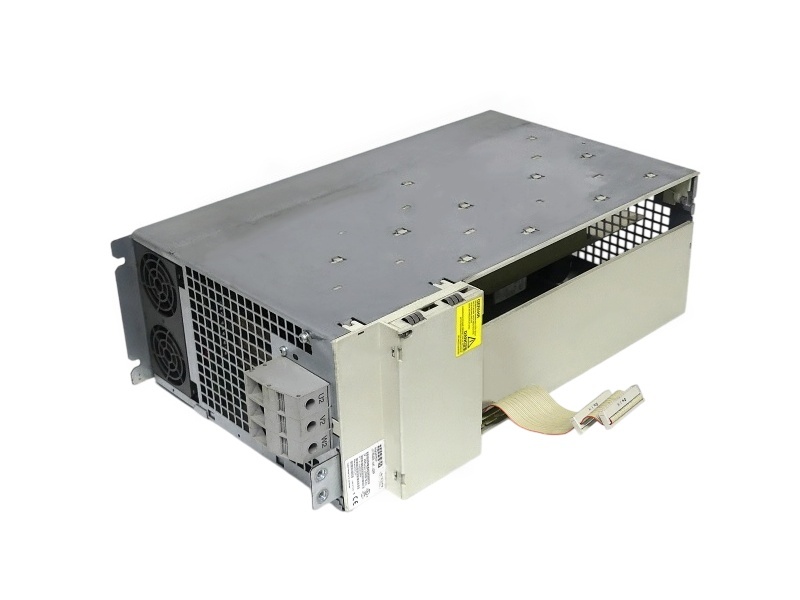

Siemens 6SN1123-1AA00-0LA1 SIMODRIVE 611 108 A power module view 2

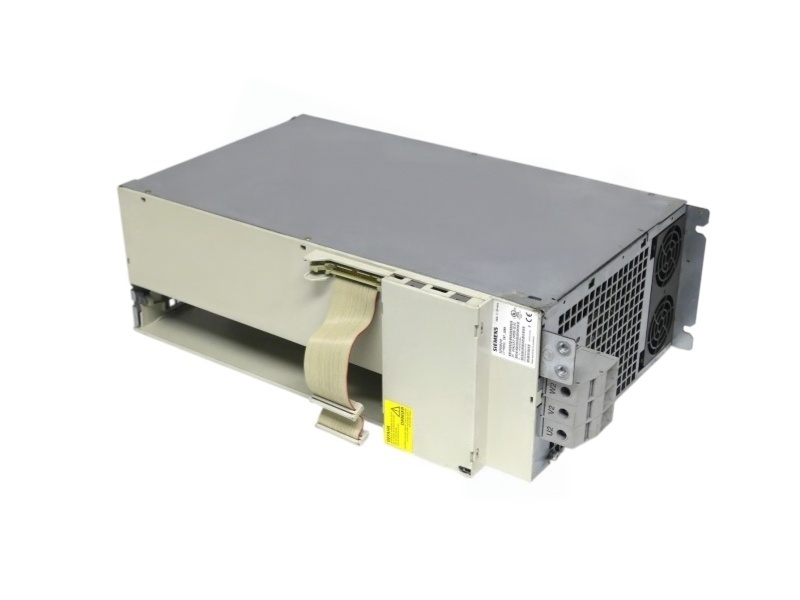

Siemens 6SN1123-1AA00-0LA1 SIMODRIVE 611 108 A power module view 3

Siemens 6SN1123-1AA00-0LA1 SIMODRIVE 611 108 A One-Axis Power Module

SIEMENS / SIMODRIVE 611
6SN1123-1AA00-0LA1
Legacy one-axis 108 A SIMODRIVE 611 power module with internal cooling and 45 A rated motor current for 1PH or asynchronous duty. Siemens lists 6SN1123-1AA00-0LA3 as successor.
SIMODRIVE 611
108 A
Module class

1 axis · internal cooling
1PH motor current
45 A
Asynchronous current
45 A
Cooling boundary
Internal cooling
Lifecycle
Prod. Discont.
Order number
6SN1123-1AA00-0LA1
Net weight
12 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0LA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Legacy 108 A identity and successor boundary
A 45 A motor-duty profile with an OEM-listed successor that still requires matching.
Siemens 6SN1123-1AA00-0LA1 combines the 108 A module class, internal heat dissipation and a published 45 A motor rating for two duty descriptions.
Lifecycle signal
Prod. Discont.
OEM-listed successor: 6SN1123-1AA00-0LA3
Published configuration
108 A
1 axis · internal cooling

1PH motor: 45 A
Asynchronous motor: 45 A
Successor: 0LA3
Order number
6SN1123-1AA00-0LA1
Product type
611 power module
Axis count
1 axis
Motor-cable table entry
50 mm²
Protective conductor
M6
Terminal torque
6–8 Nm
Net weight
12 kg
Country of origin
Germany
Commodity code
Confirm by destination
01
Installed suffix
Confirm 0LA1
02
Motor category
1PH or asynchronous
03
Rated current
45 A for either duty
04
Cooling
Internal heat dissipation
05
Successor record
0LA3 is OEM-listed
06
Exchange file
Retain parameters
System boundary: compare 6SN1123-1AA00-0LA1 with the installed control board, motor category, internal-cooling arrangement, wiring and parameter set before considering 0LA3.

02 · Successor-aware 108 A exchange path
A controlled route from 0LA1 identification to 0LA3 compatibility review.
The Siemens successor flag supports sourcing direction, but it does not remove the need to verify the installed hardware and commissioned data.
Route logic
Identify → Commission
01
Read
Capture the complete 0LA1 module and control-board nameplates.
02
Classify
Identify whether the machine uses 1PH or asynchronous motor duty.
03
Connect
Check the 50 mm² table entry, M6 PE point and 6–8 Nm torque.
06
Validate
Recommission the axis and verify current, direction, cooling and alarms.
05
Compare
Review 0LA3 mechanically, electrically and parametrically before substitution.
04
Archive
Save drive data and document every installed connector before removal.
Both published duty values are 45 A
The 108 A figure is the module class, not a second motor rated-current value.
0LA3 is an official successor
Successor status guides review; it does not prove an unchecked drop-in replacement.
Preserve the installed configuration
Control-board version, motor data, cooling and parameters remain part of the exchange boundary.
Installation note: For 6SN1123-1AA00-0LA1 replacement work, document the 1PH or asynchronous duty, control board, 50 mm² connection, M6 PE point, cooling and parameter set.
03 · FAQ
Buyer questions for Siemens 6SN1123-1AA00-0LA1
Six buyer answers focused on the legacy 108 A configuration, official successor, connection data and replacement evidence.
03
01
What motor-duty rating does Siemens publish for 6SN1123-1AA00-0LA1?
Siemens publishes 45 A for 1PH motor duty and 45 A for asynchronous motor duty. The separate 108 A value identifies the power-module class.
02
Which successor status does Siemens publish for 6SN1123-1AA00-0LA1?
The current Siemens SiePortal page identifies the later 0LA3 configuration as successor to 6SN1123-1AA00-0LA1.
03
Is the Siemens-listed 0LA3 successor automatically a drop-in replacement for 6SN1123-1AA00-0LA1?
No. The official successor listing still requires verification of the control board, motor type, connectors, internal-cooling arrangement and parameter set.
04
Which motor-cable and PE data apply to Siemens 6SN1123-1AA00-0LA1?
The official Siemens table gives a 50 mm² connection entry, an M6 protective-conductor point and a terminal tightening torque of 6–8 Nm.
05
Why must the 0LA1 suffix be preserved when ordering Siemens 6SN1123-1AA00-0LA1?
The suffix identifies the exact legacy configuration and separates 0LA1 from the later 0LA3 version. A quotation should be based on the complete nameplate, not the 108 A class alone.
06
What should a buyer send to obtain the correct Siemens 6SN1123-1AA00-0LA1 manual and quote?
Provide both nameplates, the motor category, connector photographs, cooling arrangement, saved parameters, quantity, destination and delivery requirement.
