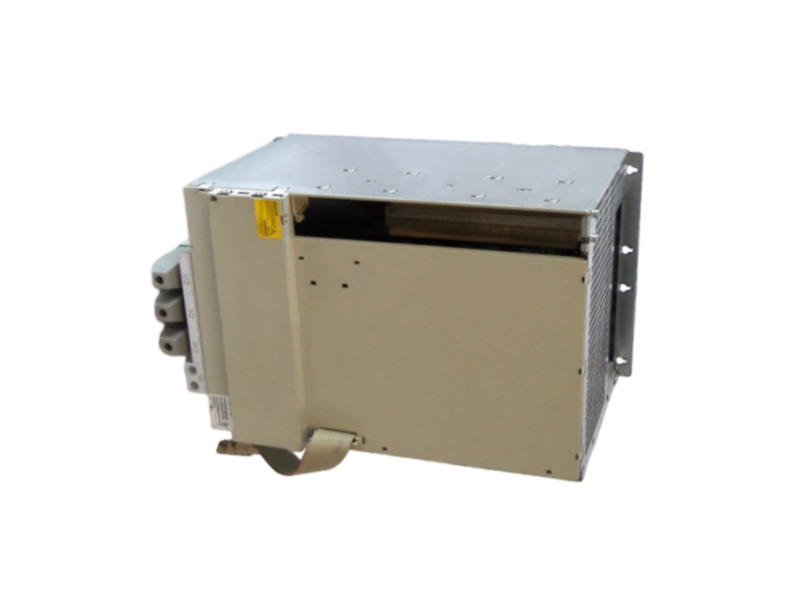

Siemens 6SN1123-1AA00-0KA1 SIMODRIVE 611 400 A power module view 1

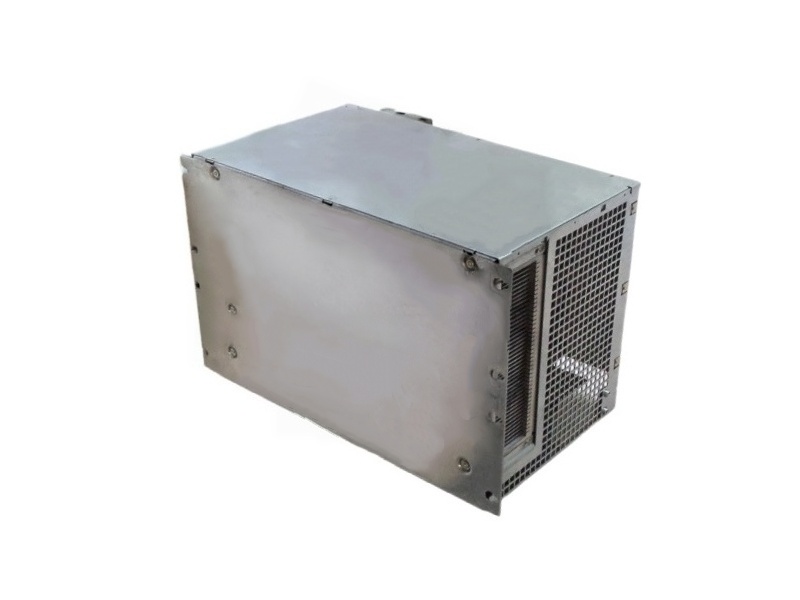

Siemens 6SN1123-1AA00-0KA1 SIMODRIVE 611 400 A power module view 2

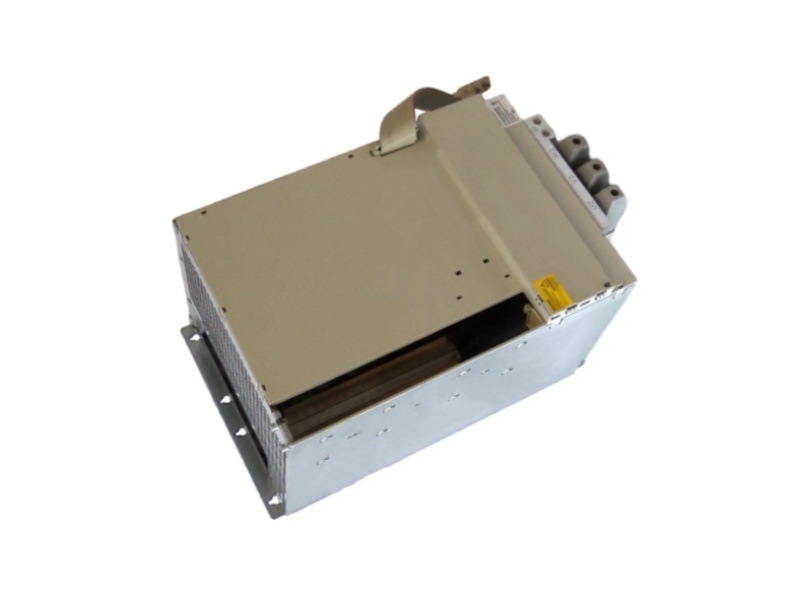

Siemens 6SN1123-1AA00-0KA1 SIMODRIVE 611 400 A power module view 3

Siemens 6SN1123-1AA00-0KA1 SIMODRIVE 611 400 A One-Axis Power Module

SIEMENS / SIMODRIVE 611
6SN1123-1AA00-0KA1
One-axis 400 A SIMODRIVE 611 power module with internal cooling, rated for 140 A feed or 200 A spindle duty. An add-on fan or hose-cooling arrangement is required.
SIMODRIVE 611
400 A
Module class

1 axis · internal cooling
Feed motor current
140 A
Main-spindle current
200 A
Cooling boundary
Internal cooling
Lifecycle
Prod. Cancellation
Order number
6SN1123-1AA00-0KA1
Net weight
23 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0KA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
High-current identity and cooling envelope
Published 400 A module class, 140/200 A motor limits and forced-cooling boundary.
Siemens 6SN1123-1AA00-0KA1 must be matched by full article number, motor duty, 150 mm² connection, cooling hardware and saved drive data.
Lifecycle signal
Prod. Cancellation
Confirm the exact installed suffix.
Published configuration
400 A
1 axis · internal cooling

Feed motor: 140 A
Main-spindle motor: 200 A
Cooling: add-on fan or hose
Order number
6SN1123-1AA00-0KA1
Product type
611 power module
Axis count
1 axis
Motor-cable table entry
150 mm²
Protective conductor
M6
Terminal torque
25–30 Nm
Net weight
23 kg
Country of origin
Germany
Commodity code
Confirm by destination
01
Exact article
6SN1123-1AA00-0KA1
02
Control board
Record installed article
03
Motor duty
140 A feed / 200 A spindle
04
Cooling hardware
Fan or hose arrangement
05
Cable and PE
150 mm² · M6
06
Commissioning
Archive parameters
System boundary: treat the 400 A power module, control board, motor duty, add-on cooling, 150 mm² connection and parameter set as one engineered drive.

02 · High-current cooling, cable and torque verification
Six checks for a 400 A internal-cooling module exchange.
The route separates the power-module class from motor rated current and verifies the high-current connection before energization.
Route logic
Identify → Commission
01
Identify
Match the complete KA1 article and one-axis control board.
02
Ventilate
Confirm the add-on fan or hose-cooling hardware and airflow path.
03
Terminate
Verify the 150 mm² motor connection, M6 protective conductor and 25–30 Nm torque.
06
Prove
Restore parameters and check current, direction, cooling and alarms.
05
Rate
Apply 140 A for feed duty or 200 A for main-spindle duty.
04
Protect
Coordinate overload protection with the installed conductor and operating duty.
400 A identifies the module class
Use the published 140 A feed or 200 A main-spindle value when checking motor duty.
Cooling hardware is mandatory
The Siemens description requires an add-on fan or a hose-cooling arrangement.
The power connection is high-current
The official cable table gives 150 mm², M6 and 25–30 Nm for this module class.
Installation note: Before energizing 6SN1123-1AA00-0KA1, verify the one-axis control board, duty current, cooling hardware, motor connection, PE point, terminal torque and parameter archive.
03 · FAQ
Buyer questions for Siemens 6SN1123-1AA00-0KA1
Six model-specific answers covering current interpretation, forced cooling, termination, compatibility, lifecycle and sourcing evidence.
03
01
How should buyers interpret the 400 A, 140 A and 200 A values for Siemens 6SN1123-1AA00-0KA1?
The 400 A value identifies the power-module class. Siemens publishes 140 A as the feed-motor rated current and 200 A as the main-spindle rated current.
02
Which additional cooling equipment belongs with Siemens 6SN1123-1AA00-0KA1?
Siemens specifies internal cooling and requires either an add-on fan or a hose-cooling arrangement. The installed cooling hardware must be confirmed before replacement.
03
What terminal data should be verified for Siemens 6SN1123-1AA00-0KA1?
The Siemens cable table gives a 150 mm² motor-connection entry, an M6 protective-conductor point and a tightening torque of 25–30 Nm.
04
Can Siemens 6SN1123-1AA00-0KA1 be selected from current alone?
No. The complete KA1 article, one-axis control board, motor duty, cooling arrangement, cable termination and saved parameters must also match the installed SIMODRIVE 611 configuration.
05
What is the current lifecycle position of Siemens 6SN1123-1AA00-0KA1?
Siemens SiePortal shows “Prod. Cancellation.” The reviewed Siemens product page does not name a direct successor, so a different suffix requires an engineering comparison.
06
Which records should accompany a quotation for Siemens 6SN1123-1AA00-0KA1?
Send clear module and control-board nameplates, motor model and duty, cooling photographs, cable data, parameter backup, quantity, destination and required date.
