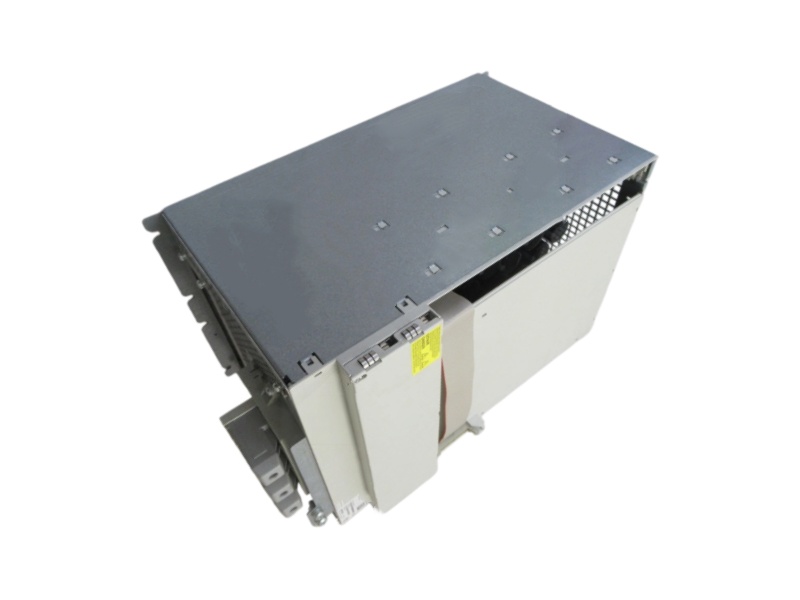

Siemens 6SN1123-1AA00-0JA1 SIMODRIVE 611 300 A power module side view

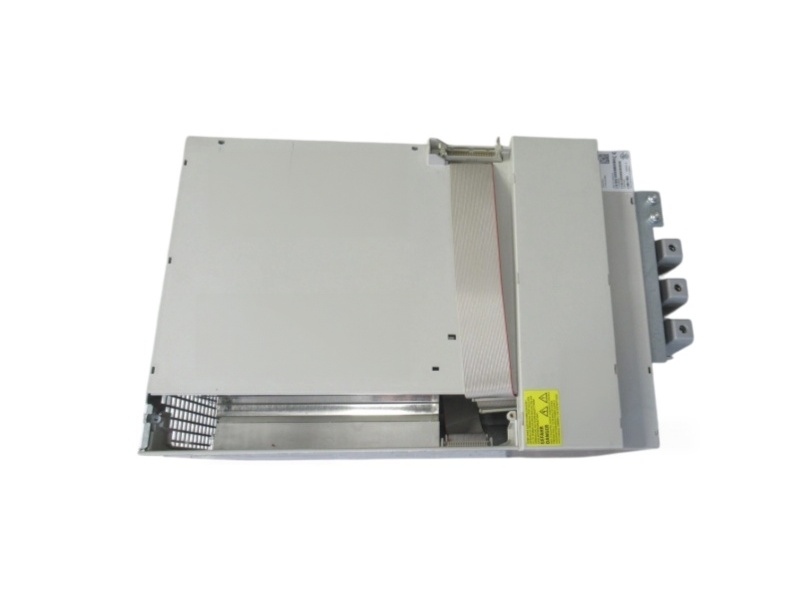

Siemens 6SN1123-1AA00-0JA1 SIMODRIVE 611 power module perspective view

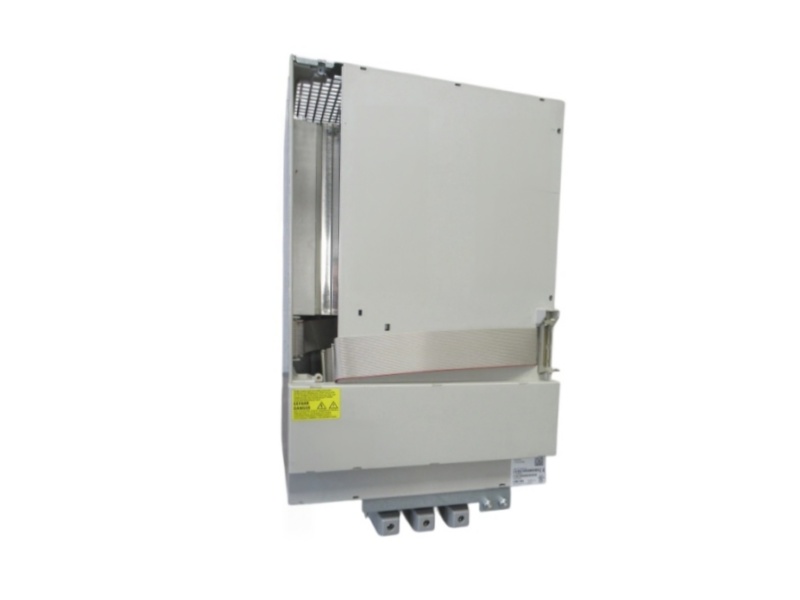

Siemens 6SN1123-1AA00-0JA1 SIMODRIVE 611 one-axis power module upright view

Siemens 6SN1123-1AA00-0JA1 SIMODRIVE 611 300 A One-Axis Power Module

SIEMENS / SIMODRIVE 611
6SN1123-1AA00-0JA1
One-axis 300 A SIMODRIVE 611 power module with internal cooling, rated for 100 A feed or 120 A spindle duty. Match the control board, cooling and saved parameters before exchange.
SIMODRIVE 611
300 A
Module class

1 axis · internal cooling
Feed motor current
100 A
Main-spindle current
120 A
Cooling boundary
Fan or hose
Lifecycle
Prod. Cancellation
Order number
6SN1123-1AA00-0JA1
Net weight
21 kg
Lead time
2-3 DAYS
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0JA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Power module identity and operating envelope
A technical dossier for the 300 A one-axis configuration.
Siemens 6SN1123-1AA00-0JA1 must be matched by article number, control board, motor duty, cooling and installation data.
Lifecycle signal
Prod. Cancellation
Confirm the exact installed suffix.
Published configuration
300 A
1 axis · internal cooling

Feed motor: 100 A
Main-spindle motor: 120 A
Cooling: add-on fan or hose
Order number
6SN1123-1AA00-0JA1
Product type
611 power module
Axis count
1 axis
Motor-cable table entry
95 mm²
Protective conductor
M6
Terminal torque
15–20 Nm
Net weight
21 kg
Country of origin
Germany
Commodity code
85044087
01
Exact article
6SN1123-1AA00-0JA1
02
Control board
Record installed article
03
Motor duty
Feed or main spindle
04
Cooling
Fan or hose hardware
05
Cable and PE
Cross-section, M6, torque
06
Parameters
Archive and recommission
System boundary: evaluate the power module, control board, DC link, motor, cooling, cable and parameter set as one installed drive.

02 · Installation and exchange verification
Six checks, arranged as a forward-and-return commissioning route.
Each checkpoint resolves a different installation risk for the 300 A internal-cooling power module.
Route logic
Identify → Commission
01
Identify
Confirm the complete article, one-axis control board and installed motor.
02
Cool
Verify the add-on fan or hose-cooling arrangement before power-up.
03
Connect
Check the motor cable, 95 mm² table entry, M6 protective conductor and 15–20 Nm torque.
06
Commission
Restore parameters, then verify rotation, current, cooling and alarms.
05
Match
Use 100 A for feed duty or 120 A for main-spindle duty as the published motor rated current.
04
Protect
Coordinate cable protection with the selected current and actual cable cross-section.
300 A is the module class
Do not substitute it for the published 100 A feed or 120 A main-spindle motor rated current.
Cooling is part of the configuration
The exact article requires an add-on fan or a hose-cooling arrangement.
Cable protection is conditional
Smaller cable cross-sections require an appropriate protection strategy and parameter review.
Installation note: match the control board, motor duty, cooling hardware, motor cable, protective conductor, terminal torque and saved parameters before energizing 6SN1123-1AA00-0JA1.
03 · FAQ
Buyer questions for Siemens 6SN1123-1AA00-0JA1
Six model-specific answers covering identity, current, cooling, compatibility, lifecycle and inquiry requirements.
03
01
What exactly is Siemens 6SN1123-1AA00-0JA1?
Siemens 6SN1123-1AA00-0JA1 is a SIMODRIVE 611 spare-part power module with one axis, a 300 A module class and internal cooling.
02
Which motor rated currents apply to Siemens 6SN1123-1AA00-0JA1?
Siemens lists 100 A for a feed motor and 120 A for a main-spindle motor. These are the published motor rated currents; the separate 300 A value identifies the power-module class.
03
What cooling arrangement is required for Siemens 6SN1123-1AA00-0JA1?
Siemens specifies internal cooling and requires either an add-on fan or a hose-cooling arrangement for Siemens 6SN1123-1AA00-0JA1. The installed cooling method must be confirmed before exchange.
04
What must be checked before Siemens 6SN1123-1AA00-0JA1 is installed in a SIMODRIVE 611 system?
Confirm the complete article number, one-axis control board, motor and rated current, DC-link connection, cooling arrangement, motor cable, protective conductor, terminal torque and saved drive parameters.
05
Is Siemens 6SN1123-1AA00-0JA1 discontinued, and does Siemens list a direct successor?
The current Siemens SiePortal lifecycle is “Prod. Cancellation.” The reviewed Siemens page does not list a direct successor, so another suffix or power-module version must not be treated as a drop-in replacement without an engineering check.
06
What information is needed for a Siemens 6SN1123-1AA00-0JA1 manual and quotation request?
Send the full module and control-board nameplates, motor model, cooling method, cable details, parameter backup, quantity, destination and required date. The relevant Siemens SIMODRIVE 611 technical literature can then be matched to the inquiry.
