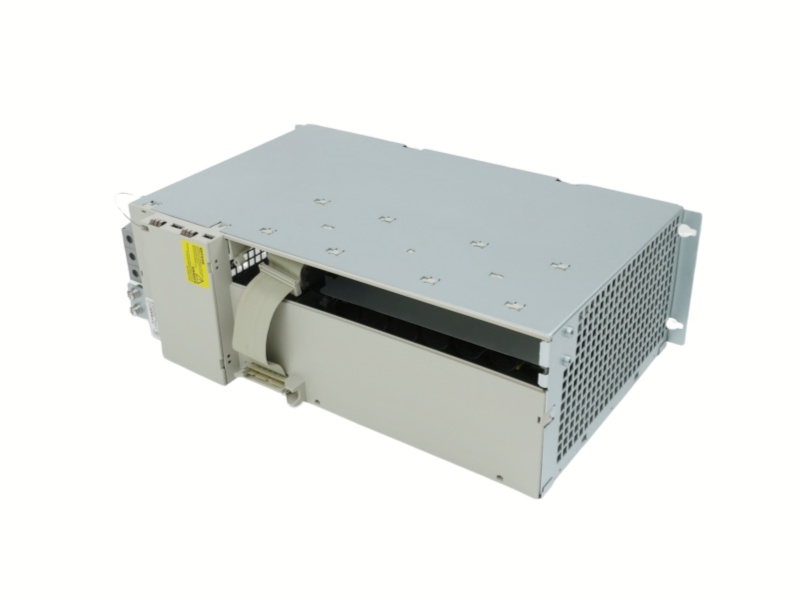

Siemens 6SN1123-1AA00-0EA2 SIMODRIVE 611 160 A one-axis power module view 1

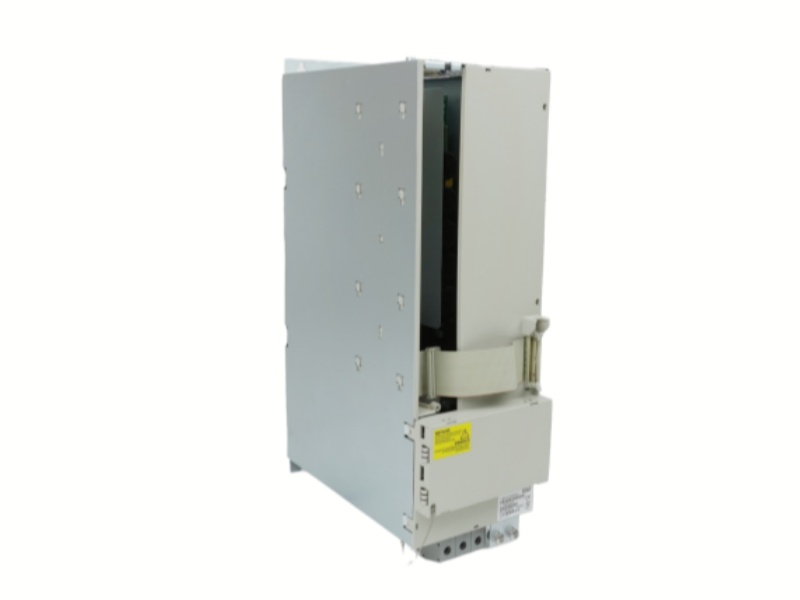

Siemens 6SN1123-1AA00-0EA2 SIMODRIVE 611 160 A one-axis power module view 2
Siemens 6SN1123-1AA00-0EA2 SIMODRIVE 611 160 A one-axis power module view 3

Siemens 6SN1123-1AA00-0EA2 SIMODRIVE 611 160 A One-Axis Power Module

Siemens / SIMODRIVE 611 Power Module
6SN1123-1AA00-0EA2
Siemens 6SN1123-1AA00-0EA2 is a one-axis 160 A SIMODRIVE 611 power module with internal cooling. Siemens publishes 56 A for feed-motor duty and 60 A for main-spindle duty.
Lifecycle and replacement
Prod. Cancellation
No direct successor is shown in the reviewed Siemens record.
Module class
160 A
Axis count
1 axis
Feed motor current
56 A
Main-spindle current
60 A
Lifecycle
Prod. Cancellation
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0EA2
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Revised 160 A duty and lifecycle record
A later EA2 configuration with 56 A feed and 60 A spindle limits.
The exact EA2 suffix joins the role-based current pair to a 150 mm housing, dual-fan airflow and 50 mm2 power connection.
01
Order number
6SN1123-1AA00-0EA2
Transistor limit
160 A
Feed-motor current
56 A
Main-spindle current
60 A
Synchronous peak current
112 A
Maximum fan airflow
2 × 56 m³/h
Motor connection
50 mm²
PE / terminal torque
M6 / 6–8 Nm
Official lifecycle
Prod. Cancellation
The reviewed Siemens page does not name a direct successor.
Siemens currently records Product Cancellation and does not present another direct successor in the reviewed page.
01 / Role mapping
56 A feed / 60 A spindle
02 / Cooling proof
Two clear fan paths
03 / Exact identity
Retain 0EA2 throughout the quote
02
Dual-fan thermal path and 50 mm2 termination
Six high-current checks for the later 160 A configuration.
The commissioning route treats the module, controller, motor role, power cable and airflow as one engineered axis.
Identify -> Commission
01
MLFB
Match
Match the complete EA2 article and one-axis control-board label.
02
Motor
Allocate
Use 56 A for feed or 60 A for main-spindle duty.
03
Cooling
Inspect
Confirm both internal fans and two unobstructed 56 m3/h air paths.
04
50 mm²
Connect
Verify the 50 mm2 motor terminal and cable protection.
05
M6 PE
Bond
Check the M6 protective conductor and 6-8 Nm terminal torque.
06
Drive data
Exercise
Load the parameter archive and prove current, load, temperature and alarms.
160 A class: use the motor-duty current.
Cooling: keep both fan paths clear.
Replacement: no direct successor is listed.
Official Siemens references: exact SiePortal or Industry Mall record and SIMODRIVE 611 Configuration Manual.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1123-1AA00-0EA2
Practical answers for buyers, engineers and maintenance teams.
Q01
What motor-duty values does Siemens publish for 6SN1123-1AA00-0EA2?
The official description gives 56 A for feed-motor duty and 60 A for main-spindle motor duty.
Q02
Why does Siemens 6SN1123-1AA00-0EA2 require two cooling checks?
The manual lists two fan airflow paths for the 160 A internal-cooling class, so both fans and both unobstructed routes must be verified.
Q03
What makes Siemens 6SN1123-1AA00-0EA2 compatible with an installed axis?
The full article, one-axis control board, feed or spindle role, motor data, DC-link, 50 mm2 cable, cooling and parameter set must all correspond.
Q04
What should an offer say about Siemens 6SN1123-1AA00-0EA2 availability?
Siemens shows Prod. Cancellation. The offer should identify exact stock condition, revision, quantity and lead time without presenting it as active standard production.
Q05
Which safety-related connection details apply to Siemens 6SN1123-1AA00-0EA2?
Siemens specifies a 50 mm2 motor connection, M6 protective conductor and 6-8 Nm terminal torque for this module class; conductor protection must suit the selected cable.
Q06
How should Siemens 6SN1123-1AA00-0EA2 documentation be requested?
Send exact nameplates, axis role, motor data, fan and terminal photos, parameter archive, requested condition, destination and delivery requirement.
