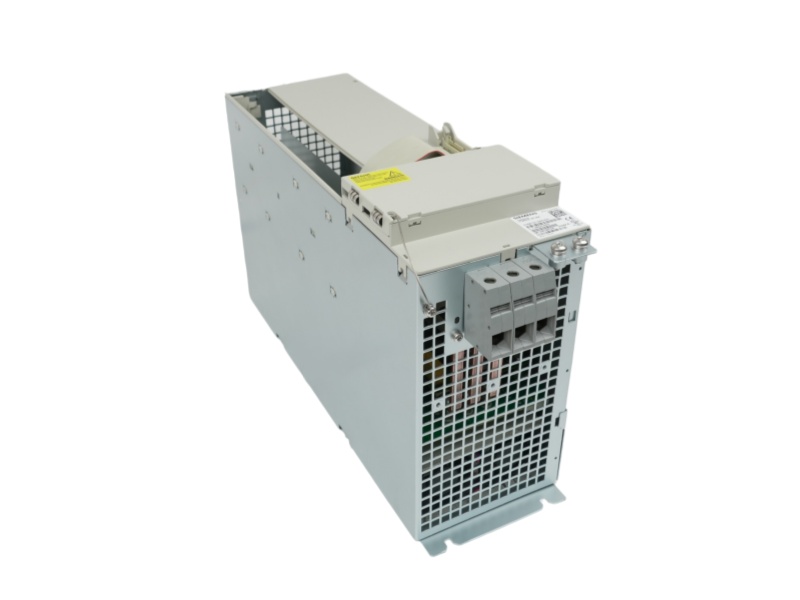

Siemens 6SN1123-1AA00-0EA1 SIMODRIVE 611 160 A one-axis power module view 1

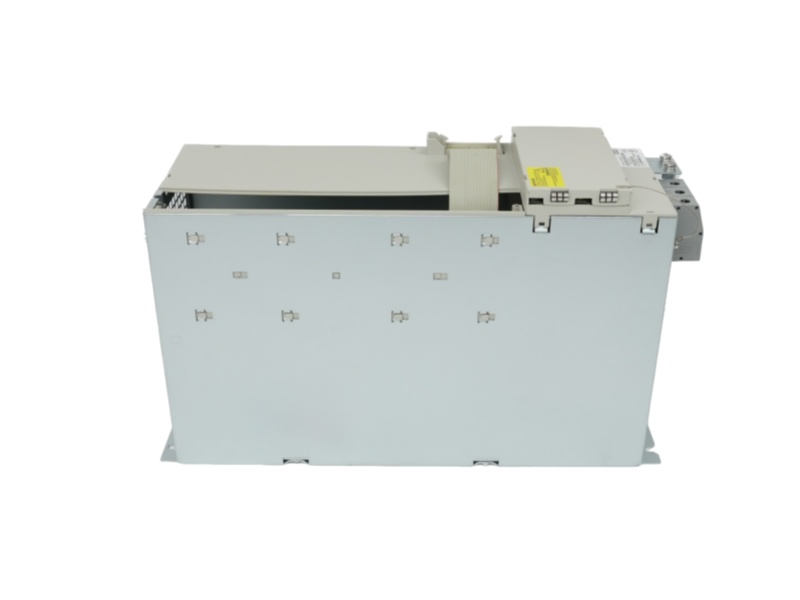

Siemens 6SN1123-1AA00-0EA1 SIMODRIVE 611 160 A one-axis power module view 2
Siemens 6SN1123-1AA00-0EA1 SIMODRIVE 611 160 A one-axis power module view 3

Siemens 6SN1123-1AA00-0EA1 SIMODRIVE 611 160 A One-Axis Power Module

Siemens / SIMODRIVE 611 Power Module
6SN1123-1AA00-0EA1
Siemens 6SN1123-1AA00-0EA1 is a legacy one-axis 160 A SIMODRIVE 611 power module with internal cooling. Siemens publishes 80 A for 1FT5, 56 A for 1FT6 and 60 A for 1PH or asynchronous duty.
Lifecycle and replacement
Prod. Discont.
Siemens reference: 6SN1123-1AA00-0EA2.
Module class
160 A
Axis count
1 axis
1FT5 motor current
80 A
1FT6 / 1PH
56 A / 60 A
Lifecycle
Prod. Discont.
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0EA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Legacy 160 A motor-family and successor boundary
A high-current 150 mm module with three published motor-duty values.
The 0EA1 configuration combines a 160 A transistor class, two-fan cooling, 50 mm2 power termination and a Siemens-listed later article.
01
Order number
6SN1123-1AA00-0EA1
Transistor limit
160 A
1FT5 rated current
80 A
1FT6 rated current
56 A
1PH / async. current
60 A
Maximum fan airflow
2 × 56 m³/h
Motor connection
50 mm²
PE / terminal torque
M6 / 6–8 Nm
Official lifecycle
Prod. Discont.
Siemens lists 6SN1123-1AA00-0EA2.
Its 80/56/60 A motor-family profile must remain distinct from the later feed/spindle wording.
01 / Legacy suffix
Use 0EA1
02 / Cooling assembly
Verify both fan paths
03 / Power termination
50 mm2 · M6 · 6-8 Nm
02
High-current legacy conversion and dual-fan audit
Six controls for a 160 A module before successor review.
Mechanical width, 50 mm2 termination and two-fan airflow make physical inspection as important as the order number.
Identify -> Commission
01
MLFB
Capture
Record the full 0EA1 label, control board and motor nameplate.
02
Motor
Categorize
Apply the correct 1FT5, 1FT6, 1PH or asynchronous rating.
03
Cooling
Ventilate
Inspect both fans and preserve the two 56 m3/h airflow paths.
04
50 mm²
Terminate
Check the 50 mm2 motor connection, M6 PE point and 6-8 Nm torque.
05
M6 PE
Review
Compare the Siemens-listed later article with connectors, cooling and drive data.
06
Drive data
Requalify
Restore parameters and prove load, direction, thermal behavior and protection.
160 A class: use the motor-duty current.
Cooling: keep both fan paths clear.
Replacement: verify the listed successor.
Official Siemens references: exact SiePortal or Industry Mall record and SIMODRIVE 611 Configuration Manual.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1123-1AA00-0EA1
Practical answers for buyers, engineers and maintenance teams.
Q01
Which motor category receives the 80 A rating on Siemens 6SN1123-1AA00-0EA1?
Siemens assigns 80 A to 1FT5 motor duty; it publishes 56 A for 1FT6 and 60 A for 1PH or asynchronous operation.
Q02
How much fan airflow is listed for Siemens 6SN1123-1AA00-0EA1?
The SIMODRIVE manual lists two fans, each with 56 m3/h maximum unobstructed flow for the 160 A internal-cooling class.
Q03
What installation dimensions and connections matter for Siemens 6SN1123-1AA00-0EA1?
The module class is 150 mm wide and uses a 50 mm2 motor connection with an M6 PE point and 6-8 Nm terminal torque.
Q04
How does Siemens describe the lifecycle of 6SN1123-1AA00-0EA1?
The official record shows Prod. Discont., says the product is no longer available and names a later successor article.
Q05
Why is a successor check for Siemens 6SN1123-1AA00-0EA1 more than an order-number comparison?
The review must include 150 mm mounting space, two-fan cooling, 50 mm2 terminals, control board, motor category and commissioned parameters.
Q06
What should a buyer send for a Siemens 6SN1123-1AA00-0EA1 supply inquiry?
Send the module, controller and motor labels, power-terminal and fan photos, machine duty, parameter backup, requested condition, quantity, destination and schedule.
