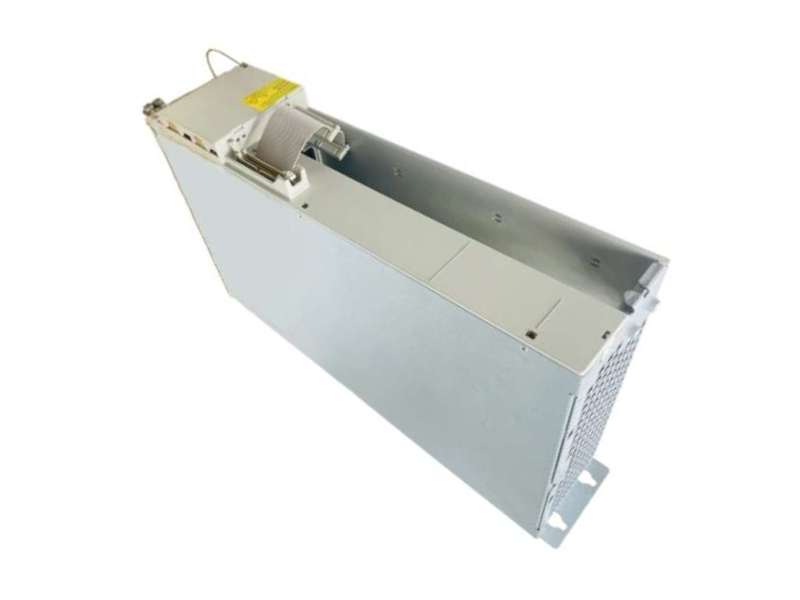

Siemens 6SN1123-1AA00-0DA2 SIMODRIVE 611 80 A one-axis power module view 1

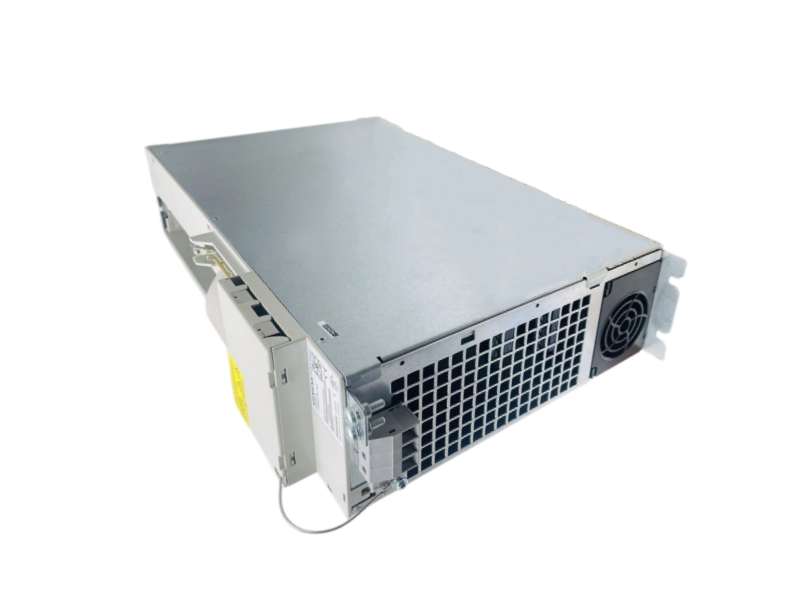

Siemens 6SN1123-1AA00-0DA2 SIMODRIVE 611 80 A one-axis power module view 3
Siemens 6SN1123-1AA00-0DA2 SIMODRIVE 611 80 A one-axis power module view 2

Siemens 6SN1123-1AA00-0DA2 SIMODRIVE 611 80 A One-Axis Power Module

Siemens / SIMODRIVE 611 Power Module
6SN1123-1AA00-0DA2
Siemens 6SN1123-1AA00-0DA2 is a one-axis 80 A SIMODRIVE 611 power module with internal cooling. Siemens publishes 28 A for feed-motor duty and 30 A for main-spindle duty.
Lifecycle and replacement
Prod. Cancellation
No direct successor is shown in the reviewed Siemens record.
Module class
80 A
Axis count
1 axis
Feed motor current
28 A
Main-spindle current
30 A
Lifecycle
Prod. Cancellation
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0DA2
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Revised 80 A feed-and-spindle identity
A 100 mm module with a tightly separated 28/30 A duty pair.
The 0DA2 article is selected by full order number, axis role, one-axis control board, 10 mm2 power connection and 56 m3/h cooling path.
01
Order number
6SN1123-1AA00-0DA2
Transistor limit
80 A
Feed-motor current
28 A
Main-spindle current
30 A
Induction S6-40% current
40 A
Maximum fan airflow
56 m³/h
Motor connection
10 mm²
PE / terminal torque
M5 / 1.5–1.8 Nm
Official lifecycle
Prod. Cancellation
The reviewed Siemens page does not name a direct successor.
The official description replaces older motor-family wording with explicit feed and main-spindle values.
01 / Feed duty
28 A
02 / Spindle duty
30 A
03 / Power interface
10 mm2 · M5 · 1.5-1.8 Nm
02
Duty selection, terminal torque and commissioning
Six checks for the later 80 A one-axis power-module revision.
The route joins motor duty, cooling and high-current termination without confusing the 80 A transistor class with motor rating.
Identify -> Commission
01
MLFB
Match
Verify the entire 0DA2 article and the one-axis control board.
02
Motor
Rate
Use 28 A for feed or 30 A for main-spindle motor duty.
03
Cooling
Ventilate
Confirm the fan and a clear 56 m3/h maximum airflow path.
04
10 mm²
Cable
Inspect the 10 mm2 motor connection and associated protection.
05
M5 PE
Torque
Secure the M5 PE point and apply 1.5-1.8 Nm at the specified terminal.
06
Drive data
Commission
Restore the archive and test motion, current limits, temperature and faults.
80 A class: use the motor-duty current.
Cooling: keep 56 m3/h clear.
Replacement: no direct successor is listed.
Official Siemens references: exact SiePortal or Industry Mall record and SIMODRIVE 611 Configuration Manual.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1123-1AA00-0DA2
Practical answers for buyers, engineers and maintenance teams.
Q01
Which current applies when Siemens 6SN1123-1AA00-0DA2 drives a feed axis?
Use the Siemens-published 28 A feed-motor rated current; the 30 A value is reserved for main-spindle duty.
Q02
What power-terminal data should be recorded for Siemens 6SN1123-1AA00-0DA2?
The official manual gives a 10 mm2 motor connection, an M5 protective-conductor screw and a 1.5-1.8 Nm terminal torque for the 80 A class.
Q03
Which system items determine compatibility with Siemens 6SN1123-1AA00-0DA2?
Compatibility depends on the one-axis control board, motor and duty, DC-link arrangement, internal fan cooling, power cable and saved commissioning data.
Q04
What does Prod. Cancellation indicate for Siemens 6SN1123-1AA00-0DA2?
It is the lifecycle state shown by Siemens for the exact article. Buyers should request confirmed spare-part availability and condition rather than assume active standard production.
Q05
How should Siemens 6SN1123-1AA00-0DA2 be tested after replacement?
Restore the verified parameter set, then check direction, acceleration, current limits, fan operation, motor temperature, interlocks and fault history.
Q06
What details are needed to quote Siemens 6SN1123-1AA00-0DA2 accurately?
Provide both nameplates, feed or spindle function, motor data, terminal and fan photos, parameter backup, requested condition, quantity, destination and need date.
