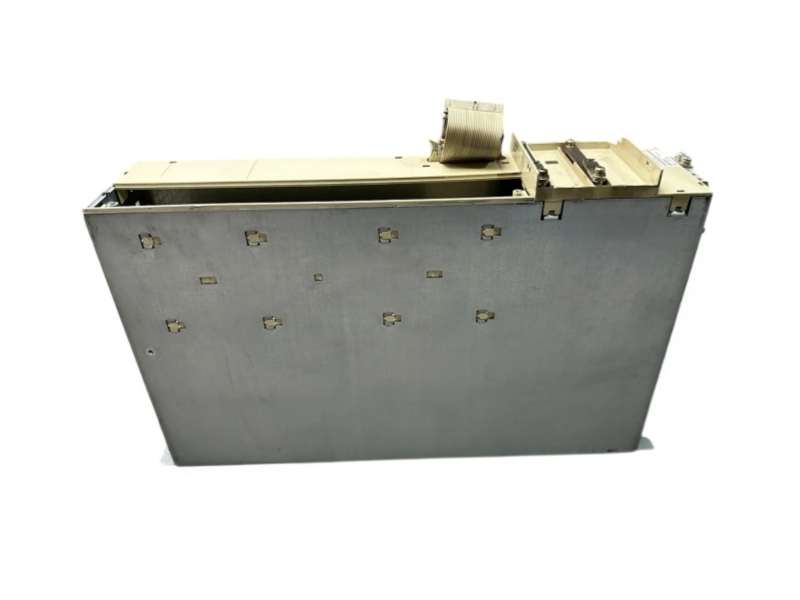

Siemens 6SN1123-1AA00-0DA1 SIMODRIVE 611 80 A one-axis power module view 1

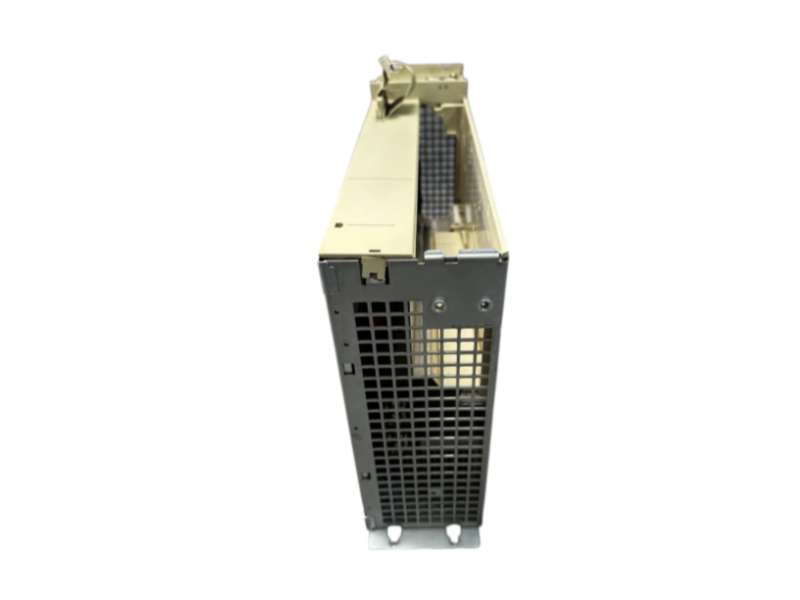

Siemens 6SN1123-1AA00-0DA1 SIMODRIVE 611 80 A one-axis power module view 2
Siemens 6SN1123-1AA00-0DA1 SIMODRIVE 611 80 A one-axis power module view 3

Siemens 6SN1123-1AA00-0DA1 SIMODRIVE 611 80 A One-Axis Power Module

Siemens / SIMODRIVE 611 Power Module
6SN1123-1AA00-0DA1
Siemens 6SN1123-1AA00-0DA1 is an earlier one-axis 80 A SIMODRIVE 611 power module with internal cooling. Siemens publishes 40 A for 1FT5, 28 A for 1FT6 and 30 A for 1PH or asynchronous motor duty.
Lifecycle and replacement
Legacy article
Siemens reference: Compare against 6SN1123-1AA00-0DA2.
Module class
80 A
Axis count
1 axis
1FT5 motor current
40 A
1FT6 / asynchronous
28 A / 30 A
Lifecycle
Legacy article
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0DA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Intermediate 80 A suffix and evidence control
An exact 0DA1 identity that must not inherit another revision record.
The current Siemens comparison data confirms the 0DA1 configuration and its motor ratings, while exact lifecycle metadata is not exposed in the present direct record.
01
Order number
6SN1123-1AA00-0DA1
Transistor limit
80 A
1FT5 rated current
40 A
1FT6 rated current
28 A
1PH / async. current
30 A
Maximum fan airflow
56 m³/h
Motor connection
10 mm²
PE / terminal torque
M5 / 1.5–1.8 Nm
Official lifecycle
Legacy article
Siemens lists Compare against 6SN1123-1AA00-0DA2.
This page therefore separates confirmed electrical data from fields that require nameplate or Siemens archive verification.
01 / Confirmed identity
Use 0DA1 exactly
02 / Confirmed profile
40 / 28 / 30 A by motor family
03 / Unpublished field
Do not invent net weight
02
Evidence-led 80 A replacement review
Six steps for an older suffix with incomplete current catalog metadata.
The workflow uses confirmed manual data and the installed machine record without fabricating missing product-page fields.
Identify -> Commission
01
MLFB
Authenticate
Read the complete 0DA1 label and any visible version marking.
02
Motor
Correlate
Match the 1FT5, 1FT6, 1PH or asynchronous motor category.
03
Cooling
Inspect
Check the 56 m3/h fan path and the condition of the 100 mm module.
04
10 mm²
Measure
Confirm the 10 mm2 terminal, M5 PE screw and 1.5-1.8 Nm torque.
05
M5 PE
Compare
Use the Siemens comparison article only as an engineering reference, not an automatic swap.
06
Drive data
Document
Save parameters, test the axis and retain the final commissioning record.
80 A class: use the motor-duty current.
Cooling: keep 56 m3/h clear.
Replacement: verify the listed successor.
Official Siemens references: exact SiePortal or Industry Mall record and SIMODRIVE 611 Configuration Manual.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1123-1AA00-0DA1
Practical answers for buyers, engineers and maintenance teams.
Q01
Which Siemens-confirmed motor ratings belong to 6SN1123-1AA00-0DA1?
The official comparison description gives 40 A for 1FT5, 28 A for 1FT6 and 30 A for either 1PH or asynchronous motor duty.
Q02
Why is the exact suffix especially important for Siemens 6SN1123-1AA00-0DA1?
The current direct catalog does not expose all metadata for this older suffix, so the complete label and revision evidence are needed to avoid importing another 80 A record.
Q03
Which manual values can be used to integrate Siemens 6SN1123-1AA00-0DA1?
For the 80 A one-axis class, Siemens specifies 100 mm width, internal fan cooling, a 10 mm2 motor connection, M5 PE hardware and 1.5-1.8 Nm torque.
Q04
How should the availability of Siemens 6SN1123-1AA00-0DA1 be described?
Treat it as a legacy exact-article inquiry. Confirm condition and stock against the full nameplate instead of presenting an unsupported current OEM availability claim.
Q05
What replacement evidence is required for Siemens 6SN1123-1AA00-0DA1?
Supply both module and control-board labels, motor family, terminal and fan photographs, DC-link context and the saved parameter set for engineering comparison.
Q06
How can a buyer request the correct Siemens 6SN1123-1AA00-0DA1 literature?
Send the exact label and machine application with any existing manual number, software version, destination and required date so the relevant Siemens documentation can be matched.
