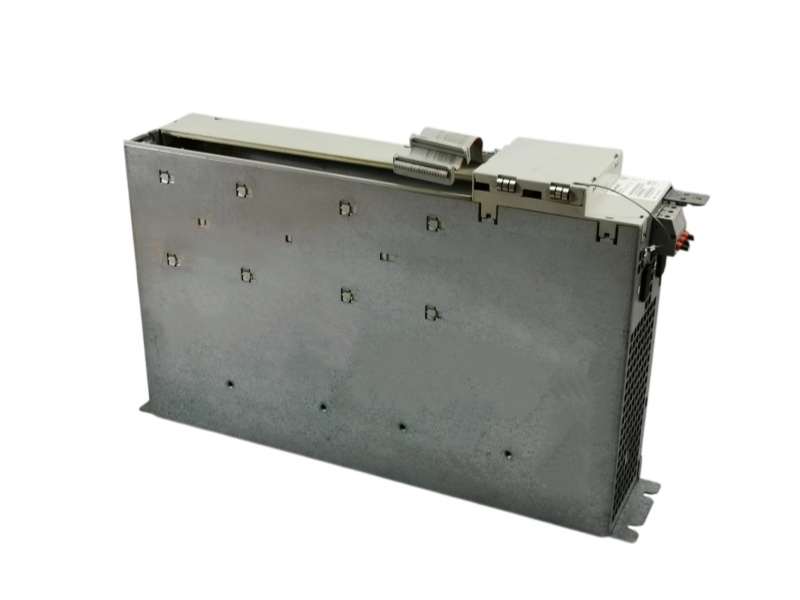

Siemens 6SN1123-1AA00-0DA0 SIMODRIVE 611 80 A one-axis power module view 1

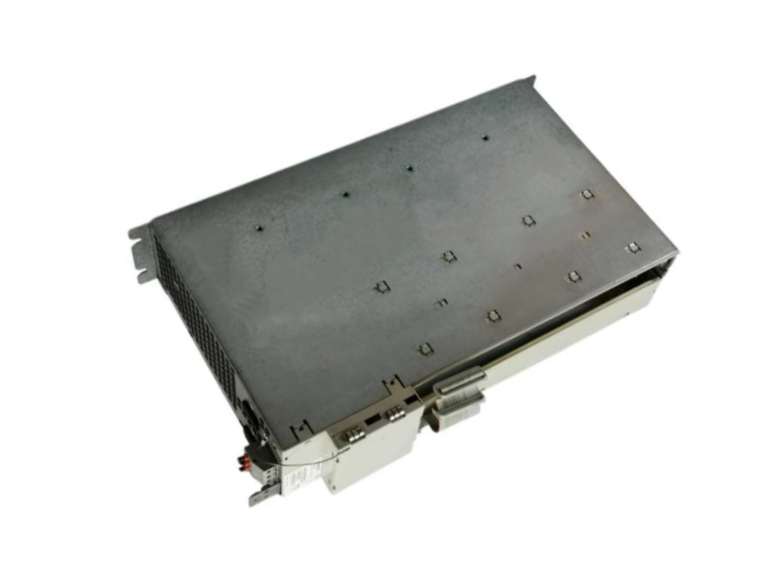

Siemens 6SN1123-1AA00-0DA0 SIMODRIVE 611 80 A one-axis power module view 2
Siemens 6SN1123-1AA00-0DA0 SIMODRIVE 611 80 A one-axis power module view 3

Siemens 6SN1123-1AA00-0DA0 SIMODRIVE 611 80 A One-Axis Power Module

Siemens / SIMODRIVE 611 Power Module
6SN1123-1AA00-0DA0
Siemens 6SN1123-1AA00-0DA0 is a legacy one-axis 80 A SIMODRIVE 611 internal-cooling power module. Its official motor profile gives 40 A for 1FT5, 28 A for 1FT6 and 30 A for 1PH or asynchronous duty.
Lifecycle and replacement
Prod. Discont.
Siemens reference: 6SN1123-1AA00-0DA2.
Module class
80 A
Axis count
1 axis
1FT5 motor current
40 A
1FT6 / 1PH
28 A / 30 A
Lifecycle
Prod. Discont.
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0DA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · 80 A legacy identity and OEM migration path
A wider 100 mm power stage with a four-category motor profile.
The 0DA0 suffix belongs to an earlier 80 A revision and must be documented separately from the later feed/spindle description.
01
Order number
6SN1123-1AA00-0DA0
Transistor limit
80 A
1FT5 rated current
40 A
1FT6 rated current
28 A
1PH / async. current
30 A
Maximum fan airflow
56 m³/h
Motor connection
10 mm²
PE / terminal torque
M5 / 1.5–1.8 Nm
Official lifecycle
Prod. Discont.
Siemens lists 6SN1123-1AA00-0DA2.
Siemens lists a later 0DA2 article, but the motor family, one-axis controller and machine archive remain mandatory checks.
01 / Revision evidence
Capture 0DA0 and version marking
02 / Power termination
10 mm2 · M5
03 / Fan requirement
Maintain 56 m3/h airflow
02
Legacy 80 A migration and power-terminal audit
Six checks from 0DA0 identification to controlled recommissioning.
The higher-current connection adds cable, PE and torque requirements to the usual control-board and motor matching.
Identify -> Commission
01
MLFB
Record
Photograph the full 0DA0 label, revision and one-axis control board.
02
Motor
Map
Tie 40 A, 28 A or 30 A to the installed motor family.
03
Cooling
Cool
Verify the fan and preserve the 56 m3/h unobstructed airflow path.
04
10 mm²
Terminate
Inspect the 10 mm2 motor connection and M5 protective conductor.
05
M5 PE
Compare
Review the Siemens-listed later article against the complete installation.
06
Drive data
Validate
Restore parameters and test current, direction, temperatures and fault response.
80 A class: use the motor-duty current.
Cooling: keep 56 m3/h clear.
Replacement: verify the listed successor.
Official Siemens references: exact SiePortal or Industry Mall record and SIMODRIVE 611 Configuration Manual.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1123-1AA00-0DA0
Practical answers for buyers, engineers and maintenance teams.
Q01
How should the 40 A value on Siemens 6SN1123-1AA00-0DA0 be interpreted?
The 40 A figure is the published rated motor current for 1FT5 duty; it is not the value for the 1FT6, 1PH or asynchronous categories.
Q02
Which thermal data matters for Siemens 6SN1123-1AA00-0DA0?
The manual identifies internal fan cooling with a maximum unobstructed airflow of 56 m3/h for the 80 A class.
Q03
What must match around Siemens 6SN1123-1AA00-0DA0 in an existing machine?
Confirm the one-axis control board, motor family, 10 mm2 connection, DC-link system, fan arrangement and saved drive parameters.
Q04
Does Siemens still treat 6SN1123-1AA00-0DA0 as an active standard product?
No. The official page marks the article Prod. Discont. and points to a later successor, so exact spare-part availability must be checked.
Q05
Why should a Siemens 6SN1123-1AA00-0DA0 replacement be recommissioned?
A later power module can affect revision matching, connectors and stored setup; direction, current response, protection and cooling must be proven after installation.
Q06
Which photographs are useful for a Siemens 6SN1123-1AA00-0DA0 quote?
Include the 0DA0 version label, control-board label, motor nameplate, 10 mm2 terminal, fan path and cabinet installation, plus quantity and destination.
