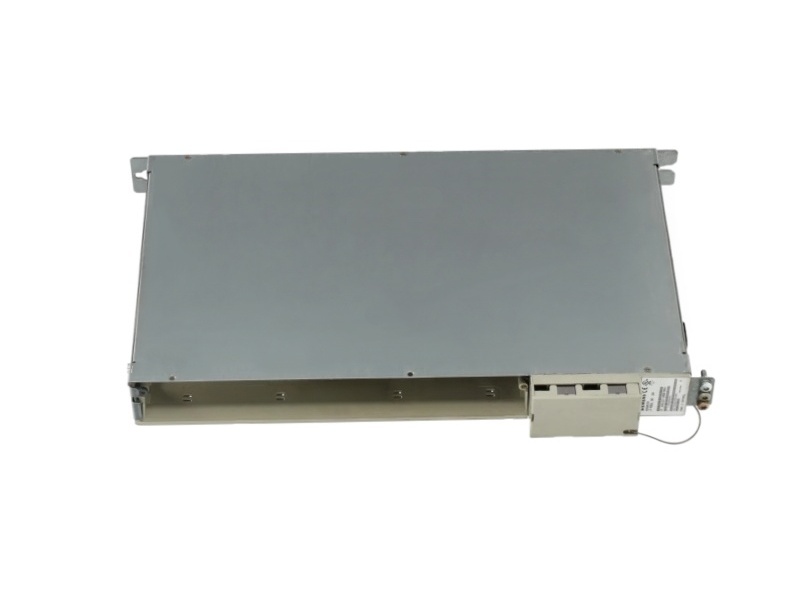

Siemens 6SN1123-1AA00-0AA1 SIMODRIVE 611 15 A one-axis power module view 1

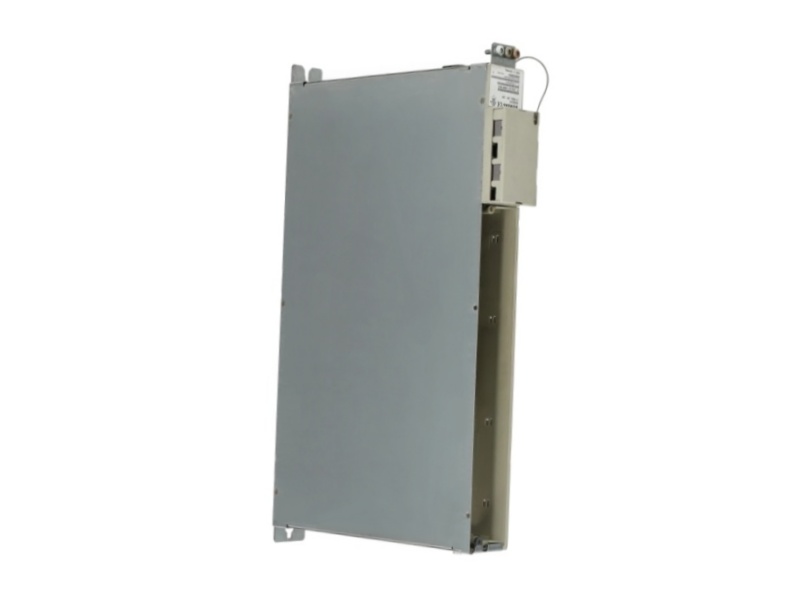

Siemens 6SN1123-1AA00-0AA1 SIMODRIVE 611 15 A one-axis power module view 2

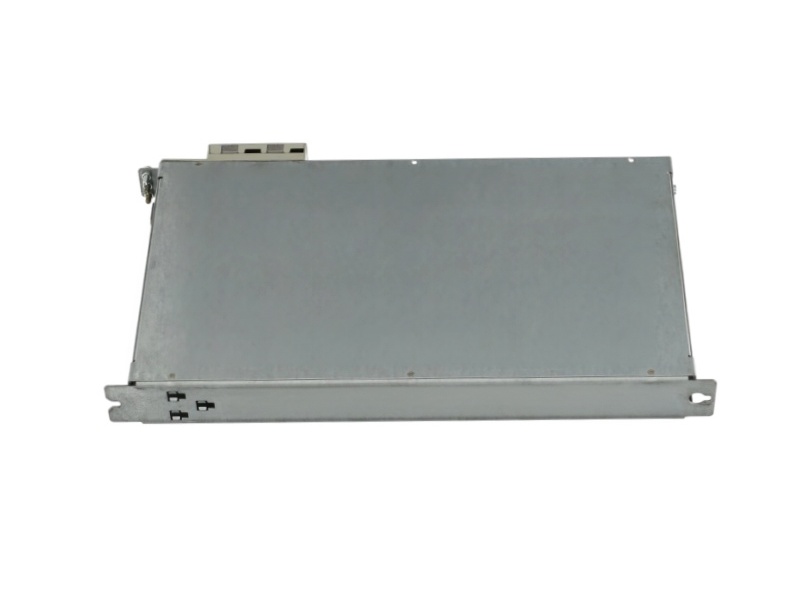

Siemens 6SN1123-1AA00-0AA1 SIMODRIVE 611 15 A one-axis power module view 3

Siemens 6SN1123-1AA00-0AA1 SIMODRIVE 611 15 A One-Axis Power Module

Siemens / SIMODRIVE 611 Power Module
6SN1123-1AA00-0AA1
Siemens 6SN1123-1AA00-0AA1 is a one-axis 15 A SIMODRIVE 611 power module with internal heat dissipation. Its published motor ratings are 7.5 A for 1FT5 and 5 A for 1FT6 or asynchronous duty.
Lifecycle and replacement
Prod. Discont.
Siemens reference: 6SN1123-1AA00-0AA2 (compatible).
Module class
15 A
Axis count
1 axis
1FT5 motor current
7.5 A
1FT6 / asynchronous
5 A
Lifecycle
Prod. Discont.
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1123-1AA00-0AA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · 15 A identity and passive-cooling boundary
A low-current one-axis power stage with a Siemens-compatible successor path.
The AA1 suffix identifies the earlier 15 A configuration; the article number, motor family and non-ventilated cabinet arrangement must be preserved together.
01
Order number
6SN1123-1AA00-0AA1
Transistor limit
15 A
1FT5 rated current
7.5 A
1FT6 / async. current
5 A
Synchronous peak current
10 A
Motor connection
1.5 / 2.5 / 4 / 6 mm²
PE connection
M5
Terminal torque
0.7–0.8 Nm
Official lifecycle
Prod. Discont.
Siemens lists 6SN1123-1AA00-0AA2 (compatible).
Siemens publishes 15 A transistor limit, 50 mm width and no fan airflow value for this internal-cooling module class.
01 / Exact suffix
Retain 0AA1
02 / Motor family
Identify 1FT5, 1FT6 or asynchronous
03 / Thermal path
Keep vents unobstructed
02
Low-current connector and airflow verification
Six checks for a non-ventilated 15 A power-module exchange.
The exchange route separates transistor class from motor rated current and protects the natural-convection installation.
Identify -> Commission
01
MLFB
Identify
Read the full 0AA1 order number and the installed one-axis control board.
02
Motor
Classify
Confirm whether the machine uses 1FT5, 1FT6 or an asynchronous motor.
03
Cooling
Vent
Keep the module grille and the cabinet air path clear for passive heat removal.
04
1.5-6 mm²
Terminate
Verify an approved 1.5 to 6 mm2 connector and the M5 protective conductor.
05
M5 PE
Torque
Apply the Siemens 0.7-0.8 Nm terminal value and inspect the connector condition.
06
Drive data
Test
Restore drive data and validate direction, current response, limits and alarms.
15 A class: use the motor-duty current.
Cooling: preserve natural convection.
Replacement: verify the listed successor.
Official Siemens references: exact SiePortal or Industry Mall record and SIMODRIVE 611 Configuration Manual.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1123-1AA00-0AA1
Practical answers for buyers, engineers and maintenance teams.
Q01
Which motor currents does Siemens publish for 6SN1123-1AA00-0AA1?
Siemens specifies 7.5 A for a 1FT5 motor and 5 A for either a 1FT6 or asynchronous motor. The separate 15 A value is the module transistor limit.
Q02
Why is the cooling arrangement important when replacing Siemens 6SN1123-1AA00-0AA1?
The Siemens manual places this 15 A internal-cooling class in the non-ventilated group, so the original mounting position and unobstructed cabinet airflow must be retained.
Q03
Can Siemens 6SN1123-1AA00-0AA1 be ordered from the 15 A rating alone?
No. The full 0AA1 suffix, one-axis control board, motor family, connector and parameter set are required to identify the installed configuration.
Q04
What does the Siemens lifecycle record mean for sourcing 6SN1123-1AA00-0AA1?
The official record shows Prod. Discont. and names a compatible later article. Availability therefore depends on exact-article spare-part sourcing rather than active standard production.
Q05
What must be checked before installing an alternative for Siemens 6SN1123-1AA00-0AA1?
Compare the complete nameplates, control-board type, motor data, 1.5 to 6 mm2 connection, M5 PE point, terminal torque and commissioned parameters.
Q06
Which files should accompany a manual or quote request for Siemens 6SN1123-1AA00-0AA1?
Send clear power-module and control-board labels, motor identification, connector photos, cabinet-cooling view, parameter backup, quantity, destination and required date.
