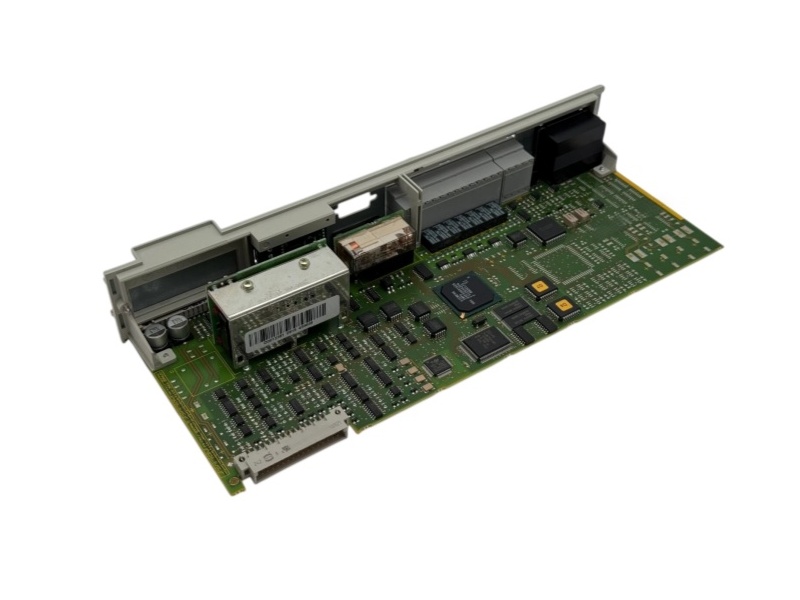

Siemens 6SN1122-0BA11-0AA1 SIMODRIVE 611-A analog control unit product view 1

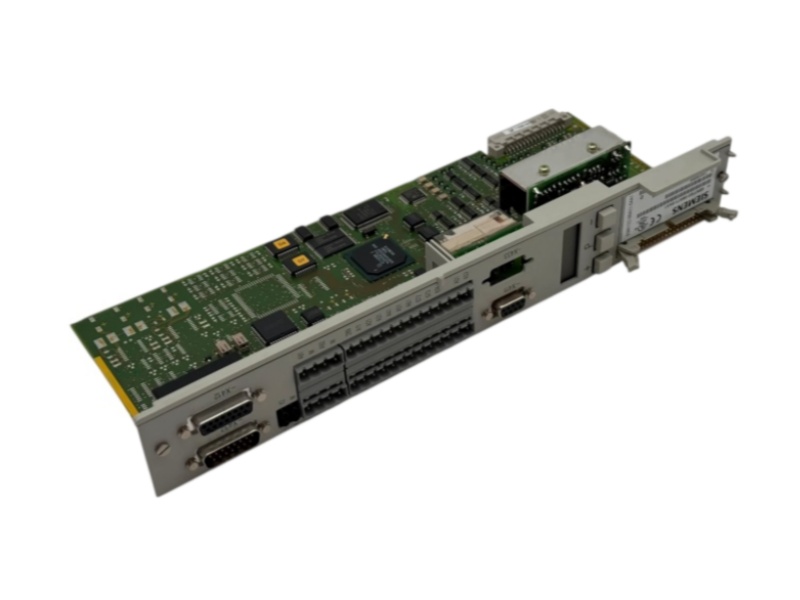

Siemens 6SN1122-0BA11-0AA1 SIMODRIVE 611-A analog control unit product view 2

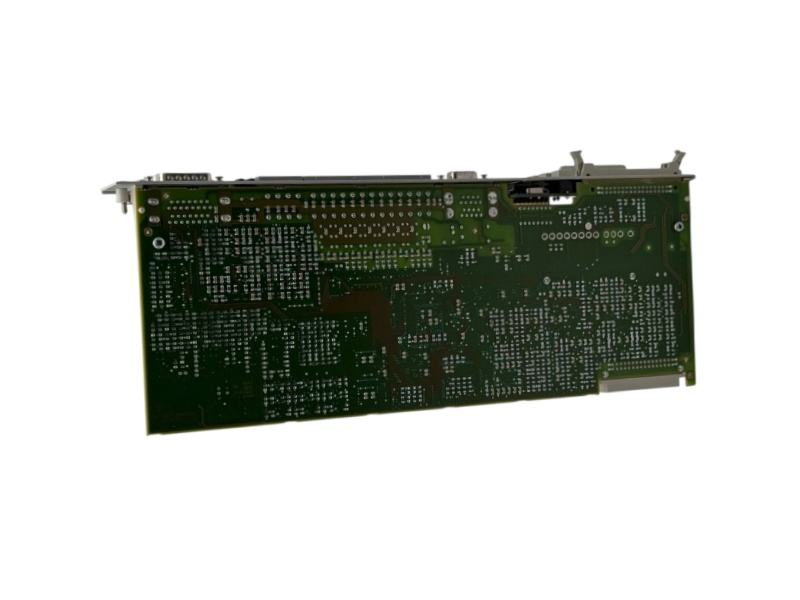

Siemens 6SN1122-0BA11-0AA1 SIMODRIVE 611-A analog control unit product view 3

Siemens 6SN1122-0BA11-0AA1 SIMODRIVE 611-A Analog Induction Motor Control Unit

Siemens / SIMODRIVE 611-A
6SN1122-0BA11-0AA1
Siemens 6SN1122-0BA11-0AA1 is the universal analog closed-loop control unit for SIMODRIVE 611-A induction motor drives. Replacement depends on the installed power module, motor data, analog command wiring and saved parameter set.
Replacement status
Partial migration only
Official successor: 611U HR 6SN1118-0NH01-0AA0.
Control role
Induction motor
Command
Analog
Exclusive I/O
X412 + X432
Lifecycle
Prod. Discont.
Weight
0.5 kg
ONE YEAR WARRANTY   |   FAST DELIVERY   |   WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6SN1122-0BA11-0AA1
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Product identity and migration boundary
The exact analog control article, separated from its migration path.
Siemens identifies 6SN1122-0BA11-0AA1 as the universal SIMODRIVE 611-A closed-loop control unit for induction motor drives.
01
Order number
6SN1122-0BA11-0AA1
Analog speed setpoints
2 × 0 to ±10 V
Pulse enable
+21 to 30 V
Control / rapid stop
+13 to 30 V
Start-up interface
RS-232C · 9-pin D-Sub
Motor-temperature input
X412 · KTY84 or PTC
Speed-monitor input
X432 · VERO
Net weight
0.5 kg / 1.10 lb
Official lifecycle
Prod. Discont.
Siemens lists 611U HR 6SN1118-0NH01-0AA0 as partially compatible.
Decision rule: treat the successor as an engineered migration, not a drop-in replacement.
01 / Match
Use the complete 6SN1122-0BA11-0AA1 article number and record the installed power module.
02 / Preserve
Archive motor data, analog scaling, terminal assignments and start-up parameters.
03 / Recommission
Validate direction, speed response, protections and machine interlocks after any exchange.
02
Signal and commissioning map
Six installed interfaces define the analog drive.
The route follows the physical command, enable, relay, start-up and monitoring connections.
Command -> Protect -> Commission
01
X421
Analog command
Two differential speed setpoints, each 0 to +/-10 V.
02
X431
Enable chain
Pulse enable +21 to 30 V; controller enable and rapid stop +13 to 30 V.
03
X441
Relay layer
Start-inhibit acknowledgement, programmable relay signals and contact supply.
04
X411
Commissioning
RS-232C, 9-pin D-Sub interface for start-up software.
05
X412
Motor protection
15-pin D-Sub input for KTY84 or PTC temperature monitoring.
06
X432
Speed monitor
15-pin D-Sub VERO connection for maximum-speed monitoring.
X412: KTY84 or PTC input.
X432: VERO speed monitoring.
Exact-model note: both belong to this MLFB.
Official Siemens references: SiePortal product record, SIMODRIVE 611 analog Start-Up Guide, SIMODRIVE planning guide and EU Declaration.
03 · Buyer FAQ
Buyer questions for Siemens 6SN1122-0BA11-0AA1
Practical answers for buyers, engineers and maintenance teams.
Q01
What is Siemens 6SN1122-0BA11-0AA1 used for?
Siemens 6SN1122-0BA11-0AA1 is a SIMODRIVE 611-A plug-in closed-loop control unit for induction motor drives. Siemens identifies the exact order number as the universal analog version.
Q02
Does Siemens 6SN1122-0BA11-0AA1 have one fixed motor-current rating?
No. The Siemens current-controller selection table ties the applicable current values to the installed 611 power module. The control unit and power module must therefore be checked as one configured drive.
Q03
Which connections distinguish Siemens 6SN1122-0BA11-0AA1 from other 6SN1122 versions?
Siemens states that X412 and X432 are available only on 6SN1122-0BA11-0AA1. X412 accepts KTY84 or PTC motor-temperature monitoring, while X432 provides the VERO connection for maximum-speed monitoring.
Q04
What must be verified before Siemens 6SN1122-0BA11-0AA1 is replaced?
Match the complete order number, 611 power module, motor data, analog setpoint scaling, enable and relay wiring, X412/X432 connections, commissioning software and saved parameter set.
Q05
Is Siemens 6SN1122-0BA11-0AA1 discontinued, and is there an official successor?
Yes. Siemens marks 6SN1122-0BA11-0AA1 as Prod. Discont. and lists 611U HR 6SN1118-0NH01-0AA0 as a partially compatible successor. It is not a drop-in replacement and requires a full interface and commissioning review.
Q06
What should be sent for a Siemens 6SN1122-0BA11-0AA1 manual and quotation request?
Send clear nameplate photos, the power-module order number, motor data, X412/X432 wiring, software or parameter-backup details, quantity, destination and required date so the correct documentation and supply option can be confirmed.
