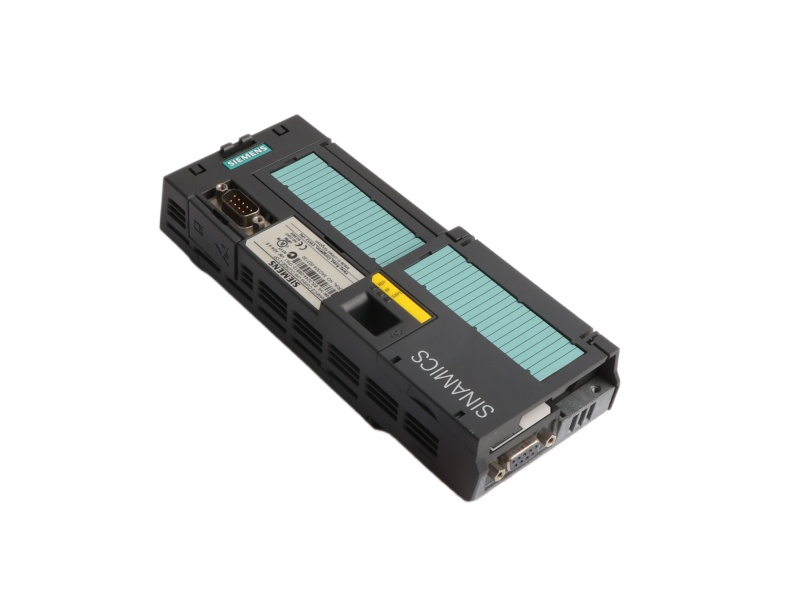

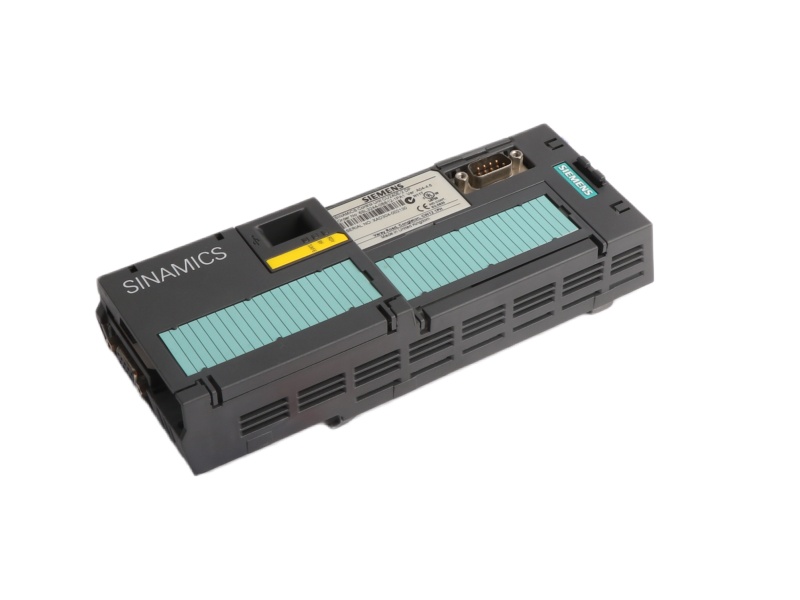

6SL3244-0BB12-1PA1 is the Siemens SINAMICS G120 CU240E-2 DP E-type Control Unit with PROFIBUS DP, integrated STO and flexible onboard I/O.
Send the Power Module, fieldbus, firmware, I/O and safety requirements for a complete compatibility check.
| Manufacturer | Siemens AG |
| Item number | 6SL3244-0BB12-1PA1 |
| Country of Origin | Great Britain |
| Lead Time | 3 working days ex works (verify region and order date) |
| After-Sales Support | Siemens spare part delivery, repair and exchange services |
| HS Code / Commodity code | 85371091 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
The CU240E-2 DP manages converter control functions, exchanges data over PROFIBUS DP and provides integrated digital and analog I/O. Siemens specifies 6 digital inputs, 3 digital outputs, 2 analog inputs and 2 analog outputs, plus a PTC/KTY motor-temperature interface.
The DP variant uses PROFIBUS DP. Do not substitute a PN, USS/RS485 or F-type Control Unit without checking the PLC network, telegram, I/O and safety design.
Match the network, device configuration and telegram used by the controller.
Read digital commands, analog references and the configured temperature sensor.
Execute the selected G120 control method and parameter set.
Return status and configured analog signals to the machine system.
Siemens lists this item as the Control Unit only, without Power Module or operator panel. Confirm the installed G120 Power Module and whether a panel or memory card is required separately.
No. The exact order number is CU240E-2 DP and communicates through PROFIBUS DP.
No. Siemens specifies the Control Unit without Power Module and without operator panel.
Only after checking network, Power Module, firmware, parameters, I/O, safety functions and mechanical compatibility.
Share the model, fieldbus and safety requirements for a fast compatibility check.
6SL3120-2TE21-0AA3 is the SINAMICS S120 booksize Double Motor Module with 600 V DC input, 400 V three-phase AC output, 9 A per motor channel, internal air cooling and extended Safety Integrated support. Input 600 V DC Output 400 V 3 AC Channels 9 A · 9 A Format Booksize Cooling Internal air Safety Extended Safety Integrated Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6SL3130-7TE21-6AA1 is the SINAMICS S120 Active Line Module with 380–480 V three-phase AC input, 600 V DC / 27 A output and 16 kW rating, using internal air cooling. Input 380–480 V 3 AC Output 600 V DC DC current 27 A Rated power 16 kW Cooling Internal air Included CVA · DRIVE-CLiQ cable Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6SL3210-1KE11-8UP2 is the SINAMICS G120C compact converter for 380–480 V three-phase supply with 0.55 kW low-overload rating, PROFIBUS DP, integrated STO and onboard digital and analog I/O. Supply 3 AC 380–480 V Power LO 0.55 kW Power HO 0.37 kW Digital I/O 6 DI · 2 DO Analog I/O 1 AI · 1 AO Fieldbus / safety PROFIBUS DP · STO Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6SL3210-1PE12-3AL1 is the SINAMICS PM240-2 Power Module for 380–480 V three-phase supply with integrated Class A filter and braking chopper, rated 0.75 kW low overload and 0.55 kW high overload. Supply 3 AC 380–480 V Power LO 0.75 kW Power HO 0.55 kW Filter Integrated Class A Braking Integrated chopper Frame / protection FSA · IP20 Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6SL3210-1PE22-7UL0 is the SINAMICS PM240-2 Power Module for 380–480 V three-phase supply, unfiltered with integrated braking chopper, rated 11 kW low overload and 7.5 kW high overload. Supply 3 AC 380–480 V Power LO 11 kW Power HO 7.5 kW Filter Unfiltered Braking Integrated chopper Frame / protection FSC · IP20 Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6SL3252-0BB00-0AA0 is the SINAMICS brake relay accessory for a Siemens Power Module. Selection must be checked against the exact Power Module, motor holding brake and documented wiring. Product type Brake relay System SINAMICS Application Power Module Net weight 0.27 kg Package 155 × 145 × 45 mm Lifecycle Active Product Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AG1315-2EH14-2AY0 is the SIPLUS S7-300 CPU 315-2 PN/DP with 384 KB work memory, MPI/DP up to 12 Mbps, Ethernet PROFINET with two-port switch and required Micro Memory Card. Work memory 384 KB Interface 1 MPI / DP · 12 Mbps Interface 2 PROFINET Ethernet ports 2-port switch Memory card MMC required Ambient −25…+60 °C Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AG1342-5DA03-7XE0 is the SIPLUS NET CP 342-5 communications processor for connecting SIMATIC S7-300 to PROFIBUS, supporting DP, S5-compatible, PG/OP and S7 communication. Platform SIMATIC S7-300 Network PROFIBUS DP communication Supported S5-compatible Supported PG/OP Supported Ambient −25…+70 °C Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
