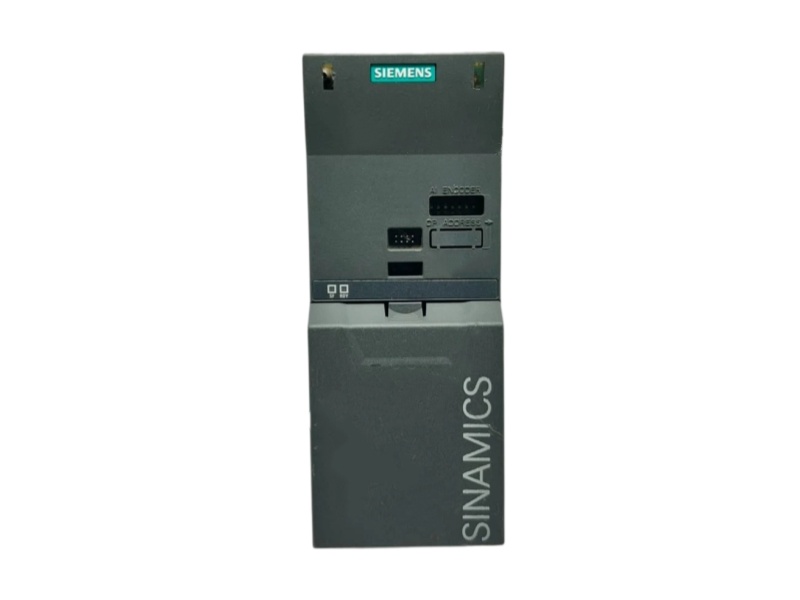

Siemens 6SL3244-0BA20-1BA0 CU240S Control Unit front view

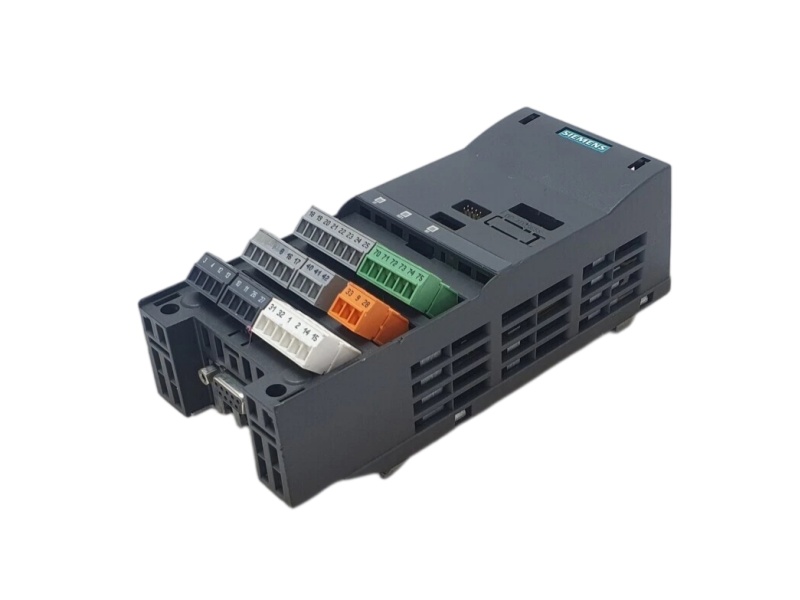

Siemens 6SL3244-0BA20-1BA0 CU240S terminals and interface view

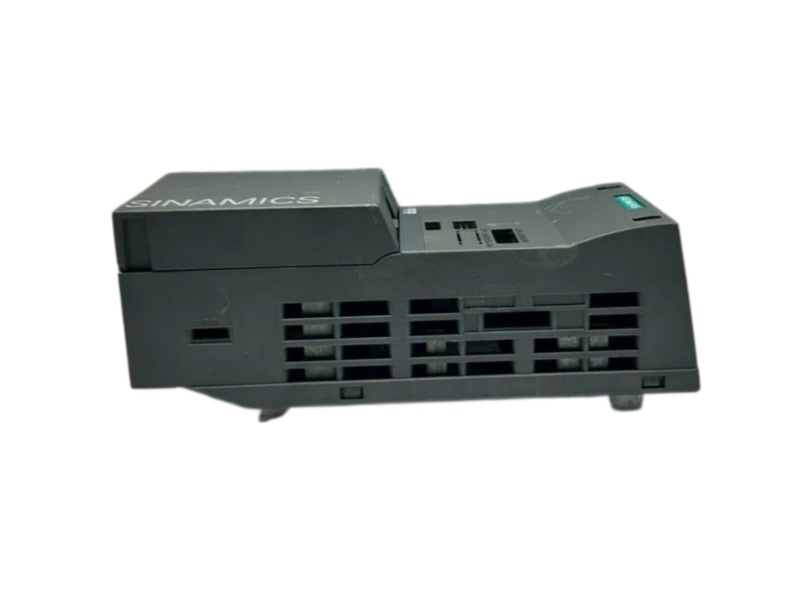

Siemens 6SL3244-0BA20-1BA0 CU240S side view

Siemens 6SL3244-0BA20-1BA0 SINAMICS G120 CU240S Control Unit

Siemens / SINAMICS G120 / CU240S
Siemens 6SL3244-0BA20-1BA0 is a CU240S Control Unit for terminal-controlled SINAMICS G120 drive applications.
The standard CU240S combines USS communication over RS485 with nine digital inputs, three digital outputs, two analog inputs, two analog outputs, encoder feedback and PTC/KTY motor-temperature input. Match the installed Power Module, firmware, I/O assignment, encoder and parameter set before replacement.
Interface
RS485 / USS
Digital I/O
9 DI · 3 DO
Analog I/O
2 AI · 2 AO
Feedback
TTL / HTL
Order number
6SL3244-0BA20-1BA0
Control family
CU240S
Protection
IP20
24 V supply
20.4–28.8 V DC
One Year Warranty  —  Fast Delivery  —  Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3244-0BA20-1BA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
哦01
Control Unit Hardware Map

Published CU240S hardware, I/O and control profile.

Siemens 6SL3244-0BA20-1BA0 combines discrete and analog I/O, motor feedback, temperature monitoring and USS communication. The Control Unit and Power Module operate as one configured drive system.

Selection Record
Verify seven installed-system checkpoints.
Drive platform
SINAMICS G120
Control Unit
CU240S
Communication
USS on RS485
01
Exact label
6SL3244-0BA20-1BA0
RS485 connector
9-pin female Sub-D
Maximum baud rate
115200 bit/s
Digital inputs
9 programmable, isolated
02
Power Module
Record the complete PM order number
Digital outputs
3 programmable relay outputs
Analog inputs
2 programmable
Analog outputs
2 programmable
03
Firmware
Back up version and parameter set
Encoder interface
1 × TTL or HTL
Motor temperature
PTC / KTY84 interface
24 V supply
20.4–28.8 V DC, 0.5 A
04
I/O program
Document every terminal assignment
Memory interface
MMC slot
Commissioning port
STARTER or BOP option port
Dimensions
73 × 178 × 55 mm
05
USS network
Verify pins, address, baud and termination
Weight
0.52 kg
Degree of protection
IP20
24 V / I/O cable length
10 m maximum
06
Feedback
Confirm TTL or HTL encoder
Digital setpoint resolution
0.01 Hz
Analog setpoint resolution
10 bit
Control frequency profile
V/f 0–650 Hz · Vector 0–200 Hz
07
Temperature input
PTC or KTY84; PT1000 is unsupported
Order boundary
CU240S and the Power Module must be checked as one configured drive system.
Lifecycle signal
Legacy CU240S generation · migration review required.
02 · Communication and Migration Path

A compact four-stage route from identification to recommissioning.

Compatibility depends on the installed Power Module, terminal program, RS485 network, encoder, temperature input, firmware and parameter set—not physical appearance alone.

01

Identify

Record the CU, Power Module, firmware, BOP or STARTER method and MMC use.

02

Map

Capture terminal functions, analog ranges, encoder and motor-temperature wiring.

03

Verify

Check RS485P pin 3, 0 V pin 5, RS485N pin 8, address and termination.

04

Migrate

Select a second-generation CU only after every interface and parameter is reviewed.

Retain the installed reference

Match 6SL3244-0BA20-1BA0 exactly when an identical CU240S is required.

Separate compatibility from appearance

A matching outline does not confirm Power Module, I/O, encoder or firmware compatibility.

Plan the migration as a project

Siemens documents CU240S migration to second-generation CUs; recommissioning and parameter review remain necessary.

Replacement check: Match the installed Power Module, USS/RS485 wiring, I/O assignment, encoder type, firmware and saved parameter set to 6SL3244-0BA20-1BA0.
03 · FAQ

Buyer questions for Siemens 6SL3244-0BA20-1BA0

Q01
What I/O configuration does Siemens 6SL3244-0BA20-1BA0 provide?
Siemens 6SL3244-0BA20-1BA0 provides nine programmable digital inputs, three programmable relay outputs, two analog inputs and two analog outputs. Its two analog inputs can also be configured as additional digital inputs.
Q02
Which communication interface is built into Siemens 6SL3244-0BA20-1BA0?
Siemens 6SL3244-0BA20-1BA0 uses USS over RS485 through a 9-pin female Sub-D connector, with a published maximum baud rate of 115200 bit/s. Confirm the address, wiring, shield and termination before commissioning.
Q03
Which drive applications and Power Modules should be checked for Siemens 6SL3244-0BA20-1BA0?
Siemens 6SL3244-0BA20-1BA0 is intended for established SINAMICS G120 applications using terminal control and USS communication. Check the installed Power Module generation and PM-IF interface, required control mode, firmware and commissioning data before selection.
Q04
Which encoder and motor-temperature devices work with Siemens 6SL3244-0BA20-1BA0?
Siemens 6SL3244-0BA20-1BA0 supports one TTL or HTL encoder interface and PTC or KTY84 motor-temperature sensing. PT1000 is not supported by the CU240S.
Q05
How should a replacement for Siemens 6SL3244-0BA20-1BA0 be selected?
Select a replacement only after checking the installed Power Module, I/O, encoder, communication, firmware and parameter set. Siemens documents migration from CU240S to second-generation Control Units, so the change requires engineering and recommissioning rather than a drop-in swap.
Q06
Which official documents and order details are needed to quote Siemens 6SL3244-0BA20-1BA0?
Use the Siemens CU240S Operating Instructions, Getting Started guide and migration guide. For a quotation, provide the full nameplate, firmware, Power Module number, I/O wiring, RS485 settings, encoder, MMC or BOP details, quantity, destination and required date.
