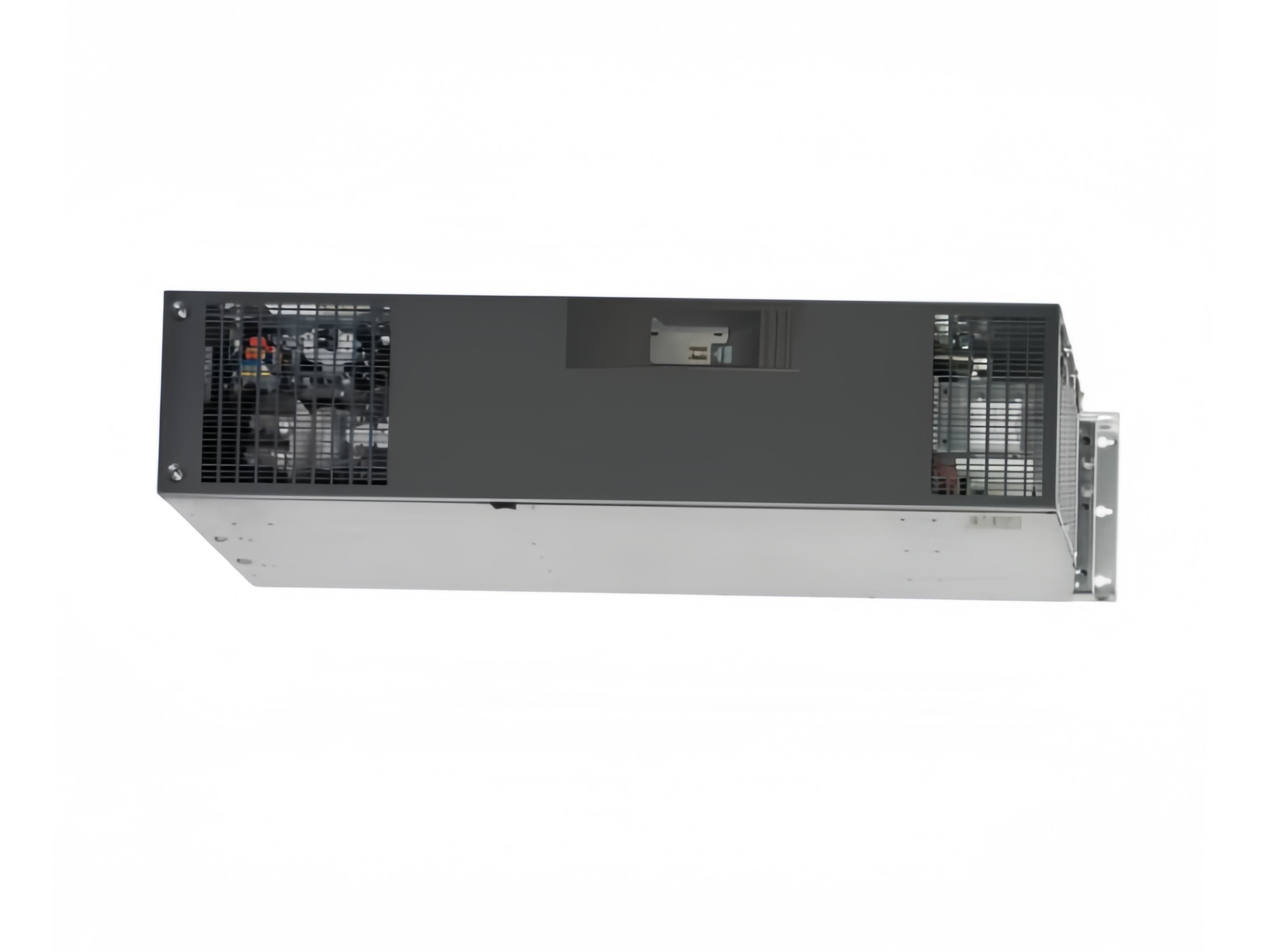

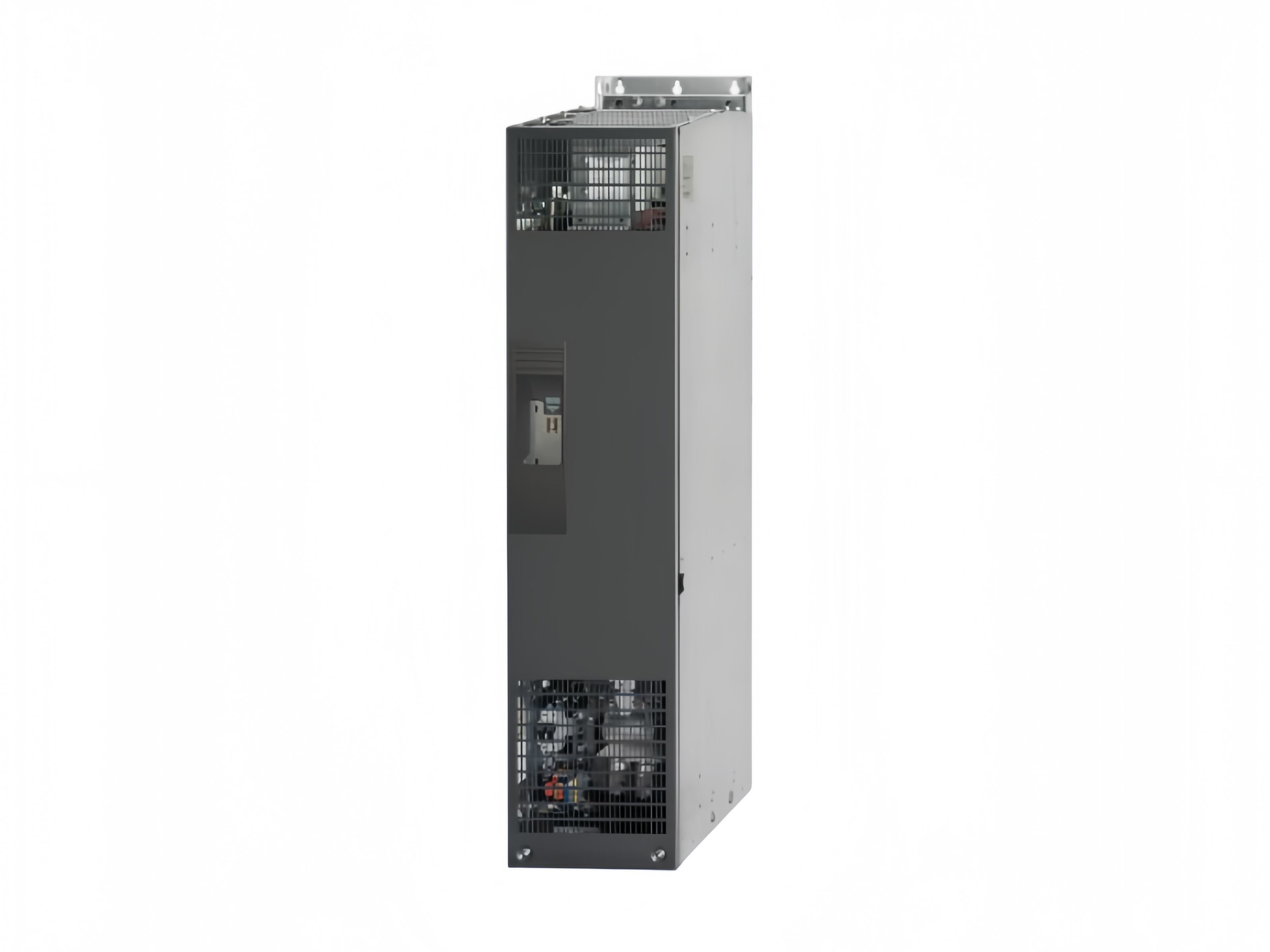

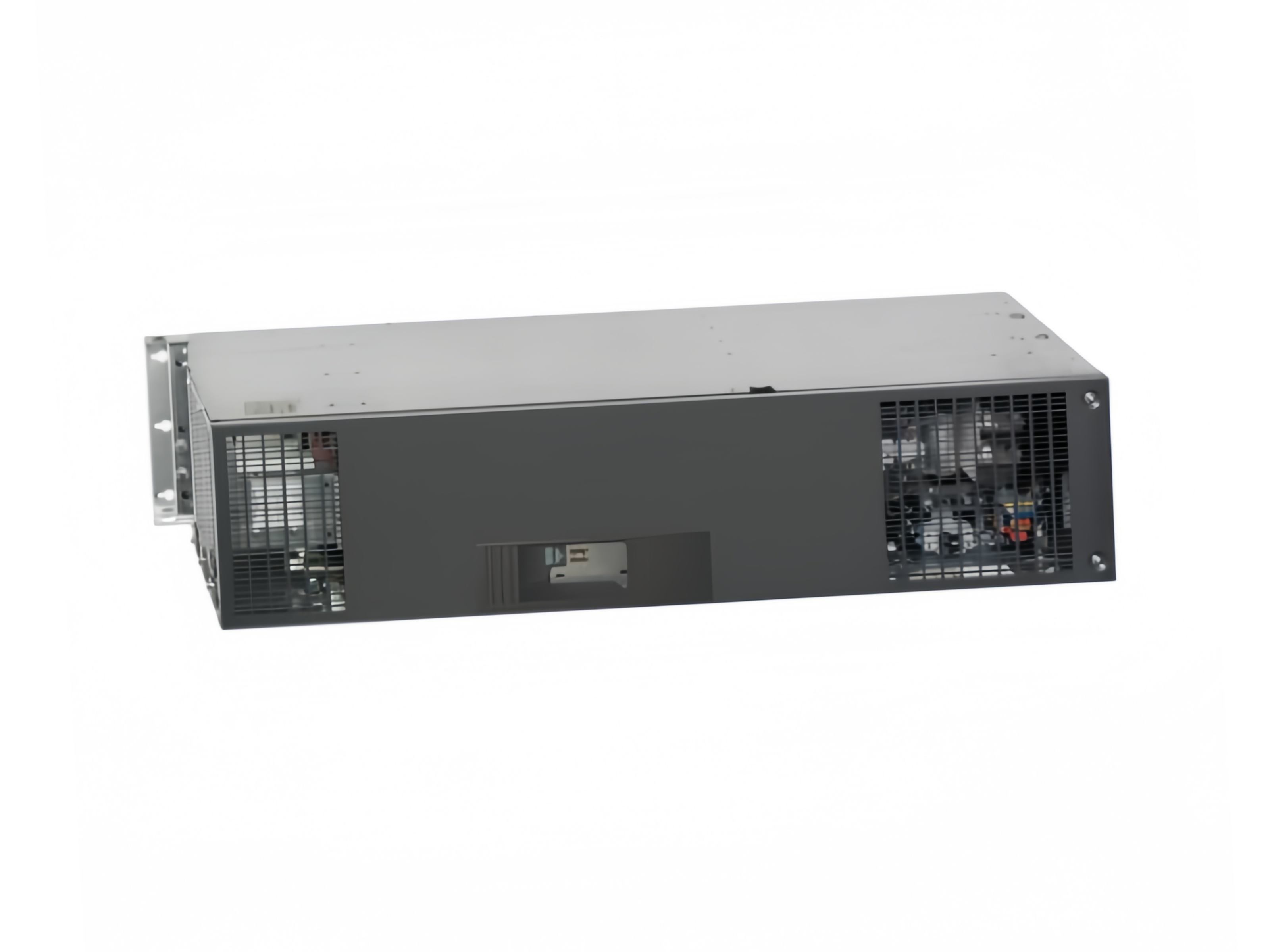

Siemens 6SL3224-0XE42-0UA0 SINAMICS G120 PM240 Power Module 200 kW
Siemens 6SL3224-0XE42-0UA0 SINAMICS G120 PM240 Power Module 200 kW
Siemens 6SL3224-0XE42-0UA0 SINAMICS G120 PM240 Power Module 200 kW

Siemens 6SL3224-0XE42-0UA0 SINAMICS G120 PM240 Power Module 200 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0XE42-0UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 200 kW high-overload duty and 250 kW low-overload duty in an FSGX design without an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
200 kWHigh-overload duty
HIGH OVERLOAD200 kW · 370 A
LOW OVERLOAD250 kW · 477 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSGX · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0XE42-0UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FSGX 200 kW DRIVE PROFILE

200 kW HO output for the largest listed FSGX duty in this batch.

This unfiltered FSGX PM240 combines 370 A HO and 477 A LO ratings, 360 l/s cooling and no integrated braking chopper.
EXACT ARTICLE · FSGX
6SL3224-0XE42-0UA0

Unfiltered FSGX PM240 Power Module without an integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW360 l/s
HO / LO CURRENT370 A / 477 A
BRAKING CHOPPERNot integrated
FRAMEFSGX
PROTECTIONIP20
HIGH OVERLOAD
200 kW370 A output
→
LOW OVERLOAD
250 kW477 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT370 A
LO OUTPUT CURRENT477 A
LINE TOLERANCE+10% / −10%
POWER LOSS5.50 kW
OPERATING PROFILE
HO OVERLOAD160% for 3 s · 136% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONNot integrated
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW360 l/s
COOLINGInternal air cooling
DIMENSIONS1533 × 326 × 547 mm
NET WEIGHT174 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSGX
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0XE42-0UA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
200 kW INSTALLATION ENVELOPE

Verify supply current, heat loss and service access for 200 kW HO duty.

The FSGX envelope, 360 l/s airflow and 442 A input without reactor define the key installation checks.
MAXIMUM BATCH POWER LEVEL

370 A HO · 477 A LO

6SL3224-0XE42-0UA0 is an unfiltered FSGX module without an integrated braking chopper. Plan 354 A input with a line reactor or 442 A without one, plus external EMC and braking hardware.

Power Module only · Control Unit and BOP not included
01

Validate the XE42-0UA0 configuration

The full 6SL3224-0XE42-0UA0 suffix identifies the 200 kW HO / 250 kW LO FSGX article with an unfiltered input path and no integrated braking chopper.

02

Coordinate the 354–442 A mains input

Design the upstream power circuit for 354 A with a line reactor or 442 A without one, including protection, conductor capacity, terminals and cabinet clearances.

03

Manage 5.50 kW loss with 360 l/s airflow

The cabinet thermal design must remove 5.50 kW of documented module loss while sustaining 360 l/s airflow through the FSGX assembly.

04

Check the 592 A maximum output

Verify the 592 A maximum output against acceleration and transient demand, then confirm that the 370 A HO or 477 A LO continuous profile suits the motor.

CONVERTER LOSS

Allow for 5.50 kW of converter losses in the cabinet thermal design.

FSGX ENVELOPE

Reserve 1533 × 326 × 547 mm and support a 174 kg module.

BRAKING & EMC

No braking chopper is integrated; allow for 5.50 kW losses, 360 l/s airflow and external braking design.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0XE42-0UA0

FSGX 200 kW decision support for 592 A maximum output, external braking and high-power sourcing.
01
SPECIFICATIONS

What are the 200 kW HO, 250 kW LO and 592 A peak specifications of 6SL3224-0XE42-0UA0?

6SL3224-0XE42-0UA0 is an unfiltered FSGX SINAMICS G120 PM240 rated 200 kW / 370 A high overload and 250 kW / 477 A low overload, with 592 A maximum output and a 2 kHz rated pulse frequency. Official values include 354 A input with reactor or 442 A without reactor, 5.50 kW power loss, 360 l/s airflow and dimensions of 1533 × 326 × 547 mm at 174 kg.

02
COMPATIBILITY

What bus, cable and protection capacity is needed to integrate 6SL3224-0XE42-0UA0 at 592 A maximum output?

Integration of 6SL3224-0XE42-0UA0 requires bus, cable, terminal and protection capacity suited to 354 A input with a reactor or 442 A without one and to the documented 592 A maximum output. The 3 AC 380–480 V supply, suitable Control Unit, IP20 cabinet, 360 l/s airflow, unfiltered EMC path and external braking design must also be verified.

03
APPLICATIONS

Which high-power motor installations can use the 370 A HO or 477 A LO duty of 6SL3224-0XE42-0UA0?

6SL3224-0XE42-0UA0 can be selected for variable-speed installations that require 200 kW / 370 A high-overload duty or 250 kW / 477 A low-overload duty. Engineering approval should check the motor nameplate, torque and overload cycle, 2 kHz performance, external braking energy, cable system, 5.50 kW heat loss and 360 l/s cooling against 6SL3224-0XE42-0UA0.

04
LIFECYCLE & SUPPLY

How should procurement teams verify supply status and shipment timing for 6SL3224-0XE42-0UA0?

The Siemens lifecycle entry for 6SL3224-0XE42-0UA0 shows spare part and Product Cancellation. Procurement teams should verify the full 6SL3224-0XE42-0UA0 code, quantity, condition, test information, 174 kg shipment handling, dispatch location, lead time and required arrival date before issuing a purchase order.

05
REPLACEMENT

What prevents 6SL3224-0XE42-0UA0 from being treated as a universal drop-in replacement?

6SL3224-0XE42-0UA0 has a specific FSGX envelope, 370/477 A duty, 592 A maximum current, 2 kHz rating, unfiltered UA0 interface and no integrated braking chopper. Those values, 360 l/s airflow, external braking and EMC equipment, bus and cable connections, Control Unit and lifting arrangement prevent 6SL3224-0XE42-0UA0 from being assumed universally interchangeable; Siemens names no universal successor.

06
MANUAL & QUOTATION

Which PM240 manual references and RFQ inputs are needed to evaluate 6SL3224-0XE42-0UA0?

Evaluate 6SL3224-0XE42-0UA0 with the Siemens SINAMICS G120 PM240 Hardware Installation Manual and the official Siemens article data sheet. The RFQ should specify quantity, destination, required date, nameplate photos, motor rating, load cycle, Control Unit, reactor selection, external EMC and braking design, cable information, cabinet cooling, space and handling plan.

04
WHY CHOOSE US

A practical sourcing service built around exact-model checks.

Six fixed service commitments presented in a calm, structured layout.
01

One-stop sourcing

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

02

Product quality

The highest quality product.

03

Warranty support

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.

04

Responsive service

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

05

Fast dispatch

Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.

06

Protective packaging

Good packaging ensures transportation safety and greatly saves transportation costs.

Warehouse technicians inspecting industrial automation equipment before dispatch
05
PROFESSIONAL TEAM

People behind practical automation support.

Experienced judgment, careful verification and patient communication for real service cases.
01 · EXPERIENCE

Nearly 10 Years of Industry Experience

Our team members have an average of more than 10 years of industry experience. We have worked with customers worldwide, including those from India, Germany, Sweden, Italy, Russia, Venezuela, Israel, and many other countries. Throughout our careers, we have collectively completed over 3,000 orders and established long-term business relationships with customers across nearly 30 countries.

02 · PRODUCT JUDGMENT

Professional Product Judgment

We can often identify a product’s manufacturer, series, configuration, and function from its model number or nameplate photo. We also understand how revisions, firmware, and specifications affect compatibility and whether an alternative model can be used safely.

IN PRACTICE

An Indian customer urgently needed a discontinued control module after several suppliers reported no stock. We identified its exact revision and function from the nameplate, checked compatible alternatives, and contacted factory and warehouse channels to locate matching inventory. After installation, the customer confirmed that the module operated correctly and later asked us to source additional spare parts.

03 · SERVICE

Sincere and Patient Service

Our team treats every inquiry sincerely and answers every question patiently. Even for complex requests, we verify and respond to each detail instead of providing a rushed or uncertain answer.

IN PRACTICE

A German customer sent a mixed list of automation products and asked repeated questions about revisions, condition, photos, and delivery. Our team organized the requirements, checked every item, and replied point by point. The customer said our detailed communication made the purchasing decision easier and continued sending us new inquiries.

06
MULTI-BRAND REFERENCE

Explore additional industrial automation models.

39 document-selected specialty references arranged as three mixed field lists.
FIELD NOTES A
01DC30
02502905
03ABB RXMA1 0047 RK 211 074-AS
04836T-T302J
05SKDXX0801 BUCK24-BUCK
06X13760335-01 TD7
07AN3100D
08C264 5448Pdr85-1
09METSEPM1200
1014YB3-230/C 29317AA8
11HEIE420269R1 DC374a
12DM03B03KNX
13ION7550
FIELD NOTES B
01UX-G5E ASIN0301
0212-1012-03
0350086421-007
04PH402
05BAE72-S
06DI8 DO4 2TX-PAC
07inBio260
08ABB 3BSE013088R1 DI885
09DSU116F001
10LNL-R11320-05TB/BD
11M7555B-01
121768-L43 A 96491472
13Allen Bradley 80025-523-10-R
FIELD NOTES C
01KXO-DUAL-DVI-R
022CDG110133R0011
03TZ1LE024M
04MTN680191 REG-K/1/16(64)/64
05250S
06THS710
073070-0401 MD-62
085002-1812
0945196504
10DXR1M09PDZ112
11CP-3110 CH4
12MXO2LE
1346779C-2 PR50 73107M
MODEL-SPECIFICRFQ
REQUEST AN EXACT-MODEL QUOTE

Ask about 6SL3224-0XE42-0UA0.

Send the complete article number, quantity, destination and required date. Add the motor rating, duty profile, Control Unit and nameplate photos when compatibility needs review.
