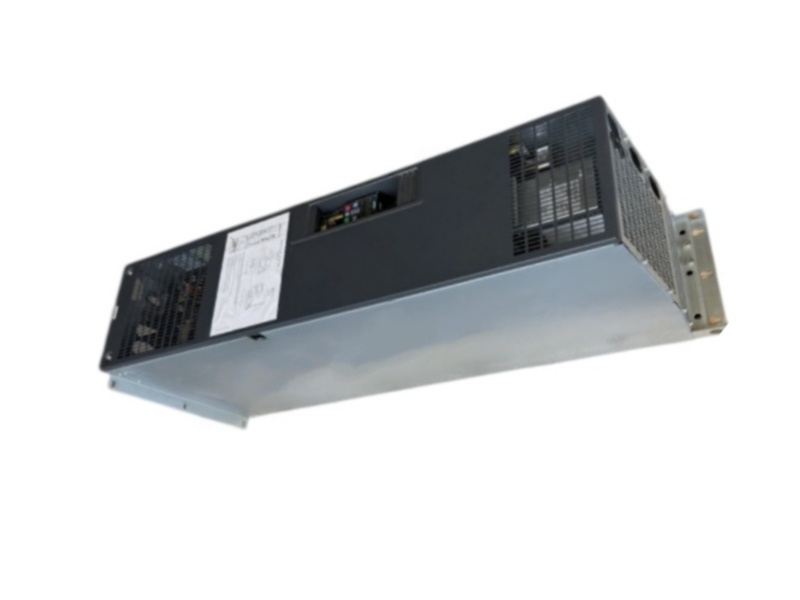

Siemens 6SL3224-0XE41-6UA0 SINAMICS G120 PM240 front view

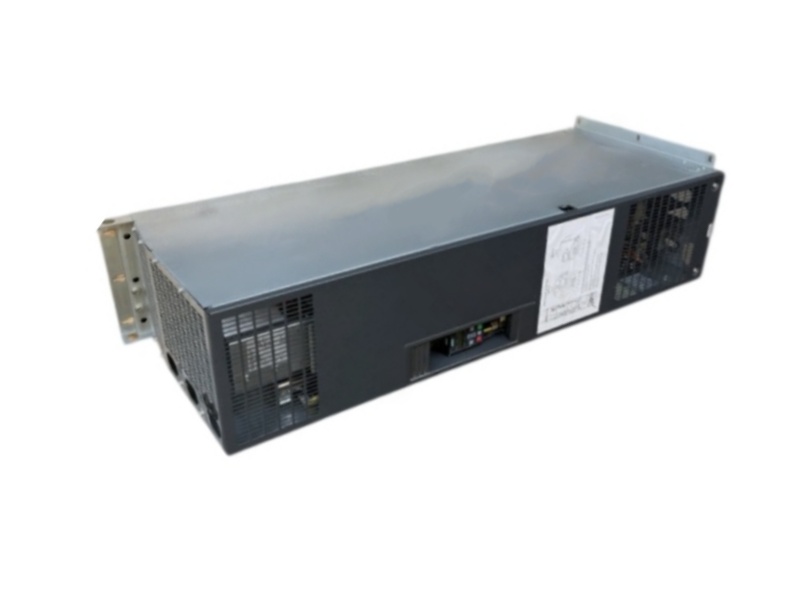

Siemens 6SL3224-0XE41-6UA0 SINAMICS G120 PM240 connection-side view

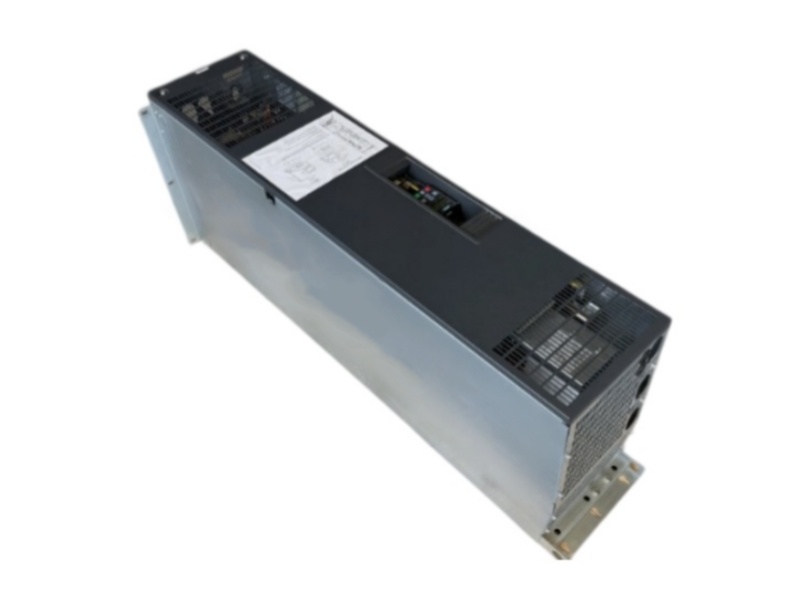

Siemens 6SL3224-0XE41-6UA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0XE41-6UA0 SINAMICS G120 PM240 Power Module 160 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0XE41-6UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 160 kW high-overload duty and 200 kW low-overload duty in an FSGX design without an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
160 kWHigh-overload duty
HIGH OVERLOAD160 kW · 302 A
LOW OVERLOAD200 kW · 370 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSGX · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0XE41-6UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FSGX 160 kW DRIVE PROFILE

160 kW HO output with 360 l/s forced-air demand.

This unfiltered FSGX PM240 combines 302 A HO and 370 A LO ratings, 360 l/s cooling and no integrated braking chopper.
EXACT ARTICLE · FSGX
6SL3224-0XE41-6UA0

Unfiltered FSGX PM240 Power Module without an integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW360 l/s
HO / LO CURRENT302 A / 370 A
BRAKING CHOPPERNot integrated
FRAMEFSGX
PROTECTIONIP20
HIGH OVERLOAD
160 kW302 A output
→
LOW OVERLOAD
200 kW370 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT302 A
LO OUTPUT CURRENT370 A
LINE TOLERANCE+10% / −10%
POWER LOSS4.40 kW
OPERATING PROFILE
HO OVERLOAD160% for 3 s · 136% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONNot integrated
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW360 l/s
COOLINGInternal air cooling
DIMENSIONS1533 × 326 × 547 mm
NET WEIGHT174 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSGX
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0XE41-6UA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
AIRFLOW & POWER PATH

Coordinate 160 kW power cabling with the FSGX cooling path.

The FSGX envelope, 360 l/s airflow and 354 A input without reactor define the key installation checks.
360 L/S COOLING REQUIREMENT

FSGX airflow · external braking

6SL3224-0XE41-6UA0 requires 360 l/s cooling airflow and has no integrated braking chopper. Keep the cooling path clear while planning external EMC and braking components.

Power Module only · Control Unit and BOP not included
01

Confirm the 160 kW FSGX identity

6SL3224-0XE41-6UA0 is the unfiltered 160 kW HO / 200 kW LO FSGX module, not the lower-current XE41-3UA0 or higher-current XE42-0UA0 configuration.

02

Route the 297–354 A supply conductors

Coordinate the power path with 297 A input when a reactor is used or 354 A without a reactor, including conductor routing, protection and termination space.

03

Maintain the 360 l/s cooling path

Preserve 360 l/s airflow through the 1533 mm-high FSGX assembly and remove the documented 4.40 kW loss without obstructing service access.

04

Size external braking for the load cycle

The module has no integrated braking chopper, so external braking capacity must be selected from the motor inertia, deceleration time and repeated stopping demand.

CONVERTER LOSS

Allow for 4.40 kW of converter losses in the cabinet thermal design.

FSGX ENVELOPE

Reserve 1533 × 326 × 547 mm and support a 174 kg module.

BRAKING & EMC

The FSGX module has no integrated braking chopper; coordinate external braking and 4.40 kW loss dissipation.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0XE41-6UA0

FSGX 160 kW procurement guidance for 302/370 A duty, cooling, compatibility and replacement.
01
SPECIFICATIONS

Which 302 A HO, 370 A LO, 483 A maximum and 4.40 kW loss values apply to 6SL3224-0XE41-6UA0?

6SL3224-0XE41-6UA0 is an unfiltered FSGX PM240 rated 160 kW / 302 A high overload and 200 kW / 370 A low overload, with 483 A maximum output at a 2 kHz rated pulse frequency. Siemens specifies 297 A input with reactor or 354 A without reactor, 4.40 kW loss, 360 l/s cooling and a 1533 × 326 × 547 mm enclosure weighing 174 kg.

02
COMPATIBILITY

Can a cabinet with limited airflow and lifting access accommodate 6SL3224-0XE41-6UA0?

A cabinet can accommodate 6SL3224-0XE41-6UA0 only when the design supports a 174 kg module measuring 1533 × 326 × 547 mm, maintains 360 l/s airflow and allows installation and service access. Compatibility must also cover the 297/354 A supply path, 4.40 kW loss, unfiltered EMC arrangement, external braking hardware, power connections and Control Unit.

03
APPLICATIONS

Which 160 kW high-overload or 200 kW low-overload applications suit 6SL3224-0XE41-6UA0?

6SL3224-0XE41-6UA0 is suitable for high-power variable-speed applications whose verified operating point fits 160 kW / 302 A high overload or 200 kW / 370 A low overload. Selection must include motor current, torque cycle, acceleration and stopping demand, 2 kHz operation, external braking, 4.40 kW cabinet loss and 360 l/s cooling for 6SL3224-0XE41-6UA0.

04
LIFECYCLE & SUPPLY

What must be confirmed before quoting available stock of 6SL3224-0XE41-6UA0?

Siemens lists 6SL3224-0XE41-6UA0 as a spare part under Product Cancellation. Before quoting 6SL3224-0XE41-6UA0, confirm the complete order number, stock count, condition, inspection scope, packaging for a 174 kg module, dispatch timing and final shipping destination.

05
REPLACEMENT

Which current ratings, FSGX dimensions and braking arrangement must match a replacement for 6SL3224-0XE41-6UA0?

Replacement analysis for 6SL3224-0XE41-6UA0 must compare 302/370 A ratings, 483 A maximum output, 1533 × 326 × 547 mm FSGX dimensions, 360 l/s cooling, 2 kHz operation and the unfiltered UA0 interface. The external braking system, EMC components, connections, Control Unit and cabinet clearance also must match because no universal Siemens successor is named for 6SL3224-0XE41-6UA0.

06
MANUAL & QUOTATION

Which Siemens installation information and site data are required for an RFQ covering 6SL3224-0XE41-6UA0?

Use the Siemens SINAMICS G120 PM240 Hardware Installation Manual plus the official 6SL3224-0XE41-6UA0 product data. The RFQ should document quantity, destination, requested date, nameplate, motor and load profile, Control Unit, line reactor, external EMC and braking equipment, cable data, available airflow, cabinet space and lifting access.
