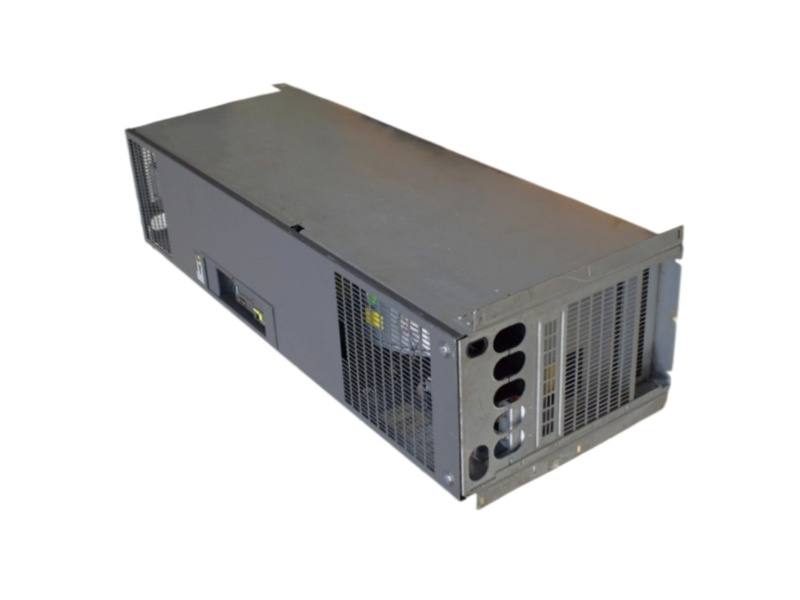

Siemens 6SL3224-0XE41-3UA0 SINAMICS G120 PM240 front view

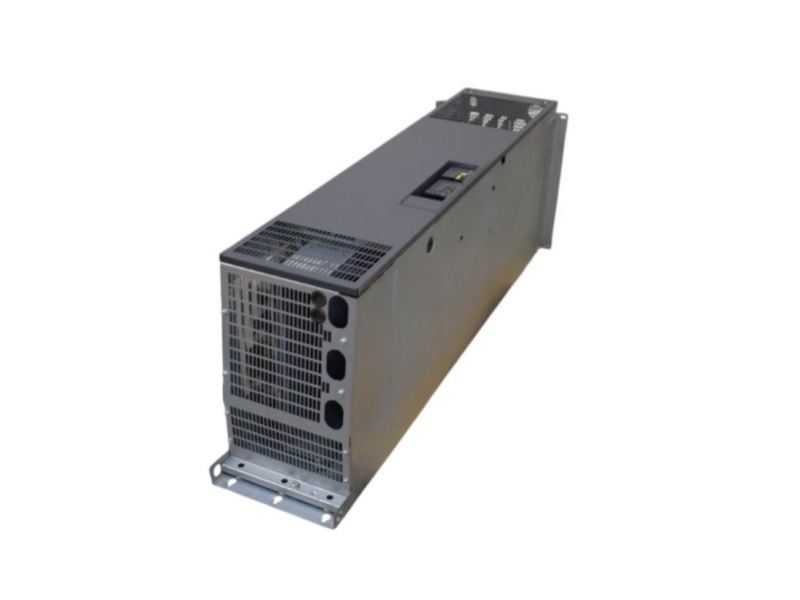

Siemens 6SL3224-0XE41-3UA0 SINAMICS G120 PM240 enclosure side view

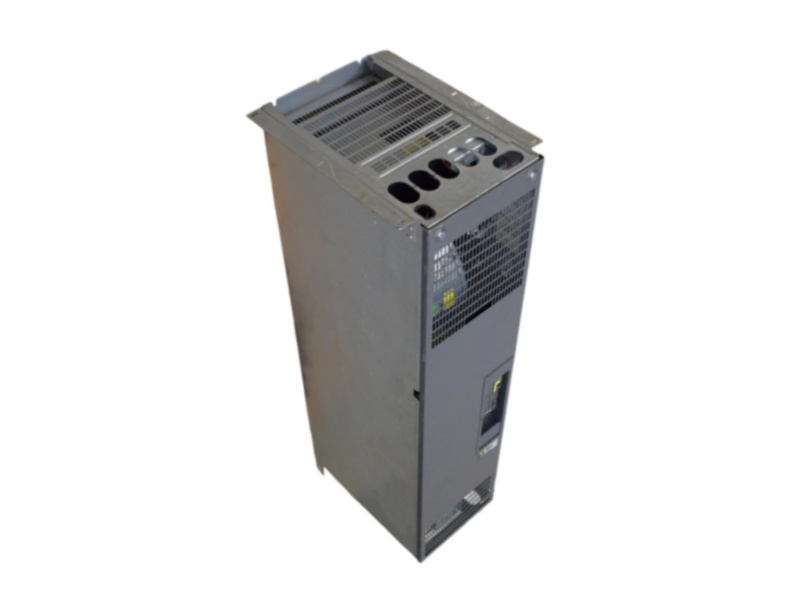

Siemens 6SL3224-0XE41-3UA0 SINAMICS G120 PM240 Power Module 132 kW

Siemens 6SL3224-0XE41-3UA0 SINAMICS G120 PM240 Power Module 132 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0XE41-3UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 132 kW high-overload duty and 160 kW low-overload duty in an FSGX design without an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
132 kWHigh-overload duty
HIGH OVERLOAD132 kW · 250 A
LOW OVERLOAD160 kW · 302 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSGX · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0XE41-3UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FSGX 132 kW DRIVE PROFILE

132 kW HO output for a high-power FSGX installation.

This unfiltered FSGX PM240 combines 250 A HO and 302 A LO ratings, 360 l/s cooling and no integrated braking chopper.
EXACT ARTICLE · FSGX
6SL3224-0XE41-3UA0

Unfiltered FSGX PM240 Power Module without an integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW360 l/s
HO / LO CURRENT250 A / 302 A
BRAKING CHOPPERNot integrated
FRAMEFSGX
PROTECTIONIP20
HIGH OVERLOAD
132 kW250 A output
→
LOW OVERLOAD
160 kW302 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT250 A
LO OUTPUT CURRENT302 A
LINE TOLERANCE+10% / −10%
POWER LOSS3.90 kW
OPERATING PROFILE
HO OVERLOAD160% for 3 s · 136% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONNot integrated
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW360 l/s
COOLINGInternal air cooling
DIMENSIONS1533 × 326 × 547 mm
NET WEIGHT174 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSGX
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0XE41-3UA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
FSGX POWER INTEGRATION

Plan the 132 kW FSGX module as a high-power cabinet assembly.

The FSGX envelope, 360 l/s airflow and 297 A input without reactor define the key installation checks.
HIGH-POWER MECHANICAL INTERFACE

FSGX · external braking solution

6SL3224-0XE41-3UA0 is unfiltered and has no integrated braking chopper. Confirm the external braking solution, supply protection, EMC measures, lifting access and 360 l/s cooling.

Power Module only · Control Unit and BOP not included
01

Check the XE41-3UA0 FSGX identity

The complete 6SL3224-0XE41-3UA0 code identifies the 132 kW HO FSGX module with an unfiltered interface and no integrated braking chopper.

02

Plan the 245–297 A incoming current

Size the incoming circuit for 245 A with a line reactor or 297 A without a line reactor and verify the associated protection, conductors and terminations.

03

Provide the specified 360 l/s cooling

Keep a continuous 360 l/s cooling path through the FSGX installation and include the documented 3.90 kW loss in the cabinet thermal calculation.

04

Engineer the external braking path

Because 6SL3224-0XE41-3UA0 has no integrated braking chopper, the stopping duty and any required external braking equipment must be engineered for the application.

CONVERTER LOSS

Allow for 3.90 kW of converter losses in the cabinet thermal design.

FSGX ENVELOPE

Reserve 1533 × 326 × 547 mm and support a 174 kg module.

BRAKING & EMC

No braking chopper is integrated; select external braking hardware only after a complete drive-system review.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0XE41-3UA0

FSGX 132 kW answers covering airflow, external braking, lifecycle status and quotation inputs.
01
SPECIFICATIONS

What electrical, cooling and mechanical data define the FSGX 6SL3224-0XE41-3UA0?

FSGX 6SL3224-0XE41-3UA0 is an unfiltered SINAMICS G120 PM240 rated 132 kW / 250 A high overload and 160 kW / 302 A low overload at a 2 kHz rated pulse frequency. The official data lists 400 A maximum output, 245 A input with reactor or 297 A without reactor, 3.90 kW power loss, 360 l/s airflow and dimensions of 1533 × 326 × 547 mm at 174 kg.

02
COMPATIBILITY

How does the absence of an integrated braking chopper change compatibility planning for 6SL3224-0XE41-3UA0?

6SL3224-0XE41-3UA0 has no integrated braking chopper, so compatibility planning must determine whether the load requires external braking equipment and how that equipment connects to the installed drive. The same review must cover the unfiltered EMC path, 245/297 A supply, suitable Control Unit, IP20 cabinet, cable routing and 360 l/s cooling.

03
APPLICATIONS

Where does the 132 kW HO or 160 kW LO duty of 6SL3224-0XE41-3UA0 fit in a motor-drive system?

6SL3224-0XE41-3UA0 fits high-power variable-speed motor installations requiring 132 kW / 250 A high-overload duty or 160 kW / 302 A low-overload duty. System sizing must combine the actual torque and load cycle with 2 kHz operation, external braking design, motor-cable data, 3.90 kW heat loss and the 360 l/s air requirement of 6SL3224-0XE41-3UA0.

04
LIFECYCLE & SUPPLY

How is spare-part supply evaluated after Siemens Product Cancellation for 6SL3224-0XE41-3UA0?

Siemens records 6SL3224-0XE41-3UA0 as a spare part with Product Cancellation lifecycle status. Supply evaluation for 6SL3224-0XE41-3UA0 should confirm exact suffix, available quantity, condition, inspection or testing scope, handling of the 174 kg unit, lead time and destination before an order is placed.

05
REPLACEMENT

What FSGX mounting, 400 A maximum current and external braking checks govern replacement of 6SL3224-0XE41-3UA0?

A replacement for 6SL3224-0XE41-3UA0 must match the FSGX envelope, 250/302 A duty ratings, 400 A maximum output, 360 l/s airflow, 2 kHz rating and unfiltered UA0 interface. External braking hardware, external EMC components, bus and cable connections, lifting provisions and Control Unit compatibility also require confirmation because Siemens lists no universal successor for 6SL3224-0XE41-3UA0.

06
MANUAL & QUOTATION

What should an engineering team include when requesting the PM240 manual and price for 6SL3224-0XE41-3UA0?

The request should reference the Siemens SINAMICS G120 PM240 Hardware Installation Manual and the official Siemens data sheet for 6SL3224-0XE41-3UA0. For accurate pricing, include quantity, destination, required date, nameplate images, motor and load data, HO or LO profile, Control Unit, reactor and EMC design, external braking arrangement, cable details, cooling and site handling constraints.
