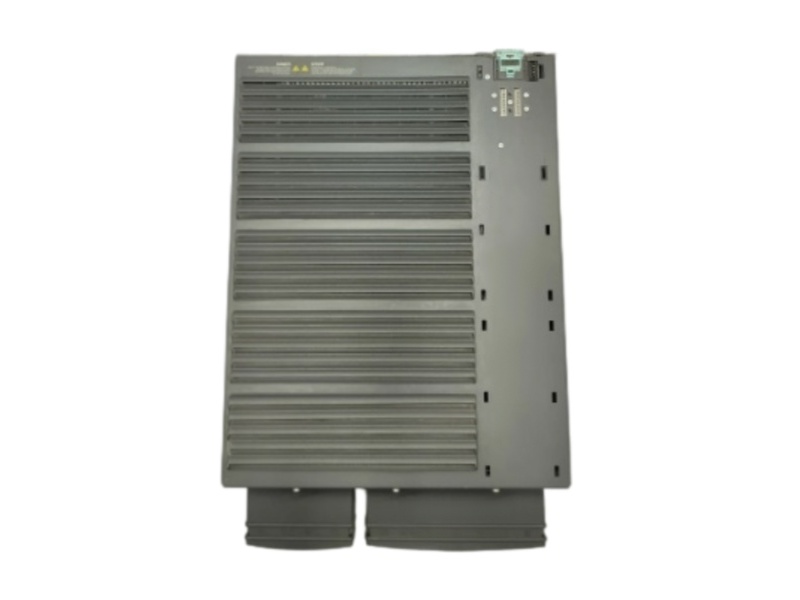

Siemens 6SL3224-0BE41-1UA0 SINAMICS G120 PM240 front view

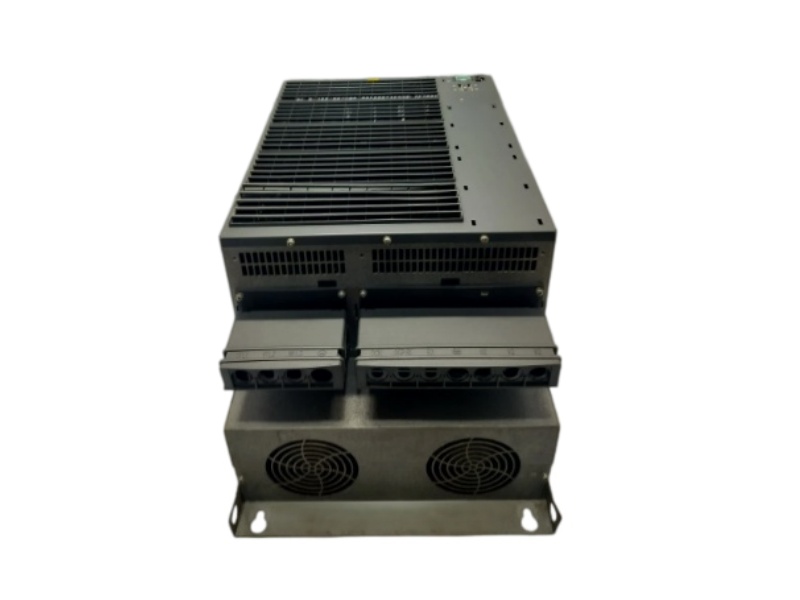

Siemens 6SL3224-0BE41-1UA0 SINAMICS G120 PM240 connection-side view

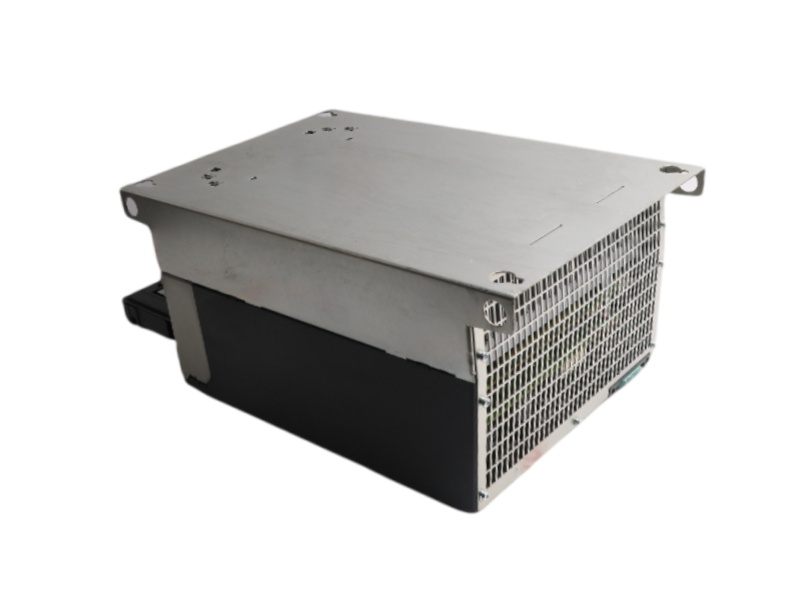

Siemens 6SL3224-0BE41-1UA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE41-1UA0 SINAMICS G120 PM240 Power Module 110 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE41-1UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 110 kW high-overload duty and 132 kW low-overload duty with an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
110 kWHigh-overload duty
HIGH OVERLOAD110 kW · 205 A
LOW OVERLOAD132 kW · 250 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSF · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE41-1UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
UNFILTERED 110 kW DRIVE PROFILE

110 kW HO output with a 2 kHz switching profile.

This unfiltered FSF PM240 combines 205 A HO and 250 A LO ratings with integrated braking and 150 l/s internal cooling.
EXACT ARTICLE · FSF
6SL3224-0BE41-1UA0

Unfiltered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW150 l/s
HO / LO CURRENT205 A / 250 A
BRAKING CHOPPERIntegrated
FRAMEFSF
PROTECTIONIP20
HIGH OVERLOAD
110 kW205 A output
→
LOW OVERLOAD
132 kW250 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT205 A
LO OUTPUT CURRENT250 A
LINE TOLERANCE+10% / −10%
POWER LOSS2.53 kW
OPERATING PROFILE
HO OVERLOAD160% for 3 s · 136% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW150 l/s
COOLINGInternal air cooling
DIMENSIONS634 × 350 × 316 mm
NET WEIGHT39 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSF
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE41-1UA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
SUPPLY & THERMAL DESIGN

Size the 110 kW supply path and cabinet thermal margin together.

The UA0 configuration, 150 l/s airflow and 299 A input without reactor define the key installation checks.
HIGH-CURRENT FSF INSTALLATION

205 A HO · external EMC path

6SL3224-0BE41-1UA0 is unfiltered and uses 250 A input with a line reactor or 299 A without one. Coordinate external EMC measures, line protection and thermal design.

Power Module only · Control Unit and BOP not included
01

Match the 2 kHz UA0 configuration

6SL3224-0BE41-1UA0 combines an unfiltered UA0 interface with a 2 kHz rated pulse frequency; both details must remain aligned with the installed drive design.

02

Design for 250–299 A input current

Base the mains circuit on 250 A input with a line reactor or 299 A without one, then coordinate protection, conductors, terminals and cabinet power distribution.

03

Assign 205 A HO or 250 A LO duty

Apply 110 kW / 205 A for high-overload operation or 132 kW / 250 A for low-overload service only after the motor current and torque cycle are verified.

04

Dissipate 2.53 kW converter loss

Include the documented 2.53 kW module loss in the cabinet heat calculation while maintaining 150 l/s cooling and adequate service clearance.

CONVERTER LOSS

Allow for 2.53 kW of converter losses in the cabinet thermal design.

FSF ENVELOPE

Reserve 634 × 350 × 316 mm and support a 39 kg module.

BRAKING & EMC

The braking chopper is integrated; external EMC measures and 2.53 kW converter losses remain installation responsibilities.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE41-1UA0

High-current 110 kW guidance focused on 2 kHz operation, supply design and spare-part replacement.
01
SPECIFICATIONS

What 2 kHz, 110 kW HO and 132 kW LO specifications distinguish 6SL3224-0BE41-1UA0?

6SL3224-0BE41-1UA0 is an unfiltered FSF PM240 with an integrated braking chopper and a 2 kHz rated pulse frequency. The documented ratings are 110 kW / 205 A high overload, 132 kW / 250 A low overload, 375 A maximum output, 250 A input with reactor or 299 A without reactor, 150 l/s airflow and a 634 × 350 × 316 mm, 39 kg enclosure.

02
COMPATIBILITY

How do the 2 kHz rating and 250/299 A input affect supply compatibility for 6SL3224-0BE41-1UA0?

Supply compatibility for 6SL3224-0BE41-1UA0 must retain 3 AC 380–480 V and 47–63 Hz input while allowing 250 A with a line reactor or 299 A without one. The 2 kHz rated pulse frequency, UA0 unfiltered interface, external EMC measures, integrated braking chopper, protection, Control Unit and 150 l/s cooling must be assessed as one drive configuration.

03
APPLICATIONS

Which demanding motor profiles match the 205 A HO or 250 A LO ratings of 6SL3224-0BE41-1UA0?

6SL3224-0BE41-1UA0 can support high-power variable-speed systems sized for 110 kW / 205 A high-overload duty or 132 kW / 250 A low-overload duty. Application approval requires the actual torque curve, 2 kHz operating point, overload timing, deceleration energy, motor cable and cabinet thermal conditions to be checked against 6SL3224-0BE41-1UA0.

04
LIFECYCLE & SUPPLY

How can a purchaser confirm availability, condition and lead time for discontinued Siemens article 6SL3224-0BE41-1UA0?

The official Siemens listing treats 6SL3224-0BE41-1UA0 as a spare part with Product Cancellation status. A purchaser should request exact-stock confirmation for 6SL3224-0BE41-1UA0, including quantity, new or used condition, testing evidence when available, dispatch point, lead time and delivery destination.

05
REPLACEMENT

Why must the 2 kHz rating, UA0 suffix and 375 A maximum output be checked when replacing 6SL3224-0BE41-1UA0?

The 2 kHz rating, UA0 unfiltered build and 375 A maximum output are configuration-defining details for 6SL3224-0BE41-1UA0. Replacement evaluation must also match 205/250 A duty, FSF mounting, 150 l/s airflow, integrated braking chopper, external EMC design and Control Unit compatibility because Siemens names no universal successor for 6SL3224-0BE41-1UA0.

06
MANUAL & QUOTATION

Which Siemens technical files and application details should be requested with a quotation for 6SL3224-0BE41-1UA0?

Request the Siemens SINAMICS G120 PM240 Hardware Installation Manual and official article data for 6SL3224-0BE41-1UA0. The quotation package should identify quantity, destination, required date, nameplate, motor current and power, load cycle, 2 kHz duty, Control Unit, line reactor, external EMC components, braking energy, cable data and cooling capacity.
