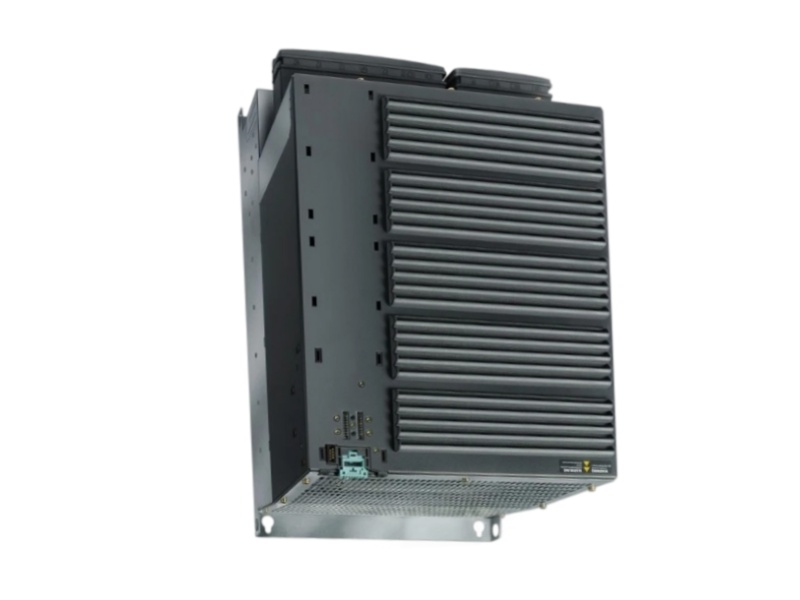

Siemens 6SL3224-0BE37-5AA0 SINAMICS G120 PM240 front view

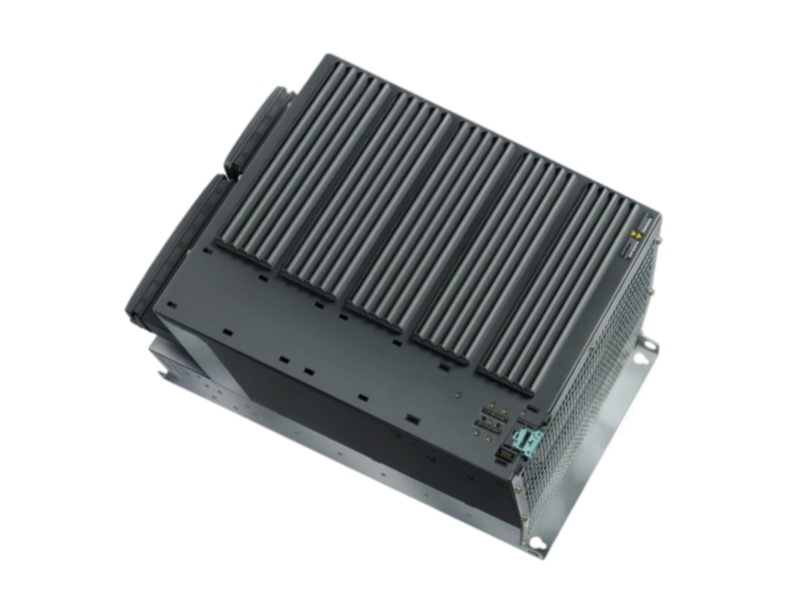

Siemens 6SL3224-0BE37-5AA0 SINAMICS G120 PM240 connection-side view

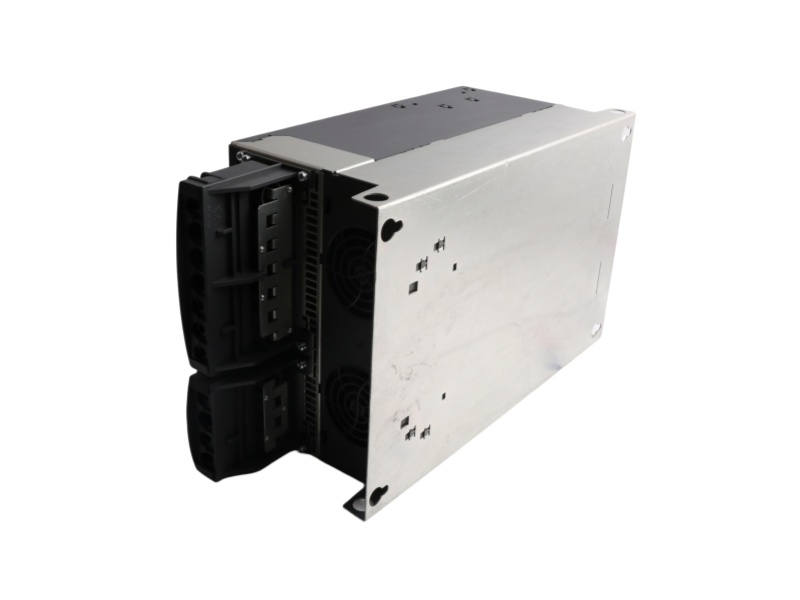

Siemens 6SL3224-0BE37-5AA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE37-5AA0 SINAMICS G120 PM240 Power Module 75 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE37-5AA0

A SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 75 kW high-overload duty and 90 kW low-overload duty with an integrated Class A EMC filter and braking chopper.

OFFICIAL STATUS · SPARE PART
75 kWHigh-overload duty
HIGH OVERLOAD75 kW · 145 A
LOW OVERLOAD90 kW · 178 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSF · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE37-5AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FILTERED 75 kW DRIVE PROFILE

75 kW HO output with a Class A filtered supply interface.

This filtered FSF PM240 combines 145 A HO and 178 A LO ratings with an integrated Class A EMC filter, braking chopper and 150 l/s internal cooling.
EXACT ARTICLE · FSF
6SL3224-0BE37-5AA0

Filtered PM240 Power Module with integrated Class A EMC filter and braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERClass A
COOLING AIRFLOW150 l/s
HO / LO CURRENT145 A / 178 A
BRAKING CHOPPERIntegrated
FRAMEFSF
PROTECTIONIP20
HIGH OVERLOAD
75 kW145 A output
→
LOW OVERLOAD
90 kW178 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERIntegrated Class A
ELECTRICAL
HO OUTPUT CURRENT145 A
LO OUTPUT CURRENT178 A
LINE TOLERANCE+10% / −10%
POWER LOSS2.31 kW
OPERATING PROFILE
HO OVERLOAD160% for 3 s · 136% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW150 l/s
COOLINGInternal air cooling
DIMENSIONS934 × 350 × 316 mm
NET WEIGHT52 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSF
COUNTRY OF ORIGINGermany
COMMODITY CODE85044095
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE37-5AA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
FILTERED CABINET DESIGN

Coordinate the 75 kW filtered module with supply and cooling limits.

The AA0 filtered configuration, 150 l/s airflow and 204 A input without reactor define the key installation checks.
CLASS A EMC INTEGRATION

Class A filter · 75 kW HO duty

6SL3224-0BE37-5AA0 integrates a Class A EMC filter and braking chopper. Confirm cabinet bonding, line protection, airflow and motor-cable routing for the 75 kW HO duty.

Power Module only · Control Unit and BOP not included
01

Verify the AA0 suffix

AA0 identifies the Class A filtered 75 kW HO configuration; match the suffix and current ratings before replacement.

02

Size the incoming supply

Official input current is 186 A with a line reactor and 204 A without a line reactor.

03

Select the duty rating

Use 145 A HO or 178 A LO according to the motor load and duty cycle.

04

Check short-term current

The documented maximum output current is 290 A.

CONVERTER LOSS

Allow for 2.31 kW of converter losses in the cabinet thermal design.

FSF ENVELOPE

Reserve 934 × 350 × 316 mm and support a 52 kg module.

BRAKING & EMC

Integrated Class A filtering and braking require installation checks for EMC, heat dissipation and braking energy.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE37-5AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the official electrical and mechanical specifications of 6SL3224-0BE37-5AA0?

6SL3224-0BE37-5AA0 is a filtered FSF PM240 with an integrated Class A EMC filter and braking chopper rated 75 kW / 145 A for high-overload duty and 90 kW / 178 A for low-overload duty. 6SL3224-0BE37-5AA0 uses 3 AC 380–480 V, 47–63 Hz input with a 4 kHz rated pulse frequency, supports 290 A maximum output, requires 150 l/s cooling and measures 934 × 350 × 316 mm at 52 kg net weight.

02
COMPATIBILITY

Which SINAMICS G120 configuration is compatible with 6SL3224-0BE37-5AA0?

6SL3224-0BE37-5AA0 requires a suitable SINAMICS G120 Control Unit, 3 AC 380–480 V mains, IP20 installation, correct protection and 150 l/s cooling. Compatibility checks must include the AA0 Class A filtered configuration, 145/178 A ratings and integrated braking chopper; the Control Unit and BOP are not included.

03
APPLICATIONS

Which motor duties are appropriate for 6SL3224-0BE37-5AA0?

6SL3224-0BE37-5AA0 supports variable-speed three-phase motor systems requiring 75 kW high-overload duty or 90 kW low-overload duty. Selection must follow the 145 A HO or 178 A LO duty profile, motor data, load cycle, deceleration demand, cable arrangement and cabinet temperature.

04
LIFECYCLE & SUPPLY

What is the Siemens lifecycle and supply status of 6SL3224-0BE37-5AA0?

Siemens lists 6SL3224-0BE37-5AA0 as a spare part with lifecycle status Product Cancellation. Availability, condition, quantity, lead time and shipment date for 6SL3224-0BE37-5AA0 require confirmation for each quotation.

05
REPLACEMENT

Which details must be matched when replacing 6SL3224-0BE37-5AA0?

Before replacing 6SL3224-0BE37-5AA0, verify the AA0 suffix, integrated Class A EMC filter, 145/178 A output ratings, 290 A maximum current, FSF mounting, 150 l/s cooling and the installed Control Unit. Siemens does not name a universal drop-in successor for 6SL3224-0BE37-5AA0, so final compatibility must be confirmed from the complete drive configuration.

06
MANUAL & QUOTATION

Which Siemens manual covers 6SL3224-0BE37-5AA0, and what should an RFQ include?

Use the Siemens SINAMICS G120 Power Module PM240 Hardware Installation Manual and the official Siemens data sheet for 6SL3224-0BE37-5AA0. An RFQ for 6SL3224-0BE37-5AA0 should include quantity, destination, required date, nameplate photo, motor and load data, duty profile, Control Unit, line-reactor status, integrated Class A filtering, braking duty, cable details and cabinet cooling.

04
WHY CHOOSE US

A practical sourcing service built around exact-model checks.

Six fixed service commitments presented in a calm, structured layout.
01

One-stop sourcing

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

02

Product quality

The highest quality product.

03

Warranty support

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.

04

Responsive service

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

05

Fast dispatch

Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.

06

Protective packaging

Good packaging ensures transportation safety and greatly saves transportation costs.

Warehouse technicians inspecting industrial automation equipment before dispatch
05
PROFESSIONAL TEAM

People behind practical automation support.

Experienced judgment, careful verification and patient communication for real service cases.
01 · EXPERIENCE

Nearly 10 Years of Industry Experience

Our team members have an average of more than 10 years of industry experience. We have worked with customers worldwide, including those from India, Germany, Sweden, Italy, Russia, Venezuela, Israel, and many other countries. Throughout our careers, we have collectively completed over 3,000 orders and established long-term business relationships with customers across nearly 30 countries.

02 · PRODUCT JUDGMENT

Professional Product Judgment

We can often identify a product’s manufacturer, series, configuration, and function from its model number or nameplate photo. We also understand how revisions, firmware, and specifications affect compatibility and whether an alternative model can be used safely.

IN PRACTICE

An Indian customer urgently needed a discontinued control module after several suppliers reported no stock. We identified its exact revision and function from the nameplate, checked compatible alternatives, and contacted factory and warehouse channels to locate matching inventory. After installation, the customer confirmed that the module operated correctly and later asked us to source additional spare parts.

03 · SERVICE

Sincere and Patient Service

Our team treats every inquiry sincerely and answers every question patiently. Even for complex requests, we verify and respond to each detail instead of providing a rushed or uncertain answer.

IN PRACTICE

A German customer sent a mixed list of automation products and asked repeated questions about revisions, condition, photos, and delivery. Our team organized the requirements, checked every item, and replied point by point. The customer said our detailed communication made the purchasing decision easier and continued sending us new inquiries.

06
MULTI-BRAND REFERENCE

Explore additional industrial automation models.

39 document-selected specialty references arranged as three mixed field lists.
FIELD NOTES A
0131151-1A
02FTDR-M2-WSA
03BWT1-1/1T-05-NBXVXX
04D02 9829
0505-003-211 - DIC211
0626-650-50
07PRO 9105
08PM5 802161-01
09SXWDOC8XX10001 DO-FC-8
10100-DNY41R
11HKJDXTP-EU
124211 14-20
13WCIQ81230
FIELD NOTES B
01Q900-028
02FGD-1400
03A7708LT-COAX-50
04UA-25EX
05S927-P20000-020C
067.640.100
07XFC3A06001
08NTB-750-MS
09VCL-E1 PN:VCL-E1-015
10140734-01 3500/40M
11ABB 2CDG 110 085 R0011
12ST307-150-B
13ABB YSM03-GW 2TMA010060N00001
FIELD NOTES C
01WTW COND 330I
02SV1115IPEXT
03STDSEW240
04SDBR70AAAY400
05ABB 1VCR002948G0003/1VCF339702R2912
06T9100
07VT6010
08D454
09PRO3000
10D4-440CPU
11HR-1R 300534-008
12RMC-140 SE-800
13NW-BM85C002
MODEL-SPECIFICRFQ
REQUEST AN EXACT-MODEL QUOTE

Ask about 6SL3224-0BE37-5AA0.

Send the complete article number, quantity, destination and required date. Add the motor rating, duty profile, Control Unit and nameplate photos when compatibility needs review.
