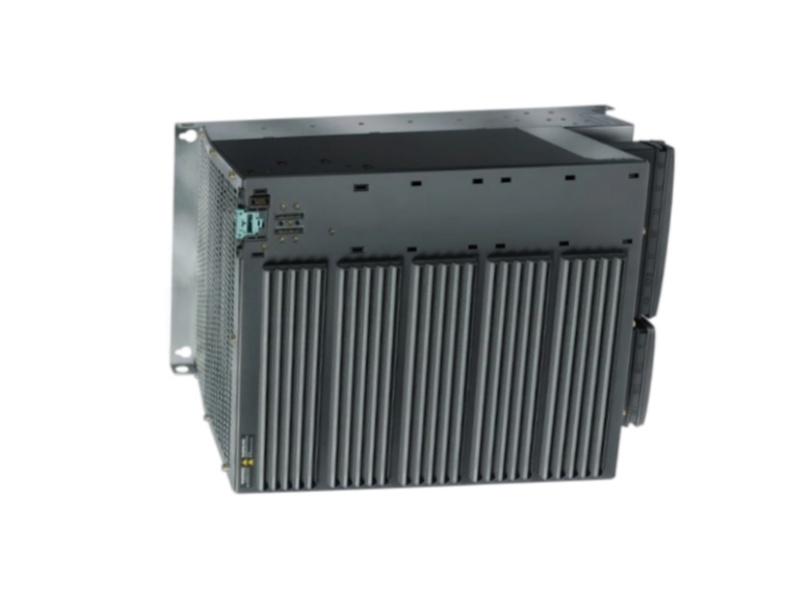

Siemens 6SL3224-0BE35-5UA0 SINAMICS G120 PM240 front view

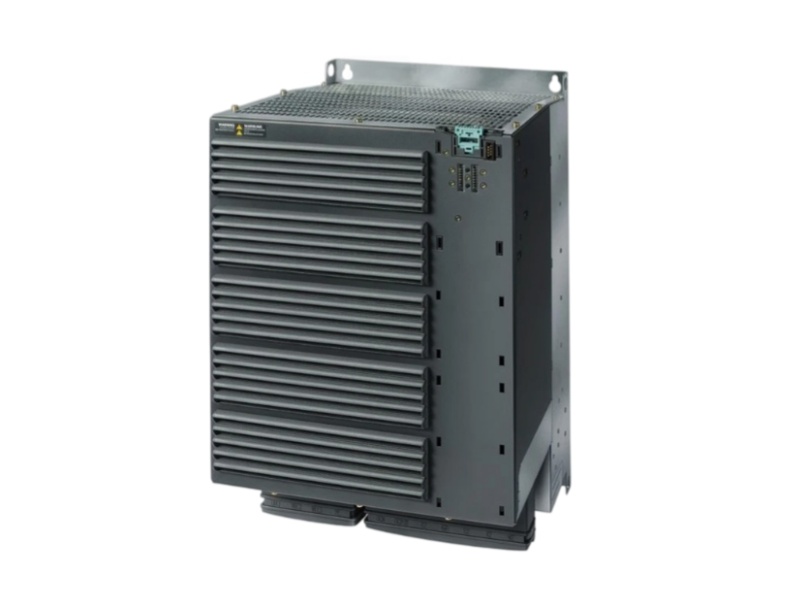

Siemens 6SL3224-0BE35-5UA0 SINAMICS G120 PM240 connection-side view

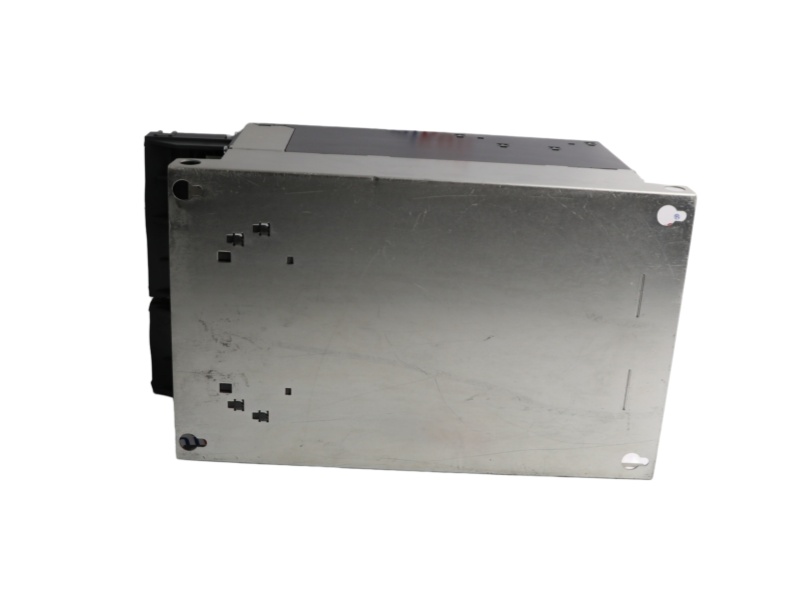

Siemens 6SL3224-0BE35-5UA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE35-5UA0 SINAMICS G120 PM240 Power Module 55 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE35-5UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 55 kW high-overload duty and 75 kW low-overload duty with an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
55 kWHigh-overload duty
HIGH OVERLOAD55 kW · 110 A
LOW OVERLOAD75 kW · 145 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSF · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE35-5UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
UNFILTERED 55 kW DRIVE PROFILE

55 kW HO output with an external EMC path.

This unfiltered FSF PM240 combines 110 A HO and 145 A LO ratings with an integrated braking chopper and 150 l/s internal cooling.
EXACT ARTICLE · FSF
6SL3224-0BE35-5UA0

Unfiltered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW150 l/s
HO / LO CURRENT110 A / 145 A
BRAKING CHOPPERIntegrated
FRAMEFSF
PROTECTIONIP20
HIGH OVERLOAD
55 kW110 A output
→
LOW OVERLOAD
75 kW145 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT110 A
LO OUTPUT CURRENT145 A
LINE TOLERANCE+10% / −10%
POWER LOSS1.93 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW150 l/s
COOLINGInternal air cooling
DIMENSIONS634 × 350 × 316 mm
NET WEIGHT36 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSF
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE35-5UA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
EXTERNAL EMC & SUPPLY PATH

Coordinate the unfiltered 55 kW power path before cabinet installation.

The UA0 configuration, 150 l/s airflow and 168 A input without reactor define the key installation checks.
EXTERNAL EMC BOUNDARY

External EMC path · integrated braking

6SL3224-0BE35-5UA0 has no integrated line filter. Confirm external filtering, cable shielding, bonding and cabinet layout for the 55 kW HO installation.

Power Module only · Control Unit and BOP not included
01

Distinguish UA0 from the filtered AA0 build

6SL3224-0BE35-5UA0 uses the UA0 unfiltered configuration. The related AA0 article includes Class A filtering, so the suffix must be matched before evaluating an exchange.

02

Plan the external EMC components

Because 6SL3224-0BE35-5UA0 has no integrated line filter, the cabinet design must provide the required external EMC path, shielding, bonding and cable routing for the installation.

03

Set the 110 A HO or 145 A LO profile

Use 55 kW / 110 A for the documented high-overload profile or 75 kW / 145 A for the low-overload profile after checking motor current and the complete load cycle.

04

Reserve the 634 mm FSF footprint

Provide 634 × 350 × 316 mm of module space, structural support for 36 kg and an unobstructed 150 l/s internal cooling route.

CONVERTER LOSS

Allow for 1.93 kW of converter losses in the cabinet thermal design.

FSF ENVELOPE

Reserve 634 × 350 × 316 mm and support a 36 kg module.

BRAKING & EMC

The braking chopper is integrated; the required EMC path remains external.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE35-5UA0

Procurement and engineering answers for the unfiltered 55 kW UA0 configuration.
01
SPECIFICATIONS

How do the 110 A HO, 145 A LO and 220 A maximum ratings characterize 6SL3224-0BE35-5UA0?

6SL3224-0BE35-5UA0 is an unfiltered FSF PM240 rated 55 kW / 110 A for high-overload duty and 75 kW / 145 A for low-overload duty, with 220 A maximum output and a 4 kHz rated pulse frequency. The integrated braking-chopper module uses 3 AC 380–480 V, needs 150 l/s airflow and measures 634 × 350 × 316 mm at 36 kg.

02
COMPATIBILITY

Why must external EMC equipment be planned separately for the UA0 module 6SL3224-0BE35-5UA0?

6SL3224-0BE35-5UA0 is the unfiltered UA0 configuration, so a Class A line filter is not integrated. The installation must therefore verify the required external EMC components, grounding, shielding and cable routing together with 151/168 A input, a suitable SINAMICS G120 Control Unit, IP20 protection and 150 l/s airflow.

03
APPLICATIONS

Which variable-speed motor duties fit the unfiltered 6SL3224-0BE35-5UA0 power module?

Unfiltered 6SL3224-0BE35-5UA0 fits three-phase variable-speed motor duties that stay within 55 kW / 110 A high overload or 75 kW / 145 A low overload. Correct application selection for 6SL3224-0BE35-5UA0 also considers torque profile, starting frequency, deceleration energy, motor cable, external EMC hardware and installation temperature.

04
LIFECYCLE & SUPPLY

What does Siemens Product Cancellation mean when sourcing 6SL3224-0BE35-5UA0?

For 6SL3224-0BE35-5UA0, Siemens shows spare-part classification and lifecycle status Product Cancellation. Sourcing 6SL3224-0BE35-5UA0 therefore requires order-specific confirmation of quantity, condition, lead time, shipment date and destination instead of an assumption of active factory supply.

05
REPLACEMENT

Which mechanical, current and suffix checks prevent an incorrect replacement for 6SL3224-0BE35-5UA0?

Replacement screening for 6SL3224-0BE35-5UA0 must match the UA0 unfiltered configuration, 110/145 A ratings, 220 A maximum current, 634 × 350 × 316 mm FSF envelope, 36 kg weight, 150 l/s airflow, braking chopper and Control Unit. The official page names no universal successor for 6SL3224-0BE35-5UA0, so an AA0 filtered module cannot be assumed equivalent.

06
MANUAL & QUOTATION

What nameplate, motor, reactor and Control Unit information should accompany a manual request or quotation for 6SL3224-0BE35-5UA0?

A documentation request for 6SL3224-0BE35-5UA0 should reference the Siemens SINAMICS G120 PM240 Hardware Installation Manual and the official article data sheet. A quotation should attach the full nameplate, quantity, destination, required date, motor data, HO or LO duty, Control Unit, reactor status, external EMC plan, braking cycle, cable arrangement and available cooling.
