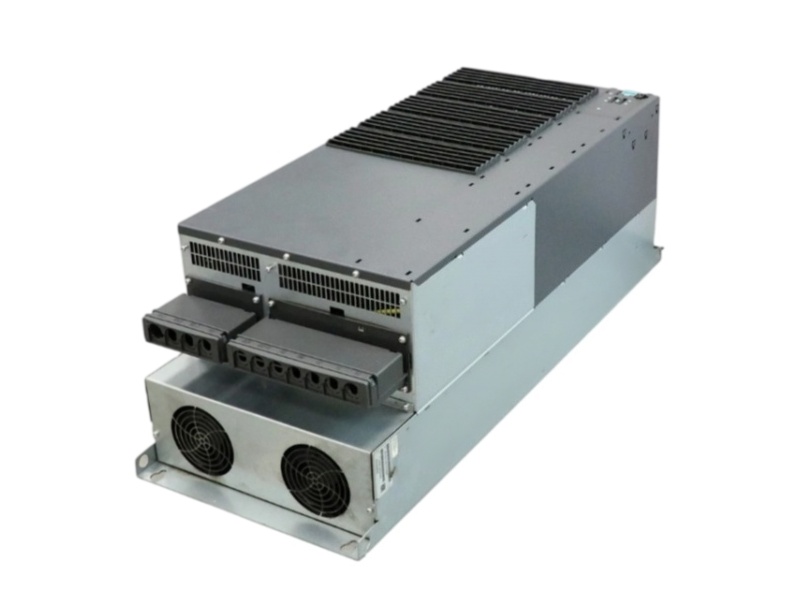

Siemens 6SL3224-0BE35-5AA0 SINAMICS G120 PM240 front view

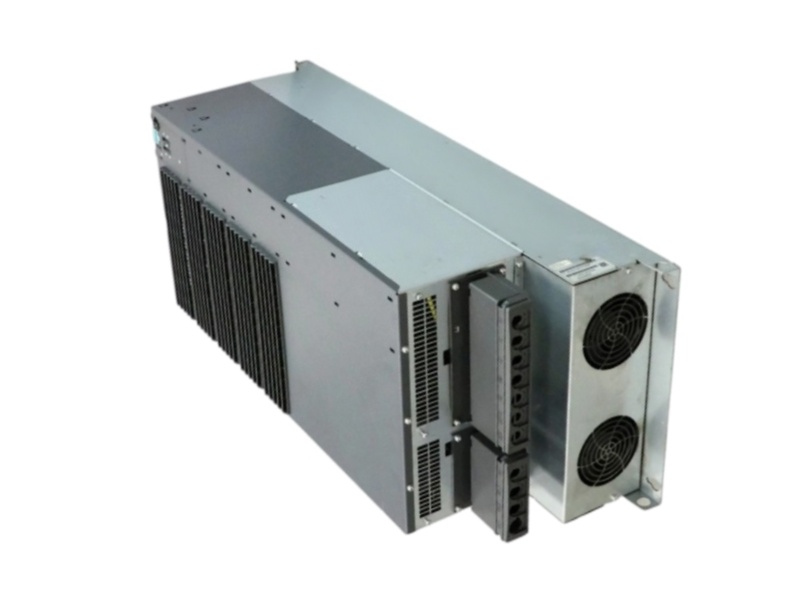

Siemens 6SL3224-0BE35-5AA0 SINAMICS G120 PM240 connection-side view

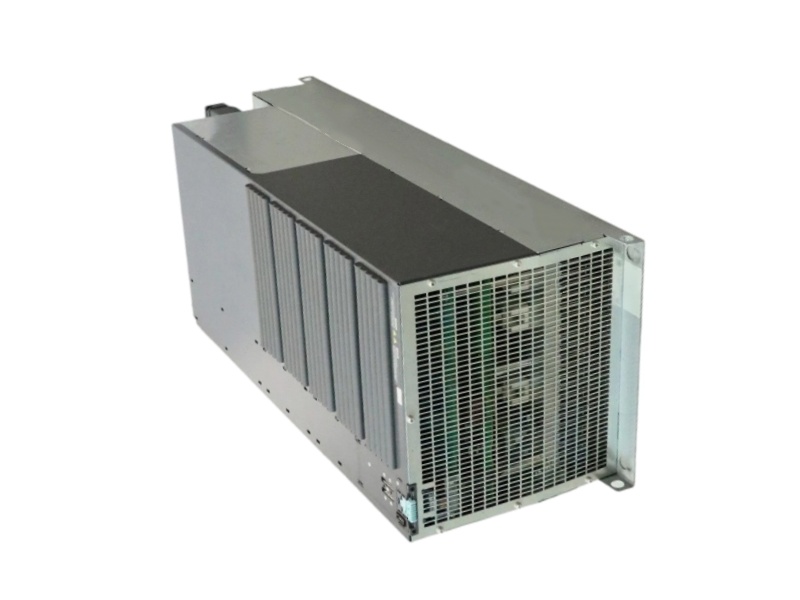

Siemens 6SL3224-0BE35-5AA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE35-5AA0 SINAMICS G120 PM240 Power Module 55 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE35-5AA0

A SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 55 kW high-overload duty and 75 kW low-overload duty with an integrated Class A EMC filter and braking chopper.

OFFICIAL STATUS · SPARE PART
55 kWHigh-overload duty
HIGH OVERLOAD55 kW · 110 A
LOW OVERLOAD75 kW · 145 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSF · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE35-5AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FILTERED 55 kW DRIVE PROFILE

55 kW HO output with integrated Class A filtering.

This filtered FSF PM240 combines 110 A HO and 145 A LO ratings with an integrated Class A EMC filter, braking chopper and 150 l/s internal cooling.
EXACT ARTICLE · FSF
6SL3224-0BE35-5AA0

Filtered PM240 Power Module with integrated Class A EMC filter and braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERClass A
COOLING AIRFLOW150 l/s
HO / LO CURRENT110 A / 145 A
BRAKING CHOPPERIntegrated
FRAMEFSF
PROTECTIONIP20
HIGH OVERLOAD
55 kW110 A output
→
LOW OVERLOAD
75 kW145 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERIntegrated Class A
ELECTRICAL
HO OUTPUT CURRENT110 A
LO OUTPUT CURRENT145 A
LINE TOLERANCE+10% / −10%
POWER LOSS1.93 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW150 l/s
COOLINGInternal air cooling
DIMENSIONS934 × 350 × 316 mm
NET WEIGHT52 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSF
COUNTRY OF ORIGINGermany
COMMODITY CODE85044095
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE35-5AA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
FILTER & SUPPLY COORDINATION

Plan the Class A filtered FSF module around the incoming supply.

The AA0 filtered configuration, 150 l/s airflow and 168 A input without reactor define the key installation checks.
INTEGRATED EMC FILTER

Class A filter · integrated braking

6SL3224-0BE35-5AA0 includes an EMC filter classified as Class A. Confirm cabinet bonding, shield termination, cable routing and the installation environment before commissioning.

Power Module only · Control Unit and BOP not included
01

Confirm the AA0 Class A filter

The AA0 order suffix defines 6SL3224-0BE35-5AA0 as the 55 kW HO PM240 with an integrated Class A EMC filter and braking chopper; the unfiltered UA0 article has a different installation boundary.

02

Coordinate the 151–168 A input

Use 151 A as the documented input with a line reactor and 168 A without a line reactor, then coordinate mains protection, cabling and reactor selection for the actual cabinet.

03

Match the 110 A HO or 145 A LO output

Match the motor and load cycle to 55 kW / 110 A high-overload duty or 75 kW / 145 A low-overload duty without transferring one duty rating to the other.

04

Validate the 220 A maximum current

Confirm that the documented 220 A maximum output covers the required transient current while the integrated braking and 150 l/s cooling limits remain satisfied.

CONVERTER LOSS

Allow for 1.93 kW of converter losses in the cabinet thermal design.

FSF ENVELOPE

Reserve 934 × 350 × 316 mm and support a 52 kg module.

BRAKING & EMC

The Class A EMC filter and braking chopper are integrated; verify site EMC requirements and braking duty.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE35-5AA0

Filtered 55 kW selection guidance covering Class A EMC, installation fit, lifecycle checks and quotation data.
01
SPECIFICATIONS

What Class A filter, power, current, airflow and size specifications apply to 6SL3224-0BE35-5AA0?

6SL3224-0BE35-5AA0 is a filtered FSF SINAMICS G120 PM240 with an integrated Class A EMC filter and braking chopper. The official ratings are 55 kW / 110 A high overload, 75 kW / 145 A low overload, 220 A maximum output, 4 kHz rated pulse frequency and 151 A input with reactor or 168 A without reactor; airflow is 150 l/s and the 52 kg enclosure measures 934 × 350 × 316 mm.

02
COMPATIBILITY

How does the integrated Class A EMC filter affect cabinet compatibility for 6SL3224-0BE35-5AA0?

The integrated Class A EMC filter in 6SL3224-0BE35-5AA0 makes the AA0 article different from the unfiltered UA0 version. Cabinet compatibility still requires suitable bonding, line protection, cable routing, 150 l/s airflow, IP20 installation and a Control Unit that supports the selected SINAMICS G120 configuration; the Control Unit and BOP are separate.

03
APPLICATIONS

When is the filtered 55 kW HO or 75 kW LO configuration of 6SL3224-0BE35-5AA0 appropriate?

The filtered 6SL3224-0BE35-5AA0 configuration is intended for variable-speed drives needing 55 kW / 110 A high-overload duty or 75 kW / 145 A low-overload duty. Motor current, load torque, overload cycle, braking energy, motor-cable routing and cooling conditions must remain within the documented limits for 6SL3224-0BE35-5AA0.

04
LIFECYCLE & SUPPLY

How should buyers verify current stock and Siemens Product Cancellation status for 6SL3224-0BE35-5AA0?

The Siemens entry for 6SL3224-0BE35-5AA0 shows a spare part with lifecycle status Product Cancellation. Buyers should request a quotation that confirms the exact 6SL3224-0BE35-5AA0 article, stock quantity, condition, dispatch location, lead time and required delivery date.

05
REPLACEMENT

What must be revalidated before substituting the AA0 filtered 6SL3224-0BE35-5AA0?

A substitute for 6SL3224-0BE35-5AA0 must preserve the AA0 Class A filter, integrated braking chopper, 110/145 A output ratings, 220 A maximum current, 934 mm-high FSF envelope, 150 l/s cooling and Control Unit compatibility. Siemens does not list a universal direct successor for 6SL3224-0BE35-5AA0, so the complete drive and EMC design require engineering review.

06
MANUAL & QUOTATION

Where can engineers find the correct PM240 manual, and what should an RFQ for 6SL3224-0BE35-5AA0 contain?

Engineers should use the Siemens SINAMICS G120 Power Module PM240 Hardware Installation Manual and the official Siemens data sheet identified by 6SL3224-0BE35-5AA0. The RFQ should include quantity, shipping destination, required date, nameplate photo, motor current and power, load cycle, Control Unit, reactor configuration, EMC environment, braking demand, cable length and cabinet airflow.
