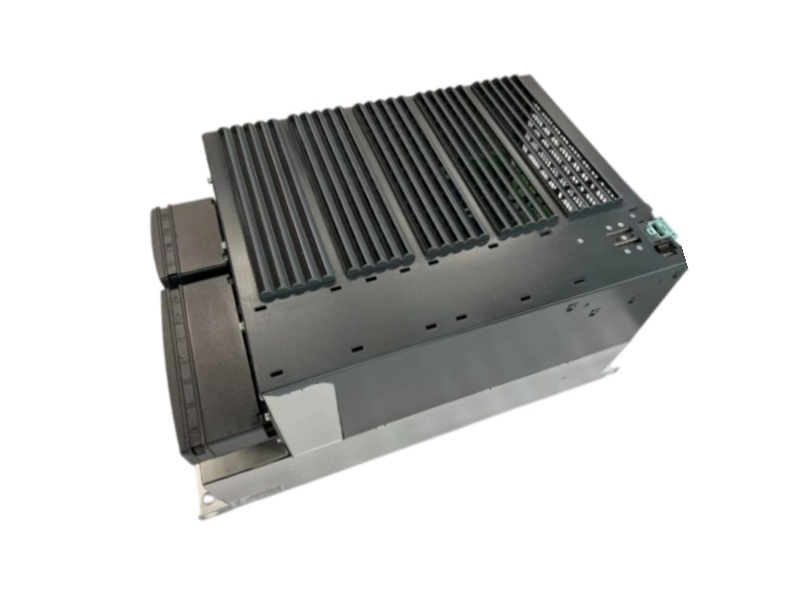

Siemens 6SL3224-0BE34-5UA0 SINAMICS G120 PM240 front view

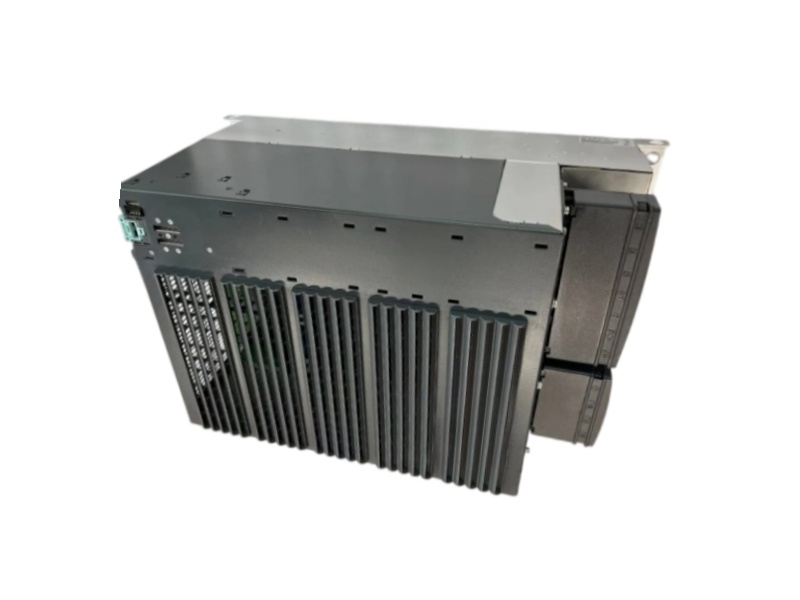

Siemens 6SL3224-0BE34-5UA0 SINAMICS G120 PM240 connection-side view

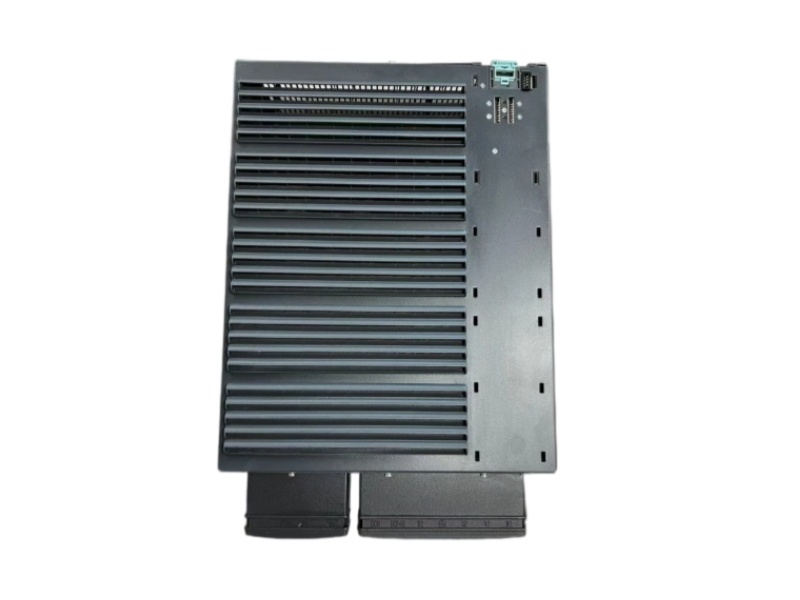

Siemens 6SL3224-0BE34-5UA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE34-5UA0 SINAMICS G120 PM240 Power Module 45 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE34-5UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 45 kW high-overload duty and 55 kW low-overload duty with an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
45 kWHigh-overload duty
HIGH OVERLOAD45 kW · 90 A
LOW OVERLOAD55 kW · 110 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSF · IP20
Siemens Product Cancellation; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE34-5UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
UNFILTERED 45 kW DRIVE PROFILE

45 kW HO output with an external EMC path.

This unfiltered FSF PM240 combines 90 A HO and 110 A LO ratings with an integrated braking chopper and 150 l/s internal cooling.
EXACT ARTICLE · FSF
6SL3224-0BE34-5UA0

Unfiltered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW150 l/s
HO / LO CURRENT90 A / 110 A
BRAKING CHOPPERIntegrated
FRAMEFSF
PROTECTIONIP20
HIGH OVERLOAD
45 kW90 A output
→
LOW OVERLOAD
55 kW110 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT90 A
LO OUTPUT CURRENT110 A
LINE TOLERANCE+10% / −10%
POWER LOSS1.42 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW150 l/s
COOLINGInternal air cooling
DIMENSIONS634 × 350 × 316 mm
NET WEIGHT36 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSF
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE34-5UA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
EMC & SUPPLY PATH

Coordinate the unfiltered power path before cabinet installation.

The UA0 configuration, 150 l/s airflow and 129 A input without reactor define the key installation checks.
EXTERNAL EMC BOUNDARY

External EMC path · integrated braking

6SL3224-0BE34-5UA0 has no integrated line filter. Confirm external filtering, cable shielding, bonding and cabinet layout for the installation.

Power Module only · Control Unit and BOP not included
01

Confirm the unfiltered UA0 article

The UA0 suffix identifies the unfiltered 45 kW HO / 55 kW LO version of 6SL3224-0BE34-5UA0. A filtered AA0 configuration changes the EMC installation and is not an automatic equivalent.

02

Calculate the 115–129 A mains input

Design the upstream circuit for 115 A input when a line reactor is used or 129 A without a line reactor, then coordinate the conductor size and protection with the installed supply.

03

Choose the 90 A HO or 110 A LO duty

Apply the 90 A high-overload rating when the verified load cycle needs the HO profile; use the 110 A low-overload rating only when the motor and duty cycle fit the LO limits.

04

Allow for 180 A short-term output

The documented 180 A maximum output must be checked against acceleration demand, overload duration, braking energy and the available 150 l/s cooling path.

CONVERTER LOSS

Allow for 1.42 kW of converter losses in the cabinet thermal design.

FSF ENVELOPE

Reserve 634 × 350 × 316 mm and support a 36 kg module.

BRAKING & EMC

The braking chopper is integrated; the required EMC path remains external.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE34-5UA0

Exact answers for unfiltered 45 kW sizing, UA0 compatibility, spare-part sourcing and RFQ preparation.
01
SPECIFICATIONS

Which rated currents, overload limits and dimensions define Siemens 6SL3224-0BE34-5UA0?

Siemens 6SL3224-0BE34-5UA0 is an unfiltered FSF SINAMICS G120 PM240 Power Module for 3 AC 380–480 V and 47–63 Hz. The high-overload rating is 45 kW / 90 A, the low-overload rating is 55 kW / 110 A, the maximum output is 180 A, the rated pulse frequency is 4 kHz, cooling airflow is 150 l/s, and the 36 kg module measures 634 × 350 × 316 mm.

02
COMPATIBILITY

Which SINAMICS G120 system conditions must match 6SL3224-0BE34-5UA0 before installation?

6SL3224-0BE34-5UA0 requires a suitable SINAMICS G120 Control Unit, 3 AC 380–480 V and 47–63 Hz mains, IP20 installation and 150 l/s cooling. System matching must also account for the unfiltered UA0 interface, line reactor, external EMC components, 115/129 A input and integrated braking chopper; the Control Unit and BOP are not included.

03
APPLICATIONS

For which 45 kW high-overload or 55 kW low-overload motor duties should 6SL3224-0BE34-5UA0 be selected?

6SL3224-0BE34-5UA0 suits variable-speed three-phase motor systems whose load cycle fits either 45 kW / 90 A high-overload duty or 55 kW / 110 A low-overload duty. Final sizing for 6SL3224-0BE34-5UA0 must use motor nameplate data, acceleration and deceleration demand, overload duration, cable arrangement and cabinet temperature.

04
LIFECYCLE & SUPPLY

Is 6SL3224-0BE34-5UA0 still in active Siemens production, and how is spare-part availability confirmed?

Siemens identifies 6SL3224-0BE34-5UA0 as a spare part with lifecycle status Product Cancellation. A quotation for 6SL3224-0BE34-5UA0 must confirm available quantity, physical condition, lead time and shipment date rather than assume current OEM production.

05
REPLACEMENT

Can a filtered AA0 power module replace 6SL3224-0BE34-5UA0 directly, and which EMC and braking details must be checked?

A filtered AA0 module is not an automatic drop-in substitute for 6SL3224-0BE34-5UA0. Replacement review must match the UA0 unfiltered suffix, 90/110 A ratings, 180 A maximum output, FSF mounting, 150 l/s airflow, integrated braking chopper, external EMC design, Control Unit and installed connections; Siemens does not name a universal successor for 6SL3224-0BE34-5UA0.

06
MANUAL & QUOTATION

Which Siemens PM240 documentation and project details are needed to quote 6SL3224-0BE34-5UA0 accurately?

Use the Siemens SINAMICS G120 Power Module PM240 Hardware Installation Manual together with the official data sheet for 6SL3224-0BE34-5UA0. A precise RFQ should state the quantity, destination, required date, nameplate details, motor and load data, duty profile, Control Unit, line-reactor status, external EMC arrangement, braking duty, cable information and cooling conditions.
