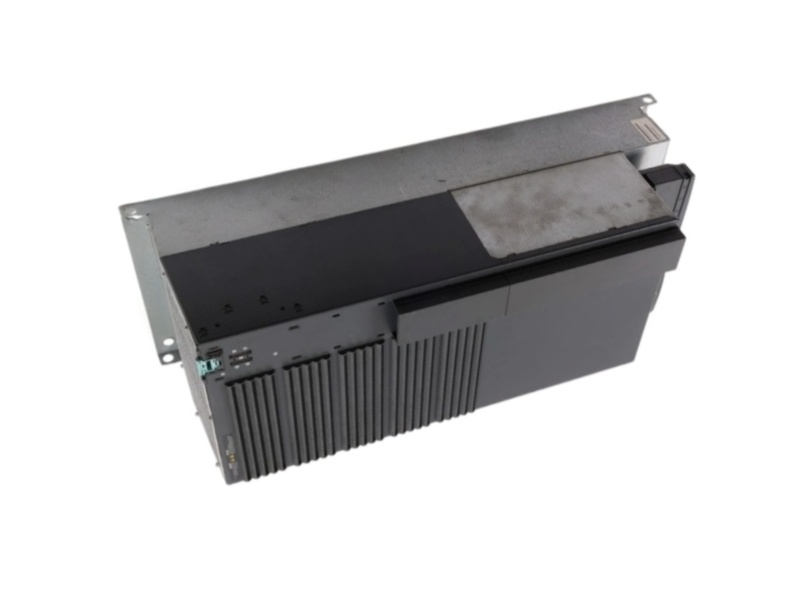

Siemens 6SL3224-0BE34-5AA0 SINAMICS G120 PM240 front view

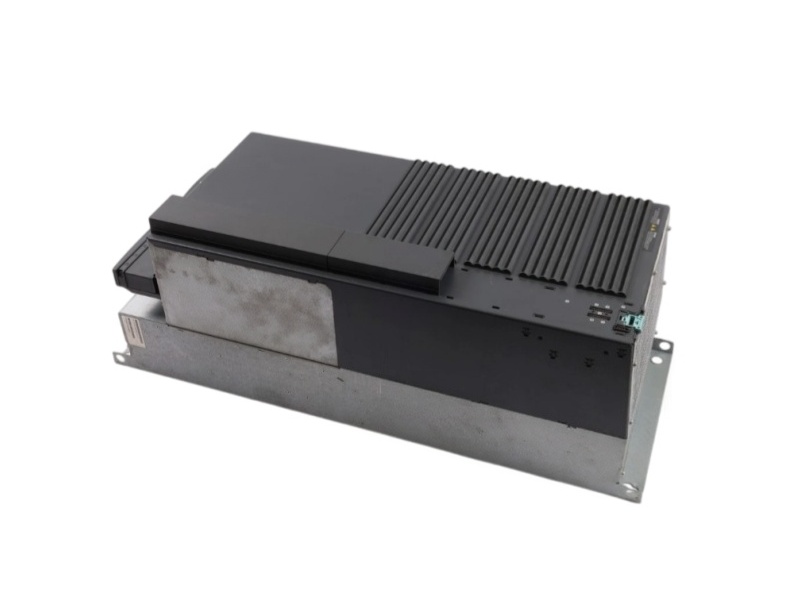

Siemens 6SL3224-0BE34-5AA0 SINAMICS G120 PM240 connection-side view

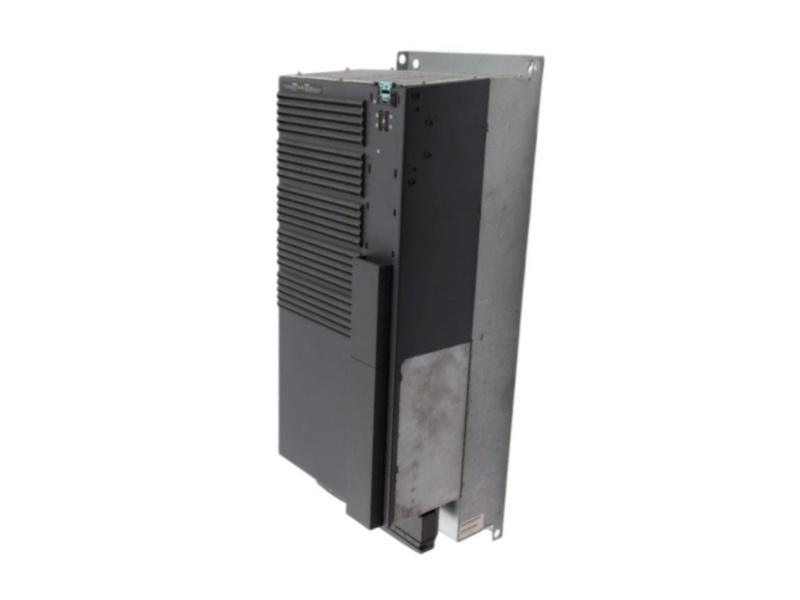

Siemens 6SL3224-0BE34-5AA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE34-5AA0 SINAMICS G120 PM240 Power Module 45 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE34-5AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 45 kW high-overload duty, 55 kW low-overload duty and an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
45 kWHigh-overload duty
HIGH OVERLOAD45 kW · 90 A
LOW OVERLOAD55 kW · 110 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSF · IP20
Phase-out announced; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE34-5AA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FILTERED DRIVE PROFILE

45 kW HO output with an integrated Class A EMC stage.

This filtered FSF PM240 combines 90 A HO and 110 A LO ratings with integrated braking chopper and 150 l/s internal cooling.
EXACT ARTICLE · FSF
6SL3224-0BE34-5AA0

Filtered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERClass A
COOLING AIRFLOW150 l/s
HO / LO CURRENT90 A / 110 A
BRAKING CHOPPERIntegrated
FRAMEFSF
PROTECTIONIP20
HIGH OVERLOAD
45 kW90 A output
→
LOW OVERLOAD
55 kW110 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERFiltered
ELECTRICAL
HO OUTPUT CURRENT90 A
LO OUTPUT CURRENT110 A
LINE TOLERANCE+10% / −10%
POWER LOSS1.42 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW150 l/s
COOLINGInternal air cooling
DIMENSIONS934 × 350 × 316 mm
NET WEIGHT52.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSF
COUNTRY OF ORIGINGermany
COMMODITY CODE85044095
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE34-5AA0 as a spare part with lifecycle status Product Cancellation. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
EMC & CABINET PATH

Coordinate the Class A filter with the cabinet design.

The filtered AA0 suffix, 150 l/s airflow and 129 A input without reactor define the main installation checks.
INSTALLATION BOUNDARY

Class A filtering is part of the exact order

6SL3224-0BE34-5AA0 includes a Class A line filter. Verify the installation EMC category, cable shielding, bonding and permitted cable length before replacement.

Power Module only · Control Unit and BOP not included
01

Confirm the exact suffix

The AA0 suffix identifies the filtered module; UA0 is the unfiltered counterpart and is not an automatic substitute.

02

Coordinate the supply

Input is 115 A with a line reactor and 129 A without one.

03

Match output current

Use 90 A HO or 110 A LO according to the machine duty.

04

Allow peak current

The documented maximum output current is 180 A.

THERMAL LOSS

Plan for 1.42 kW converter loss inside the installation.

MECHANICAL LOAD

The FSF module is 934 × 350 × 316 mm and 52.0 kg.

EMC & BRAKING

The Class A filter and braking chopper are integrated; confirm installation EMC limits and braking energy.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE34-5AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the key specifications of 6SL3224-0BE34-5AA0?

6SL3224-0BE34-5AA0 is a filtered FSF PM240 rated 45 kW / 90 A for high-overload duty and 55 kW / 110 A for low-overload duty. It uses 3 AC 380–480 V, 47–63 Hz input, supports 180 A maximum output, requires 150 l/s internal cooling and has an IP20 enclosure measuring 934 × 350 × 316 mm with a 52 kg net weight.

02
COMPATIBILITY

Which SINAMICS G120 systems are compatible with 6SL3224-0BE34-5AA0?

Compatibility for 6SL3224-0BE34-5AA0 requires a suitable SINAMICS G120 Control Unit, 3 AC 380–480 V mains, FSF mounting space, correct upstream protection and 150 l/s airflow. The integrated Class A filter must still be checked against the installation EMC category and cable limits. The Control Unit and BOP are not included.

03
APPLICATIONS

Which motor applications suit 6SL3224-0BE34-5AA0?

6SL3224-0BE34-5AA0 supports variable-speed three-phase motor applications requiring 45 kW high-overload performance or 55 kW low-overload performance. Selection must account for the 90/110 A duty currents, 180 A peak capability, 4 kHz pulse frequency, 0…50 °C HO / 0…40 °C LO operating range and the required braking method.

04
LIFECYCLE & SUPPLY

Is 6SL3224-0BE34-5AA0 discontinued, and can 6SL3224-0BE34-5AA0 still be supplied?

The official Siemens product page identifies 6SL3224-0BE34-5AA0 as a spare part with lifecycle status Product Cancellation. Current stock, condition, quantity, 2–3 day lead time and shipment date must be confirmed for each quotation.

05
REPLACEMENT

What must be checked before replacing 6SL3224-0BE34-5AA0?

Match the complete AA0 order number, filtered configuration, 45/55 kW duty ratings, 90/110 A outputs, 180 A maximum current, FSF dimensions, 52 kg weight, 150 l/s airflow, integrated braking chopper, line reactor, Control Unit and cabinet connections. The UA0 version is not an automatic substitute.

06
MANUAL & QUOTATION

Which manual is required for 6SL3224-0BE34-5AA0, and what information is needed for a quotation?

Use the Siemens SINAMICS G120 PM240 Hardware Installation Manual and the official data sheet for 6SL3224-0BE34-5AA0. A quotation request should include the complete model, quantity, destination, required date, nameplate photo, motor and load data, duty profile, Control Unit, line-reactor status, filter or EMC arrangement, braking details, motor-cable length and cabinet cooling.
