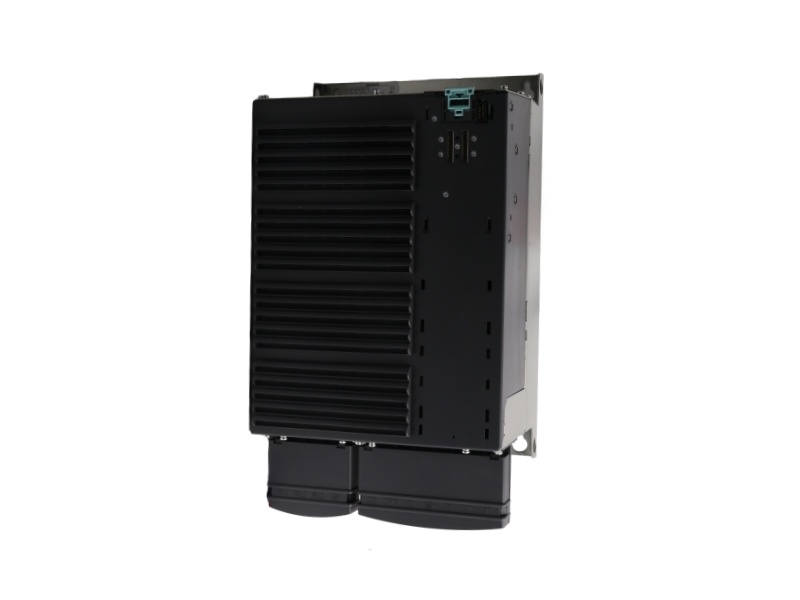

Siemens 6SL3224-0BE33-7UA0 SINAMICS G120 PM240 front view

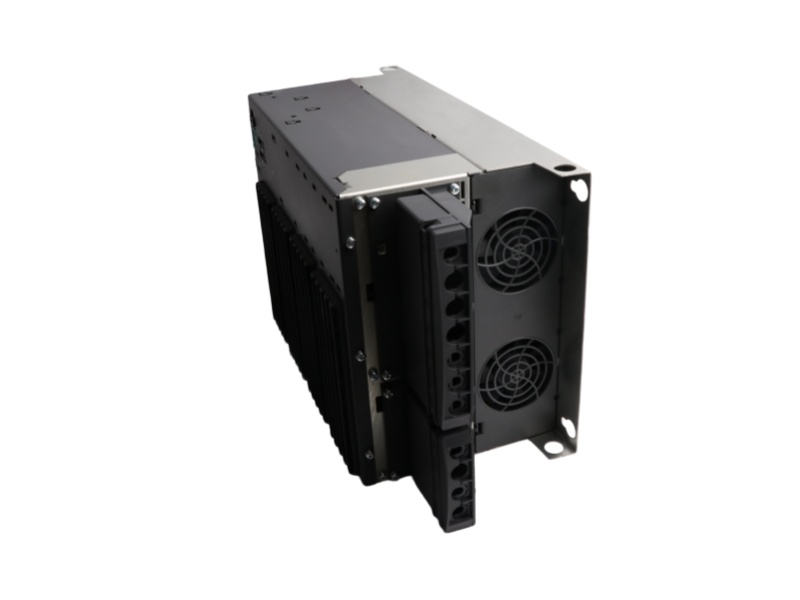

Siemens 6SL3224-0BE33-7UA0 SINAMICS G120 PM240 connection-side view

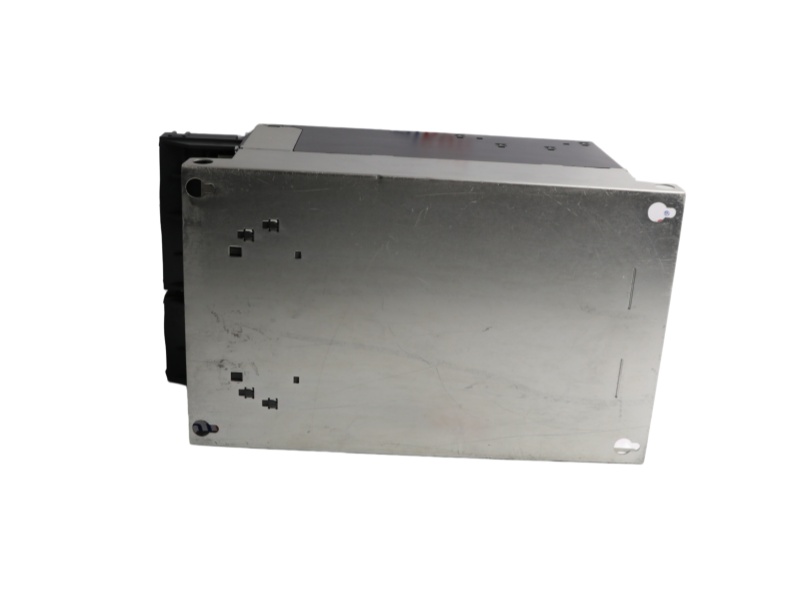

Siemens 6SL3224-0BE33-7UA0 SINAMICS G120 PM240 enclosure side view

Siemens 6SL3224-0BE33-7UA0 SINAMICS G120 PM240 Power Module 37 kW

SIEMENS · SINAMICS G120 · PM240
6SL3224-0BE33-7UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 37 kW high-overload duty, 45 kW low-overload duty and an integrated braking chopper.

OFFICIAL STATUS · SPARE PART
37 kWHigh-overload duty
HIGH OVERLOAD37 kW · 75 A
LOW OVERLOAD45 kW · 90 A
LINE INPUT3 AC 380–480 V
FRAME / PROTECTIONFSE · IP20
Phase-out announced; supplied as a spare part. Exact article verification is required.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE33-7UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
UNFILTERED DRIVE PROFILE

37 kW HO output with an external EMC path.

This unfiltered FSE PM240 combines 75 A HO and 90 A LO ratings with an integrated braking chopper and 110 l/s internal cooling.
EXACT ARTICLE · FSE
6SL3224-0BE33-7UA0

Unfiltered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units.

INSTALLATION SNAPSHOT
EMC FILTERUnfiltered
COOLING AIRFLOW110 l/s
HO / LO CURRENT75 A / 90 A
BRAKING CHOPPERIntegrated
FRAMEFSE
PROTECTIONIP20
HIGH OVERLOAD
37 kW75 A output
→
LOW OVERLOAD
45 kW90 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT75 A
LO OUTPUT CURRENT90 A
LINE TOLERANCE+10% / −10%
POWER LOSS1.21 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW110 l/s
COOLINGInternal air cooling
DIMENSIONS497 × 275 × 204 mm
NET WEIGHT16.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSE
COUNTRY OF ORIGINGermany
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens identifies 6SL3224-0BE33-7UA0 as a spare part with lifecycle status Phase Out Announce. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
EMC & CABINET PATH

Plan the external EMC path before cabinet work.

The unfiltered UA0 suffix, 110 l/s airflow and 105 A input without reactor define the main installation checks.
INSTALLATION BOUNDARY

Unfiltered means the EMC path is external

6SL3224-0BE33-7UA0 has no integrated line filter. Verify any required external EMC filter, cable shielding, bonding and cabinet arrangement before replacement.

Power Module only · Control Unit and BOP not included
01

Confirm the exact suffix

The UA0 suffix identifies the unfiltered module; AA0 is the filtered counterpart and is not an automatic substitute.

02

Coordinate the supply

Input is 94 A with a line reactor and 105 A without one.

03

Match output current

Use 75 A HO or 90 A LO according to the machine duty.

04

Allow peak current

The documented maximum output current is 150 A.

THERMAL LOSS

Plan for 1.21 kW converter loss inside the installation.

MECHANICAL LOAD

The FSE module is 497 × 275 × 204 mm and 16.0 kg.

EMC & BRAKING

The braking chopper is integrated; external EMC measures depend on the installation.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE33-7UA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the key specifications of 6SL3224-0BE33-7UA0?

6SL3224-0BE33-7UA0 is an unfiltered FSE PM240 rated 37 kW / 75 A for high-overload duty and 45 kW / 90 A for low-overload duty. The module uses 3 AC 380–480 V, 47–63 Hz input, supports 150 A maximum output, requires 110 l/s internal cooling and has an IP20 enclosure measuring 497 × 275 × 204 mm with a 16 kg net weight.

02
COMPATIBILITY

Which SINAMICS G120 systems are compatible with 6SL3224-0BE33-7UA0?

Compatibility requires a suitable SINAMICS G120 Control Unit, 3 AC 380–480 V mains, FSE mounting space, the correct upstream protection and adequate cooling. The UA0 suffix identifies an unfiltered PM240, so any required external EMC filter, cable shielding and bonding must be reviewed; the Control Unit and BOP are not included.

03
APPLICATIONS

Which motor applications suit 6SL3224-0BE33-7UA0?

6SL3224-0BE33-7UA0 supports variable-speed three-phase motor applications requiring 37 kW high-overload performance or 45 kW low-overload performance. High-inertia, cyclic or fast-deceleration duties require checks of peak current, braking energy, duty cycle, motor cable length and cabinet temperature.

04
LIFECYCLE & SUPPLY

Is 6SL3224-0BE33-7UA0 discontinued, and can 6SL3224-0BE33-7UA0 still be supplied?

The Siemens product page identifies 6SL3224-0BE33-7UA0 as a spare part with lifecycle status Phase Out Announce. Current availability, condition, quantity, lead time and shipment date require confirmation for every order.

05
REPLACEMENT

What must be checked before replacing 6SL3224-0BE33-7UA0?

Match the complete UA0 order number, unfiltered configuration, 37/45 kW duty ratings, 75/90 A output, 150 A maximum current, FSE dimensions, 16 kg weight, 110 l/s airflow, braking chopper, line reactor, Control Unit, external EMC arrangement and cabinet connections. The filtered AA0 version is not an automatic substitute.

06
MANUAL & QUOTATION

Which manual is required for 6SL3224-0BE33-7UA0, and what information is needed for a quotation?

Use the Siemens SINAMICS G120 PM240 Hardware Installation Manual and the official data sheet for 6SL3224-0BE33-7UA0. A quotation request should include the complete model, quantity, destination, required date, nameplate photo, motor and load data, duty profile, Control Unit, line-reactor status, external filter or EMC arrangement, cable details and cabinet cooling.
