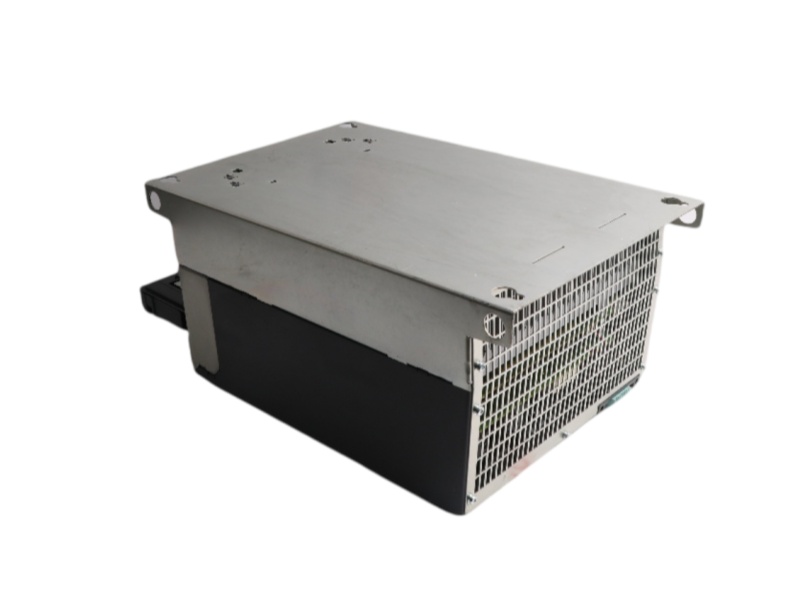

Siemens 6SL3224-0BE33-7AA0 SINAMICS G120 PM240 front view

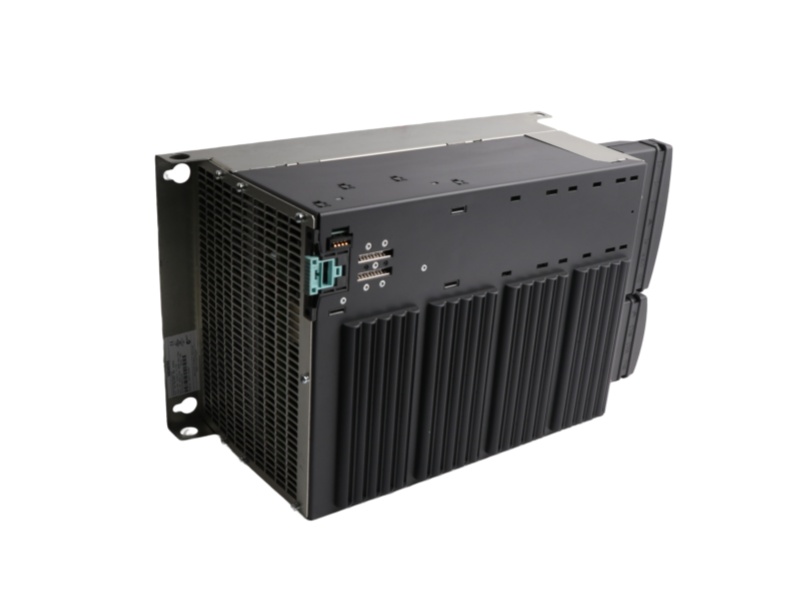

Siemens 6SL3224-0BE33-7AA0 SINAMICS G120 PM240 alternate view

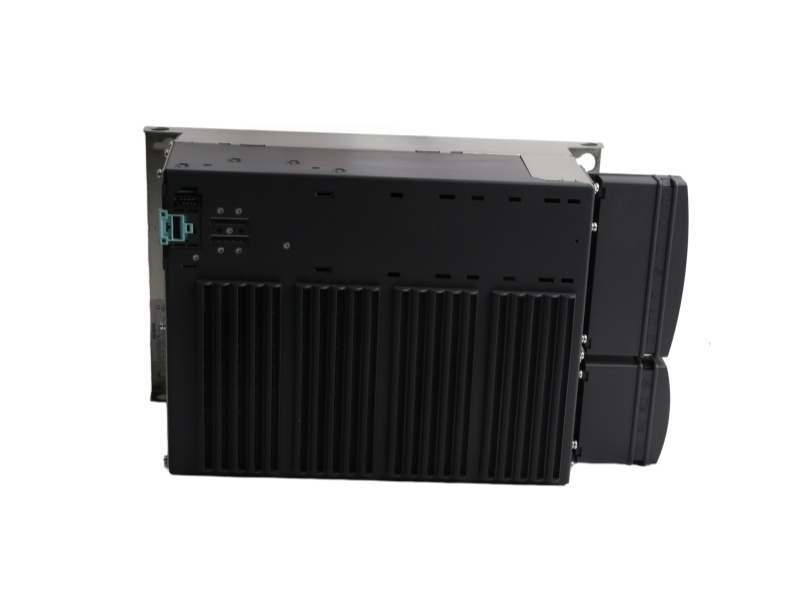

Siemens 6SL3224-0BE33-7AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE33-7AA0 SINAMICS G120 PM240 Power Module 37 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE33-7AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 37 kW high-overload duty, 45 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
37 kW · 75 A
LOW OVERLOAD
45 kW · 90 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSE · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE33-7AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
HIGH-AIRFLOW PROFILE

The 37 kW HO FSE step with 110 l/s cooling demand.

This filtered PM240 article reaches 75 A HO and 90 A LO and doubles documented airflow versus the lower FSE rating.
EXACT ARTICLE · FSE
6SL3224-0BE33-7AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD37 kW75 A output
LOW OVERLOAD45 kW90 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT75 A
LO OUTPUT CURRENT90 A
LINE TOLERANCE+10% / −10%
POWER LOSS1.21 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW110 l/s
COOLINGInternal air cooling
DIMENSIONS635 × 275 × 204 mm
NET WEIGHT23.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSE
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE33-7AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
COOLING & SUPPLY

Make airflow the first acceptance check at 37 kW HO.

The 110 l/s requirement and 105 A input without reactor set clear cabinet and upstream boundaries.
ORDERING BOUNDARY

Cooling capacity is part of compatibility

Verify fan path, clean-air volume and exhaust clearance before fitting the 635 mm FSE module into an existing panel.

Power Module only · Control Unit and BOP not included
01

Measure available airflow

The official requirement is 110 l/s, not the 110 l/s used by lower ratings.

02

Coordinate the supply

Input is 94 A with a line reactor and 105 A without one.

03

Match output current

Use 75 A HO or 90 A LO according to the machine duty.

04

Allow peak current

The documented maximum output current is 150 A.

THERMAL LOSS

Plan for 1.21 kW converter loss inside the installation.

MECHANICAL LOAD

The FSE module is 635 × 275 × 204 mm and 23.0 kg.

FILTER & BRAKING

Class A filtering and the braking chopper are integrated.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE33-7AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the principal ratings of 6SL3224-0BE33-7AA0?

This filtered FSE PM240 delivers 37 kW / 75 A for high-overload duty and 45 kW / 90 A for low-overload duty. The documented maximum output is 150 A, with 110 l/s internal cooling airflow.


02

What system checks confirm compatibility at this power level?

Confirm the compatible G120 Control Unit, 3 AC 380–480 V mains, FSE mounting, AA0 Class A filter, upstream devices, motor conductors, braking arrangement and the full 110 l/s cooling capacity.

03

Which applications can use the 37 kW high-overload PM240?

It serves variable-speed motors requiring 75 A HO performance or suitable 90 A LO operation. High-inertia or cyclic machines need a review of acceleration, braking energy, peak current and cabinet temperature.

04

What is the ordering status of 6SL3224-0BE33-7AA0?

Siemens records cancellation effective 1 October 2019 and identifies the reference as a spare part. Availability, condition, quantity and shipment timing must be reconfirmed for every order.

05

Which differences matter when replacing the highest listed FSE rating?

Match the 75/90 A output, 150 A maximum, 94 A input with reactor or 105 A without, 1.21 kW loss, 110 l/s airflow, Class A filter, 23 kg frame, Control Unit and cabinet connections.

06

What documentation supports installation, and what should the quotation request contain?

Request the PM240 hardware manual and Siemens sheet for 6SL3224-0BE33-7AA0. Include exact model, quantity, destination, required date, nameplate, motor and load data, reactor status, Control Unit, enclosure cooling and cable information.
