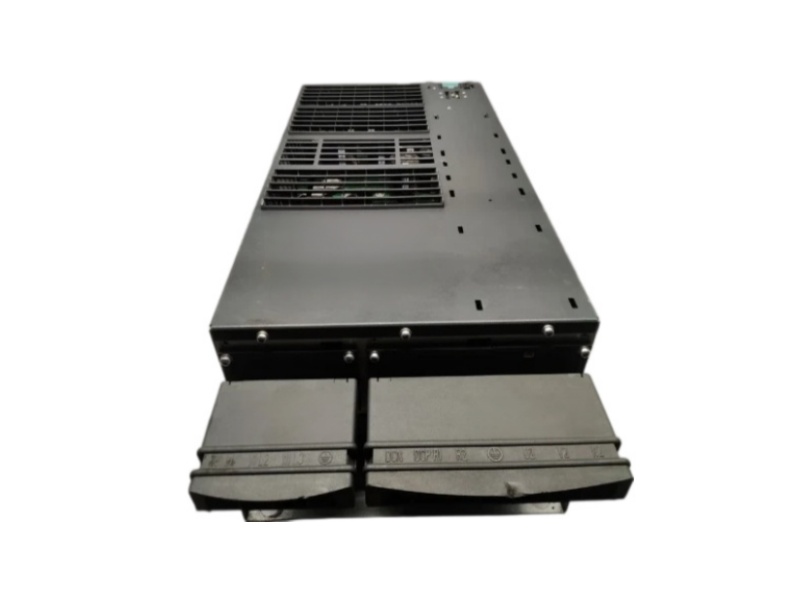

Siemens 6SL3224-0BE33-0AA0 SINAMICS G120 PM240 front view

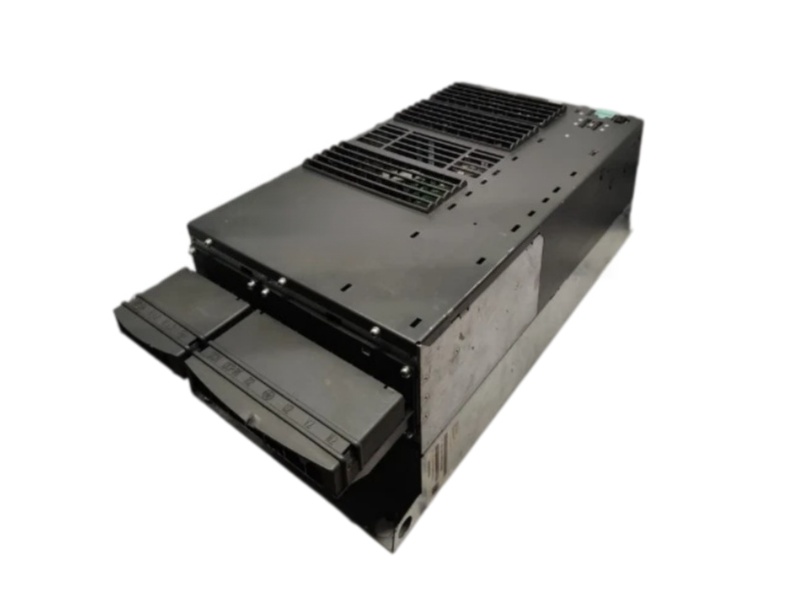

Siemens 6SL3224-0BE33-0AA0 SINAMICS G120 PM240 alternate view

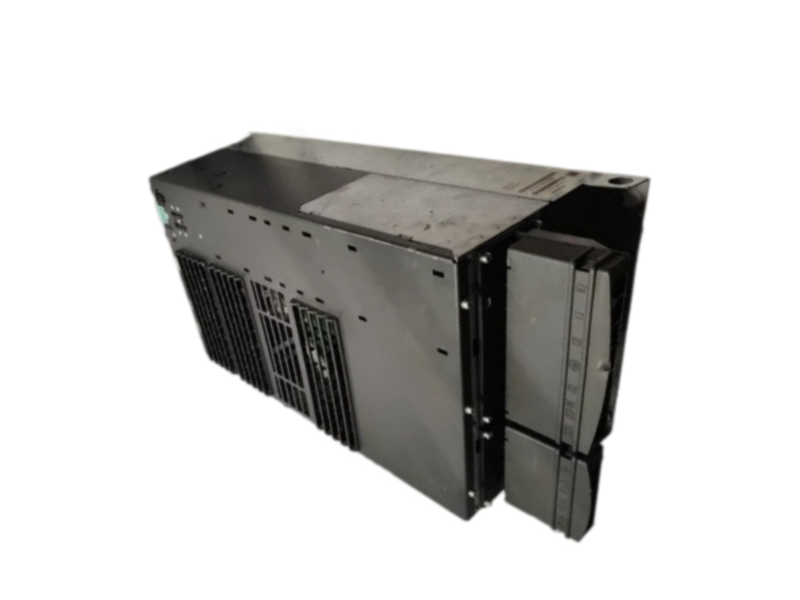

Siemens 6SL3224-0BE33-0AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE33-0AA0 SINAMICS G120 PM240 Power Module 30 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE33-0AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 30 kW high-overload duty, 37 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
30 kW · 60 A
LOW OVERLOAD
37 kW · 75 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSE · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE33-0AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FSE THERMAL PROFILE

Thirty kilowatts HO in the taller 635 mm FSE enclosure.

The filtered FSE article delivers 60 A HO and 75 A LO while raising official converter loss to 0.99 kW.
EXACT ARTICLE · FSE
6SL3224-0BE33-0AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD30 kW60 A output
LOW OVERLOAD37 kW75 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT60 A
LO OUTPUT CURRENT75 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.99 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS635 × 275 × 204 mm
NET WEIGHT23.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSE
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE33-0AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
FRAME & LINE CURRENT

Plan the taller frame and 88 A no-reactor input together.

FSE mounting, power conductors and heat rejection must be reviewed as one cabinet change.
ORDERING BOUNDARY

The FSE step changes mechanical and electrical demands

Reserve 635 × 275 × 204 mm, support 23.0 kg and verify upstream equipment against the documented reactor condition.

Power Module only · Control Unit and BOP not included
01

Confirm vertical clearance

Allow the full 635 mm FSE height plus cooling and service space.

02

Record reactor status

Input rating is 78 A with a line reactor or 88 A without one.

03

Size the output path

Use 60 A HO or 75 A LO with the corresponding overload cycle.

04

Review enclosure heat

Include 0.99 kW converter loss in cabinet thermal calculations.

CONNECTION RANGE

M6 power terminals accept 10–50 mm² conductors.

AIRFLOW

Siemens specifies 55 l/s internal cooling for this article.

PROTECTION

The enclosure is IP20 / UL open type.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE33-0AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What specifications define 6SL3224-0BE33-0AA0?

The Class A filtered FSE power module provides 30 kW / 60 A in high-overload duty and 37 kW / 75 A in low-overload duty. Its IP20 enclosure measures 635 × 275 × 204 mm and weighs 23.0 kg.


02

How do I check compatibility with an existing high-power G120 cabinet?

Verify the SINAMICS G120 Control Unit, FSE mounting and support, 3 AC 380–480 V supply, M6 conductors, reactor arrangement, Class A filtering and cabinet heat removal.

03

What applications fit the 30 kW HO / 37 kW LO power step?

Use the 60 A HO profile for machinery with demanding cyclic overloads and the 75 A LO profile for suitable continuous variable-speed loads with lower overload requirements. Confirm motor and braking energy first.

04

Is 6SL3224-0BE33-0AA0 still manufactured?

Siemens shows this exact article as cancelled effective 1 October 2019 and handled as a spare part. Project schedules should use a verified stock and dispatch commitment rather than assuming factory production.

05

What must be validated before replacing the FSE module?

Check the complete order code, 60/75 A duty currents, 635 mm frame height, 23 kg load, 0.99 kW loss, 55 l/s airflow, input current, Class A filter, Control Unit and power connections.

06

Which manual and technical details are needed for an inquiry?

Use the Siemens PM240 hardware installation manual plus the 6SL3224-0BE33-0AA0 model data sheet. Provide quantity, destination, target date, nameplate, motor ratings, load profile, line reactor, Control Unit, panel dimensions and cooling information.
