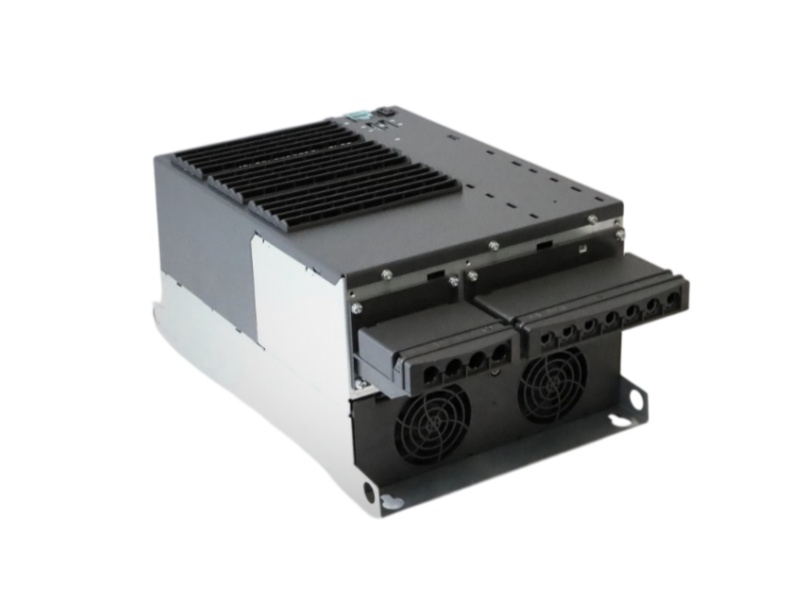

Siemens 6SL3224-0BE32-2AA0 SINAMICS G120 PM240 front view

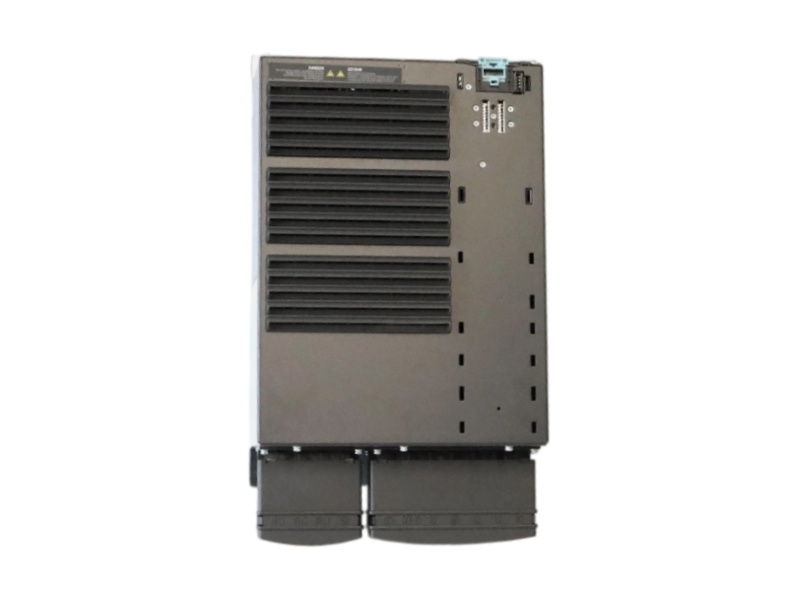

Siemens 6SL3224-0BE32-2AA0 SINAMICS G120 PM240 alternate view

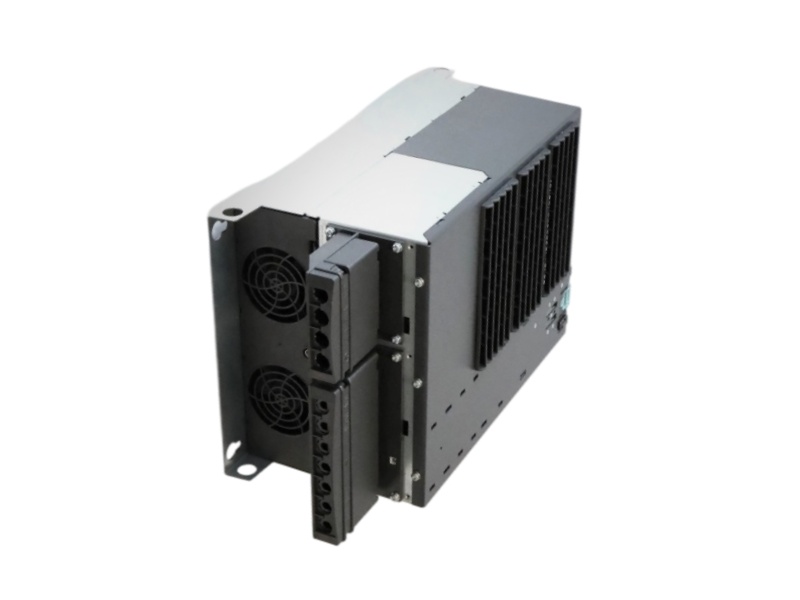

Siemens 6SL3224-0BE32-2AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE32-2AA0 SINAMICS G120 PM240 Power Module 22 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE32-2AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 22 kW high-overload duty, 30 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
22 kW · 45 A
LOW OVERLOAD
30 kW · 60 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSD · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE32-2AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
LOAD-RANGE PROFILE

A 22 kW HO module with 30 kW low-overload capacity.

The AA0 FSD article spans 45 A HO to 60 A LO and integrates both Class A filtering and braking chopper.
EXACT ARTICLE · FSD
6SL3224-0BE32-2AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD22 kW45 A output
LOW OVERLOAD30 kW60 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT45 A
LO OUTPUT CURRENT60 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.69 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS512 × 275 × 204 mm
NET WEIGHT16.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSD
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE32-2AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
MOTOR & PROTECTION

Size the 60 A low-overload path before procurement.

The wide HO/LO current gap makes duty classification essential for motor and upstream-device coordination.
ORDERING BOUNDARY

Start with the real load cycle

Record running current, acceleration demand and short overloads before choosing the 22 kW HO or 30 kW LO basis.

Power Module only · Control Unit and BOP not included
01

Capture motor current

Compare the nameplate and measured load with 45 A HO and 60 A LO ratings.

02

Coordinate input devices

Use 63 A input with a line reactor or 72 A without one in the upstream review.

03

Check overload timing

HO permits 200% for 3 s; LO permits 150% for 3 s in the documented cycle.

04

Confirm cabinet heat

Allow for 0.69 kW loss and 55 l/s internal airflow.

MAX OUTPUT

The official maximum output current is 90 A.

FRAME DATA

FSD measures 512 × 275 × 204 mm and weighs 16.0 kg.

EMC FUNCTION

The exact AA0 article carries an integrated Class A filter.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE32-2AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the HO and LO specifications of 6SL3224-0BE32-2AA0?

This filtered FSD PM240 is rated 22 kW / 45 A for high-overload duty and 30 kW / 60 A for low-overload duty. It accepts 3 AC 380–480 V, 47–63 Hz and includes a braking chopper.


02

Which compatibility points matter at the 60 A output level?

Confirm a compatible SINAMICS G120 Control Unit, the AA0 filtered configuration, FSD installation, upstream protection, line-reactor condition, motor conductors and 55 l/s cooling path.

03

When should an application use 22 kW HO instead of 30 kW LO?

Choose 45 A HO for loads requiring the documented stronger overload cycle; use 60 A LO only where the machine has lighter overload demand. Base the decision on measured current, acceleration and peak-torque requirements.

04

What does Siemens report for 6SL3224-0BE32-2AA0 supply status?

The official lifecycle identifies cancellation from 1 October 2019 and classifies the product as a spare part. Request a current check for stock, condition, revision and delivery schedule.

05

What information is critical when sourcing a replacement?

Match the full AA0 code, 22/30 kW duty, 45/60 A output, Class A filter, FSD dimensions, maximum current, reactor-dependent input, thermal loss, Control Unit and panel wiring.

06

Where are installation instructions found, and how should I request a quote?

Refer to the SINAMICS G120 PM240 hardware manual and exact 6SL3224-0BE32-2AA0 data sheet. Send quantity, delivery country, required date, nameplate, motor/load current, duty cycle, reactor status, Control Unit and cabinet data.
