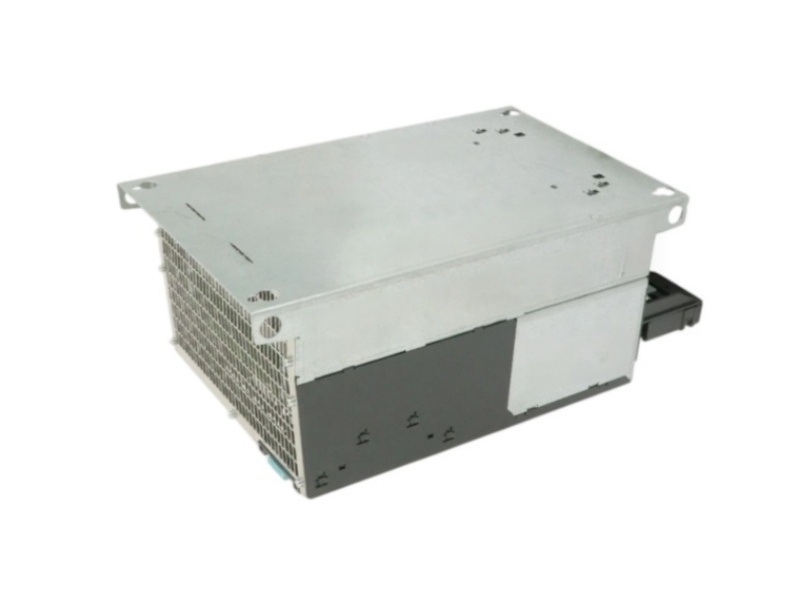

Siemens 6SL3224-0BE31-8AA0 SINAMICS G120 PM240 front view

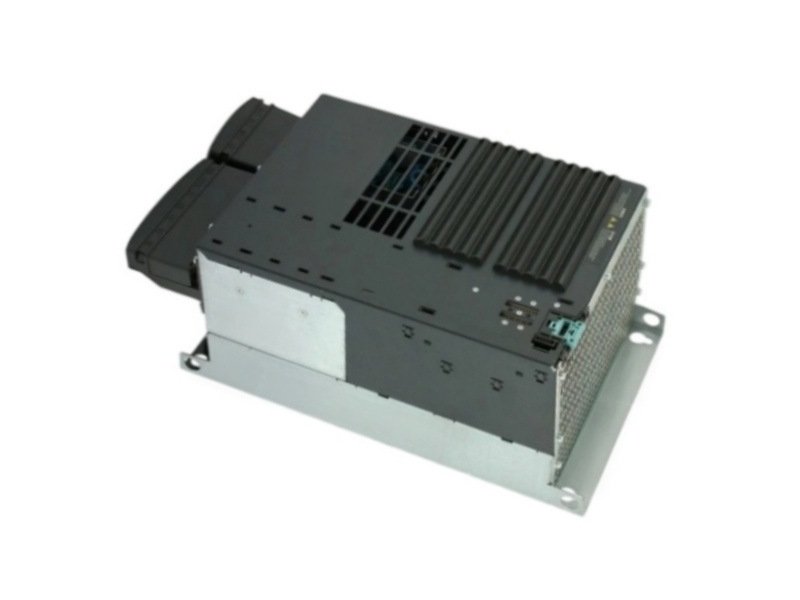

Siemens 6SL3224-0BE31-8AA0 SINAMICS G120 PM240 alternate view

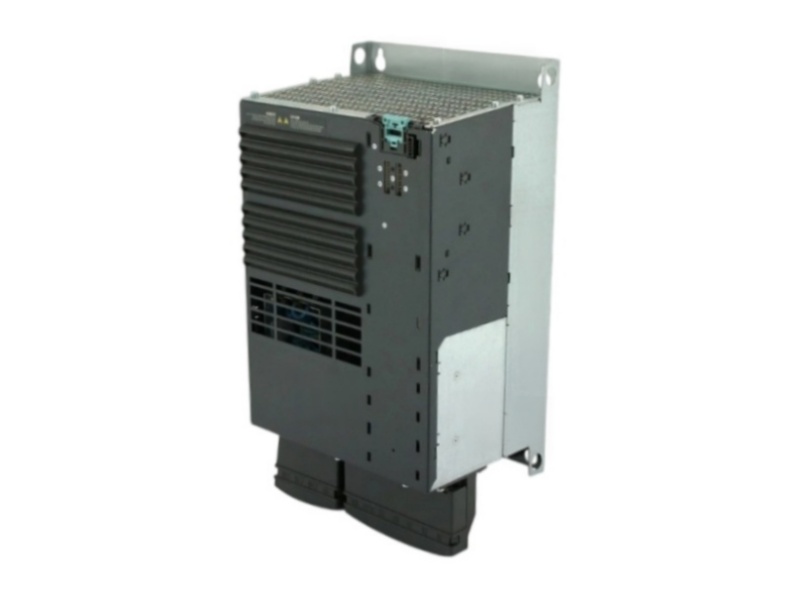

Siemens 6SL3224-0BE31-8AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE31-8AA0 SINAMICS G120 PM240 Power Module 18.5 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE31-8AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 18.5 kW high-overload duty, 22 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
18.5 kW · 38 A
LOW OVERLOAD
22 kW · 45 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSD · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE31-8AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FSD OUTPUT PROFILE

Eighteen-point-five kilowatts HO with 45 A low-overload output.

This filtered FSD article extends the PM240 range to 22 kW LO while retaining the 512 mm enclosure.
EXACT ARTICLE · FSD
6SL3224-0BE31-8AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD18.5 kW38 A output
LOW OVERLOAD22 kW45 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT38 A
LO OUTPUT CURRENT45 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.52 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS512 × 275 × 204 mm
NET WEIGHT16.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSD
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE31-8AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
CABLE & OUTPUT PATH

Coordinate cable length with the 38/45 A output stage.

Output frequency, motor cable and filter limits belong in the same replacement review.
ORDERING BOUNDARY

Cable design can decide whether the module fits

Preserve the installed shield strategy and remain within the official 50 m shielded or 100 m unshielded motor-cable limits.

Power Module only · Control Unit and BOP not included
01

Classify the motor cable

Record length, shielding, routing and termination at both ends.

02

Select output duty

Apply 38 A HO or 45 A LO according to the actual overload cycle.

03

Check control range

Vector control is documented to 200 Hz; V/f control to 550 Hz.

04

Verify FSD cooling

Maintain 55 l/s airflow around the 512 × 275 × 204 mm frame.

MAXIMUM OUTPUT

The official maximum output current is 76 A.

INPUT COORDINATION

Rated input is 47 A with reactor and 53 A without one.

EFFICIENCY

Siemens specifies 0.97 efficiency for the basic converter.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE31-8AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What output ratings are available from 6SL3224-0BE31-8AA0?

The filtered FSD PM240 supplies 18.5 kW / 38 A for high-overload duty and 22 kW / 45 A for low-overload duty. It operates on 3 AC 380–480 V, 47–63 Hz and uses an IP20 enclosure.


02

How can I confirm this module matches my G120 system?

Check the installed SINAMICS G120 Control Unit, AA0 Class A filtering, FSD mounting, motor cable, output current and cabinet cooling. The module does not include a Control Unit or BOP.

03

Which loads suit the 18.5 kW high-overload configuration?

The 38 A HO setting supports drives with more demanding acceleration or cyclic overloads; the 45 A LO setting is for suitable lower-overload operation. Cable length and control mode must remain within Siemens limits.

04

Is 6SL3224-0BE31-8AA0 discontinued or currently available?

Siemens lists cancellation effective 1 October 2019 and spare-part status for this article. Current availability is not established by lifecycle status alone and must be checked at the time of inquiry.

05

What should a replacement review include for this FSD rating?

Compare 38/45 A duty currents, integrated Class A filter, 512 × 275 × 204 mm frame, 16 kg mass, input/reactor condition, motor cable length, braking chopper, airflow and Control Unit.

06

Which Siemens manual should I use, and what belongs in the RFQ?

Use the PM240 hardware installation manual with the 6SL3224-0BE31-8AA0 technical sheet. Send the exact SKU, quantity, ship-to destination, required date, motor nameplate, cable length, duty cycle, Control Unit and enclosure photos.
